This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Toyota Sequoia (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 500 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 6,500 lbs. WD and 650 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Toyota Sequoia (factory tow package required; to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2001 - 2002 | Toyota Sequoia | — |
The 01 - 02 Toyota Sequoia Curt 2" Class 3 Trailer Tow Hitch + REPL Wiring Kit 13440 (Part #5W-CHW-2934) fits 2001-2002 Toyota Sequoia models. The 2002 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 01 - 02 Toyota Sequoia Curt 2" Class 3 Trailer Tow Hitch + REPL Wiring Kit 13440 (Part #5W-CHW-2934) is designed to fit the 2001-2002 Toyota Sequoia.
The 01 - 02 Toyota Sequoia Curt 2" Class 3 Trailer Tow Hitch + REPL Wiring Kit 13440 (Part #5W-CHW-2934) fits the following vehicles: 2001-2002 Toyota Sequoia. Always verify your specific year, make, and model before ordering.
The 01 - 02 Toyota Sequoia Curt 2" Class 3 Trailer Tow Hitch + REPL Wiring Kit 13440 (Part #5W-CHW-2934) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 13440 is a receiver hitch manufactured by Curt Manufacturing designed for 2001–2007 Toyota Sequoia models. It is a weight-carrying hitch with a gross load capacity and tongue weight rating (specific values should be confirmed with Curt Manufacturing as they are not fully legible in the manual). The hitch weighs 80 lbs.
Yes, part number 13440 is designed for 2001–2007 Toyota Sequoia models. If your Sequoia is outside this model year range, this hitch is not compatible.
The kit includes: 4 × 1/2-13 UNC Grade 8 hex head cap screws (HHCS), 3.5 inches long (part 10-10345); 4 × 1/2-13 UNC Grade 8 serrated flange nuts (part 20-00062); 4 × 0.250 × 1.50 × 2.00 inch square hole spacers (part CM-SP1); 6 × M12 × 1.25 Grade 10.9 hex head cap screws, 45 mm long (part 10-10331); and 6 × 1/2 inch S-CON washers (part 30-00149).
Yes. The first installation step is to lower the spare tire before raising the hitch into position. After the hitch is installed and all fasteners are tightened, the spare tire is raised back into position.
1. Lower the spare tire. 2. Raise the hitch into position, sliding the bumper mount under the fascia, and attach the side plate fasteners. 3. Install fasteners to the bumper mount with spacers on top of the bumper mount and tighten all fasteners. 4. Raise the spare tire into position. 5. Tighten all M12 fasteners to 86 lb-ft and all 1/2 fasteners to 110 lb-ft.
No. The manual explicitly states "NO DRILL", meaning no drilling is required for this installation.
Tighten all M12 fasteners to 86 lb-ft. Tighten all 1/2 inch fasteners to 110 lb-ft. These torque values apply to the final tightening step after all fasteners have been initially installed and tightened.
Do not exceed your vehicle manufacturer's recommended towing capacity. The manual states that Curt hitch 13440 has a gross load capacity when used as a weight-carrying hitch and when used as a weight-distribution hitch, but the specific values are not legible in the provided manual. Contact Curt Manufacturing technical support at 1-877-287-8634 to confirm the exact capacity for your vehicle.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval, but regular inspection before towing is recommended.
Alteration to, misuse of, or improper installation of the hitch voids the warranty. Curt Manufacturing warrants the product to be free of defects in material and workmanship at the time of retail purchase. If the product is found to be defective, Curt may repair or replace it at their option when returned prepaid with proof of purchase. Liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
Yes, if your Sequoia is a 2001–2007 model year. This hitch is not compatible with other model years or vehicles.
Yes, lower the spare tire before installation and raise it back after all fasteners are tightened.
No, this is a no-drill installation.
Tighten M12 fasteners to 86 lb-ft and 1/2 inch fasteners to 110 lb-ft.
The kit includes 4 × 1/2-13 hex head cap screws, 4 × 1/2-13 serrated flange nuts, 4 square hole spacers, 6 × M12 hex head cap screws, and 6 × 1/2 inch washers.
Do not exceed your vehicle manufacturer's recommended towing capacity. Contact Curt Manufacturing at 1-877-287-8634 for the specific capacity rating of this hitch.

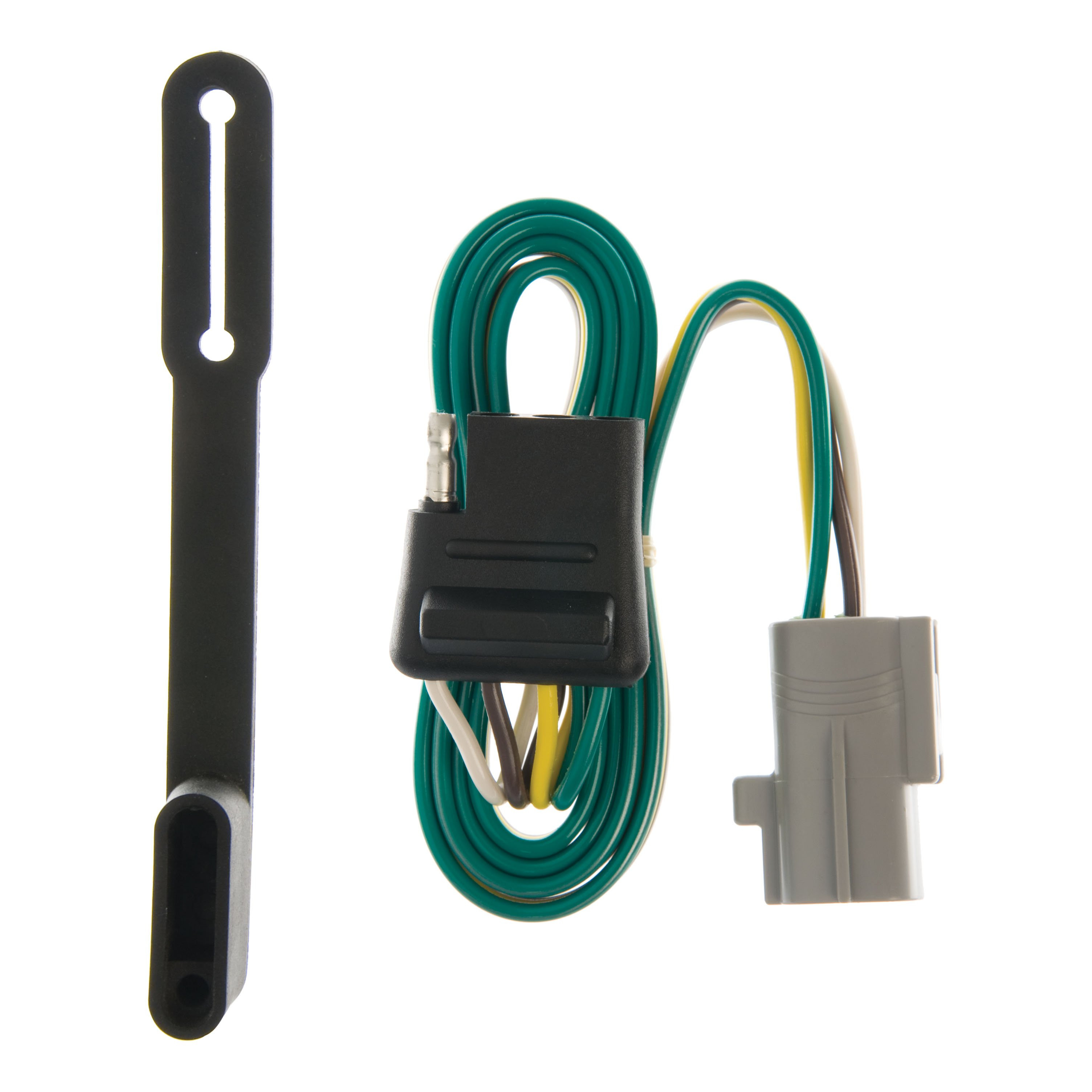

Yes, Curt part 55246 is designed for the Toyota Sequoia. The installation uses the vehicle's factory tow harness connector located on the passenger side behind the bumper.
The factory tow harness connector is located on the passenger side of the vehicle, behind the bumper.
1. Locate the vehicle's factory tow harness connector on the passenger side behind the bumper. 2. Remove the connector's protective cap, being careful not to damage the locking tabs. 3. Insert the tow harness connector into the vehicle's connector, ensuring both connectors are fully inserted with locking tabs in place.
Route the 4-flat connector to the center of the vehicle and secure it in a convenient, out-of-the-way location using the cable ties provided with the product.
Before drilling, verify that there are no miscellaneous items hidden behind or under any surface where you plan to drill. This prevents damage to hidden components and personal injury.
Curt 55246 is designed for the Toyota Sequoia and connects to the factory tow harness connector on the passenger side behind the bumper.
The manual does not specify required tools. Cable ties are provided for securing the 4-flat connector.
