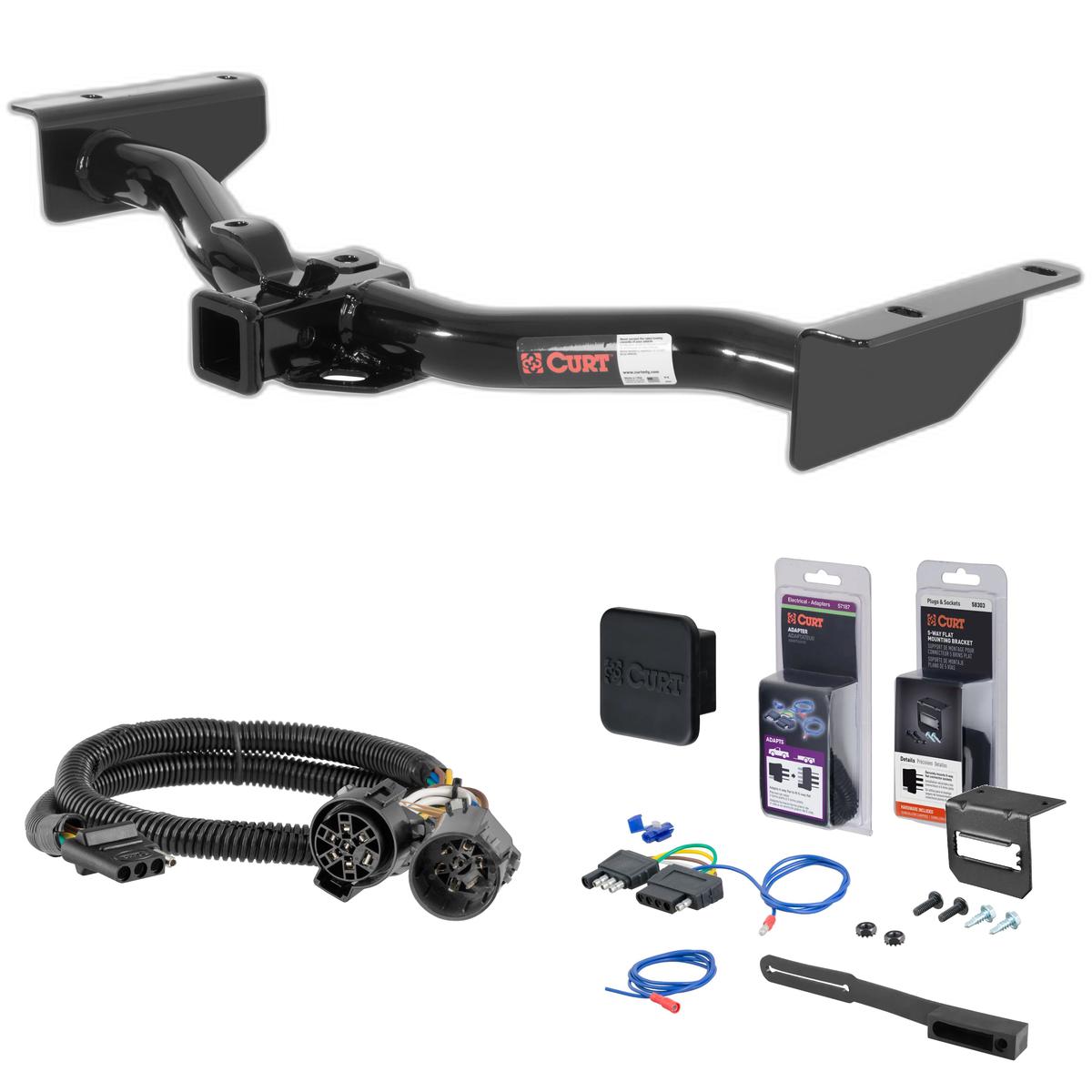

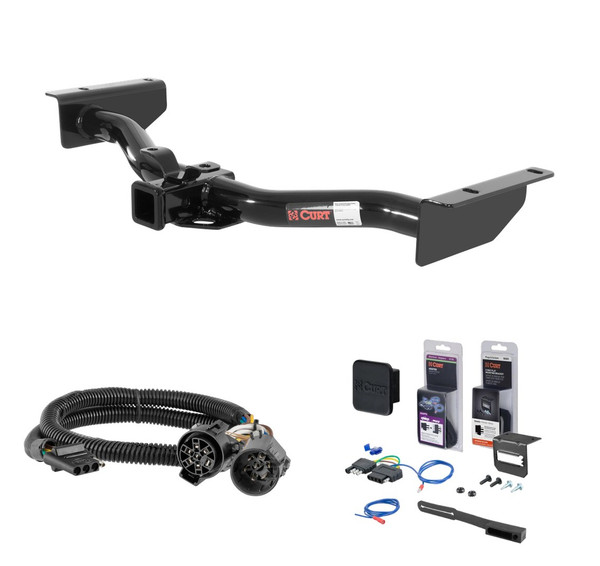

Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2003 - 2006 Cadillac Escalade ESV. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Cadillac Escalade, Chevy Avalanche, Chevy Suburban, Chevy Tahoe and GMC Yukon (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 600 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 10,000 lbs. WD and 1,000 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it. CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Though this special socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular connector provides a 4-way flat socket while retaining use of the existing OEM socket. It is designed to be a custom wiring option for a variety of vehicles (see application info to verify fitment with your vehicle). It comes with a dust cover to keep the connector socket clean when not in use.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494The 03 - 06 Cadillac Escalade ESV Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13422-1 (Part #5W-CHW-241) fits the following vehicles: 2003-2006 Cadillac Escalade ESV. Always verify your specific year, make, and model before ordering.
The 03 - 06 Cadillac Escalade ESV Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13422-1 (Part #5W-CHW-241) fits 2003-2006 Cadillac Escalade ESV models. The 2006 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 03 - 06 Cadillac Escalade ESV Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13422-1 (Part #5W-CHW-241) is designed to fit the 2003-2006 Cadillac Escalade ESV.
The 03 - 06 Cadillac Escalade ESV Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13422-1 (Part #5W-CHW-241) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 13422 is designed for 2003–2006 Cadillac Escalade, Suburban, Yukon, and Tahoe models. However, it excludes models with a canister on the passenger side frame rail. Check your vehicle's passenger side frame rail before purchasing to confirm there is no canister present.
Yes, Curt part number 13422 is compatible with 2003–2006 Chevy Avalanche models, provided the vehicle does not have a canister on the passenger side frame rail.
This hitch cannot be installed on vehicles that have a canister-shaped component mounted on the passenger side frame rail, as it would interfere with the installation. Before purchasing, inspect your vehicle's passenger side frame rail to confirm no canister is present.
The kit includes: 2 square hole spacers (CM-SP1, 0.250 × 1.50 × 2.00 inches), 2 serrated flange nuts (1/2-13 UNC, Grade 8), 4 M14×2 hex head cap screws (40 mm, Class 10.9), 4 washers (9/16 inch, S-CON), and 2 carriage bolts (1/2-13 UNC, 1-3/4 inch, Grade 8). The existing M14 bumper bracket bolts on your vehicle are reused.
No. The manual states 'NO DRILLING REQ.' The hitch uses existing weldnuts on the frame and existing M14 bumper bracket bolt holes, so no drilling is required.
1. Remove the existing M14 bumper bracket bolts from the bottom surface of the frame on both sides and return them to the vehicle owner. 2. Raise the hitch into position and install the fasteners as shown in the diagram. 3. Torque all 1/2-inch fasteners to 110 lb.-ft. and all M14 fasteners to 126 lb.-ft. Fasteners are typical on both sides.
All 1/2-inch fasteners must be torqued to 110 lb.-ft.
All M14 fasteners must be torqued to 126 lb.-ft.
The manual lists gross load capacity specifications for both weight-carrying and weight-distribution modes, but the specific values are blank in this document. Contact Curt Manufacturing or your vehicle's manufacturer for the exact capacity ratings. Regardless of the hitch capacity, you must not exceed your vehicle manufacturer's recommended towing capacity.
No. The manual explicitly states: 'DO NOT EXCEED VEHICLE MANUFACTURER'S RECOMMENDED TOWING CAPACITY.' Even if the hitch has a higher capacity rating, you must follow your vehicle manufacturer's limits.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval, so inspect it before each towing trip and at regular maintenance intervals.
Curt Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, Curt may repair or replace the product at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation. Curt's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
2003–2006 Cadillac Escalade, Suburban, Yukon, Tahoe, and Chevy Avalanche, excluding models with a canister on the passenger side frame rail.
No drilling is required. The hitch uses existing frame weldnuts and existing bumper bracket bolt holes.
Torque all 1/2-inch fasteners to 110 lb.-ft. and all M14 fasteners to 126 lb.-ft.
No. You must not exceed your vehicle manufacturer's recommended towing capacity, even if the hitch has a higher rating.
Periodically check all fasteners to ensure they are tight and inspect all structural components for soundness. Perform this check before each towing trip.
The 55384 is designed for a wide range of SUVs, vans, and pickup trucks. Supported makes include Buick, Cadillac, Chevrolet, Chrysler, Dodge, GMC, Hummer, Infiniti, Isuzu, Kia, Nissan, Oldsmobile, Saab, and Saturn. Specific models include Escalade, Silverado, Tahoe, Suburban, Sierra, Yukon, Titan, Pathfinder Armada, and many others. Check the full applications list in the manual to confirm your exact make and model, or contact Curt Manufacturing at 1.877.287.8634 for fitment verification.
The 55384 is a T-connector that adds trailer wiring capability to vehicles. It connects to the vehicle's existing wiring harness to provide a 7-way connector for trailer lights and accessories. The product comes with a protective cap and uses locking tabs to ensure secure connections.
Yes. You must disconnect the negative battery terminal before beginning installation. After disconnecting, fasten the wire down and away from the battery. Reconnect the negative battery terminal only after the T-connector installation is complete.
The location depends on whether your vehicle has a factory 7-way connector. For vehicles without a factory 7-way, access the wiring harness behind the driver's side rear bumper (position T3). For vehicles with a factory 7-way, locate it behind the center of the rear bumper (position T4). The manual includes a wiring location guide with diagrams showing these positions.
For vehicles without a factory 7-way: Insert the T-connector housing directly into the vehicle's wiring harness housing at position T3 (behind driver's side rear bumper), then place the protective cap on the remaining plug end. For vehicles with a factory 7-way: Separate the factory socket from the 7-way connector at position T4 (behind center of rear bumper), then insert the T-connector between the factory housing and the 7-way housing. In both cases, ensure connectors are fully inserted with locking tabs in place.
Ensure the connectors are fully inserted with locking tabs in place. The protective cap should be securely placed on the remaining plug end. After installation, test the function by connecting a test light or properly wired trailer to verify that all circuits are working correctly.
Yes. Before inserting the T-connector housing, check the mating surface of the housing to make sure it is free of rust and dirt. Clean if necessary to ensure a proper connection.
Do not exceed the product rating or the tow vehicle's lamp load rating, whichever is lower. Consult your vehicle owner's manual or contact the vehicle manufacturer for your specific lamp load rating.
After installation is complete, test the function by connecting a test light or properly wired trailer to the T-connector. This verifies that all circuits are functioning properly before towing.
Yes, the Curt 55384 is compatible with Chevrolet Silverado and Silverado Hybrid models. Confirm your specific model year with the full applications list or contact Curt at 1.877.287.8634.
Yes, the Curt 55384 is compatible with Cadillac Escalade, Escalade ESV, Escalade EXT, and Escalade Hybrid models.
Yes, you must disconnect the negative battery terminal before installation and reconnect it only after the T-connector is fully installed.
Remove and save the protective cap from the housing in Step 3. After inserting the T-connector, place the protective cap on the remaining plug end to protect the unused connector.
Connect a test light or properly wired trailer to verify all circuits are functioning. This confirms the T-connector is working correctly before towing.
Do not exceed the product rating or your vehicle's lamp load rating, whichever is lower. Check your vehicle owner's manual for the lamp load rating.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2003 - 2006 | Cadillac Escalade ESV | — |
