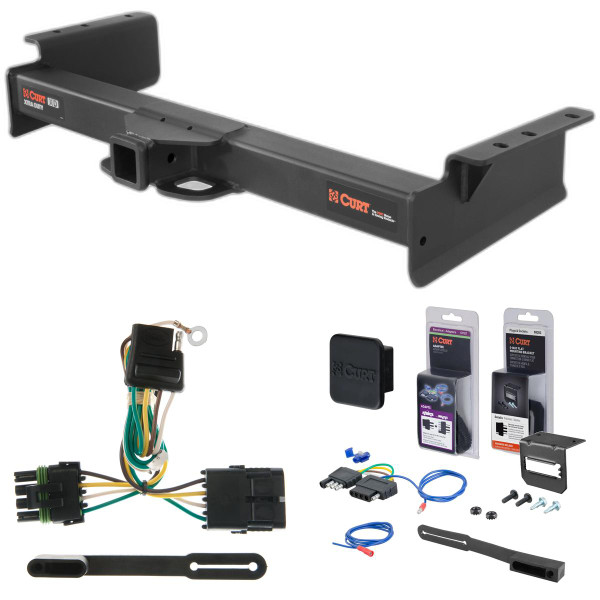

Complete CURT Class 5 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2003 - 2006 Chevrolet Suburban. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
When we came to the limits of towing capacity, we wanted to know what else was out there. What could we discover off the beaten path? So, we kept going. CURT class 5 Xtra Duty hitches begin a class of their own, beyond class 4 and beyond anything the standards dictate. They are designed for the hard road where only full-size pickup trucks, vans and SUVs dare to tread. They are capable of pulling almost any heavy-duty trailer, including toy haulers, dump trailers, logging trailers, small yacht trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular Xtra Duty class 5 trailer hitch offers a gross trailer weight capacity of 16,000 lbs. and an extra-high tongue weight capacity of 2,400 lbs. It features a 2" x 2" receiver tube opening to accept a ball mount or hitch-mounted accessory, such as a cargo carrier or winch mount. It is designed to be a custom-fit trailer hitch for certain years of the Cadillac Escalade, Chevy Suburban, Suburban or Tahoe and GMC Yukon (to verify compatibility with your vehicle, see application info). For a little extra towing power and stability, this class 5 hitch can also be used in combination with a weight distributing hitch. It is rated for 17,000 lbs. WD and 2,400 lbs. WDTW. In our drive to create a more powerful hitch, CURT has not neglected the finer details. Our class 5 trailer hitches are welded with precision and go through multiple stages of cleaning to create a smooth surface that is ready to accept our co-cured finish. To protect them from corrosion, chipping and UV damage, these hitches are immersed in a liquid A-coat and then finished in a high-quality black carbide powder coat. They come with grade-8 mounting hardware for solid installation.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chevy Blazer, C1500 Suburban, C2500 Suburban, K1500 Suburban, K2500 Suburban, Tahoe, GMC C1500 Suburban, C2500 Suburban, K1500 Suburban, K2500 Suburban, Yukon, Yukon XL 1500, Yukon XL 2500 and Cadillac Escalade (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2003 - 2006 | Chevrolet Suburban | — |
The 03 - 06 Chevrolet Suburban Curt 2" Class 5 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 15324 (Part #5W-CHW-652) fits 2003-2006 Chevrolet Suburban models. The 2006 model year is the last year covered by this part number. For newer models, check for an updated version.
The 03 - 06 Chevrolet Suburban Curt 2" Class 5 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 15324 (Part #5W-CHW-652) fits the following vehicles: 2003-2006 Chevrolet Suburban. Always verify your specific year, make, and model before ordering.
Yes, the 03 - 06 Chevrolet Suburban Curt 2" Class 5 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 15324 (Part #5W-CHW-652) is designed to fit the 2003-2006 Chevrolet Suburban.
The 03 - 06 Chevrolet Suburban Curt 2" Class 5 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 15324 (Part #5W-CHW-652) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The hitch weight is 60 lbs.
Yes, Curt part number 15324 is designed for 2003-2006 Chevy Tahoe, as well as 2003-2006 Chevy Suburban, GMC Yukon, GMC Denali, Cadillac Escalade, and Chevy Avalanche.
No. Curt part number 15324 is designed only for 2003-2006 model years. Do not use on 2007 or newer vehicles.
The manual specifies fitment for 2003-2006 GMC Yukon and GMC Denali. Confirm your specific model and year match the listed applications before purchasing. Contact Curt Technical Support at 1-877-287-8634 if you are unsure.
You will need: 3/4" socket, 21mm socket, 12" extension, ratchet, and torque wrench.
The kit includes: 4× 1/2"-13 UNC 1-3/4" grade 8 carriage bolts (part 10-10272), 4× 1/2"-13 UNC grade 8 serrated flange nuts (part 20-00062), 4× 0.250" × 1.00" × 2.50" square hole spacers (part CM-SP10), and 2× 1/2" fishwire (part 1_2 FISHWIRE).
Yes. Step 1 requires you to lower the spare tire to ease hitch installation. The spare tire is reinstalled in Step 7 after the hitch is secured.
No. The manual explicitly states "NO DRILLING REQUIRED" for this hitch.
You reuse the two existing bolts (one on each side) from the bumper bracket on the bottom of the frame. Remove them in Step 2, then reinstall them in Step 3 after raising the hitch into position.
The 1/2"-13 × 1-3/4" carriage bolts and CM-SP10 spacers are installed through the access windows on the inside of each frame rail into the remaining four mounting holes in the frame rails and hitch.
All 1/2" hardware must be torqued to 110 ft-lbs.
Do not exceed your vehicle manufacturer's recommended towing capacity. The manual emphasizes this as a critical safety requirement. Consult your vehicle's owner manual for the specific capacity limit.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This is an ongoing requirement, not a one-time check.
Yes, Curt 15324 fits 2003-2006 Chevy Tahoe, Suburban, GMC Yukon, Denali, Cadillac Escalade, and Chevy Avalanche.
No drilling required. The hitch uses existing frame rail weld nuts and bumper bracket bolts.
3/4" socket, 21mm socket, 12" extension, ratchet, and torque wrench.
Yes, lower the spare tire in Step 1 to ease installation, then reinstall it after the hitch is secured.
Torque all 1/2" hardware to 110 ft-lbs. Do not exceed your vehicle manufacturer's recommended towing capacity.
Part number 55319 is designed for Cadillac Escalade, Chevrolet Blazer, Chevrolet Suburban, Chevrolet Tahoe, GMC Suburban, and GMC Yukon. Your vehicle must have a factory tow harness located at position S6 on the driver side frame rail with connectors compatible with the T-connector.
The kit includes a T-connector, a white wire with eyelet, and a screw for grounding. The T-connector is designed to splice into the vehicle's factory tow harness connectors.
The factory tow harness is located under the vehicle at position S6, along the driver side frame rail. It will have connectors similar to those on the T-connector.
1. Locate and disconnect the factory tow harness connectors at position S6 on the driver side frame rail, being careful not to damage the locking tabs. 2. Insert the T-connector end between the disconnected connectors. 3. Ensure the locking tabs on the T-connector are fully locked into place.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle's frame. Secure the white wire using the eyelet and screw provided with the kit. Alternatively, drill a 3/32" hole and secure the white wire using the eyelet and screw.
Drilling is not always required. If a suitable grounding point exists near the connector—such as an existing screw with nut in the vehicle's frame—you can use that. If no existing fastener is available, you will need to drill a 3/32" hole for the grounding wire.
Drill a 3/32" hole for the white grounding wire eyelet.
Route the 4-flat connector to the center of the vehicle and secure it in a convenient, out-of-the-way location.
Before drilling, verify that miscellaneous items hidden behind or under any surface will not be damaged. Drilling without checking can cause damage and/or personal injury.
Yes, Curt 55319 is designed for Chevrolet Tahoe. Your vehicle must have a factory tow harness at position S6 on the driver side frame rail.
Not necessarily. If an existing screw with nut is available on the frame near the connector, use that for grounding. Otherwise, drill a 3/32" hole.
The manual does not specify required tools. You will need a drill with a 3/32" bit if no existing grounding point is available.
Disconnect the factory harness connectors at position S6 on the driver side frame rail, insert the T-connector between them, and lock the locking tabs into place.
