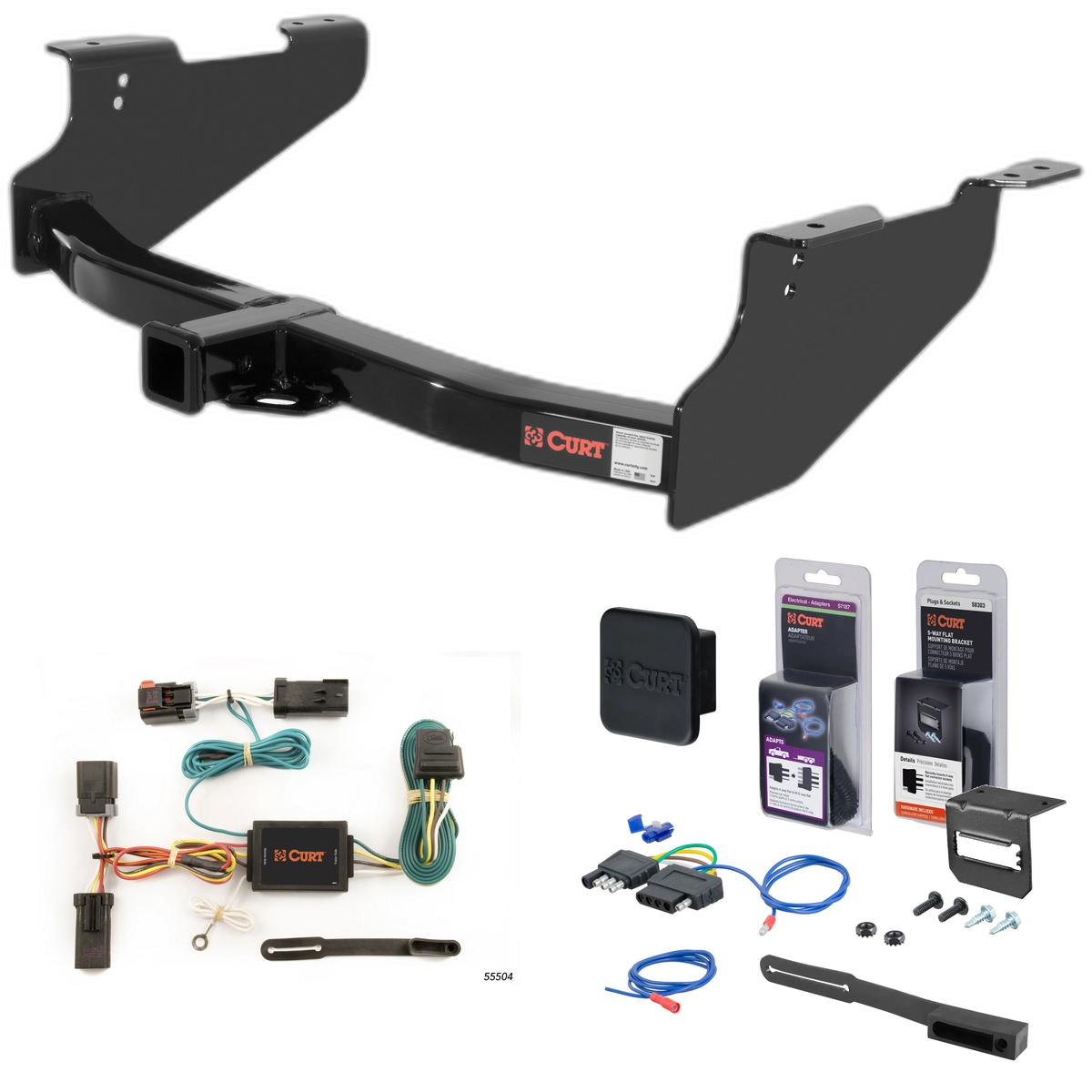

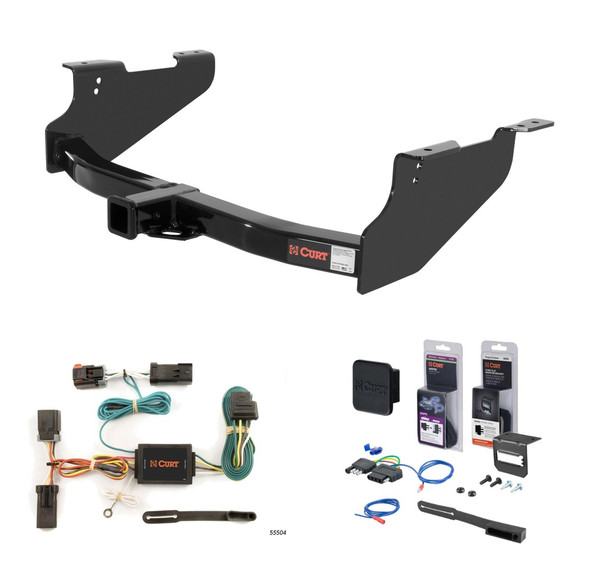

Complete CURT Class 4 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2003 - 2008 Dodge Ram 1500 Will not fit with factory receiver (built in or after 11/02). Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever the next item is on your to-do list -- whether it's arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset -- CURT class 4 trailer hitches offer greater towing power to let you Bring It. These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle. Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans. This particular class 4 hitch fits certain years of the Ram 2500 or 3500 and Dodge Ram 1500, 2500 or 3500 (to verify vehicle compatibility, see application info). It provides a weight carrying capacity of 10,000 lbs. GTW and 1,000 lbs. TW. It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs. and a WDTW of 1,200 lbs. CURT class 4 tow hitches are as much suited for work as they are for play. With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component). All CURT class 4 receiver hitches come with a 2" receiver tube opening and all the necessary hardware for a complete installation. From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design. We then combine high-strength steel, precise welding and a co-cured finish of liquid A-coat and durable black powder coat to provide you with a hitch you can depend on. To prove it, we test all our hitches in accordance with SAE J684 for safety.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Dodge Ram 1500, 2500 and 3500 (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2003 - 2008 | Dodge Ram 1500 | Will not fit with factory receiver (built in or after 11/02) |
Yes, the 03 - 08 Dodge Ram 1500 Will not fit with factory receiver (built in or after 11/02) Curt 2" Class 4 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 14361 (Part #5W-CHW-841) is designed to fit the 2003-2008 Dodge Ram 1500.
The 03 - 08 Dodge Ram 1500 Will not fit with factory receiver (built in or after 11/02) Curt 2" Class 4 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 14361 (Part #5W-CHW-841) fits the following vehicles: 2003-2008 Dodge Ram 1500. Always verify your specific year, make, and model before ordering.
The 03 - 08 Dodge Ram 1500 Will not fit with factory receiver (built in or after 11/02) Curt 2" Class 4 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 14361 (Part #5W-CHW-841) fits 2003-2008 Dodge Ram 1500 models. The 2008 model year is the last year covered by this part number. For newer models, check for an updated version.
The 03 - 08 Dodge Ram 1500 Will not fit with factory receiver (built in or after 11/02) Curt 2" Class 4 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 14361 (Part #5W-CHW-841) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 14361 receiver hitch fits both short bed and long bed Dodge Ram pick-ups. However, you must use the correct frame hole for your bed length: use the forward hole for short bed models and the rearward hole for long bed models (both sides). The hitch also accommodates 1500, 2500, and 3500 Ram models, each with a specific frame hole location.
The Curt 14361 is designed for Dodge Ram 1500, 2500, and 3500 pick-up models. Each model uses a different frame hole location during installation. Refer to the installation diagram to identify the correct hole for your specific model.
The 14361 has a gross load capacity of 10,000 lbs trailer weight and 1,000 lbs tongue weight when used as a weight-carrying hitch, and 12,000 lbs trailer weight and 1,200 lbs tongue weight when used as a weight-distribution hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower than these ratings.
The hitch weight is 56 lbs.
No, drilling is not required. The installation uses existing frame holes and tow loop attachment points on your Dodge Ram.
The kit includes: 4 hex bolts (1/2-13 UNC, Grade 8, zinc-plated), 2 square hole spacers (0.250 x 1.50 x 3.00"), 2 square hole spacers (0.250 x 2.13 x 2.13"), 2 hex head cap screws (1/2-13 UNC, 2-1/4", Grade 8), 2 flat washers (1/2"), 4 round hole spacers (0.188 x 1.50 x 3.00"), 1 length of 1/2" fishwire, 2 round hole spacers (0.188 x 1.50 x 2.00"), and 6 serrated flange nuts (1/2-13 UNC, Grade 8, zinc-plated).
Fishwiring is a technique used to route fasteners through frame access slots where direct access is not available. For the 14361, you use the included 1/2" fishwire to guide the forward-most carriage bolts into position through the frame rail access slots. The rearward carriage bolts are inserted directly through the bumper beam and frame hole.
All 1/2" fasteners must be torqued to 110 lb-ft. This applies to the hex bolts, hex head cap screws, and flange nuts used in the installation.
1. Raise the hitch into position, aligning holes in the hitch to the correct frame holes (forward hole for short bed, rearward hole for long bed; use the appropriate hole for your Ram model: 1500, 2500, or 3500). 2. Insert hex bolts through side plates and into tow loops, using spacers as needed between hitch and tow loop. Install the outer spacer and flange nut on both sides. 3. Slide square hole spacers into place through the frame rail end access slots. Use the fishwire to guide the forward-most carriage bolts into position through the frame access slots. Insert the rearward carriage bolts directly through the bumper beam and frame hole. 4. Install remaining hex flange nuts and torque all 1/2" fasteners to 110 lb-ft.
Spacers are used to maintain proper alignment and spacing between the hitch side plates and the tow loop attachment points. Round hole spacers (0.188 x 1.50 x 3.00" and 0.188 x 1.50 x 2.00") are installed as needed between the hitch and tow loop when inserting hex bolts. Square hole spacers (0.250 x 1.50 x 3.00" and 0.250 x 2.13 x 2.13") are slid into place through the end of the frame rails to support the carriage bolts.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an interval, so regular visual inspection before towing is recommended.
The Curt Manufacturing warranty covers the hitch itself and is limited to repair or replacement of defective products. However, alteration, misuse, or improper installation of the hitch voids the Curt warranty. Whether installation affects your vehicle manufacturer's warranty is not addressed in this manual and should be confirmed with your vehicle dealer.
The 14361 fits Dodge Ram 1500, 2500, and 3500 pick-ups in both short bed and long bed configurations. Use the correct frame hole for your bed length and model during installation.
No drilling is required. The hitch uses existing frame holes and tow loop attachment points.
All 1/2" fasteners must be torqued to 110 lb-ft.
Weight-carrying: 10,000 lbs trailer, 1,000 lbs tongue. Weight-distribution: 12,000 lbs trailer, 1,200 lbs tongue. Do not exceed your vehicle manufacturer's recommended towing capacity.
The manual does not specify required tools. Fishwiring (routing fasteners through frame access slots using wire) is required, and the 1/2" fishwire is included in the kit.
Yes, Curt part number 55504 is designed for Dodge Ram 1500, Dodge Ram 2500, and Dodge Ram 3500 models. The installation uses the vehicle's existing taillight wiring harness in positions T3 and T5.
The Curt 55504 is a T-connector trailer wiring harness that taps into your vehicle's existing taillight wiring. It includes a converter box, a 4-flat connector for the trailer, and wiring with yellow and green leads for the driver and passenger sides respectively.
The kit includes a T-connector with yellow and green wires, a black converter box, a white ground wire with eyelet and screw, double-sided tape, cable ties, and a 4-flat connector. You will need a drill with a 3/32" bit if no suitable existing screw is available for grounding.
The manual does not specify whether the battery must be disconnected. Contact Curt Manufacturing or your installer for this safety requirement before beginning work.
Locate the vehicle's taillight wiring harness in positions T3 and T5 under the vehicle. The harness will have connectors similar to those on the T-connector included in the kit.
On the driver's side, separate the vehicle's taillight connectors without damaging the locking tabs. Insert the T-connector end with the yellow wire between the separated connectors, ensuring they are fully inserted with locking tabs in place. Repeat on the passenger's side using the green wire T-connector end.
Route the T-connector end with the green wire under the vehicle to the passenger's side taillight wiring harness. Avoid any location that may pinch or cut the wire during routing.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle's frame. If no existing screw is available, drill a 3/32" hole and secure the white wire using the eyelet and screw provided in the kit. Before drilling, verify that no miscellaneous items are hidden behind or under the surface to avoid damage or personal injury.
Drilling is required only if no suitable existing screw with nut is available on the vehicle's frame for grounding the white wire. If drilling is necessary, use a 3/32" drill bit. Always verify that no miscellaneous items are hidden behind or under any surface before drilling to avoid damage and personal injury.
Drill a 3/32" hole if no existing screw is available on the vehicle's frame for grounding the white wire.
Adhere the black converter box to the frame of the vehicle using the double-sided tape provided in the kit.
Secure any loose parts of the T-connector with the cable ties provided in the kit.
Route the 4-flat connector to the center of the vehicle and secure it in a convenient out-of-the-way location.
Before drilling, verify that miscellaneous items are not hidden behind or under any surface. Drilling without checking can cause damage to hidden components and personal injury.
Avoid any location that may pinch or cut the wire when routing the T-connector under the vehicle. Also, do not damage the locking tabs on the vehicle's connectors when separating them.
Yes, the Curt 55504 is designed for Dodge Ram 1500, 2500, and 3500 models.
You need a drill with a 3/32" bit only if no existing screw is available on the vehicle frame for grounding. All other hardware is included.
Drilling is optional and only needed if no existing screw with nut is available on the vehicle frame for the ground wire. If drilling is required, use a 3/32" bit.
Before drilling, verify that no miscellaneous items are hidden behind or under the surface to avoid damage and personal injury.
