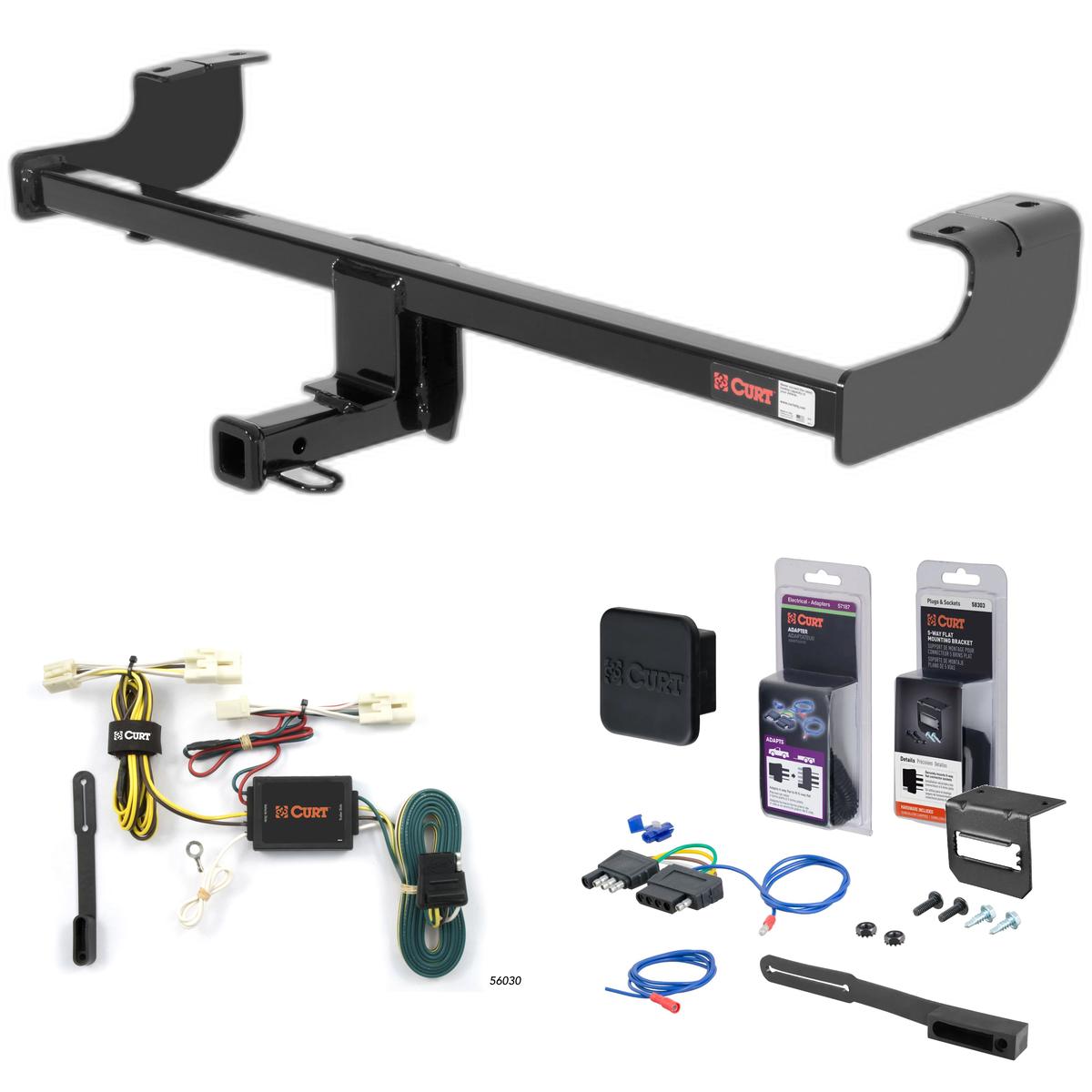

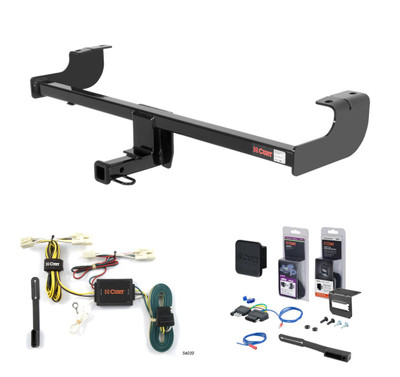

Complete CURT Class 1 1-1/4" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2004 - 2007 Scion xB. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Scion xB (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Scion xB (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2006 | Scion xB | — |
The 04 - 06 Scion xB Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11487 (Part #5W-CHW-2730) fits the following vehicles: 2004-2006 Scion xB. Always verify your specific year, make, and model before ordering.
Yes, the 04 - 06 Scion xB Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11487 (Part #5W-CHW-2730) is designed to fit the 2004-2006 Scion xB.
The 04 - 06 Scion xB Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11487 (Part #5W-CHW-2730) fits 2004-2006 Scion xB models. The 2006 model year is the last year covered by this part number. For newer models, check for an updated version.
The 04 - 06 Scion xB Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11487 (Part #5W-CHW-2730) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Curt hitch 11487 is designed for 2004–2007 Scion xB models only. Verify your vehicle year and model before purchasing.
The manual does not specify the gross load capacity, trailer weight capacity, or tongue weight capacity for this hitch. Contact Curt Manufacturing technical support at 877-287-8634 for this information.
The hitch weight is not specified in the manual. Contact Curt Manufacturing technical support at 877-287-8634 for this specification.
The Curt 11487 is designed for use with ball mount #D-21 / 45520. Use only this compatible ball mount.
The kit includes: four M10×1.25×35 hex cap screws (part 10-10298), four 7/16" conical washers (part 30-00163), one 1/4"–20×1.00 hex bolt (part 10-10424), one 1/4" washer (part 30-00188), and one 1/4" nylon lock nut (part 20-00148).
No. The manual states "NO DRILLING REQUIRED." The hitch uses existing weldnuts on the frame rails.
Yes. You must remove the tow hooks from both the driver and passenger side frame rails if equipped. The removed tow hooks should be returned to the customer.
Yes. The first installation step requires lowering the exhaust for easement of installation.
Remove the plastic push fastener from the driver side fascia strap and discard it. Do not remove the plastic fastener on the passenger side.
Raise the hitch into position and secure it with the four M10×1.25 hex bolts and conical washers through the existing weldnuts on the frame rails, as shown in the diagram.
Reinstall the fascia strap using the 1/4"–20×1.00 hex bolt, 1/4" washer, and 1/4" nylon lock nut.
Torque all 10mm fasteners to 48 lb-ft.
Torque all 1/4" fasteners to 12 lb-ft.
The manual does not specify the weight capacity. Do not exceed your vehicle manufacturer's recommended towing capacity. Contact Curt Manufacturing technical support at 877-287-8634 for capacity information.
Non-trailer loads may be applied to this hitch only if they are supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
Yes, if your vehicle is a 2004–2007 Scion xB. This hitch is not compatible with other model years or vehicles.
No. The hitch uses existing weldnuts on the frame rails. No drilling is required.
Yes. You must remove the tow hooks from both frame rails (if equipped) and lower the exhaust for installation easement.
Torque all 10mm fasteners to 48 lb-ft and all 1/4" fasteners to 12 lb-ft.
The Curt 11487 is designed for use with ball mount #D-21 / 45520 only.
Non-trailer loads must be supported by auxiliary stabilizing straps. Failure to do so voids the warranty.
Yes, the Curt 56030 T-Connector is designed for the Scion xB. The installation manual is specific to this vehicle model.
You must open the rear hatch and temporarily remove: the rear threshold plate, storage covers, floor covering, and partially remove the rear interior trim panels on both the driver and passenger sides. Several trim panel fasteners will need to be removed to access the panels.
Locate the taillight wiring harness on both driver and passenger sides. Separate the vehicle's taillight connector carefully, ensuring the locking tabs are not broken and all connector surfaces are clean. Insert the T-Connector end with the green wire between the vehicle wiring connectors on the passenger side and lock into place. Route the T-Connector end with the yellow wire to the driver's side behind the panels and along the threshold, then repeat the connection process. Ensure connectors are fully inserted with locking tabs in place.
Yes, you must drill a 3/32" hole to secure the white ground wire with an eyelet using the screw provided. However, if an existing ground stud is available on the passenger side, you can use that instead by loosening the bolt, placing the screw eyelet on the stud, and re-tightening the bolt.
Drill a 3/32" hole to secure the white ground wire with the eyelet and screw provided.
Mount the T-Connector black converter box on the passenger side in an out-of-the-way location using the double-sided tape provided. Secure all loose wires with the cable ties provided.
Secure all loose wires with the cable ties provided. Route the T-Connector harness carefully to prevent damage or rattling, and avoid any areas that would cut or pinch the wire. When reinstalling trim panels, threshold, storage covers and floor covering, be careful not to pinch or cut the wires.
Before drilling, verify that miscellaneous items hidden behind or under any surface are identified to avoid damage and/or personal injury.
You will need a drill with a 3/32" bit to create the ground wire hole. You will also need tools to remove trim panel fasteners (likely a screwdriver or trim removal tool, depending on fastener type). The manual does not specify other tools required.
The Curt 56030 includes: a T-Connector with green and yellow wire ends, a white ground wire with eyelet, a screw for securing the ground wire, a black converter box, double-sided tape for mounting the converter box, and cable ties for securing wires.
Start on the passenger side and insert the T-Connector end with the green wire between the vehicle wiring connectors and lock into place. Then route the T-Connector end with the yellow wire to the driver's side behind the panels and along the threshold, and repeat the connection process on the driver's side.
Ensure that connectors are fully inserted with locking tabs in place. Be careful not to damage the locking tabs during insertion.
Yes. All connector surfaces should be clean and free of dirt before connecting the T-Connector.
The Curt 56030 T-Connector is designed for the Scion xB.
Yes, you must drill a 3/32" hole for the ground wire, unless an existing ground stud is available on the passenger side.
You need a drill with a 3/32" bit and tools to remove trim panel fasteners (screwdriver or trim removal tool).
Yes, you must partially remove rear interior trim panels on both driver and passenger sides, along with the rear threshold plate, storage covers, and floor covering.
Verify that miscellaneous items hidden behind or under any surface are identified before drilling to avoid damage and personal injury.
