| Finish | GLOSS BLACK POWDER COAT |
| Main Body Shape | Square |
| Material | Carbon Steel |
| Mount Type Description | Blank |
| Receiver Tube Size | 2 IN |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 350 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity (WC) | 3,500 LB |
| Weight Distribution (WD) | 4,000 LB |
| Weight Distribution Tongue Weight (WDTW) | 400 LB |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | S1,S2 |
| Tail Light Circuits | 7.5 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
| Converter Type | Circuit Protected |
| Electrical System Type | 3W |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 350 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Drop | 3-1/4 IN |
| Finish | GLOSS BLACK POWDER COAT |
| Gross Trailer Weight (GTW) | 3,500 LB |
| Material | Blank |
| Mount Type Description | Blank |
Notes:
Notes:
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2007 | Dodge Grand Caravan | With Stow 'n Go |

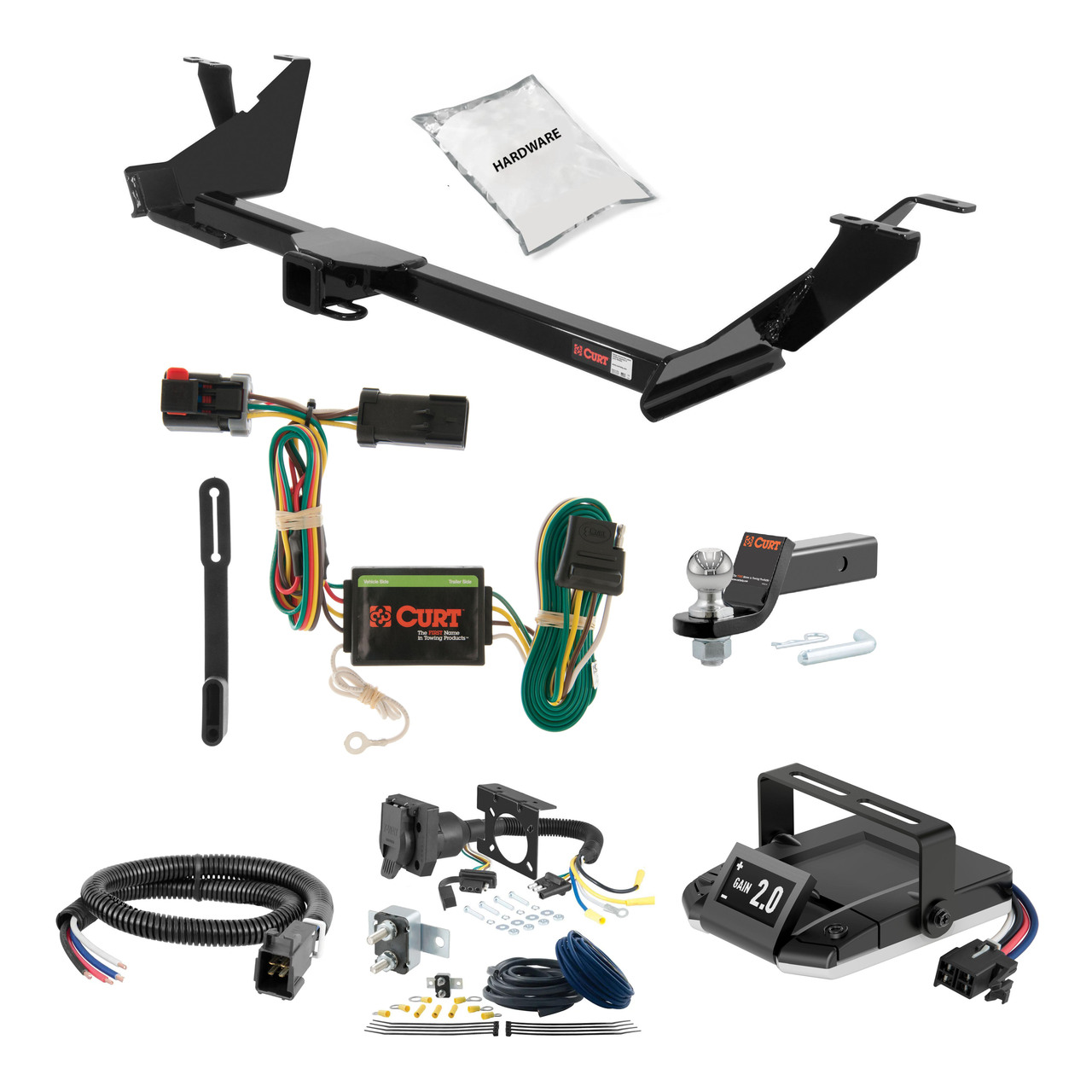

Yes, the 04-07 Dodge Grand Caravan With Stow 'n Go 1.25 CURT Trailer Hitch + Assure Proportional Brake Controller Kit HBCW697 (Part #HBCW697) is designed to fit the 2004-2007 Dodge Grand Caravan.
The 04-07 Dodge Grand Caravan With Stow 'n Go 1.25 CURT Trailer Hitch + Assure Proportional Brake Controller Kit HBCW697 (Part #HBCW697) fits 2004-2007 Dodge Grand Caravan models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.
The 04-07 Dodge Grand Caravan With Stow 'n Go 1.25 CURT Trailer Hitch + Assure Proportional Brake Controller Kit HBCW697 (Part #HBCW697) fits the following vehicles: 2004-2007 Dodge Grand Caravan. Always verify your specific year, make, and model before ordering.
The 04-07 Dodge Grand Caravan With Stow 'n Go 1.25 CURT Trailer Hitch + Assure Proportional Brake Controller Kit HBCW697 (Part #HBCW697) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

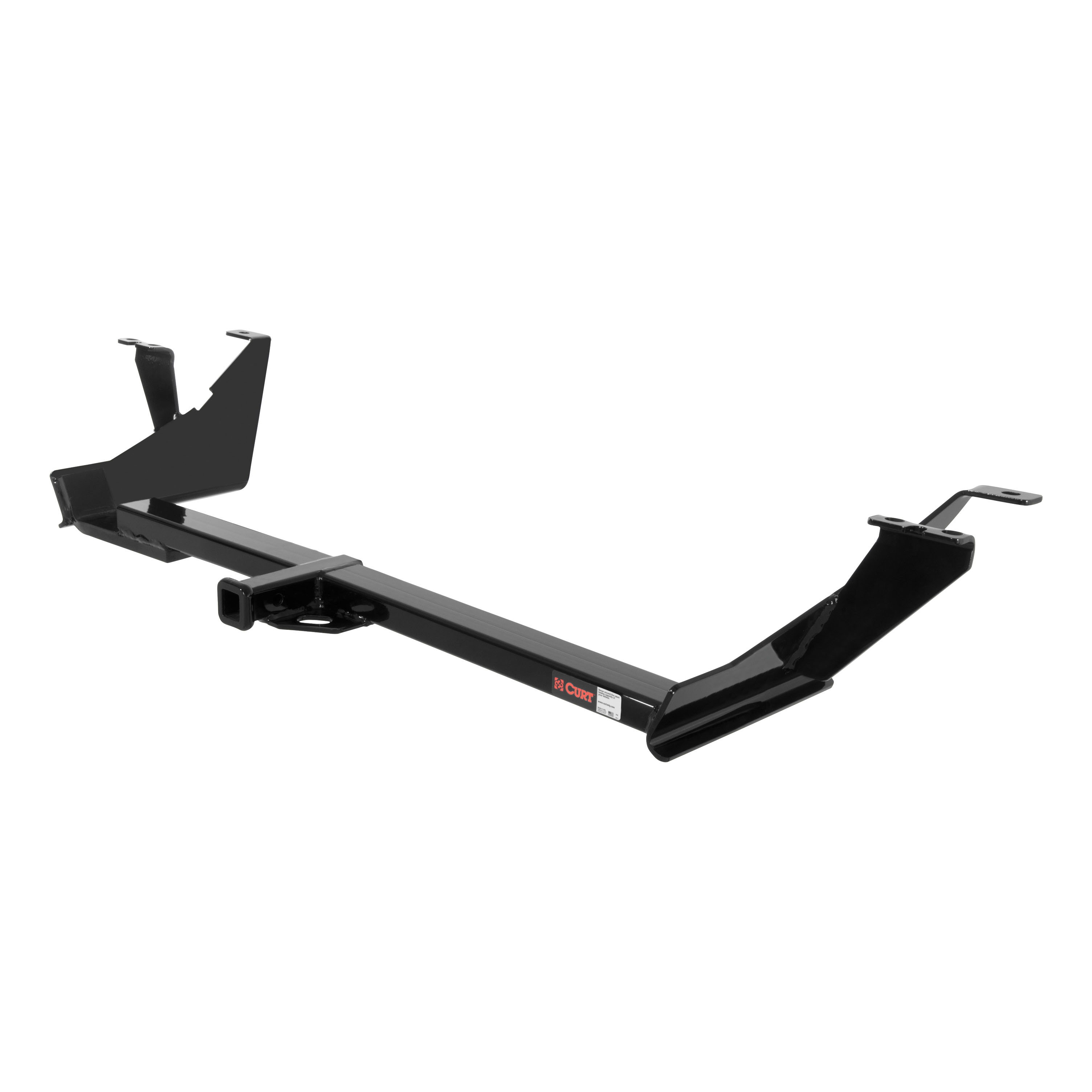

Curt part number 13389 (also listed as 757389 or RRH13389) is designed for 2004–2007 Chrysler and Dodge Stow and Go vehicles only. If your vehicle is a different year, make, or model, this hitch will not fit. Confirm your vehicle year and model before purchasing.
The manual specifies gross load capacity when used as a weight-carrying hitch and when used as a weight-distribution hitch, but the specific capacity values are not printed in this copy of the manual. Contact Curt Manufacturing or your dealer with the part number (13389) to obtain the exact towing and tongue weight ratings. Always verify that your vehicle's towing capacity does not exceed the vehicle manufacturer's recommended limit.
The Curt 13389 uses all existing hardware from your vehicle. You will reuse three 10mm bolts per side that attach the rear spring shackle to the frame, and one 12mm bolt per side located forward of the spring shackle. Save these bolts during removal; no additional fasteners are required. The hitch also uses existing weld nuts on the vehicle.
Yes. Remove the three 10mm bolts attaching the rear spring shackle to the vehicle's frame on both sides, and the single 12mm bolt located forward of the spring shackle on both sides. Save all four bolts per side; they will be reused to secure the hitch. No other components need to be removed.
1. Position the hitch's left mounting tab on the driver side over the leaf spring near the rear axle. 2. Pull this side of the hitch towards the rear of the vehicle into position. 3. Repeat on the passenger side. 4. Raise the hitch so it contacts the vehicle's frame rail. 5. Align the three holes in the hitch with the holes in the vehicle's frame where fasteners were removed. 6. Bolt the hitch in place using the previously removed fasteners.
Torque all 10mm fasteners to 48 lb-ft and all 12mm fasteners to 86 lb-ft. This applies to the bolts removed from the rear spring shackle (10mm) and the bolt forward of the spring shackle (12mm) on both sides of the vehicle.
No. The Curt 13389 requires no drilling. It uses existing holes in the vehicle's frame where the original fasteners were removed.
No. The Curt 13389 requires no fascia trimming or modification.
After installation, ensure all fasteners are tight. The manual recommends periodically checking the receiver hitch to ensure that all fasteners remain tight and that all structural components are sound. This should be done regularly during the life of the hitch.
Do not exceed your vehicle manufacturer's recommended towing capacity. The Curt 13389 has its own capacity ratings, but your vehicle's manufacturer limit is the controlling factor. Consult your vehicle's owner manual for the maximum towing capacity.
The Curt 13389 is designed for 2004–2007 Chrysler and Dodge Stow and Go vehicles only.
No. The hitch uses all existing hardware from your vehicle—the fasteners you remove during installation are reused to secure the hitch.
No drilling or fascia trimming is required. The hitch uses existing holes in the vehicle's frame.
Torque 10mm fasteners to 48 lb-ft and 12mm fasteners to 86 lb-ft.
Periodically check that all fasteners are tight and all structural components are sound. No other routine maintenance is specified in the manual.
The kit includes: one 30 amp auto-resetting circuit breaker, two #10 ring terminals, two 3/8" ring terminals, two 1/2" ring terminals, three 12-10 gauge butt connectors, 10 feet of 10 ga black/white duplex wire, 20 feet of 10 ga blue cross-linked wire, and eight 8.5" cable ties.
Yes, but with a critical difference: these vehicles require the stop signal wire to be spliced to the light green wire on the turn signal harness connector under the dash, not to the brake pedal switch. Do NOT connect to the red wire with green stripe, as serious damage may occur. All other vehicles connect to the brake pedal switch instead.
You will need: a test light, wire stripper/cutter, crimp tool, and 3/8" box end wrench. The test light is used to identify the cold (switched) side of the brake pedal switch.
Yes. The manual cautions to disconnect the tow vehicle's negative battery cable before installation. Reconnect it only in the final step after all wiring is complete.
Mount the 30 amp circuit breaker near the tow vehicle's positive battery terminal. This keeps the power wire run as short as possible and protects the circuit.
Use 10 gauge (10 ga) black wire from the duplex wire included in the kit. Strip 3/8" of insulation from each end. Crimp a #10 ring terminal to the end that attaches to the circuit breaker stud labeled 'BAT', and a 3/8" or 1/2" ring terminal (sized to fit your battery terminal) to the end that attaches to the positive battery terminal.
Feed the 10 ga duplex wire from the brake controller in the cockpit through the firewall into the engine compartment toward the battery. Cut to length as needed. At the battery end, crimp a 3/8" or 1/2" ring terminal to the white wire and a #10 ring terminal to the black wire. Attach the black wire to the circuit breaker stud labeled 'AUX' and tighten the nut with a 3/8" box end wrench.
When passing the duplex wire through the firewall into the engine compartment, use an existing grommet, add a new grommet, or fill the hole with silicone rubber to insulate and protect the wire. The same protection applies when passing the blue cross-linked wire through any sheet metal at the rear of the vehicle.
In the cockpit, attach the black duplex wire to the brake controller's battery wire (typically black) and the white duplex wire to the brake controller's ground wire (typically white). Use either one of the supplied yellow butt connectors or solder the leads together and insulate with heat shrink tubing.
Locate the brake pedal switch on the back side of the vehicle's brake pedal. Use a test light or volt meter to identify the 'cold' or switched side—this terminal will only show power when the brake pedal is depressed. Attach the stop signal wire (typically red) from the brake controller to the cold side of the switch using a wire tap.
Locate the semi-circle turn signal harness connector on the steering column under the dash. It has two rows of wires: a row of four and a row of seven. Attach the stop signal wire (typically red) from the brake controller to the light green wire using a wire tap. Do NOT connect to the red wire with green stripe, as serious damage may occur.
Feed the 10 ga blue cross-linked wire from the brake controller to the trailer connector at the rear of the vehicle, taking up any slack in the wire. When passing through any sheet metal, use an existing grommet, add a new grommet, or fill the hole with silicone rubber to protect the wire.
Attach the blue cross-linked wire to the brake controller's electric brake wire (typically blue) using one of the supplied yellow butt connectors or by soldering and insulating with heat shrink tubing. At the rear of the vehicle, trim any loose blue wire and attach it to the trailer connector's electric brake terminal. Refer to the trailer connector's wiring diagram for the correct terminal location.
Secure any loose wires with the cable ties provided. Connect the black power wire from the circuit breaker to the positive side of the battery. Connect the white ground wire from the brake controller to the negative side of the battery. Finally, reconnect the tow vehicle's negative battery cable to the battery.
The circuit breaker is 30 amps and auto-resetting. It must be mounted near the positive battery terminal and connected directly to the positive battery terminal via the included black 10 gauge wire.
Use a 3/8" box end wrench to tighten the nuts on the circuit breaker studs labeled 'BAT' and 'AUX'.
The kit includes 10 feet of 10 gauge black/white duplex wire for the battery and brake controller connections, and 20 feet of 10 gauge blue cross-linked wire for the electric brake signal to the trailer connector.
Black wire connects to the positive battery and circuit breaker. White wire connects to the brake controller ground and negative battery. Red wire is the stop signal wire from the brake controller. Blue wire is the electric brake signal wire. The manual notes these are 'typically' these colours but recommends confirming with your brake controller documentation.
Yes. You can solder the leads together and insulate with heat shrink tubing as an alternative to using the supplied yellow butt connectors. This applies to connections between the duplex wire and the brake controller wires, and between the blue cross-linked wire and the brake controller.
The black power wire must connect directly to the positive battery terminal via the 30 amp circuit breaker. Connecting to the fuse panel or any other accessory wiring may damage vehicle wiring and cause trailer brake failure. The circuit breaker protects the circuit and must be the only protection between the battery and the brake control system.
Do NOT connect the stop signal wire to the red wire with green stripe on the turn signal harness. Serious damage may occur. Connect only to the light green wire. Also, do not connect to the brake pedal switch on these vehicles; use the turn signal harness instead.
The kit is universal but requires an existing trailer connector and brake controller. 1989-1991 Ford E & F-Series with ABS use a different stop signal connection (turn signal harness instead of brake pedal switch). Consult your brake controller documentation for compatibility.
No drilling is required. The kit connects to existing components: the battery, brake controller, brake pedal switch (or turn signal harness on 1989-1991 Ford E & F-Series with ABS), and trailer connector.
Do NOT connect the stop signal wire to the red wire with green stripe on the turn signal harness—serious damage may occur. Connect to the light green wire instead, and do not use the brake pedal switch.
Connecting to the fuse panel or accessory wiring may damage vehicle wiring and cause trailer brake failure. The 30 amp circuit breaker must be the only protection between the battery and the brake control system.
Yes, the Curt 55376 is designed for Chrysler Town & Country vehicles. It is also compatible with Chrysler Voyager, Dodge Caravan, and Dodge Grand Caravan models. These are classified as SUVs, mini and full-sized vans in the installation guide.
Yes, the Curt 55376 custom wiring harness is compatible with Dodge Caravan and Dodge Grand Caravan models.
The Curt 55376 has two circuit ratings: Signal Circuits are rated at 3.0 amps per side, and Tail/Running Circuits are rated at 6.0 amps total. Do not exceed these ratings or your tow vehicle's lamp load rating, whichever is lower, as exceeding the rating can cause loss of warranty, overheating and potential fire.
You will need: Phillips screwdriver, flat blade screwdriver, panel trim removal tool, wire stripper, wire crimper, and cutting tool.
Remove the driver side taillight assembly. You will see a black connector on the vehicle wiring harness similar to the custom wiring harness connector. Slide the red connector lock aside and disconnect the vehicle harness from the taillight assembly, taking care not to damage the locking tabs.
Carefully pull the vehicle wiring harness and rubber grommet out a short distance from the vehicle and slit the rubber grommet. After routing the custom wiring harness through, insert the harness wires through the grommet slit and reseat it in the mounting hole. Use the provided sealant to seal the cut in the grommet and around all the wires.
You must remove: the driver side taillight assembly, the vehicle jack storage cover located inside the rear of the vehicle on the driver side, and the hatch threshold. You will also need to pull back the left trim panel to expose the area behind the taillights.
Insert the custom wiring harness end with the yellow wire between the separated vehicle connectors. Secure the connectors together with the red locking tabs.
Yes, drilling is required. You must drill a 3/32" pilot hole for the ground screw. Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. The area should be free of rust, dirt and paint. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
Drill a 3/32" pilot hole for the provided ground screw. Locate the hole near the connector at a suitable grounding point on the vehicle frame, ensuring the area is free of rust, dirt and paint.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw. Ensure the area is free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
Route the 4-flat plug behind the trim panel and into the jack storage compartment. When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
It may be necessary to remove the tape covering the access hole between the jack storage compartment and the area behind the taillight assembly to route the custom wiring harness. After routing the harness and securing the black box and additional wiring, reposition the tape over the wires to seal the jack compartment.
The Curt 55376 includes: the custom wiring harness with yellow wire, white ground wire, 4-flat plug, black box, cable ties, a ground screw with ring terminal, sealant, and a 4-flat dust cover. You will also need the tools listed: Phillips screwdriver, flat blade screwdriver, panel trim removal tool, wire stripper, wire crimper, and cutting tool.
All steps must be followed to ensure the wiring harness functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Reinstall all items removed during installation. Install the provided 4-flat dust cover to help prevent corrosion. Test for proper function by using a test light or connecting a properly wired trailer.
Do not exceed the product rating: Signal Circuits are rated at 3.0 amps per side, and Tail/Running Circuits are rated at 6.0 amps total. Also do not exceed your tow vehicle's lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
The Curt 55376 is designed for Chrysler Town & Country, Chrysler Voyager, Dodge Caravan, and Dodge Grand Caravan models.
You need: Phillips screwdriver, flat blade screwdriver, panel trim removal tool, wire stripper, wire crimper, and cutting tool.
Yes, you must drill a 3/32" pilot hole for the ground screw. Check for hidden items behind surfaces before drilling to avoid damage.
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 6.0 amps total. Do not exceed these ratings or your vehicle's lamp load rating, whichever is lower.
Exceeding the product rating can cause loss of warranty, overheating and potential fire. Do not exceed 3.0 amps per side (Signal) or 6.0 amps total (Tail/Running), or your vehicle's lamp load rating, whichever is lower.
The 4-way flat electrical adapter converts a vehicle's 4-way flat trailer connector to other trailer connector types (6-way round, 7-way RV blade, or dual 4-way flat). This allows you to tow trailers with different connector styles. Single-output models (57184, 57183, 57185, 57626, 57676) convert to one connector type; dual-output models (57604, 57624, 57672, 57674, 57102) provide two different connector outputs simultaneously.
Yes. Your vehicle must be equipped with a 4-way flat trailer connector. If your vehicle does not have one, you will need to install a custom wiring harness or other 4-way flat trailer connector before installing this adapter.
Both convert a 4-way flat connector to a 7-way RV blade. The difference is that 57185 includes a mounting bracket, while 57184 does not.
Both convert a 4-way flat connector to a 6-way round. The difference is that 57626 includes a mounting bracket, while 57183 does not.
Curt offers three dual-output models that provide both a 4-way flat and a 7-way RV blade output: part numbers 57672, 57674, and 57102. All three include a mounting bracket.
Curt offers two dual-output models that provide both a 4-way flat and a 6-way round output: part numbers 57604 and 57624. Both include a mounting bracket.
You will need: a 1/8" drill bit, drill, Phillips screwdriver, wire stripper, cutting tool, terminal crimpers, and a test light. The manual also lists three self-tapping screws (#10 - 1/2") as required, though these are not included with the product.
No. The three self-tapping screws (#10 - 1/2") used to attach the mounting bracket are not included and must be purchased separately.
Mount the combination harness in a location on the tow vehicle that is within reach of the trailer's wiring harness and near the center of the vehicle. The mounting bracket (if included) should be attached to the vehicle's bumper or other suitable surface.
Yes. You must drill two 1/8" holes: one for the grounding point and one (or more) for the mounting bracket. Before drilling, you must check for brake lines, fuel lines, wiring and other components that may be hidden behind or under the surface to avoid damage.
No. You must never attach the mounting bracket directly to the hitch by cutting, welding or drilling into the hitch. Mount it to the vehicle's bumper or other suitable surface instead.
The adapter uses four wires: Yellow (auxiliary or back-up lights), Blue (electric brakes), Black (positive power with appropriate inline fuse), and White (ground). All wires except black and white must be connected using 12 gauge (minimum) wire and butt connectors to the appropriate vehicle functions.
The white wire is the ground connection. It must be attached with a ring terminal to a 1/8" hole drilled in a suitable grounding point on the vehicle using a #10 - 1/2" self-tapping screw. This ground connection is required for the harness to work properly. The white wire on the vehicle's 4-way flat connector does not support the ground (-) functions of the combination harness.
Yes. The black wire (positive power) must be connected with an appropriate inline fuse. The manual does not specify the fuse amperage rating.
Use 12 gauge (minimum) wire for all connections. The manual specifies this minimum gauge for the remaining wires (yellow, blue, and black) when connecting to appropriate vehicle functions.
Failing to properly ground the product can cause loss of warranty, overheating and potential fire. The white wire must be securely attached to a clean grounding point using a #10 - 1/2" self-tapping screw in a 1/8" hole. The area must be clean of dirt, debris or undercoating.
Before drilling, you must check for brake lines, fuel lines, wiring and any other components that may be hidden behind or under the surface. Drilling into these components can cause damage and personal injury.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding either rating can cause damage or unsafe operation.
Confirm proper function with a test light or by using a properly functioning trailer. This verifies that all connections are working correctly before towing.
Secure any loose wires using cable ties or equivalent product to prevent them from moving, catching on components, or becoming damaged.
Your vehicle must have a 4-way flat trailer connector. If it does not, you will need to install a custom wiring harness or other 4-way flat connector first. Check the part number table to confirm the adapter converts to the connector type you need.
You must purchase three #10 - 1/2" self-tapping screws for the mounting bracket. You will also need an appropriate inline fuse for the black (positive power) wire; the manual does not specify the amperage.
Yes, you must drill two 1/8" holes: one for grounding and one for the mounting bracket. Before drilling, check for brake lines, fuel lines and wiring behind the surface. Never drill into the hitch.
Yellow = auxiliary/back-up lights; Blue = electric brakes; Black = positive power (needs inline fuse); White = ground (must be properly grounded or warranty is void and fire risk exists). Use 12 gauge minimum wire and butt connectors.
Proper grounding of the white wire is critical. Failing to ground it properly can cause loss of warranty, overheating and fire. The grounding point must be clean of dirt, debris and undercoating.
Test with a test light or by using a properly functioning trailer to confirm all connections work. Secure loose wires with cable ties.
