On Sale Today
Original price was $633.75. Current price is $606.95.You save $26.80
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Tue, Aug 11 - Fri, Aug 14
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout

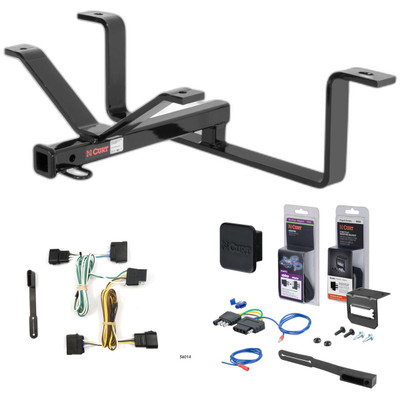

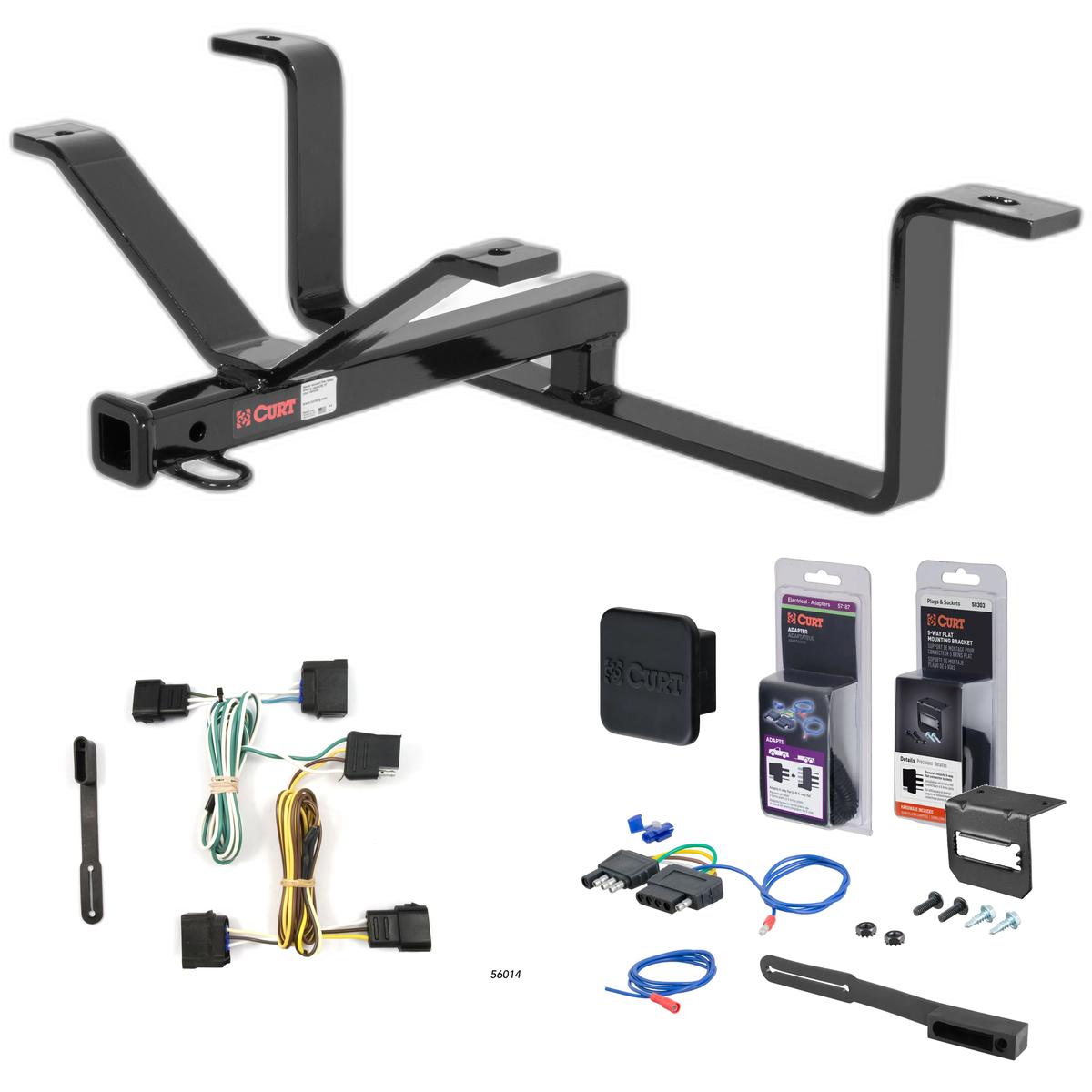

Complete CURT Class 1 1-1/4" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2005 - 2013 Chevrolet Corvette Coupe and convertible, excluding dual mode exhaust. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Chevy Corvette (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chevy Corvette, Ford Focus and Ford Ranger (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2011 | Chevrolet Corvette | Coupe and convertible, excluding dual mode exhaust |
The 05 - 11 Chevrolet Corvette Coupe and convertible, excluding dual mode exhaust Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11380 (Part #5W-CHW-362) fits the following vehicles: 2005-2011 Chevrolet Corvette. Always verify your specific year, make, and model before ordering.
Yes, the 05 - 11 Chevrolet Corvette Coupe and convertible, excluding dual mode exhaust Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11380 (Part #5W-CHW-362) is designed to fit the 2005-2011 Chevrolet Corvette.
The 05 - 11 Chevrolet Corvette Coupe and convertible, excluding dual mode exhaust Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11380 (Part #5W-CHW-362) fits 2005-2011 Chevrolet Corvette models. The 2011 model year is the last year covered by this part number. For newer models, check for an updated version.
The 05 - 11 Chevrolet Corvette Coupe and convertible, excluding dual mode exhaust Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11380 (Part #5W-CHW-362) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The Curt 11380 receiver hitch is designed for Chevrolet Corvette models, but it excludes vehicles equipped with the Z51 chassis package. If your Corvette has the Z51 package, this hitch is not compatible.
The Curt 11380 is designed for use with ball mount part number D-55001 or 45501.
The manual specifies a gross load capacity of 2,000 lbs trailer weight and 200 lbs tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower. Check your Corvette's owner manual for the final towing limit.
The kit includes 4 × 1/2-13 UNC grade 8 carriage bolts (1-3/4" long), 4 × 1/2-13 UNC grade 8 serrated flange nuts, 4 × 0.250 × 1.50 × 3.00" square hole spacers, and 1 × 1/2" fishwire.
Yes. Step 4 requires you to remove the 4 bolts holding the mufflers in place and let them hang loose during installation. You must reinstall the mufflers when hitch installation is finished.
Yes, drilling is required. You must enlarge the existing frame slots to allow spacers to pass through (step 1), drill a 1.5" access hole in the center of the bumper beam between the mufflers (step 3), and drill 2 × 17/32" holes in the bumper beam using the hitch as a template (step 6). These modifications are permanent.
A 1.5" diameter access hole is drilled in the center of the bumper beam between the mufflers (step 3).
Two 17/32" diameter holes are drilled in the bumper beam using the installed hitch as a template (step 6).
All 1/2" fasteners must be torqued to 110 lb-ft (step 8). Initially, fasteners are finger-tightened when the hitch is first raised into position (step 5), then final torque is applied after all fasteners are installed.
Fishwire is a technique for routing fasteners through tight spaces. Push the carriage bolt and spacer through the enlarged frame slot, then pull them back into position (step 2). Later, fishwire the remaining fasteners through the 1.5" access hole and out through the 17/32" drilled holes in the bumper beam (step 7). A 1/2" fishwire is included in the kit.
The hitch is raised into position by twisting sideways between the exhaust tips and rotating to pass between the mufflers (step 5). The mufflers must be hanging loose (removed from their mounting bolts) to allow this maneuver.
The hitch, ball mount, hitch pin, and hitch pin clip may become hot during vehicle operation. Use caution when installing or removing any ball mounts or accessories. Do not exceed your vehicle manufacturer's recommended towing capacity. Periodically check all fasteners to ensure they are tight and all structural components are sound.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This is especially important before towing.
Curt Manufacturing warrants the product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, Curt may repair or replace it at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty.
Yes, for Chevrolet Corvette models excluding Z51 chassis package.
Yes. You must enlarge frame slots, drill a 1.5" access hole in the bumper beam, and drill two 17/32" holes for fasteners.
Yes, you must remove the 4 muffler mounting bolts and let them hang loose during installation, then reinstall them when finished.
All 1/2" fasteners must be torqued to 110 lb-ft.
2,000 lbs trailer weight and 200 lbs tongue weight, but do not exceed your vehicle manufacturer's recommended towing capacity.
Ball mount D-55001 or 45501.
Yes, Curt part 56014 is designed to fit both Chevrolet Corvette and Ford Focus. However, the installation procedure differs between the two vehicles. Ford Focus installation accesses taillights from the trunk and uses a 3/32" ground hole if needed. Corvette installation removes taillights using T10 Torx screws and routes wiring through a rubber grommet in the trunk felt liner.

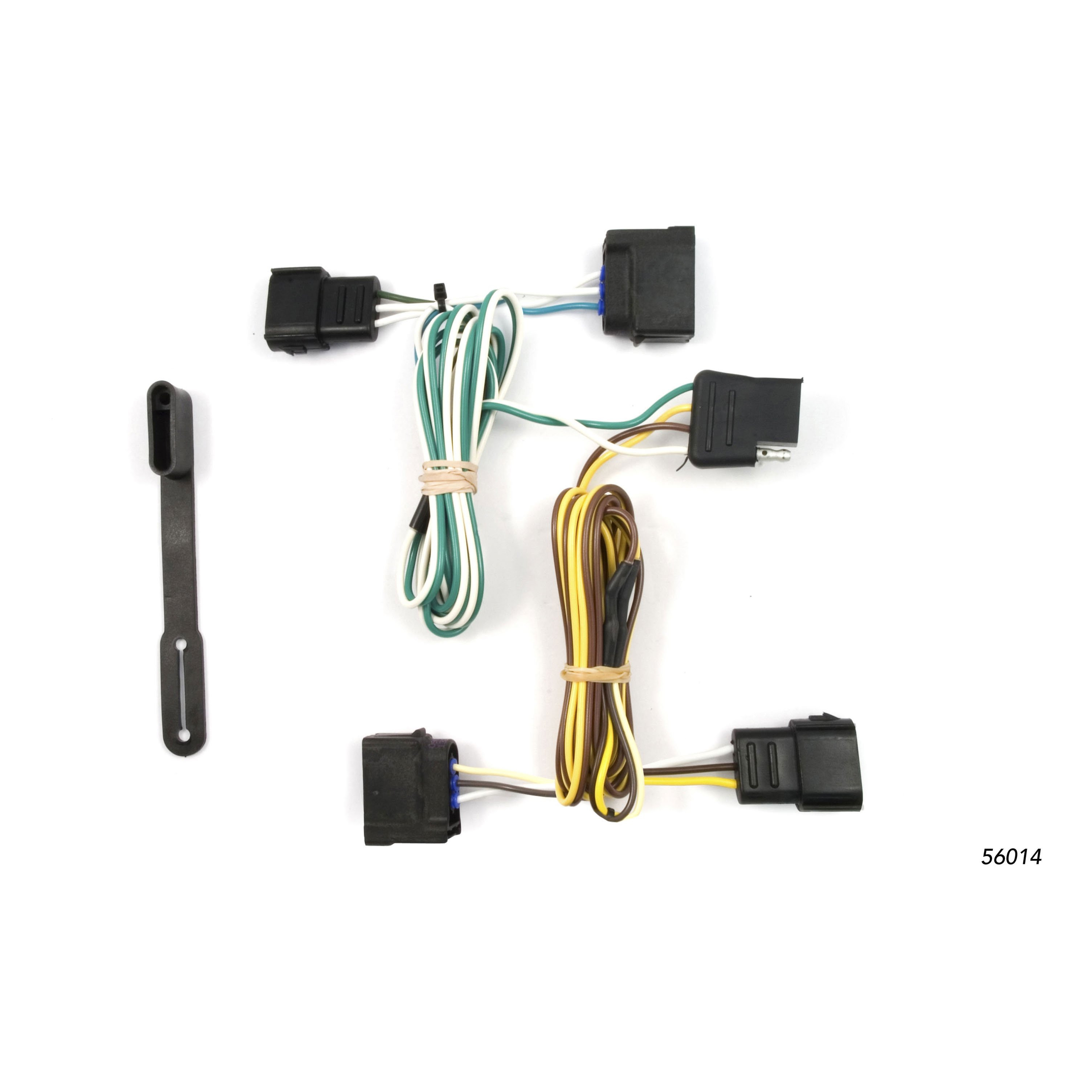

The Curt 56014 includes a T-Connector harness with two connector ends (one with yellow wire for driver side, one with green wire for passenger side), a 4-Flat connector, a white ground wire with ring terminal, a screw for grounding, and cable ties for securing the 4-Flat connector.
1. Open the trunk and remove the rear scuff panel by removing its plastic fasteners. Pull back the felt trunk liner on both sides to access the two 10mm nuts holding each taillight. Remove the nuts and carefully pull out each taillight. 2. Locate the black taillight wiring harness connectors behind each taillight and separate them carefully without damaging the locking tabs. 3. Route the T-Connector end with the yellow wire from underneath the vehicle to the driver side housing and insert it between the separated connectors, ensuring full insertion with locking tabs in place. 4. Locate a suitable grounding point near the connector (existing screw with nut in the frame) or drill a 3/32" hole and secure the white ground wire using the ring terminal and screw provided. 5. Repeat step 3 on the passenger side using the T-Connector end with the green wire. 6. Route the 4-Flat to the center of the vehicle and secure it in an out-of-the-way location near the hitch using the cable ties provided.
1. Remove the two taillights closest to the center of the vehicle by removing the T10 Torx screws holding each in place. 2. Locate the black taillight wiring harness connectors behind each taillight and separate them carefully without damaging the locking tabs. 3. Route the T-Connector end with the yellow wire across from the passenger side taillight opening to the driver's side taillight opening and insert it between the separated connectors, ensuring full insertion with locking tabs in place. 4. Repeat step 3 on the passenger side using the T-Connector end with the green wire. 5. Open the trunk and pull back the felt trunk liner on the passenger side behind the taillight to reveal the rubber grommet. Remove the grommet and make a small slit from the outside to the center using a utility knife. Route the 4-Flat and white ground wire through the slot in the grommet. Locate a suitable grounding point near the connector (existing screw with nut in the vehicle's frame near the grommet). 6. Route the 4-Flat out from under the felt trunk liner and out of the trunk when in use. When not in use, roll up and store in an out-of-the-way location in the trunk.
Drilling is not always required. The installation calls for locating a suitable existing grounding point (an existing screw with nut in the vehicle's frame) near the connector. Only if no suitable grounding point exists should you drill a 3/32" hole and secure the white ground wire using the ring terminal and screw provided.
No drilling is required for the Corvette installation. However, you will need to use a utility knife to make a small slit in the rubber grommet that the taillight wires run through, from the outside to the center, to route the 4-Flat and white ground wire through it.
For Ford Focus: a tool to remove plastic fasteners from the rear scuff panel and a 10mm socket or wrench to remove the taillight nuts. A 3/32" drill bit is needed only if you must drill a grounding hole. For Chevrolet Corvette: a T10 Torx screwdriver or bit to remove the taillight screws and a utility knife to slit the rubber grommet. Both vehicles may require a screwdriver to access or install the grounding screw. The manual does not specify whether a torque wrench is required.
The yellow wire is routed to the driver side taillight connector, and the green wire is routed to the passenger side taillight connector. The T-Connector harness has separate ends for each side to allow the trailer wiring to tap into the vehicle's existing taillight circuits.
The white ground wire must be secured to a suitable grounding point near the T-Connector. On Ford Focus, this is located near the driver side connector. On Chevrolet Corvette, it is located near the grommet in the trunk. The wire is secured using a ring terminal and screw. If no existing screw with nut is available in the vehicle's frame, you may drill a hole (3/32" on Ford Focus) to install the grounding screw.
On Ford Focus, route the 4-Flat to the center of the vehicle and secure it in an out-of-the-way location near the hitch using the cable ties provided. On Chevrolet Corvette, route the 4-Flat through the slitted rubber grommet in the trunk felt liner, then out from under the felt trunk liner and out of the trunk when in use. When not in use on the Corvette, roll up and store the 4-Flat in an out-of-the-way location in the trunk.
Take care not to damage the locking tabs when separating the taillight wiring harness connectors. The connectors must be fully inserted with locking tabs in place after inserting the T-Connector ends to ensure a secure connection.
The Curt 56014 is designed for Chevrolet Corvette and Ford Focus only. Installation procedures differ between the two vehicles.
For Ford Focus: 10mm socket/wrench, plastic fastener removal tool, and optionally a 3/32" drill bit. For Chevrolet Corvette: T10 Torx screwdriver/bit and utility knife. Both may need a screwdriver for the grounding screw.
On Ford Focus, drilling a 3/32" hole is required only if no existing grounding point is available. On Chevrolet Corvette, no drilling is needed, but you must slit the rubber grommet with a utility knife.
Yes. On Ford Focus, remove both taillights by removing 10mm nuts after pulling back the trunk felt liner. On Chevrolet Corvette, remove the two center taillights by removing T10 Torx screws.
The T-Connector harness inserts between the separated taillight connectors (yellow wire to driver side, green wire to passenger side). The white ground wire must be secured to an existing frame screw or a drilled hole using the provided ring terminal and screw.
No reviews have been added for this product.
