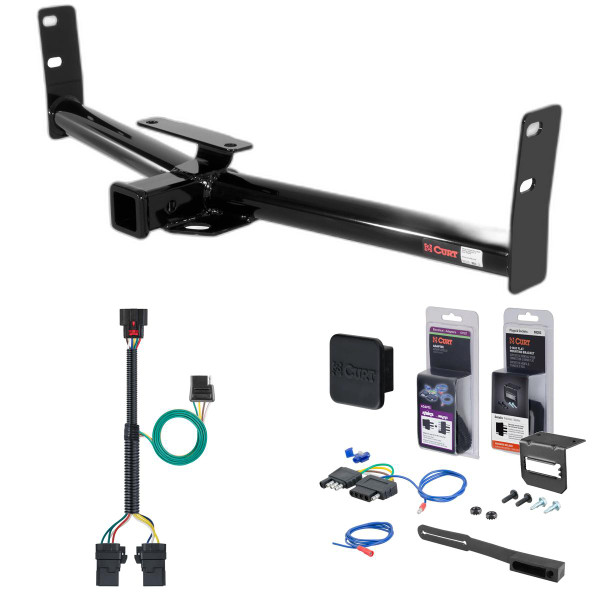

Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2005 - 2017 Chevrolet Equinox. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Chevy Equinox, GMC Terrain, Pontiac Torrent and Saturn Vue (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 4,000 lbs. WD and 400 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Chevrolet Equinox and GMC Terrain (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 - 2017 | Chevrolet Equinox | — |
Yes, the 05 - 17 Chevrolet Equinox Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13591 (Part #5W-CHW-381) is designed to fit the 2005-2017 Chevrolet Equinox.
The 05 - 17 Chevrolet Equinox Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13591 (Part #5W-CHW-381) fits 2005-2017 Chevrolet Equinox models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The 05 - 17 Chevrolet Equinox Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13591 (Part #5W-CHW-381) fits the following vehicles: 2005-2017 Chevrolet Equinox. Always verify your specific year, make, and model before ordering.
The 05 - 17 Chevrolet Equinox Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13591 (Part #5W-CHW-381) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 13591 is designed for 2005–2017 Chevy Equinox models. However, you will need to remove the center fascia panel to provide space for hitch installation. Return the panel to the vehicle owner after installation.
Yes, Curt part number 13591 fits 2010–2017 GMC Terrain models. Like the Chevy Equinox, you must remove the center fascia panel to provide space for hitch installation, then return the panel to the vehicle owner.
Yes, Curt part number 13591 fits 2002–2007 Saturn Vue (Redline) models. Note that fascia trimming is required on Saturn Vue Redline, and the installation uses fishwire carriage bolts and square hole spacers instead of hex bolts and conical washers. Holes may need to be enlarged to 17/32" for bolt clearance.
Yes, Curt part number 13591 is compatible with 2006–2009 Pontiac Torrent models. Installation uses fishwire carriage bolts and square hole spacers. Holes may need to be enlarged to 17/32" for bolt clearance.
The hitch weight is 60 lbs.
The manual lists gross load capacity as 3,500 lbs. trailer weight and 350 lbs. tongue weight when used as a weight-carrying hitch, and 4,000 lbs. trailer weight and 400 lbs. tongue weight when used as a weight-distribution hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity.
You will need a 19 mm socket, 8" extension, socket wrench, and torque wrench. No drilling is required.
The kit includes: 6× M12×1.75×40 mm hex head cap screws (grade 10.9), 6× 1/2" conical washers, 2× 1/2"-13 UNC carriage bolts (1-3/4" long, grade 8), 2× 0.250" × 1.50" × 2.00" square hole spacers, 2× 1/2"-13 UNC serrated flange nuts (grade 8), and 1× 1/2" × 30" fishwire.
Yes. On Chevy Equinox and GMC Terrain models, you must remove the center fascia panel to provide space for hitch installation. Return the panel to the vehicle owner after installation is complete.
Remove any existing M12 fasteners from the outside surfaces of the frame rails. If tie-down brackets are present, remove them and return them to the customer.
Raise the hitch into position and fasten it to the bumper beam using M12 bolts and conical washers. Then install M12 bolts and conical washers on the outside surfaces of the frame rails. Finally, torque all M12 hardware to 79 ft-lbs.
The fishwire technique is used on Saturn Vue Redline and some Chevy Equinox/GMC Terrain models. Use the included 1/2" × 30" fishwire to thread carriage bolts and square hole spacers through the end of the bumper beam. You may need to enlarge holes to 17/32" to ensure clearance of the 1/2" bolts. Secure with flange nuts and torque all 1/2" hardware to 110 ft-lbs.
If weldnuts contain debris, follow these steps: 1. Spray with penetrating oil and let soak for 5 minutes. 2. Clean the weldnut with a wire brush and compressed air. 3. If necessary, use an M12-1.75 tap to clean the weldnut.
All M12 hardware must be torqued to 79 ft-lbs.
All 1/2" hardware must be torqued to 110 ft-lbs.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
Curt Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt may repair or replace it at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. Curt's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
2005–2017 Chevy Equinox, 2010–2017 GMC Terrain, 2002–2007 Saturn Vue (Redline), and 2006–2009 Pontiac Torrent.
No drilling is required.
Yes, on Chevy Equinox and GMC Terrain models you must remove the center fascia panel. On Saturn Vue Redline, fascia trimming is required. Return removed panels to the vehicle owner.
Torque all M12 hardware to 79 ft-lbs and all 1/2" hardware to 110 ft-lbs.
As a weight-carrying hitch: 3,500 lbs. trailer weight, 350 lbs. tongue weight. As a weight-distribution hitch: 4,000 lbs. trailer weight, 400 lbs. tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
Part 56429 is a custom wiring harness for SUVs and vans. It connects your vehicle's electrical system to a trailer via a 4-flat connector mounted near the hitch. The harness provides signal circuits (7.5 amps per side) and tail/running circuits (7.5 amps total) to control trailer lights.
Part 56429 is designed for SUVs and vans. The wiring connector is located behind the center of the rear bumper (location S6). Check your vehicle's owner's manual to confirm your vehicle has a rear bumper-mounted connector location. If your vehicle does not have a connector in this location, this product may not be compatible.
You will need a flat blade screwdriver and a cutting tool. You will also need a test light, 4-flat tester, or a functioning trailer to verify the harness is working after installation.
Yes. Before beginning installation, locate your vehicle battery using your owner's manual and disconnect the negative battery terminal. Fasten this wire down and away from the battery during installation. Reconnect it after all other installation steps are complete.
1. Locate the vehicle wiring connector along the rear bumper (it will look similar to the custom connector end). 2. Separate the vehicle connector from the weather seal connector carefully, taking care not to damage the locking tabs. 3. Insert the custom wiring connector end fully into the vehicle connector, ensuring the locking tabs are in place. 4. Zip tie the harness into place and mount the 4-flat connector near the hitch.
After connecting the harness, reinstall all items you removed during installation. If you disconnected the negative battery terminal at the start, reconnect it now. Install the provided 4-flat dust cover to help prevent corrosion. Then verify the harness is functioning by connecting the battery and testing with a test light, 4-flat tester, or a functioning trailer.
Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower. Check your vehicle owner's manual or contact the vehicle manufacturer for your specific lamp load rating.
Signal circuits are rated at 7.5 amps per side. Tail and running circuits are rated at 7.5 amps total.
After reconnecting the battery, verify the harness is functioning by using a test light, 4-flat tester, or by connecting a properly wired trailer. This confirms all signal and running circuits are working correctly before towing.
Perform periodic inspection of all wires and connections to ensure there is no visible damage or loose connections. This helps prevent electrical failures and corrosion.
The 4-flat dust cover is a protective cover provided with part 56429. Install it on the 4-flat connector after completing the wiring harness installation to help prevent corrosion of the connector.
Mount the 4-flat connector near the hitch after zip tying the harness into place.
You need a flat blade screwdriver, cutting tool, and a test light or 4-flat tester to verify installation. A functioning trailer can also be used for testing.
Yes, disconnect the negative battery terminal before starting installation and reconnect it after completing all other steps.
Signal circuits: 7.5 amps per side. Tail/running circuits: 7.5 amps total.
