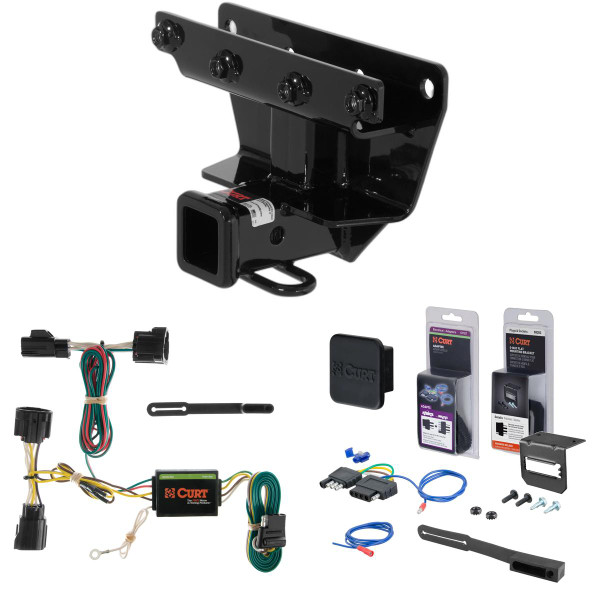

Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2006 - 2010 Jeep Commander Excluding Rocky Mountain Edition. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Jeep Commander (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 500 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 7,500 lbs. WD and 750 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Jeep Commander (except Rocky Mountain Edition) (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2006 - 2010 | Jeep Commander | Excluding Rocky Mountain Edition |
On Sale Today
Original price was $404.75. Current price is $336.41.You save $68.34 (17%)
Free Shipping
Ships free on all orders
Authorized DealerYes, the 06 - 10 Jeep Commander Excluding Rocky Mountain Edition Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13414-1 (Part #5W-CHW-1962) is designed to fit the 2006-2010 Jeep Commander.
The 06 - 10 Jeep Commander Excluding Rocky Mountain Edition Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13414-1 (Part #5W-CHW-1962) fits the following vehicles: 2006-2010 Jeep Commander. Always verify your specific year, make, and model before ordering.
The 06 - 10 Jeep Commander Excluding Rocky Mountain Edition Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13414-1 (Part #5W-CHW-1962) fits 2006-2010 Jeep Commander models. The 2010 model year is the last year covered by this part number. For newer models, check for an updated version.
The 06 - 10 Jeep Commander Excluding Rocky Mountain Edition Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13414-1 (Part #5W-CHW-1962) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 13414 is designed for the Jeep Commander, excluding the Rocky Mountain Edition. If your vehicle is a Rocky Mountain Edition, this hitch is not compatible.
No. Curt part number 13414 is specifically designed for the Jeep Commander excluding the Rocky Mountain Edition. The Rocky Mountain Edition is not compatible with this hitch.
The hitch weight is 60 lbs.
The manual lists gross load capacity specifications but the exact values are not filled in on this copy. You must not exceed your vehicle manufacturer's recommended towing capacity. Contact Curt Technical Support at 877-287-8634 for the specific capacity ratings for this hitch.
The hitch includes 4 hex cap screws (HHCS), 1/2-13 UNC, Grade 5 (part number 10-10602) and 4 conical washers (part number 30-00149). These fasteners are used to secure the hitch to the existing holes in the bumper support.
Yes. You must lower the spare tire to allow access to the rear bumper support. After installation is complete, raise the spare tire back into position.
If your Jeep Commander is equipped with an OEM tow hook, you must remove it permanently for hitch installation. Removing the tow hook will increase installation time from 30 to 90 minutes.
No. The hitch uses existing holes in the bumper support. No drilling is required.
No. You do not need to remove the bumper. You must remove 6 plastic fasteners from the bumper fascia tabs and gently pull the bumper cover away from the vehicle to access the bumper support. After securing the hitch, reinstall the plastic fasteners and bumper cover.
All 1/2" fasteners must be torqued to 75 lb-ft.
Yes. The 6 plastic fasteners removed from the bumper fascia tabs in step 2 should be reused when reinstalling the bumper cover in step 5.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This regular inspection helps maintain safe operation and extends the life of the hitch.
You must not exceed your vehicle manufacturer's recommended towing capacity. The hitch has its own capacity ratings, but your vehicle's capacity is the limiting factor. Consult your vehicle's owner manual for the maximum towing capacity.
Yes, it fits all Jeep Commander models except the Rocky Mountain Edition.
All 1/2" fasteners must be torqued to 75 lb-ft.
Yes, lower the spare tire for access to the bumper support, then raise it back after installation.
4 hex cap screws (1/2-13 UNC, Grade 5) and 4 conical washers are included.
Yes, if equipped. The tow hook must be removed permanently. This increases installation time from 30 to 90 minutes.
Yes, Curt part number 55414 is designed for the Jeep Commander. The manual confirms this application.
The Curt 55414 is a T-connector wiring harness for the Jeep Commander. It includes a black converter box, wiring with yellow, green, and white leads, a 4-flat wire connector, cable ties, an eyelet, and a screw for grounding.
The kit includes: a black converter box, wiring harness with yellow, green, and white wires, a 4-flat wire connector, cable ties, double-sided tape, an eyelet, and a screw for grounding.
No, you do not need to remove the tailgate. You only need to open it to access the taillight assemblies on both sides of the vehicle.
Open the tailgate. On each side, remove the two plastic fasteners on the taillight assembly and pull out on the taillight. Repeat on both the driver's side and passenger side.
The harness includes three wire colours: yellow (plugged between mating connectors on the driver's side), green (routed along the back of the bumper from driver's side to passenger side), and white (used for grounding to the vehicle frame).
The yellow wire is plugged in between the mating connectors on the driver's side of the vehicle.
Route the green wire down through the opening on the driver's side, then along the back side of the bumper to the passenger side, then up through the opening on the passenger side and plug it in between the mating connectors.
Route the 4-flat wire from the driver's side of the vehicle to the center of the vehicle and secure it with a cable tie in a convenient location.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle's frame. If no suitable point exists, drill a 3/32" hole and secure the white wire using the eyelet and screw provided in the kit.
Drilling is not always required. You only need to drill a 3/32" hole if a suitable existing grounding point (such as a screw with nut in the vehicle's frame) is not available near the connector.
If drilling is necessary, drill a 3/32" hole for the white grounding wire.
Adhere the black converter box to the frame of the vehicle using the double-sided tape provided in the kit.
Secure any loose parts of the T-connector with the cable ties provided in the kit.
Before drilling, verify that miscellaneous items (such as wiring, fuel lines, or other components) that may be hidden behind or under any surface are not in the way. This will avoid damage to the vehicle and personal injury.
Yes, the Curt 55414 is designed for the Jeep Commander.
Only if no suitable existing grounding point is available. If required, drill a 3/32" hole for the white grounding wire.
