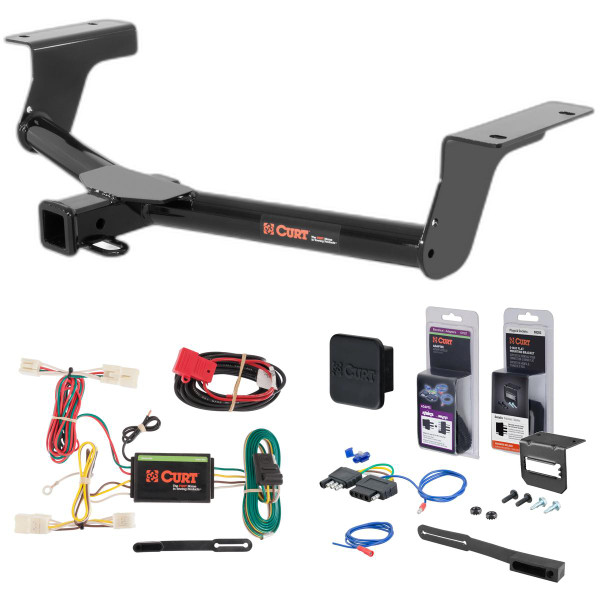

Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2006 - 2012 Toyota RAV4. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Toyota RAV4 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 525 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 4,000 lbs. WD and 525 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Toyota RAV4 (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2006 - 2012 | Toyota RAV4 | — |

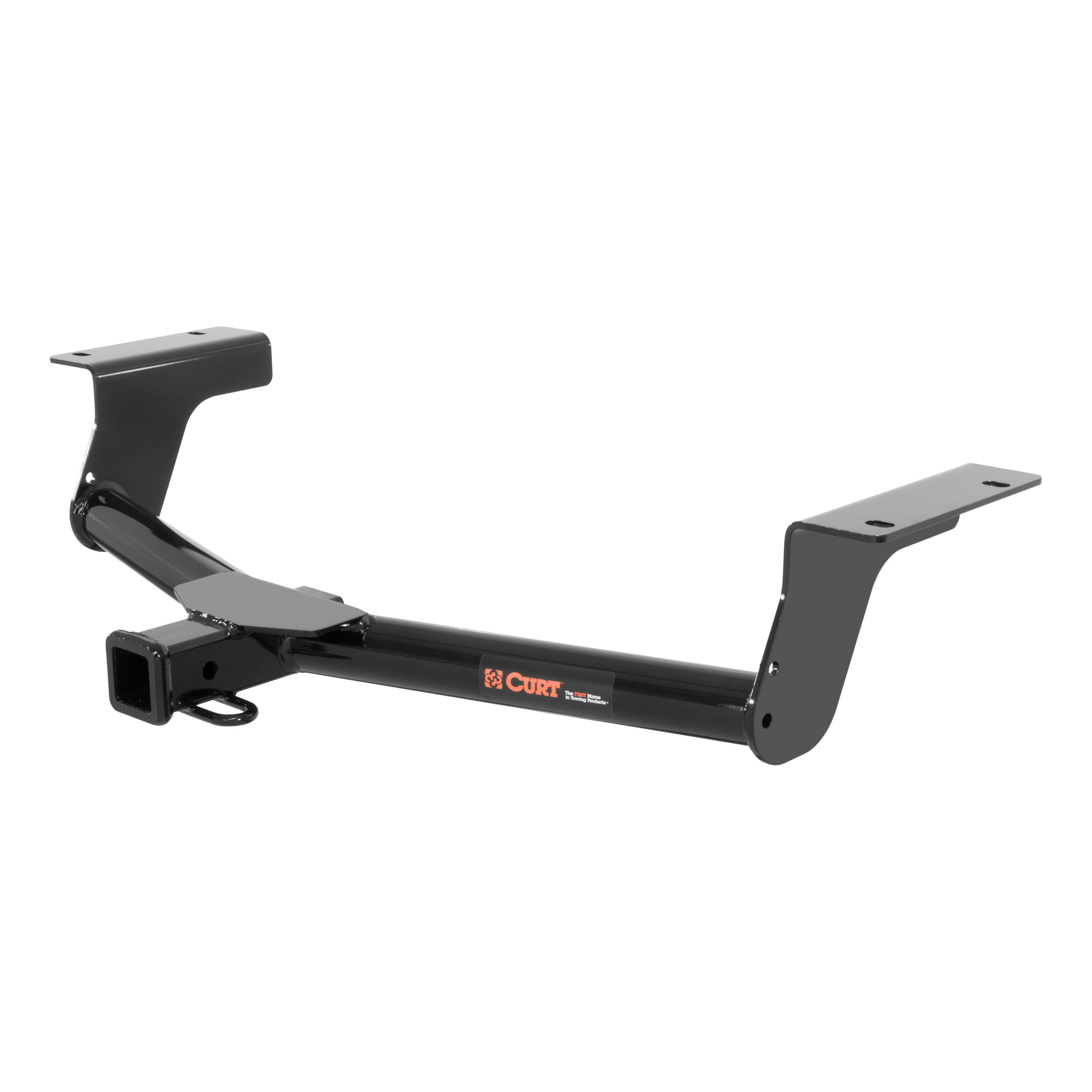

The 06 - 12 Toyota RAV4 Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13149 (Part #5W-CHW-2925) fits the following vehicles: 2006-2012 Toyota RAV4. Always verify your specific year, make, and model before ordering.
The 06 - 12 Toyota RAV4 Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13149 (Part #5W-CHW-2925) fits 2006-2012 Toyota RAV4 models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 06 - 12 Toyota RAV4 Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13149 (Part #5W-CHW-2925) is designed to fit the 2006-2012 Toyota RAV4.
The 06 - 12 Toyota RAV4 Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13149 (Part #5W-CHW-2925) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 13149 fits Toyota RAV4 models from 2006 to current, excluding electric models. The hitch is designed for the compact SUV body style.
No. Curt part number 13149 is specifically designed for Toyota RAV4 models excluding electric versions.
The hitch weight is 30 lbs.
When used as a weight carrying hitch, the gross load capacity is 3,500 lbs trailer weight and 525 lbs tongue weight. However, you must not exceed your vehicle manufacturer's recommended towing capacity.
When used as a weight distribution hitch, the gross load capacity is 4,000 lbs trailer weight and 525 lbs tongue weight. You must not exceed your vehicle manufacturer's recommended towing capacity.
The hitch includes 4 hex cap screws (HHCS, M12x1.25, 35mm, class 10.9, zinc-plated, part number 10-10275) and 4 conical tooth washers (part number 30-00149, 1/2 inch, zinc-plated).
You will need a 17mm socket, 19mm socket, 8-inch extension, socket wrench, ratchet, torque wrench, pipe brush, and safety glasses. A torque wrench is essential for final tightening to the specified 86 lb-ft.
No. The Curt 13149 requires no drilling. It uses existing weldnuts on both the driver and passenger side frame rails.
Two people may be required to ease installation, though the manual does not state that a second person is mandatory. If you are hesitant to undertake the task on your own, contact an authorized Curt installer for assistance.
Professional installation takes approximately 15 minutes. Novice (DIY) installation takes approximately 30 minutes.
Yes. You must remove the tie-down bracket from the driver's side frame rail using a 17mm socket, 8-inch extension, and ratchet. Return the bracket and fasteners to the vehicle owner.
Yes. Lower the rearmost exhaust isolator for ease of installation. After installing the hitch, raise the exhaust back into location and reinstall the rubber isolator.
1. Remove panel trim and tie-down bracket from driver's side frame rail. 2. Lower the rearmost exhaust isolator. 3. Raise hitch into position over existing weldnuts and install the 12mm hex bolts and conical tooth washers. 4. Raise exhaust back into location and reinstall rubber isolator. 5. Torque hardware to 86 lb-ft.
Yes. Clean existing weldnuts using a pipe brush before installation to ensure proper fastener seating.
Torque all hardware to 86 lb-ft. This applies to the four M12x1.25 hex cap screws that secure the hitch to the frame rail weldnuts.
Wear safety glasses at all times while installing this product. Before you begin installation, read all instructions thoroughly. If you are hesitant to undertake this task on your own, contact an authorized Curt installer for additional assistance.
Never exceed your vehicle manufacturer's recommended towing capacity. The Curt 13149 has a gross load capacity of 3,500 lbs trailer weight and 525 lbs tongue weight when used as a weight carrying hitch, or 4,000 lbs trailer weight and 525 lbs tongue weight when used as a weight distribution hitch, but your vehicle's manufacturer limits may be lower.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This maintenance is important for safe towing.
The manual states you should periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound, but does not specify an exact interval. Regular inspection before towing is recommended.
Yes. Curt Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt Manufacturing may repair or replace the product at their option when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty.
Yes. The Curt 13149 fits Toyota RAV4 models from 2006 to current, excluding electric versions.
No. The hitch uses existing weldnuts on the frame rails. No drilling is required.
You will need 17mm and 19mm sockets, an 8-inch extension, a ratchet, a torque wrench, a pipe brush, and safety glasses.
Torque all fasteners to 86 lb-ft.
Weight carrying: 3,500 lbs trailer, 525 lbs tongue. Weight distribution: 4,000 lbs trailer, 525 lbs tongue. Never exceed your vehicle manufacturer's recommended towing capacity.

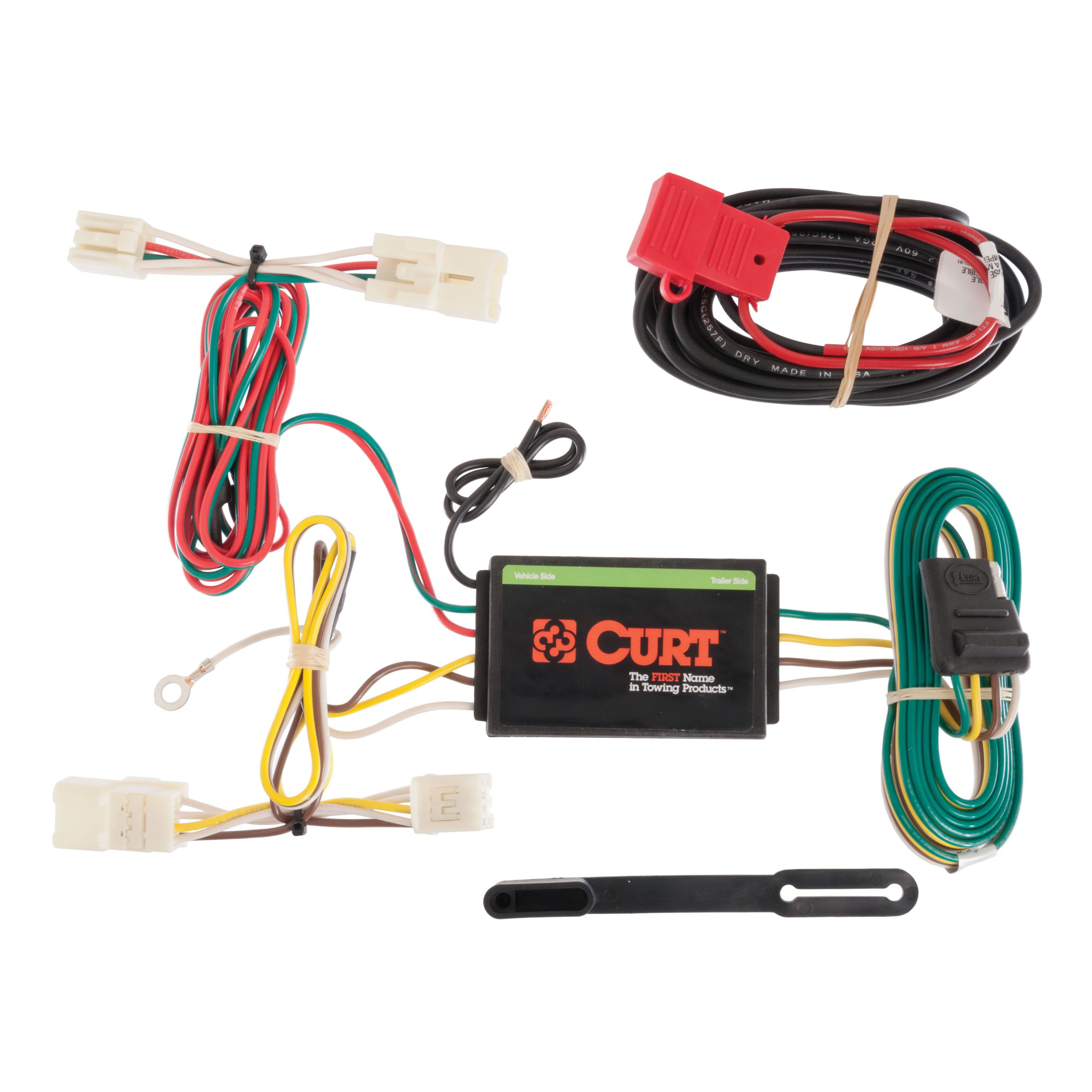

The Curt 56165 is a custom wiring harness that integrates with your vehicle's taillight system to provide trailer lighting connections. It includes a converter box and a 4-flat connector for trailer use.
Yes, the Curt 56165 is designed for Toyota Rav4 SUVs, Mini & Full-Sized Vans (S). Confirm your vehicle matches this application before purchasing.
No. The Curt 56165 is specifically designed for Toyota Rav4 SUVs, Mini & Full-Sized Vans (S). It is not compatible with other makes or models. Check the vehicle applications table to confirm your vehicle is listed.
You will need: a ratchet, 10mm socket, Phillips screwdriver, and a panel trim removal tool. The manual also recommends having a test light or properly wired trailer available to test the harness after installation.
The harness includes: a custom wiring harness with yellow and green wire ends, a white ground wire with ring terminal, a black converter box, a provided screw for grounding, double-sided tape for the converter box, a 4-flat dust cover, and cable ties for securing loose wires.
Open the tailgate and remove: the rear scuff panel, trunk floor coverings, storage covers, and the privacy screen. Then remove all trim fasteners and slightly pull out the rear trim panels on both sides to access the taillight wiring harness connectors.
Separate the vehicle taillight connectors from the housing, taking care not to damage the locking tabs. Insert the custom wiring harness end (yellow wire for driver side, green wire for passenger side) between the separated connectors. Ensure the connectors are fully inserted with locking tabs in place.
Locate a flat spot inside the vehicle near the taillight. Adhere the black converter box using the provided double-sided tape. The converter box should be positioned where it will not interfere with vehicle operation.
When in use, route the 4-flat to the center of the vehicle. When not in use, roll it up and store in a convenient, out-of-the-way location. Secure any loose wires with the provided cable ties.
Drilling may be required. If a suitable existing grounding point (such as a screw with nut in the vehicle frame) is not available near the taillight connector, you will need to drill a 3/32" pilot hole for the provided ground screw. Before drilling, check for miscellaneous items hidden behind or under surfaces to avoid damage and personal injury.
Drill a 3/32" pilot hole for the provided ground screw. The area should be free of rust, dirt and paint before drilling.
The battery connection must be fuse-protected with a maximum 10-amp fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
Signal circuits are rated at 3.0 amps per side. Tail/Running circuits are rated at 6.0 amps total. Do not exceed these product ratings or the tow vehicle lamp load rating, whichever is lower.
The harness has a yellow wire end for the driver side connection, a green wire end for the passenger side connection, and a white ground wire with ring terminal. The black power wire connects to the vehicle battery (routing details are provided on the included CME-PCL-INS sheet).
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If one is not available, drill a 3/32" pilot hole for the provided screw. The area should be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. Ensure the grounding area is free of rust, dirt and paint.
Do not exceed the product rating (Signal circuits 3.0 amps per side, Tail/Running circuits 6.0 amps total) or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire. The battery connection must be fuse-protected with a 10-amp maximum fuse.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly.
Reinstall all items removed during installation, including the rear scuff panel, trunk floor coverings, storage covers, privacy screen and rear trim panels. Install the provided 4-flat dust cover to help prevent corrosion.
The Curt 56165 is designed for Toyota Rav4 SUVs, Mini & Full-Sized Vans (S). Confirm your vehicle matches this application.
You need a ratchet, 10mm socket, Phillips screwdriver, and panel trim removal tool. A test light or properly wired trailer is recommended for testing after installation.
The battery connection must use a 10-amp maximum fuse. Do not exceed this rating or the product rating (3.0 amps per signal circuit, 6.0 amps total for tail/running circuits), whichever is lower.
