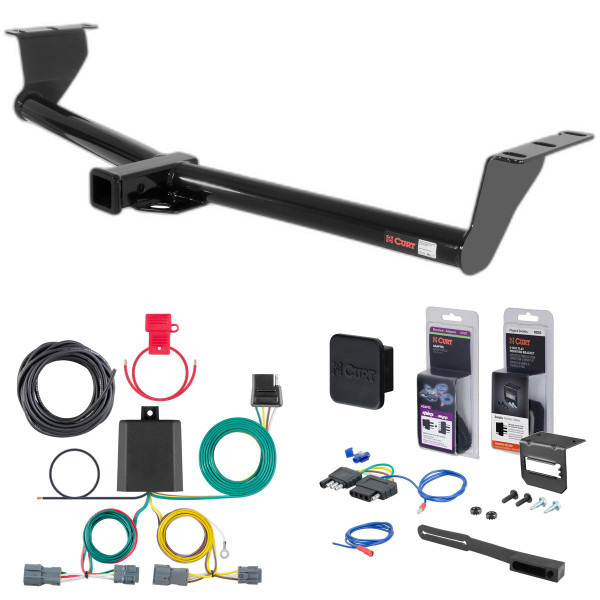

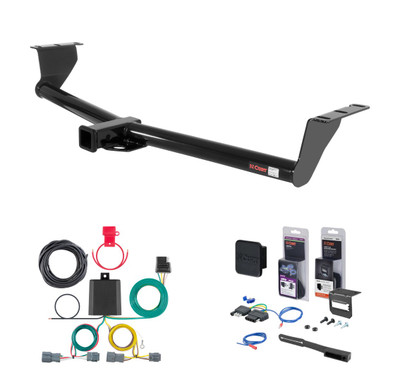

Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2007 - 2010 Hyundai Entourage. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Hyundai Entourage and Kia Sedona (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 4,000 lbs. WD and 400 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Hyundai Entourage and Kia Sedona (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2010 | Hyundai Entourage | — |
Yes, the 07 - 10 Hyundai Entourage Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13345 (Part #5W-CHW-1825) is designed to fit the 2007-2010 Hyundai Entourage.
The 07 - 10 Hyundai Entourage Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13345 (Part #5W-CHW-1825) fits 2007-2010 Hyundai Entourage models. The 2010 model year is the last year covered by this part number. For newer models, check for an updated version.
The 07 - 10 Hyundai Entourage Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13345 (Part #5W-CHW-1825) fits the following vehicles: 2007-2010 Hyundai Entourage. Always verify your specific year, make, and model before ordering.
The 07 - 10 Hyundai Entourage Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13345 (Part #5W-CHW-1825) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Curt part number 13345 fits Kia Sedona and Hyundai Entourage models with a long wheelbase of 119 inches only. If your vehicle has a different wheelbase, this hitch is not compatible.
The manual specifies gross load capacity for both weight-carrying and weight distribution modes, but the specific values are not filled in on this copy of the manual. You must not exceed your vehicle manufacturer's recommended towing capacity. Contact Curt Manufacturing or your vehicle dealer for the exact capacity ratings for this hitch.
You will need a ratchet, a 19mm socket, and a torque wrench. These are the only tools required for installation.
The hitch includes six M12-1.25 x 30mm hex bolts and six 1/2" conical toothed washers. These fasteners attach the hitch to the existing frame weldnuts on both sides of the vehicle.
Yes. You must remove the exhaust from its hangers to provide access to the frame fastener locations. The manual notes that lowering the exhaust can ease installation. After the hitch is secured and torqued, you must re-attach the exhaust hangers.
1. Remove the exhaust from its hangers. 2. Raise the hitch on the passenger side over the exhaust pipe and rotate it into position. 3. Loosely install all six 12mm hex bolts and six conical washers. 4. Push the hitch forward against the installed bolts. 5. Torque all 12mm fasteners to 86 ft-lb. 6. Re-attach the exhaust hangers.
No. The manual explicitly states that no drilling is required. The hitch uses existing frame weldnuts on both sides of the vehicle.
All six M12-1.25 x 30mm hex bolts must be torqued to 86 ft-lb. Ensure the hitch is pushed forward against the bolts before final torquing.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify a retorque interval, but regular inspection of fastener tightness is essential for safe towing.
Do not exceed your vehicle manufacturer's recommended towing capacity. The hitch has specified load capacities, but you must never tow beyond what your vehicle is rated for by its manufacturer.
Yes, if your vehicle is a Kia Sedona or Hyundai Entourage with a long wheelbase of 119 inches. Other wheelbase lengths are not compatible.
No drilling is required. The hitch bolts to existing frame weldnuts.
You need a ratchet, 19mm socket, and torque wrench.
Torque all six M12-1.25 x 30mm hex bolts to 86 ft-lb after pushing the hitch forward against the bolts.
Do not exceed your vehicle manufacturer's recommended towing capacity, even if the hitch has a higher rated capacity.
Part 56347 is designed for Hyundai Entourage and Kia Sedona models. If you own one of these vehicles, this harness is compatible. For other makes and models, contact the manufacturer or consult a fitment database.
The 56347 is a custom wiring harness that connects your vehicle's electrical system to a trailer. It includes a converter box and a 4-flat connector for towing. The harness taps into the vehicle's taillight circuits to provide signal and running lights to the trailer.
The package includes the custom wiring harness with yellow and green wire ends, a black converter box, a white ground wire with ring terminal and provided screw, a 4-flat connector with dust cover, double-sided tape for mounting the converter box, and cable ties for securing loose wires.
The signal circuits are rated for 3.0 amps per side.
The tail and running circuits are rated for 6.0 amps total.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Do not exceed this rating, as exceeding the product rating can cause loss of warranty, overheating and potential fire.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Consult your vehicle owner's manual or contact the vehicle manufacturer for your specific tow vehicle lamp load rating.
The manual lists "TOOLS NEEDED" but does not specify which tools are required. You will need a Phillips screwdriver to remove the three Phillips screws securing each taillight. A drill may be needed if a suitable existing grounding point is not available. Refer to the included CME-PCL-INS sheet for battery connection tools.
Drilling may be required. Step 4 instructs you to locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable existing point is available, you must drill a 3/32" pilot hole for the provided screw. Before drilling, check for miscellaneous items hidden behind or under any surface to avoid damage and personal injury.
Open the vehicle tailgate. Starting on the driver side, remove the three Phillips screws securing the taillight. Gently pull the taillight rearward to remove it, taking care not to damage the alignment tabs. Repeat this process on the passenger side.
Locate the vehicle taillight wiring harness connectors behind the removed taillight. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. Insert the custom wiring harness end with the yellow wire (driver side) or green wire (passenger side) between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. The area should be free of rust, dirt and paint. If no suitable existing point is available, drill a 3/32" pilot hole for the provided screw. Secure the white ground wire using the ring terminal and provided screw.
Locate a flat clean surface that is out of the path of spray and debris from the rear wheels and road. Adhere the black converter box using the provided double-sided tape. Failure to mount the box in a protected area can cause loss of warranty, product failure, overheating and potential fire.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll up and store in a convenient, out of the way location inside the trunk. Secure any loose wires with the provided cable ties.
All steps must be followed to ensure the wiring harness functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Yes. In Step 9, reinstall all items removed during installation and install the provided 4-flat dust cover to help prevent corrosion.
The Curt 56347 is designed for Hyundai Entourage and Kia Sedona models.
A 10-amp maximum fuse is required for the battery connection. Do not exceed this rating.
Drilling may be required if a suitable existing grounding point is not available. If drilling is needed, a 3/32" pilot hole is required for the ground screw.
You will need a Phillips screwdriver to remove the taillight screws. A drill may be needed if no existing grounding point is available. Refer to the included CME-PCL-INS sheet for battery connection requirements.
Mount the converter box on a flat clean surface out of the path of spray and debris from the rear wheels using the provided double-sided tape.
