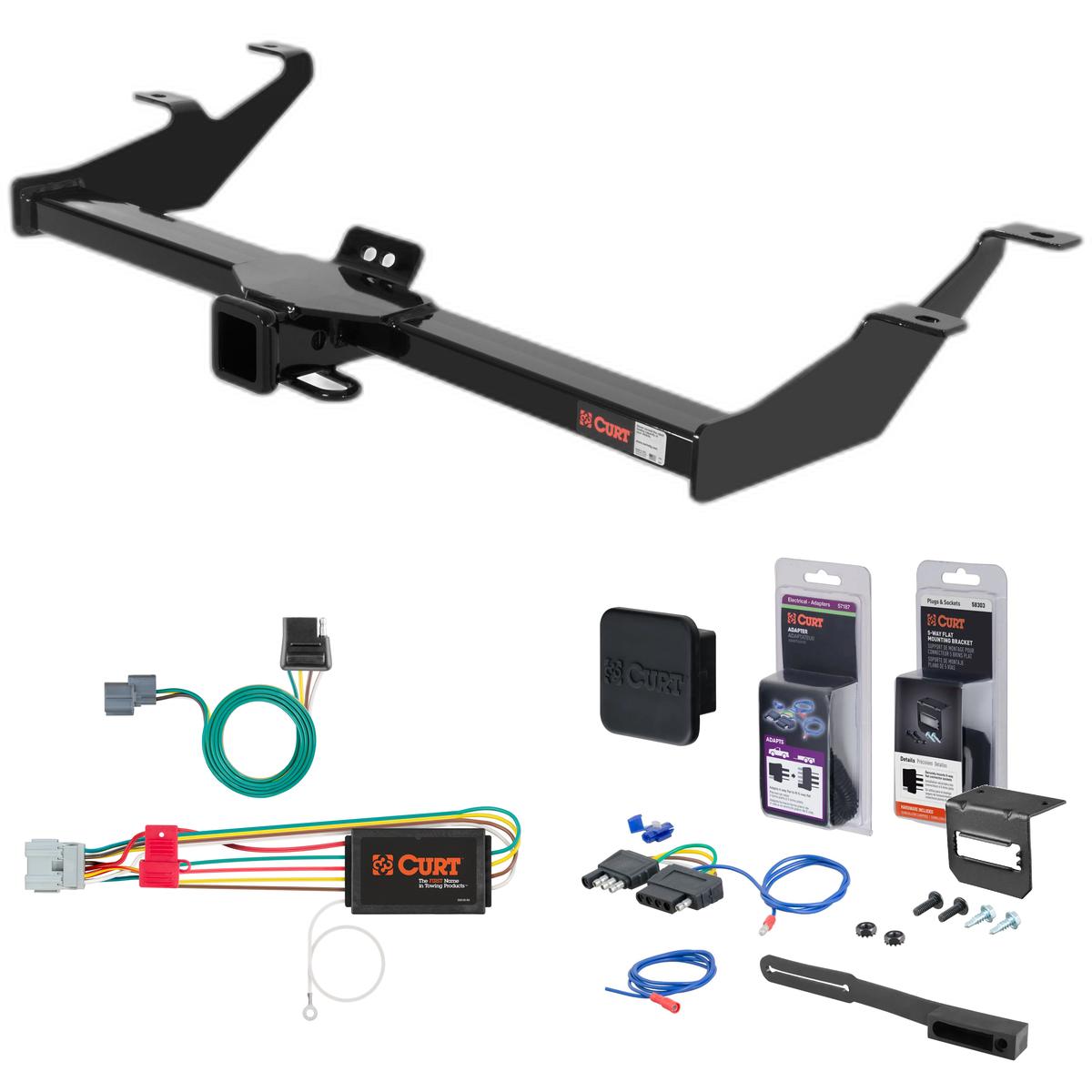

Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2007 - 2011 Honda Element Excluding SC. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Honda Element (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Honda Element (to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2011 | Honda Element | Excluding SC |
The 07 - 11 Honda Element Excluding SC Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13574 (Part #5W-CHW-1764) fits the following vehicles: 2007-2011 Honda Element. Always verify your specific year, make, and model before ordering.
Yes, the 07 - 11 Honda Element Excluding SC Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13574 (Part #5W-CHW-1764) is designed to fit the 2007-2011 Honda Element.
The 07 - 11 Honda Element Excluding SC Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13574 (Part #5W-CHW-1764) fits 2007-2011 Honda Element models. The 2011 model year is the last year covered by this part number. For newer models, check for an updated version.
The 07 - 11 Honda Element Excluding SC Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13574 (Part #5W-CHW-1764) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
No. The Curt 13574 receiver hitch is designed for Honda Element LX and EX models only. It will not fit the SC model.
The Curt 13574 has a gross load capacity of 3500 lbs trailer weight and 350 lbs tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
Yes. Drilling is required. You must enlarge the holes in the frame rails to fit the handle nut and spacer, as shown in the installation diagram. The manual indicates this is a permanent modification.
Yes. Bending is required during installation. The handle nut (part 20-00174) must be bent; the manual notes that the handle end will stick out of the existing frame rail hole after insertion.
The kit includes: 2 handle nuts (1/2-13 UNC, grade 8, zinc plated), 6 washers (1/2"), 2 hex head cap screws (1/2-13 UNC, 1-1/4", grade 8), 2 carriage bolts (1/2-13 UNC, 1-1/2", grade 8), 2 square hole spacers (0.250 x 1.25 x 3.00"), 2 serrated flange nuts (1/2-13 UNC, grade 8), 1 U-bolt (7/16-14 UNC, 1-1/2"), 2 hex flange nuts (7/16-14), and 1 fishwire spacer (1/2").
Torque all 7/16" hardware to 25 lb-ft and all 1/2" hardware to 110 lb-ft.
1. Enlarge holes in frame rails as shown. 2. Insert handle nut into hole; bending is required as the handle end will stick out of the existing frame rail hole. 3. Insert fishwire spacer through existing frame rail hole. 4. Raise hitch into position and align holes. 5. Secure hitch to frame with remaining hardware. 6. Torque all 7/16" hardware to 25 lb-ft and all 1/2" hardware to 110 lb-ft.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This helps maintain safe operation and prevent loosening due to vibration and use.
The manual does not specify the hitch weight. Contact Curt Manufacturing for this specification.
No, the Curt 13574 is designed for Honda Element LX and EX models only.
Maximum 3500 lbs trailer weight and 350 lbs tongue weight, but do not exceed your vehicle manufacturer's recommended towing capacity.
Yes, you must enlarge the frame rail holes to fit the handle nut and spacer.
Torque 7/16" hardware to 25 lb-ft and 1/2" hardware to 110 lb-ft.
Periodically check that all fasteners are tight and structural components are sound.
The Curt 56029 is a custom wiring connector that integrates with your vehicle's electrical system to provide trailer lighting control. It includes a 10-pin connector with a black converter box and a 4-flat connector for trailer use. The connector handles signal circuits (3.0 amps per side) and tail/running circuits (6.0 amps total).
Yes, the Curt 56029 is designed for Honda Element vehicles in the SUVs, Mini & Full-Sized Vans category. Verify your vehicle matches this application before installation.
No special tools are required. The installation uses basic hand tools to remove access panels and secure fasteners. You will need a drill with a 3/32" bit if you choose to drill a new grounding point rather than use an existing screw.
The kit includes a 10-pin connector with black converter box, a white ground wire with ring terminal, a provided screw for grounding, double-sided tape for mounting the converter box, a 4-flat dust cover, and cable ties for securing loose wires.
There are two vehicle wiring harnesses you will connect to: (1) Under the driver-side steering wheel, taped to another harness to the left of the steering column (Step 1), and (2) On the rear scuff panel on the driver side, accessed after removing the cargo area floor cover (Step 6).
Open the driver-side door and locate the access panel under the steering wheel. Turn the locking knobs 90 degrees counter-clockwise to release and remove the panel.
Insert the 10-pin connector with the black converter attached into the vehicle wiring harness connector. Push firmly until the connectors are fully inserted and the locking tabs are in place. This connection is made twice: once under the steering wheel (Step 2) and once at the rear scuff panel (Step 6).
Drilling is optional. You must locate a suitable grounding point, which can be an existing screw with nut in the vehicle frame. If no suitable existing point is available, you may drill a 3/32" pilot hole for the provided screw. The area must be free of rust, dirt and paint before securing the white ground wire with the ring terminal.
Drill a 3/32" pilot hole if you need to create a new grounding point. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Signal circuits are rated at 3.0 amps per side. Tail and running circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower.
Locate a flat spot inside the vehicle under the dash and adhere the black converter box using the provided double-sided tape. Ensure the surface is clean and flat for proper adhesion.
Open the vehicle tailgate and remove the cargo nets and cargo area floor cover to access the spare tire area. On the driver side, locate the vehicle wiring harness mounted on the rear scuff panel. Remove the protective cover before inserting the custom wiring harness connector.
When in use, route the 4-flat connector to the center of the vehicle and out of the trunk. When not in use, roll it up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
Reinstall all items removed during installation and install the provided 4-flat dust cover to help prevent corrosion. Test the connector for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring connector functions properly.
Do not exceed the product rating (signal circuits 3.0 amps per side, tail/running circuits 6.0 amps total) or the tow vehicle lamp load rating, whichever is lower. Check your vehicle owner's manual or contact the vehicle manufacturer for your specific lamp load rating.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. The grounding area should be free of rust, dirt and paint before securing the white ground wire.
No special tools are required. A 3/32" drill bit is needed only if you drill a new grounding point instead of using an existing screw.
The battery connection must use a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Do not exceed the product rating (3.0 amps per side for signals, 6.0 amps total for tail/running) or your vehicle's lamp load rating, whichever is lower. Check your vehicle owner's manual for your specific rating.
Test for proper function by using a test light or connecting a properly wired trailer. All installation steps must be followed to ensure the connector functions properly.
