| Finish | GLOSS BLACK POWDER COAT |
| Main Body Shape | Flat |
| Material | Carbon Steel |
| Mount Type Description | Blank |
| Receiver Tube Size | 2 IN |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 900 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity (WC) | 7,500 LB |
| Weight Distribution (WD) | n/a |
| Weight Distribution Tongue Weight (WDTW) | n/a |
| Side Application Type Description | Blank |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
| Battery-Powered | Yes |
| Circuit-Protected | Yes |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Ball Diameter | 2 IN |
| 10282 | Yes |
| Color | Black |
| Drop | 2 IN |
| Gross Trailer Weight (GTW) | 7,500 LB |
| Material | Carbon Steel |
| Receiver Tube Size | 2 IN |
| Shank Diameter | 2 IN |
| Tongue Weight (TW) | 750 LB |
| Truckload Dom Pickup Location | Eau Claire, Wi |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
Notes:
Notes:
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime

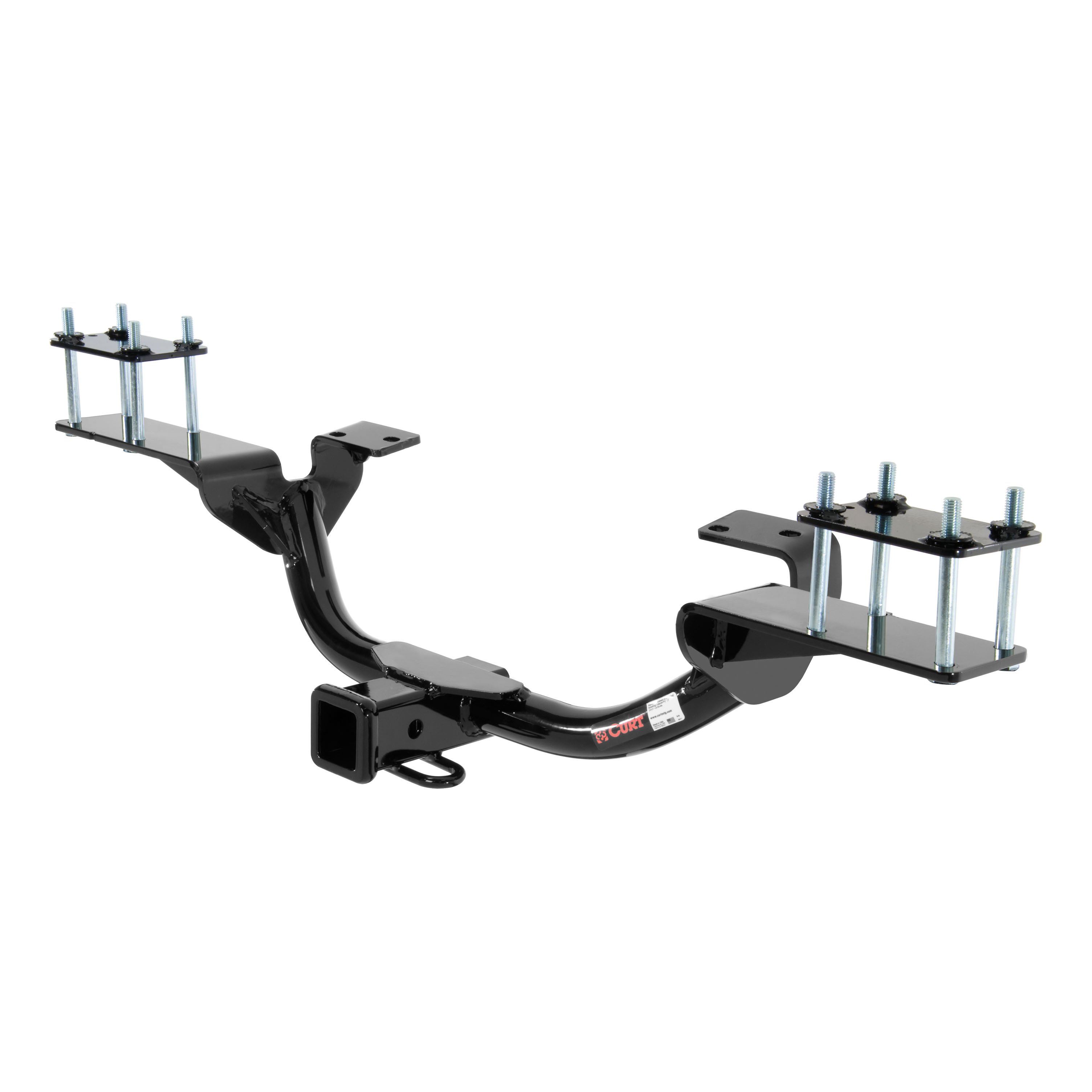

The 07-13 Mercedes-Benz GL450 2 CURT Trailer Hitch + Assure Proportional Brake Controller Kit HBCW1880 (Part #HBCW1880) fits the following vehicles: 2007-2013 Mercedes-Benz GL450. Always verify your specific year, make, and model before ordering.
The 07-13 Mercedes-Benz GL450 2 CURT Trailer Hitch + Assure Proportional Brake Controller Kit HBCW1880 (Part #HBCW1880) fits 2007-2013 Mercedes-Benz GL450 models. The 2013 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 07-13 Mercedes-Benz GL450 2 CURT Trailer Hitch + Assure Proportional Brake Controller Kit HBCW1880 (Part #HBCW1880) is designed to fit the 2007-2013 Mercedes-Benz GL450.
The 07-13 Mercedes-Benz GL450 2 CURT Trailer Hitch + Assure Proportional Brake Controller Kit HBCW1880 (Part #HBCW1880) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 13190 is designed for 2014 Mercedes-Benz GL450 and GL550 SUVs. The hitch excludes vehicles equipped with the Active Curve System.
Yes, Curt part number 13190 is designed for 2014 Mercedes-Benz GL450 and GL550 SUVs. The hitch excludes vehicles equipped with the Active Curve System.
No. The Curt 13190 hitch is not compatible with Mercedes-Benz GL450 or GL550 vehicles equipped with the Active Curve System.
The Curt 13190 is rated for a maximum of 7,500 lbs trailer weight and 900 lbs tongue weight when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The hitch weight is 40 lbs.
Required tools are: ratchet, 6" extension, 8mm socket, 10mm socket, 13mm socket, 3/4" socket, T-40 Torx bit, rotary tool, and torque wrench. Safety glasses should be worn at all times during installation.
A rotary tool is required for trimming the heat shield. The manual states to use shears or a rotary cut-off wheel for this task. If you do not have a rotary tool, shears can be used as an alternative.
Two people may be required to ease installation. The manual notes that using proper tools will greatly improve the quality of the install and reduce the time required.
Professional installation time is approximately 80 minutes. Novice (DIY) installation time is approximately 58 minutes.
No, drilling is not required to install the Curt 13190 hitch.
Two areas require trimming: (1) Heat shield: trim approximately 11" × 6" area following the curvature of the heat shield, using shears or a rotary cut-off wheel. (2) Fascia tabs: the outboard tabs on each side of the vehicle will need to be removed. Some models may require enlargement of the fascia tab hole for the nylon retainer clip.
Yes. The exhaust must be lowered for ease of assembly and heat shield trimming. Remove the rubber isolator (one each side) from the hanger attached to the vehicle. Spray lubricant may assist isolator removal. Support the exhaust to prevent damage. After securing the hitch, the exhaust is raised and secured again.
The bumper fascia tabs and exhaust tips must be removed, but the full bumper is not removed. Remove the 3 bolts securing the center support bracket using a 10mm socket, and remove the exhaust tips using a T-40 Torx bit (2 each side). The bumper beam itself remains in place.
No. If your vehicle is equipped with an access door, it does not need to be removed for the hitch installation.
All M8 fasteners must be torqued to 25 ft-lbs. These fasteners secure the hitch to the bumper beam tab weldnuts.
All 1/2" fasteners must be torqued to 110 ft-lbs, except for the 1/2-13 × 3" hex bolts securing the mounting strap to the cross member, which are torqued to 75 ft-lbs.
The 1/2-13 × 3" hex bolts securing the mounting strap to the cross member must be torqued to 75 ft-lbs.
Installation sequence: (1) Remove bumper fascia tabs and exhaust tips. (2) Lower exhaust and remove rubber isolators. (3) Disconnect heat shield bolts. (4) Trim heat shield and fascia tabs. (5) Remove lower bumper beam nuts and save them. (6) Raise hitch into position and secure with saved vehicle nuts. (7) Stack bolt plate on spacer plate and secure with carriage bolts and flange nuts. (8) Center hitch holes with bumper beam tab weldnuts and secure with M8 bolts; torque M8 fasteners to 25 ft-lbs and all 1/2" fasteners to 110 ft-lbs; raise and secure exhaust. (9) Raise mounting strap and loosely secure to hitch; raise nut plate and secure mounting strap to cross member with 1/2-13 × 3" hex bolts and conical toothed washers; torque to 75 ft-lbs. (10) Torque all remaining 1/2" hardware to 110 ft-lbs. (11) Secure center fascia tabs with nylon retainer clips.
The mounting strap (B) should be loosely secured to the hitch with 1/2-13 × 1" carriage bolts and 1/2-13 hex flange nuts in Step 9. All fasteners are then torqued to their final specifications in Steps 8, 9, and 10.
Included hardware: (2) 1/2" S-CON washers, (2) 1/2-13 UNC × 1" carriage bolts Grade 8, (4) 1/2-13 UNC × 2" carriage bolts Grade 8, (2) 1/2-13 UNC × 3" hex cap screws Grade 5, (2) .344" × .813" black nylon trim panel retainers, (2) 3/8" S-CON washers, (6) 1/2-13 UNC serrated flange nuts Grade 8, (2) M8 × 1.25 × 30 hex cap screws Class 10.9. Major assemblies: hitch weldment (13190-WA), mounting strap weldment (13190-MSWA), nut plate assembly (13190-NPA), (2) .250" bolt plates (13190-BP), (2) .250" spacer plates (13190-SP).
The vehicle nuts removed in Step 5 are saved and reused to secure the hitch to the bumper beam studs in Step 6.
Safety glasses should be worn at all times during installation. When lowering the exhaust, support it to prevent damage. Never exceed your vehicle manufacturer's recommended towing capacity of 7,500 lbs trailer weight and 900 lbs tongue weight.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This maintenance is critical to safe operation.
The manual states to periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound, but does not specify an exact inspection interval.
Yes, the Curt 13190 is designed for 2014 GL450 and GL550 SUVs, excluding vehicles with Active Curve System.
7,500 lbs trailer weight and 900 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
No drilling is required. Installation requires trimming the heat shield (approx. 11" × 6") and fascia tabs, and temporary removal of the bumper fascia, exhaust tips, and heat shield.
Ratchet, 6" extension, 8mm/10mm/13mm/3/4" sockets, T-40 Torx bit, rotary tool, torque wrench, and safety glasses.
M8 fasteners: 25 ft-lbs. 1/2" fasteners: 110 ft-lbs (except 1/2-13 × 3" hex bolts to cross member: 75 ft-lbs).
Professional: 80 minutes. Novice (DIY): 58 minutes. Two people may be required.
Never exceed your vehicle manufacturer's recommended towing capacity. The hitch is rated for 7,500 lbs trailer weight and 900 lbs tongue weight.
The kit includes: one 30 amp auto-resetting circuit breaker, two #10 ring terminals, two 3/8" ring terminals, two 1/2" ring terminals, three 12-10 gauge butt connectors, 10 feet of 10 ga black/white duplex wire, 20 feet of 10 ga blue cross-linked wire, and eight 8.5" cable ties.
Yes, but with a critical difference: these vehicles require the stop signal wire to be spliced to the light green wire on the turn signal harness connector under the dash, not to the brake pedal switch. Do NOT connect to the red wire with green stripe, as serious damage may occur. All other vehicles connect to the brake pedal switch instead.
You will need: a test light, wire stripper/cutter, crimp tool, and 3/8" box end wrench. The test light is used to identify the cold (switched) side of the brake pedal switch.
Yes. The manual cautions to disconnect the tow vehicle's negative battery cable before installation. Reconnect it only in the final step after all wiring is complete.
Mount the 30 amp circuit breaker near the tow vehicle's positive battery terminal. This keeps the power wire run as short as possible and protects the circuit.
Use 10 gauge (10 ga) black wire from the duplex wire included in the kit. Strip 3/8" of insulation from each end. Crimp a #10 ring terminal to the end that attaches to the circuit breaker stud labeled 'BAT', and a 3/8" or 1/2" ring terminal (sized to fit your battery terminal) to the end that attaches to the positive battery terminal.
Feed the 10 ga duplex wire from the brake controller in the cockpit through the firewall into the engine compartment toward the battery. Cut to length as needed. At the battery end, crimp a 3/8" or 1/2" ring terminal to the white wire and a #10 ring terminal to the black wire. Attach the black wire to the circuit breaker stud labeled 'AUX' and tighten the nut with a 3/8" box end wrench.
When passing the duplex wire through the firewall into the engine compartment, use an existing grommet, add a new grommet, or fill the hole with silicone rubber to insulate and protect the wire. The same protection applies when passing the blue cross-linked wire through any sheet metal at the rear of the vehicle.
In the cockpit, attach the black duplex wire to the brake controller's battery wire (typically black) and the white duplex wire to the brake controller's ground wire (typically white). Use either one of the supplied yellow butt connectors or solder the leads together and insulate with heat shrink tubing.
Locate the brake pedal switch on the back side of the vehicle's brake pedal. Use a test light or volt meter to identify the 'cold' or switched side—this terminal will only show power when the brake pedal is depressed. Attach the stop signal wire (typically red) from the brake controller to the cold side of the switch using a wire tap.
Locate the semi-circle turn signal harness connector on the steering column under the dash. It has two rows of wires: a row of four and a row of seven. Attach the stop signal wire (typically red) from the brake controller to the light green wire using a wire tap. Do NOT connect to the red wire with green stripe, as serious damage may occur.
Feed the 10 ga blue cross-linked wire from the brake controller to the trailer connector at the rear of the vehicle, taking up any slack in the wire. When passing through any sheet metal, use an existing grommet, add a new grommet, or fill the hole with silicone rubber to protect the wire.
Attach the blue cross-linked wire to the brake controller's electric brake wire (typically blue) using one of the supplied yellow butt connectors or by soldering and insulating with heat shrink tubing. At the rear of the vehicle, trim any loose blue wire and attach it to the trailer connector's electric brake terminal. Refer to the trailer connector's wiring diagram for the correct terminal location.
Secure any loose wires with the cable ties provided. Connect the black power wire from the circuit breaker to the positive side of the battery. Connect the white ground wire from the brake controller to the negative side of the battery. Finally, reconnect the tow vehicle's negative battery cable to the battery.
The circuit breaker is 30 amps and auto-resetting. It must be mounted near the positive battery terminal and connected directly to the positive battery terminal via the included black 10 gauge wire.
Use a 3/8" box end wrench to tighten the nuts on the circuit breaker studs labeled 'BAT' and 'AUX'.
The kit includes 10 feet of 10 gauge black/white duplex wire for the battery and brake controller connections, and 20 feet of 10 gauge blue cross-linked wire for the electric brake signal to the trailer connector.
Black wire connects to the positive battery and circuit breaker. White wire connects to the brake controller ground and negative battery. Red wire is the stop signal wire from the brake controller. Blue wire is the electric brake signal wire. The manual notes these are 'typically' these colours but recommends confirming with your brake controller documentation.
Yes. You can solder the leads together and insulate with heat shrink tubing as an alternative to using the supplied yellow butt connectors. This applies to connections between the duplex wire and the brake controller wires, and between the blue cross-linked wire and the brake controller.
The black power wire must connect directly to the positive battery terminal via the 30 amp circuit breaker. Connecting to the fuse panel or any other accessory wiring may damage vehicle wiring and cause trailer brake failure. The circuit breaker protects the circuit and must be the only protection between the battery and the brake control system.
Do NOT connect the stop signal wire to the red wire with green stripe on the turn signal harness. Serious damage may occur. Connect only to the light green wire. Also, do not connect to the brake pedal switch on these vehicles; use the turn signal harness instead.
The kit is universal but requires an existing trailer connector and brake controller. 1989-1991 Ford E & F-Series with ABS use a different stop signal connection (turn signal harness instead of brake pedal switch). Consult your brake controller documentation for compatibility.
No drilling is required. The kit connects to existing components: the battery, brake controller, brake pedal switch (or turn signal harness on 1989-1991 Ford E & F-Series with ABS), and trailer connector.
Do NOT connect the stop signal wire to the red wire with green stripe on the turn signal harness—serious damage may occur. Connect to the light green wire instead, and do not use the brake pedal switch.
Connecting to the fuse panel or accessory wiring may damage vehicle wiring and cause trailer brake failure. The 30 amp circuit breaker must be the only protection between the battery and the brake control system.
The CURT taillight converter (56496) is a module that converts a vehicle's taillight wiring to a 4-flat trailer connector. It allows you to connect a trailer with a 4-flat plug to vehicles that do not have a factory trailer connector. The converter interprets your vehicle's existing taillight signals (brake, turn, and tail lights) and outputs them through the 4-flat connector to power the trailer lights.
The converter is designed for SUVs, mini and full-sized vans, passenger cars, and pickup trucks. The manual provides wiring location guides for three vehicle categories: SUVs/vans (S-series locations), passenger cars (P-series locations), and pickup trucks (T-series locations). However, the manual does not provide a specific year, make, or model compatibility list. Contact CURT or consult a fitment database to confirm compatibility with your specific vehicle.
The converter is designed only for 12-volt negative ground electrical systems. Before purchasing, confirm your vehicle uses a 12-volt negative ground system. If your vehicle uses a different voltage or positive ground system, this converter will not work. Check your vehicle owner's manual or contact the vehicle manufacturer to verify your system type.
Included with the converter: snap locks, double-sided tape, cable ties, ground screw, and white ground wire with ring terminal. You must source separately: 12 gauge wire (or larger), 10-amp fuse (maximum), fuse holder, butt connectors, and ring terminal. Alternatively, CURT part 55151 is a kit that includes these items. Tools needed: multimeter or test light for wiring identification, wire strippers, and a drill with 3/32" bit (if drilling a ground hole is necessary). A socket wrench or screwdriver may be needed to disconnect the battery terminal.
Yes. Step 3 of the installation instructions requires you to locate the vehicle battery and disconnect the negative battery terminal before wiring the converter. The negative terminal must remain disconnected until Step 7, after all wiring is complete and the fuse is installed. This prevents electrical shorts and damage during installation.
The manual provides a 'How to Determine Vehicle Wiring Types' procedure on page 2. With the vehicle running and all lights off, probe the taillight connectors (still connected to the vehicle) using a multimeter set to DC volts or a test light. Wires carrying less than 2 volts (or that do not illuminate a test light) are not used. Then activate each light circuit (left turn, right turn, tail, brake) one at a time and probe the remaining wires to identify which wires carry which signals. This determines whether your vehicle has a two-wire system (combined stop/turn with independent tail) or three-wire system (independent stop, turn, and tail signals). This information is essential for correctly splicing the converter wires in Step 4.
Mount the converter near the taillight. The manual provides a wiring location guide showing eight possible locations for SUVs/vans (S1–S8), seven for passenger cars (P1–P7), and five for pickup trucks (T1–T5). These locations are behind taillight housings, rear bumpers, rear access panels, or under rear floor panels, depending on vehicle type. Once you have selected the location, adhere the black converter box using the provided double-sided tape and secure it with the included cable ties. Ensure the area is clean and dry before applying the tape.
In Step 4, use snap locks to attach the converter's input wires to the corresponding vehicle harness wires. The converter has four input wires: red (brake), yellow (left turn), green (right turn), and brown (tail). The wiring installation table on page 3 shows which converter wire splices to which vehicle wire, depending on whether your vehicle has a two-wire or three-wire system. For a two-wire system: green splices to the right stop/turn wire, yellow to the left stop/turn wire, brown to the tail wire, and red is grounded. For a three-wire system: green splices to the right turn wire, red to the stop wire, yellow to the left turn wire, and brown to the tail wire. Photos A, B, and C on page 3 show how to install the snap locks.
In Step 6, locate a suitable grounding point near the taillight. The white ground wire has a ring terminal attached. If an existing screw with nut is available in the vehicle frame, attach the ring terminal to that screw. If not, drill a 3/32" pilot hole in a clean, rust-free, paint-free area of the vehicle frame and use the provided screw to secure the ring terminal. Before drilling, check for hidden items behind or under surfaces to avoid damage and personal injury.
Route 12 gauge wire (or larger) from the converter's black power wire to the vehicle battery positive (+) terminal, taking care to avoid pinch points and hot or rotating components. At the battery, use a ring terminal (not included) to attach the wire to the positive post. Install a 10-amp fuse (maximum) in a fuse holder (not included) on this power wire, positioned as close to the battery as possible. Install the fuse only after all other wiring steps are complete. The negative battery terminal must remain disconnected until the fuse is installed.
In Step 7, secure any loose wires with the provided cable ties. This prevents wires from moving, chafing, or becoming pinched during vehicle operation. Route the 4-flat connector to the center of the vehicle when in use, and secure it in a convenient out-of-the-way location when not in use.
The converter is rated for a maximum of 3.0 amps per signal circuit (left turn, right turn, brake) and 6.0 amps total for tail and running circuits. Do not exceed these ratings. Also do not exceed your tow vehicle's lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Do not use a fuse larger than 10 amps. The fuse holder and fuse are not included and must be purchased separately, or as part of CURT part 55151 kit. Install the fuse after all other wiring steps are complete and immediately before reconnecting the negative battery terminal.
Use 12 gauge wire or larger to route from the converter's black power wire to the vehicle battery. This wire must be routed carefully to avoid pinch points and hot or rotating components. The wire is not included and must be purchased separately, or as part of CURT part 55151 kit.
The converter has four input wires: red (brake signal), yellow (left turn signal), green (right turn signal), and brown (tail/running light signal). There is also a white ground wire with a ring terminal. Each input wire is spliced to the corresponding vehicle taillight wire using snap locks, according to your vehicle's wiring type (two-wire or three-wire system). The black power wire connects to the vehicle battery positive terminal through a fused connection. The white ground wire connects to the vehicle frame or body.
Before drilling any holes, check for miscellaneous items (wires, fuel lines, brake lines) that may be hidden behind or under surfaces to avoid damage and personal injury. Disconnect the negative battery terminal before beginning any wiring work. When routing the power wire to the battery, avoid pinch points and hot or rotating components. Ensure the area where you ground the converter is free of rust, dirt, and paint. Do not exceed the converter's amperage rating (3.0 amps per signal circuit, 6.0 amps total for tail/running) or your vehicle's lamp load rating, as this can cause overheating and fire. Use a 10-amp maximum fuse on the battery connection.
The manual provides two testing methods. Method 1 (test light): Attach the ground lead of the tester to the exposed ground terminal of the 4-flat connector. Activate the tow vehicle's left turn, right turn, tail, and brake lights one at a time. Probe the three receptacles of the 4-flat to confirm proper functionality. Method 2 (trailer): Mate the 4-flat with a trailer and run the same test using the trailer lights. If a function on the trailer lights does not work, disconnect the trailer 4-flat, turn the vehicle functions off, and recheck with a circuit tester. If the circuit tester shows the function is good, the problem is with the trailer, not the converter.
Included: snap locks, double-sided tape, cable ties, ground screw, and white ground wire with ring terminal. Not included: 12 gauge wire, 10-amp fuse, fuse holder, butt connectors, and ring terminal for the battery connection. These items must be purchased separately or as part of CURT part 55151 kit, which is sold separately.
After securing all loose wires with cable ties and installing the fuse on the battery power wire, reinstall all items you removed during installation (trim panels, bumpers, etc.). Reconnect the negative battery terminal. When the converter is in use, route the 4-flat connector to the center of the vehicle. When not in use, secure the connector in a convenient out-of-the-way location to prevent damage.
The converter fits SUVs, vans, passenger cars, and pickup trucks with 12-volt negative ground systems. The manual does not provide a specific year/make/model list. Contact CURT or check a fitment database with your vehicle details to confirm compatibility.
You must source: 12 gauge wire, 10-amp fuse, fuse holder, butt connectors, and a ring terminal for the battery. These are available separately or as CURT part 55151 kit.
Yes. Disconnect the negative battery terminal in Step 3 before wiring, and keep it disconnected until the fuse is installed in Step 7.
Drilling may be required. If a suitable existing screw is not available near the taillight for grounding, you must drill a 3/32" pilot hole in the vehicle frame. Before drilling, check for hidden items (wires, fuel lines) behind or under surfaces to avoid damage.
Maximum 3.0 amps per signal circuit and 6.0 amps total for tail/running circuits. Do not exceed these ratings or your vehicle's lamp load rating, whichever is lower.
Before drilling, check for hidden items (wires, fuel lines, brake lines) behind or under surfaces to avoid damage and personal injury.
Disconnect the trailer 4-flat connector from the converter. Turn off the corresponding function on the vehicle (e.g., turn off the left turn signal if the left turn on the trailer is not working). Recheck the function using a circuit tester on the 4-flat receptacles. If the circuit tester shows the function is working properly, the problem is with the trailer, not the converter. If the circuit tester shows the function is not working, the converter or vehicle wiring connection may be faulty.
The 4-way flat electrical adapter converts a vehicle's 4-way flat trailer connector to other trailer connector types (6-way round, 7-way RV blade, or dual 4-way flat). This allows you to tow trailers with different connector styles. Single-output models (57184, 57183, 57185, 57626, 57676) convert to one connector type; dual-output models (57604, 57624, 57672, 57674, 57102) provide two different connector outputs simultaneously.
Yes. Your vehicle must be equipped with a 4-way flat trailer connector. If your vehicle does not have one, you will need to install a custom wiring harness or other 4-way flat trailer connector before installing this adapter.
Both convert a 4-way flat connector to a 7-way RV blade. The difference is that 57185 includes a mounting bracket, while 57184 does not.
Both convert a 4-way flat connector to a 6-way round. The difference is that 57626 includes a mounting bracket, while 57183 does not.
Curt offers three dual-output models that provide both a 4-way flat and a 7-way RV blade output: part numbers 57672, 57674, and 57102. All three include a mounting bracket.
Curt offers two dual-output models that provide both a 4-way flat and a 6-way round output: part numbers 57604 and 57624. Both include a mounting bracket.
You will need: a 1/8" drill bit, drill, Phillips screwdriver, wire stripper, cutting tool, terminal crimpers, and a test light. The manual also lists three self-tapping screws (#10 - 1/2") as required, though these are not included with the product.
No. The three self-tapping screws (#10 - 1/2") used to attach the mounting bracket are not included and must be purchased separately.
Mount the combination harness in a location on the tow vehicle that is within reach of the trailer's wiring harness and near the center of the vehicle. The mounting bracket (if included) should be attached to the vehicle's bumper or other suitable surface.
Yes. You must drill two 1/8" holes: one for the grounding point and one (or more) for the mounting bracket. Before drilling, you must check for brake lines, fuel lines, wiring and other components that may be hidden behind or under the surface to avoid damage.
No. You must never attach the mounting bracket directly to the hitch by cutting, welding or drilling into the hitch. Mount it to the vehicle's bumper or other suitable surface instead.
The adapter uses four wires: Yellow (auxiliary or back-up lights), Blue (electric brakes), Black (positive power with appropriate inline fuse), and White (ground). All wires except black and white must be connected using 12 gauge (minimum) wire and butt connectors to the appropriate vehicle functions.
The white wire is the ground connection. It must be attached with a ring terminal to a 1/8" hole drilled in a suitable grounding point on the vehicle using a #10 - 1/2" self-tapping screw. This ground connection is required for the harness to work properly. The white wire on the vehicle's 4-way flat connector does not support the ground (-) functions of the combination harness.
Yes. The black wire (positive power) must be connected with an appropriate inline fuse. The manual does not specify the fuse amperage rating.
Use 12 gauge (minimum) wire for all connections. The manual specifies this minimum gauge for the remaining wires (yellow, blue, and black) when connecting to appropriate vehicle functions.
Failing to properly ground the product can cause loss of warranty, overheating and potential fire. The white wire must be securely attached to a clean grounding point using a #10 - 1/2" self-tapping screw in a 1/8" hole. The area must be clean of dirt, debris or undercoating.
Before drilling, you must check for brake lines, fuel lines, wiring and any other components that may be hidden behind or under the surface. Drilling into these components can cause damage and personal injury.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding either rating can cause damage or unsafe operation.
Confirm proper function with a test light or by using a properly functioning trailer. This verifies that all connections are working correctly before towing.
Secure any loose wires using cable ties or equivalent product to prevent them from moving, catching on components, or becoming damaged.
Your vehicle must have a 4-way flat trailer connector. If it does not, you will need to install a custom wiring harness or other 4-way flat connector first. Check the part number table to confirm the adapter converts to the connector type you need.
You must purchase three #10 - 1/2" self-tapping screws for the mounting bracket. You will also need an appropriate inline fuse for the black (positive power) wire; the manual does not specify the amperage.
Yes, you must drill two 1/8" holes: one for grounding and one for the mounting bracket. Before drilling, check for brake lines, fuel lines and wiring behind the surface. Never drill into the hitch.
Yellow = auxiliary/back-up lights; Blue = electric brakes; Black = positive power (needs inline fuse); White = ground (must be properly grounded or warranty is void and fire risk exists). Use 12 gauge minimum wire and butt connectors.
Proper grounding of the white wire is critical. Failing to ground it properly can cause loss of warranty, overheating and fire. The grounding point must be clean of dirt, debris and undercoating.
Test with a test light or by using a properly functioning trailer to confirm all connections work. Secure loose wires with cable ties.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2007 - 2013 | Mercedes-Benz GL450 | — |
