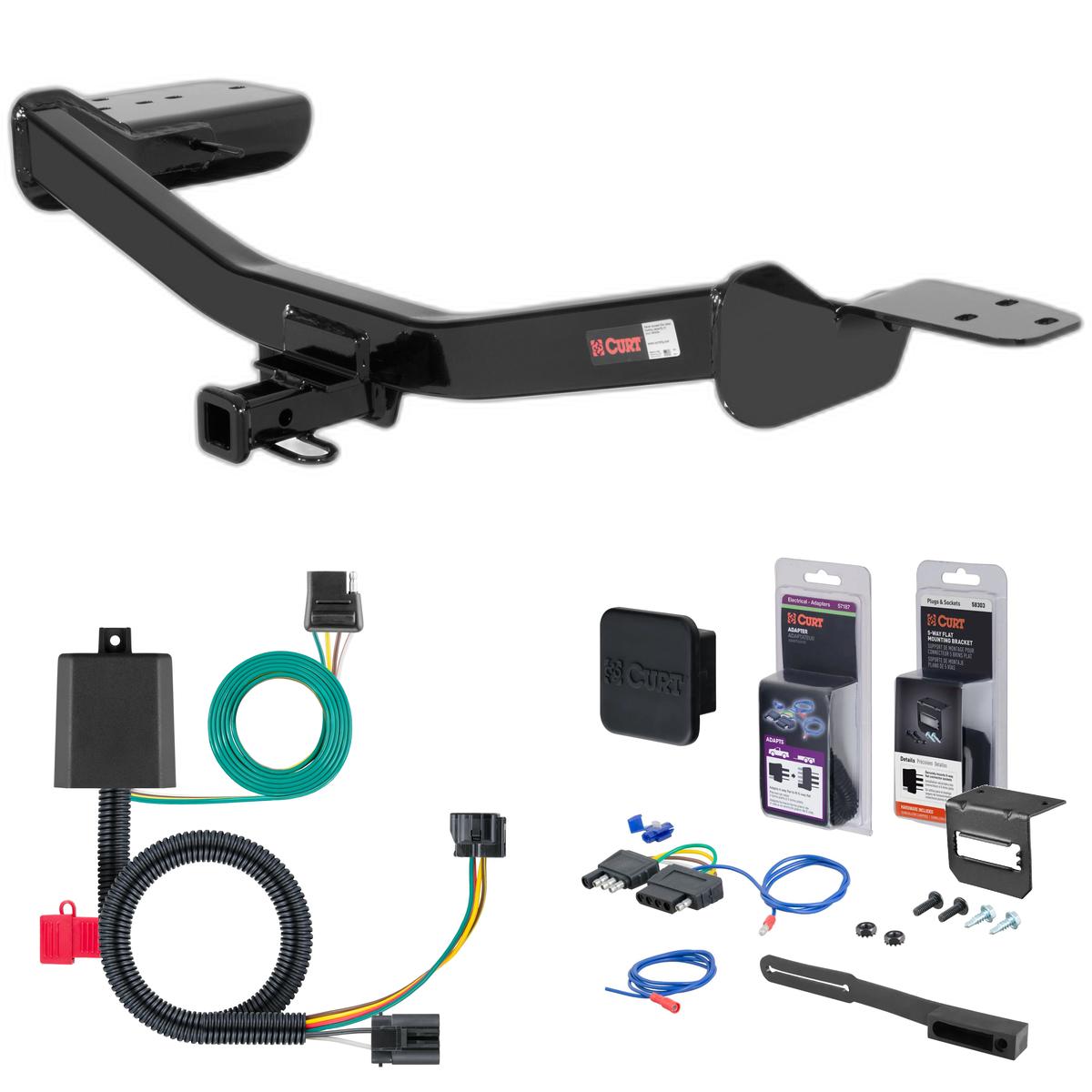

Complete CURT Class 1 1-1/4" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2008 - 2012 Infiniti EX35. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Infiniti EX35, EX37 and QX50 (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 1,500 lbs. GTW and 150 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Hyundai Santa Fe, Santa Fe XL and Veracruz and Kia Sedona and Sorento (factory tow package required; to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2012 | Infiniti EX35 | — |
The 08 - 12 Infiniti EX35 Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11510 (Part #5W-CHW-1898) fits 2008-2012 Infiniti EX35 models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
The 08 - 12 Infiniti EX35 Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11510 (Part #5W-CHW-1898) fits the following vehicles: 2008-2012 Infiniti EX35. Always verify your specific year, make, and model before ordering.
Yes, the 08 - 12 Infiniti EX35 Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11510 (Part #5W-CHW-1898) is designed to fit the 2008-2012 Infiniti EX35.
The 08 - 12 Infiniti EX35 Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11510 (Part #5W-CHW-1898) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

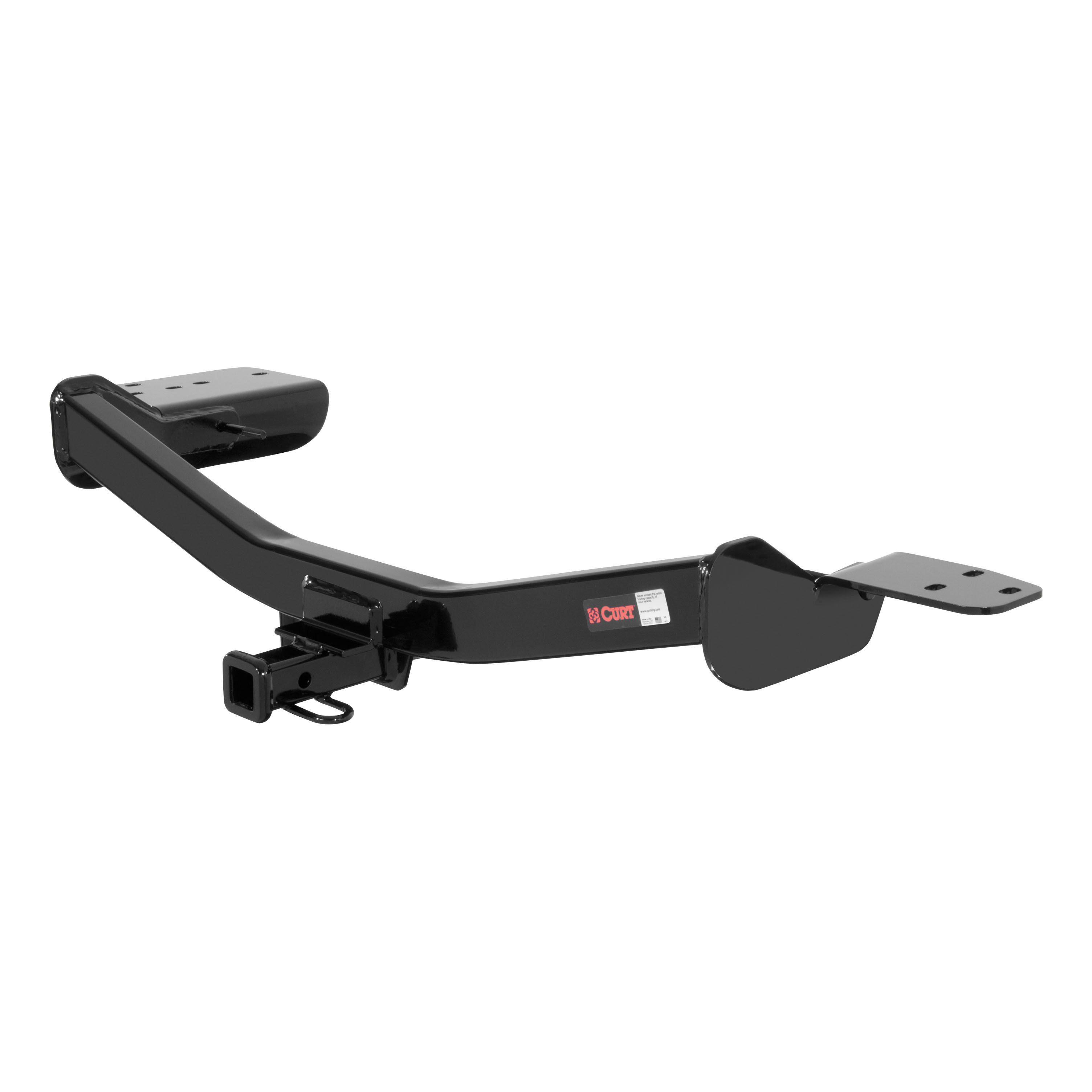

Yes, Curt part number 11510 is designed for the INFINITI EX35, EX37 JOURNEY, and QX50 (including AWD models). This hitch is compatible with all these vehicles.
Yes, the Curt 11510 is compatible with AWD INFINITI QX50 models as well as standard models.
The Curt 11510 has a gross load capacity of 1,500 lbs. trailer weight and 150 lbs. tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The hitch weight is 120 lbs.
You will need: a straight screwdriver, a ratchet, a 3-inch socket extension, a 10-inch socket extension, a 12mm socket, a 14mm socket, and a torque wrench.
The hitch includes: 6× M10×1.25 30mm hex head cap screws (part 10-10271), 6× M8×1.25 30mm hex head cap screws (part 10-10440), 6× 3/8-inch S-CON washers (part 30-00148), and 2× 7/16-inch S-CON washers (part 30-00163).
No, drilling is not required. The hitch uses existing weldnuts on both frame rails for attachment.
It is recommended to have two people to ease the installation.
You must remove the exhaust hanger bolts and nuts to allow the hitch and muffler to be raised together into position. Specifically: remove 3 exhaust hanger bolts per side on rear hangers, remove the long bolt from the driver side hanger on the other side of the muffler, and remove 1 nut from each exhaust hanger just forward of the rear axle. The exhaust will rest on a cross brace under the exhaust. The exhaust hanger is removed from its rubber isolator and returned to the customer. The tow loop (both sides) is also removed and returned to the customer.
Raise the hitch and muffler together into position so that the exhaust hanger pegs on the muffler are above the exhaust hanger studs on the hitch. This is critical: if the hitch and muffler are not raised together, the muffler will not be able to be reinstalled with the hitch in place. Loosely install the supplied 8mm and 10mm bolts and washers at this stage.
The rubber isolators must be inverted to allow proper connection between the muffler and the hitch. First, invert the rubber isolators attached to the muffler, then install them over the studs on the hitch. The diagram shows the inverted rubber isolator orientation.
All 8mm fasteners must be torqued to 23 lb-ft.
All 10mm fasteners must be torqued to 45 lb-ft.
All non-trailer loads applied to this hitch must be supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
No. Although the hitch has a gross load capacity of 1,500 lbs. trailer weight and 150 lbs. tongue weight, you must not exceed your vehicle manufacturer's recommended towing capacity. Your vehicle's capacity may be lower than the hitch capacity.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
Curt Manufacturing Inc. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt may repair or replace it at their option when returned prepaid with proof of purchase. Alteration to, misuse of, or improper installation voids the warranty.
Yes, the Curt 11510 is designed for INFINITI EX35, EX37 JOURNEY, and QX50 models, including AWD versions.
The hitch supports 1,500 lbs. trailer weight and 150 lbs. tongue weight, but you must not exceed your vehicle manufacturer's recommended towing capacity.
No, the hitch uses existing weldnuts on the frame rails. No drilling is required.
You will need a ratchet, 12mm and 14mm sockets, socket extensions (3-inch and 10-inch), a torque wrench, and a straight screwdriver.
Torque all 8mm fasteners to 23 lb-ft and all 10mm fasteners to 45 lb-ft.
The Curt 56332 fits Kia Sorento models with a factory tow package. It does not fit EX and Limited trim levels equipped with the 2.0L 4-cylinder engine. Check your vehicle's documentation to confirm whether your Sorento has the factory tow package and engine size before purchasing.
Yes, the Curt 56332 is compatible with Hyundai Santa Fe models. No factory tow package requirement is listed for the Santa Fe application.
Yes, the Curt 56332 is compatible with Hyundai Veracruz models.
Yes, the Curt 56332 is compatible with Kia Sedona models.
The Curt 56332 has a maximum rating of 3.0 amps per side for signal circuits and 6.0 amps total for tail and running circuits. The battery connection must be fuse protected with a 10 amp maximum fuse. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower.
You will need a flat blade screwdriver and side cutter. The harness comes with a 10 amp fuse, double-sided tape, and cable ties.
A 10 amp fuse is required. The fuse is provided with the harness and must be inserted into the in-line fuse holder to complete installation. The battery connection must be fuse protected with a 10 amp maximum.
On Santa Fe and Sorento models, the vehicle taillight wiring connector is located behind the rear tire on the driver side, on the outside frame rail.
On Veracruz models with a factory tow package, the vehicle taillight wiring connector is located near the rear tire on the passenger side, along the frame.
1. Locate the vehicle taillight wiring connector (location varies by model—see installation steps for your vehicle). 2. Remove the protective cap from the custom wiring harness. 3. Insert the custom wiring harness into the vehicle connector. 4. Ensure the connector is fully inserted with locking tabs in place. The connector will be similar in design to the one on the custom harness.
Route the 4-flat to the center of the vehicle by going over the exhaust along the bumper. Avoid any areas that may cut, pinch or melt the wire. Secure any loose wires with the provided cable ties.
Mount the black converter box on a flat, clean surface that is out of the path of spray and debris from the rear wheels and road. Use the provided double-sided tape to adhere it. Secure any loose wires with the provided cable ties. Failure to mount the box in a protected area can cause loss of warranty, product failure, overheating and potential fire.
Insert the provided 10 amp fuse into the in-line fuse holder. This is the final step. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Exceeding the product rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating (3.0 amps per side for signal circuits, 6.0 amps total for tail and running circuits) or your tow vehicle's lamp load rating, whichever is lower.
The battery connection must be fuse protected with a 10 amp maximum to prevent overheating and potential fire. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly.
The Curt 56332 fits Hyundai Santa Fe, Hyundai Veracruz, Kia Sedona, and Kia Sorento with factory tow package (excluding EX and Limited with 2.0L 4Cyl).
The harness includes a 10 amp fuse, double-sided tape, and cable ties. You will need a flat blade screwdriver and side cutter.
No drilling is required. The harness connects to the existing vehicle taillight connector and is mounted using provided double-sided tape.
Signal circuits: 3.0 amps per side. Tail/running circuits: 6.0 amps total. Battery connection must use a 10 amp fuse maximum. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
The manual does not specify whether the battery must be disconnected. Consult your vehicle owner's manual or contact the vehicle manufacturer for safety guidance.
