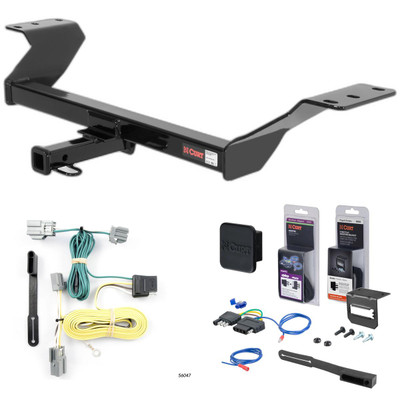

Complete CURT Class 2 1-1/4" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2010 - 2011 Buick Lucerne. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence. These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle. Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles. This particular class 2 hitch is made to be a custom hitch for certain years of the Buick Lucerne (to verify vehicle compatibility, see application info). It offers a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component). They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier. This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory. For safety, it is tested in accordance with SAE J684. A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research. We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle. To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Buick Lucerne and Ford Fiesta sedan (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2011 | Buick Lucerne | — |
Yes, the 10 - 11 Buick Lucerne Curt 1-1/4" Class 2 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 12022 (Part #5W-CHW-210) is designed to fit the 2010-2011 Buick Lucerne.
The 10 - 11 Buick Lucerne Curt 1-1/4" Class 2 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 12022 (Part #5W-CHW-210) fits the following vehicles: 2010-2011 Buick Lucerne. Always verify your specific year, make, and model before ordering.
The 10 - 11 Buick Lucerne Curt 1-1/4" Class 2 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 12022 (Part #5W-CHW-210) fits 2010-2011 Buick Lucerne models. The 2011 model year is the last year covered by this part number. For newer models, check for an updated version.
The 10 - 11 Buick Lucerne Curt 1-1/4" Class 2 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 12022 (Part #5W-CHW-210) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part 12022 is designed for 2010-present Buick Lucerne sedans in CX, CXL, and CXL Premium trim levels. Verify your vehicle matches these specifications before purchasing.
The CURT 12022 is rated for a maximum of 3,500 lbs trailer weight and 350 lbs tongue weight when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
Non-trailer loads applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. See the CURT catalog or visit www.curtmfg.com for information on the 18050 straps.
The CURT 12022 is designed for use with ball mount part number D-20 / 45520 in rise position only. Do not use other ball mounts or position the mount differently.
You will need: ratchet, torque wrench, 10" extension, 15mm socket, 17mm socket, 3/4" socket, and spray lubricant. Safety glasses should be worn at all times during installation.
No, drilling is not required. The CURT 12022 uses fishwire hardware through existing access holes in the frame rail.
You will need to lower the exhaust for ease of installation and remove the exhaust hanger bracket from the bottom of the frame rail. The bracket is retained and reinstalled after the hitch is positioned. If your vehicle has dual exhaust, you will remove both exhaust brackets. The exhaust is raised back into position after final torquing. These are temporary modifications, not permanent alterations.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance, or call technical support at 877-287-8634.
Torque all 1/2" hardware (carriage bolts and flange nuts) to 110 ft-lbs. Torque all M10 hardware (the exhaust bracket bolts) to 45 ft-lbs.
The hitch includes: 2 washers (S-CON, 3/8", part 30-00148); 2 M10x1.5x45mm hex head cap screws (part 10-10414); 4 1/2"-13 UNC serrated flange nuts (part 20-00062); 4 square hole spacers 0.250 x 1.00 x 3.00" (part CM-SP6); 4 1/2"-13 UNC x 1-1/4" carriage bolts (part 10-10278); and 2 pieces of 1/2" fishwire (part 1_2 FISHWIRE).
1. Lower the exhaust. 2. Remove the exhaust hanger bracket from the bottom of the frame rail and retain it. 3. Fishwire the 1/2"-13 x 1-1/4" carriage bolts and SP6 spacers through the access holes (2 each side). 4. Raise the hitch into position and loosely secure with 1/2" flange nuts. 5. Reinstall the factory exhaust hanger bracket using M10-1.5 x 40mm bolts and 3/8" conical toothed washers into existing weldnuts. 6. Torque all 1/2" hardware to 110 ft-lbs and all M10 hardware to 45 ft-lbs. 7. Raise the exhaust back into position.
Fishwire is a technique for routing fasteners through access holes in the frame rail. The 1/2" fishwire (included with the hitch) is used to thread the 1/2"-13 x 1-1/4" carriage bolts and SP6 spacers through the access holes, 2 each side. Refer to the Fishwire Technique Diagram in the manual for the specific routing method.
On the exhaust side(s), the hitch is sandwiched between the frame rail and the reinstalled exhaust hanger bracket. This is the correct installed position and provides structural support. The exhaust bracket is secured using M10-1.5 x 40mm bolts and 3/8" conical toothed washers into existing weldnuts.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This maintenance is important for safe operation.
Safety glasses should be worn at all times while installing this product. Read all instructions thoroughly before beginning installation. If you are hesitant to undertake this task, contact an authorized CURT installer or call technical support at 877-287-8634.
CURT Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. CURT's liability is limited to repair or replacement of defective products and excludes incidental or consequential loss or damage.
Yes, the CURT 12022 fits 2010-present Buick Lucerne sedans (CX, CXL, CXL Premium). It is rated for 3,500 lbs trailer weight and 350 lbs tongue weight, but never exceed your vehicle manufacturer's towing capacity.
No drilling is required. The hitch uses fishwire hardware through existing access holes in the frame rail.
You need a ratchet, torque wrench, 10" extension, 15mm socket, 17mm socket, 3/4" socket, and spray lubricant. Safety glasses are required.
Yes, you must lower the exhaust and remove the exhaust hanger bracket temporarily. The bracket is reinstalled after positioning the hitch. If equipped with dual exhaust, remove both brackets. The exhaust is raised back into position after final torquing.
Torque all 1/2" hardware to 110 ft-lbs. Torque all M10 hardware to 45 ft-lbs.
Non-trailer loads must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads voids the warranty.
The CURT 12022 is designed for ball mount D-20 / 45520 in rise position only.
Periodically check the hitch to ensure all fasteners are tight and all structural components are sound.
Yes, the Curt 56047 custom wiring harness is designed for Buick Lucerne passenger cars. Confirm your vehicle is a Lucerne sedan before purchasing. If you have a different Buick model or body style, contact the vehicle manufacturer or Curt to verify compatibility.
Yes, the Curt 56047 custom wiring harness is designed for Ford Fiesta sedan passenger cars. Confirm your vehicle is a Fiesta sedan before purchasing. If you have a different Ford model or body style, contact the vehicle manufacturer or Curt to verify compatibility.
The kit includes a custom wiring harness with yellow and green wire ends for driver and passenger side connections, a white ground wire with ring terminal, a provided screw for grounding, cable ties for securing loose wires, and a 4-flat dust cover to prevent corrosion.
The manual states "Tools Needed: None" are listed. However, you may need a drill with a 3/32" bit if a suitable existing grounding point (screw with nut) is not available near the taillight connectors. A test light or properly wired trailer is required to test the harness after installation.
Open the vehicle tailgate and remove the scuff panel by pulling out on the bottom and then up, taking care not to damage the alignment tabs on the back. Pull back the felt liner to locate the vehicle taillight wiring harness connectors. The connectors will be similar in appearance to those on the custom wiring harness.
The yellow wire end connects to the driver side taillight connectors. The green wire end connects to the passenger side taillight connectors. Insert each harness end between the separated factory connectors, ensuring the connectors are fully inserted with locking tabs in place.
Locate a suitable grounding point near the taillight connectors, such as an existing screw with nut in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
Drilling is required only if a suitable existing grounding point (screw with nut) is not available near the taillight connectors. If drilling is necessary, use a 3/32" pilot hole. Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury.
Drill a 3/32" pilot hole if a suitable existing grounding point is not available. The area must be free of rust, dirt and paint before drilling.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire. Refer to your vehicle owner's manual or contact the vehicle manufacturer for the specific lamp load rating of your vehicle.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly before testing.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll up and store in a convenient, out of the way location inside the trunk. Secure any loose wires with the provided cable ties.
Reinstall all items removed during installation, including the scuff panel and felt liner. Install the provided 4-flat dust cover to help prevent corrosion. Secure any loose wires with the provided cable ties. Test for proper function using a test light or a properly wired trailer.
The Curt 56047 is designed for Buick Lucerne and Ford Fiesta sedan passenger cars. Verify your specific model and body style before purchasing.
No special tools are required. You may need a drill with a 3/32" bit if no existing grounding point is available. A test light or properly wired trailer is needed to test the harness after installation.
Drilling is only required if no suitable existing grounding point is available near the taillight connectors. If needed, drill a 3/32" pilot hole in an area free of rust, dirt and paint.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause overheating and potential fire, and will result in loss of warranty.
Test for proper function using a test light or by connecting a properly wired trailer. All installation steps must be completed before testing.
