CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2010 - 2012 Ford Fusion
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
On Sale Today
Original price was $1,000.60. Current price is $856.75.You save $143.85 (14%)
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Thu, Sep 17 - Sun, Sep 20
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
| Finish | GLOSS BLACK POWDER COAT |
| Main Body Shape | Square |
| Material | Carbon Steel |
| Mount Type Description | Blank |
| Receiver Tube Size | 1-1/4 IN |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 200 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity (WC) | 2,000 LB |
| Converter Type | Circuit Protected and Powered |
| Electrical System Type | 2W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | P3,P4 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
| Battery-Powered | Yes |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 350 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Drop | 3-1/4 IN |
| Finish | GLOSS BLACK POWDER COAT |
| Gross Trailer Weight (GTW) | 3,500 LB |
| Material | Blank |
| Mount Type Description | Blank |
Notes:
Notes:
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2012 | Ford Fusion | — |

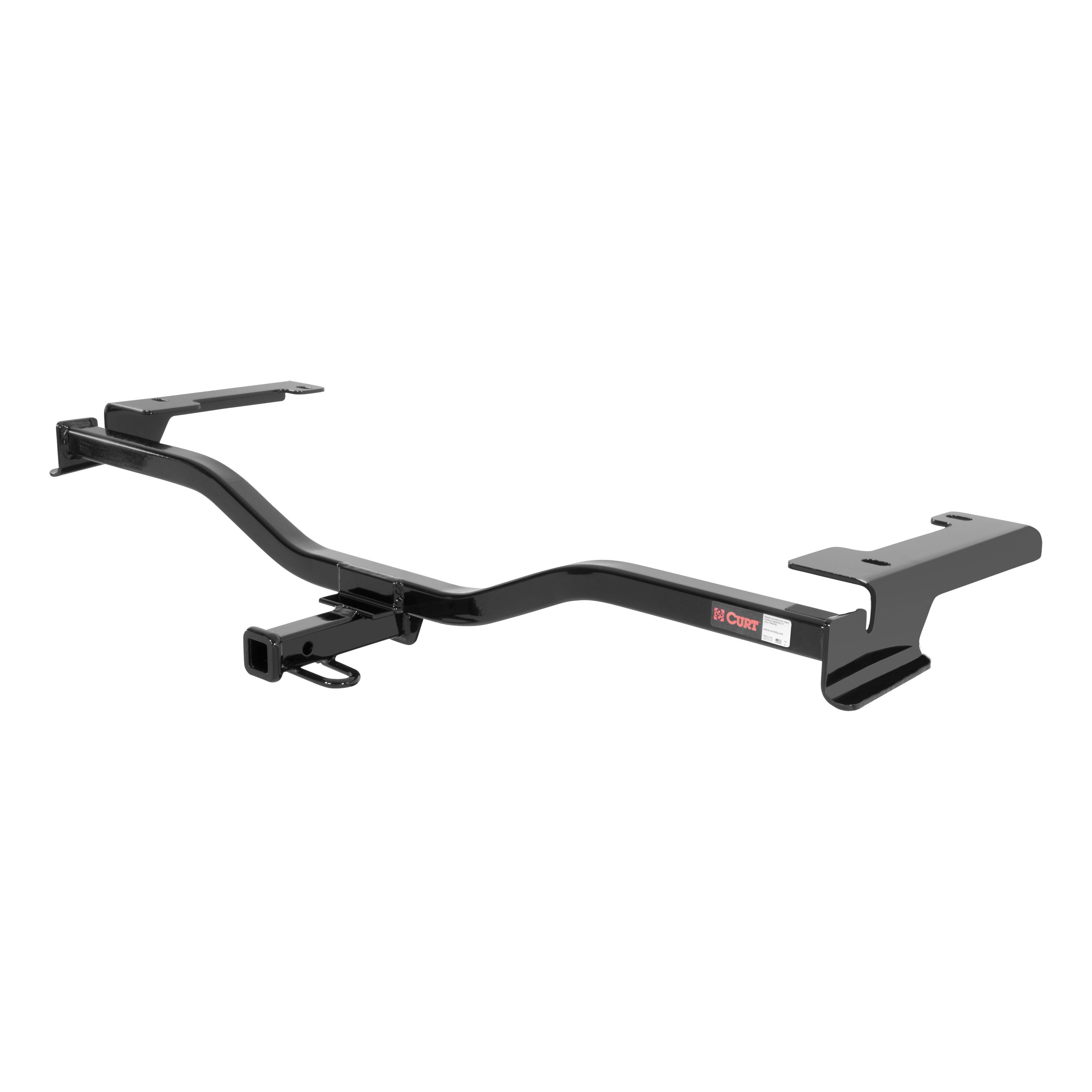

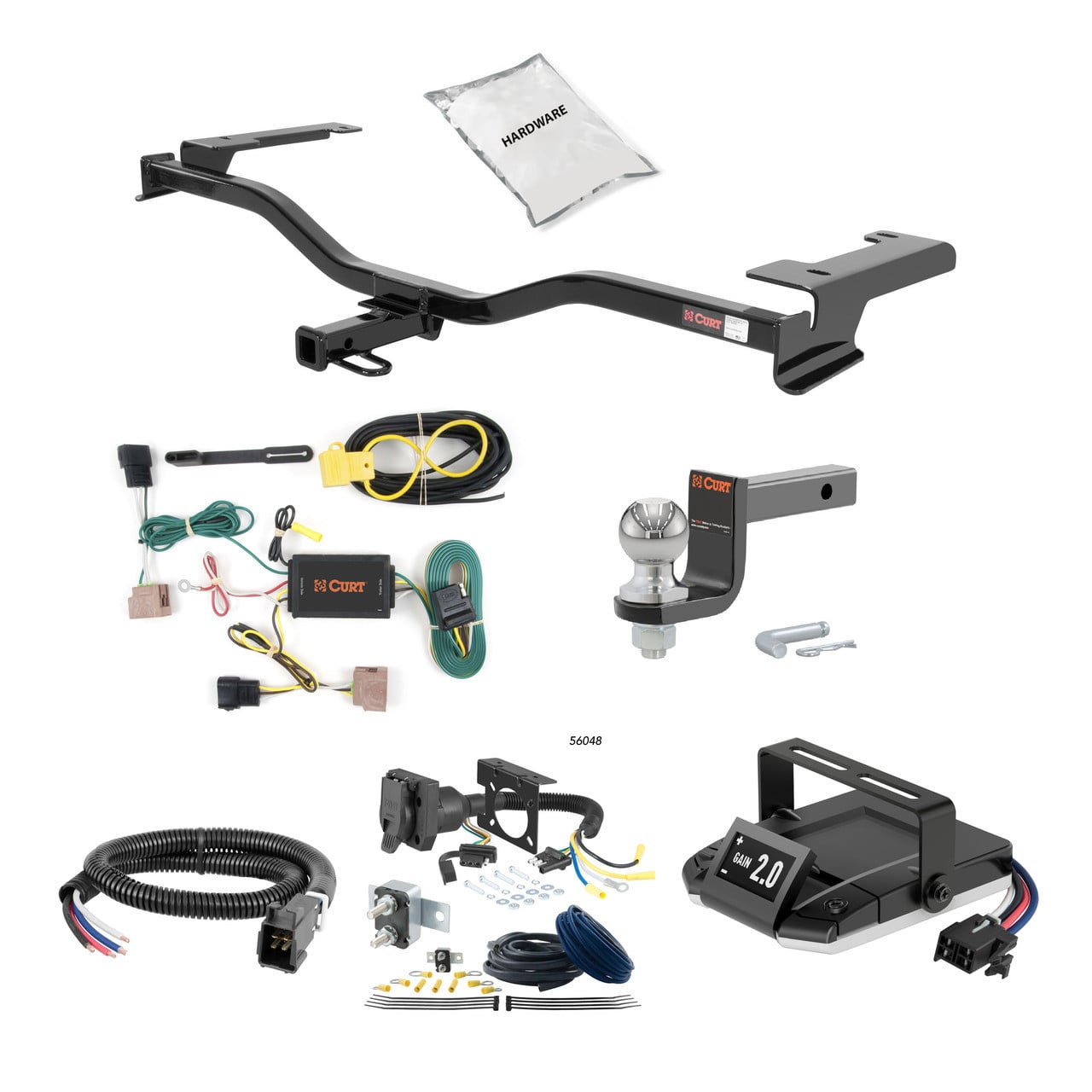

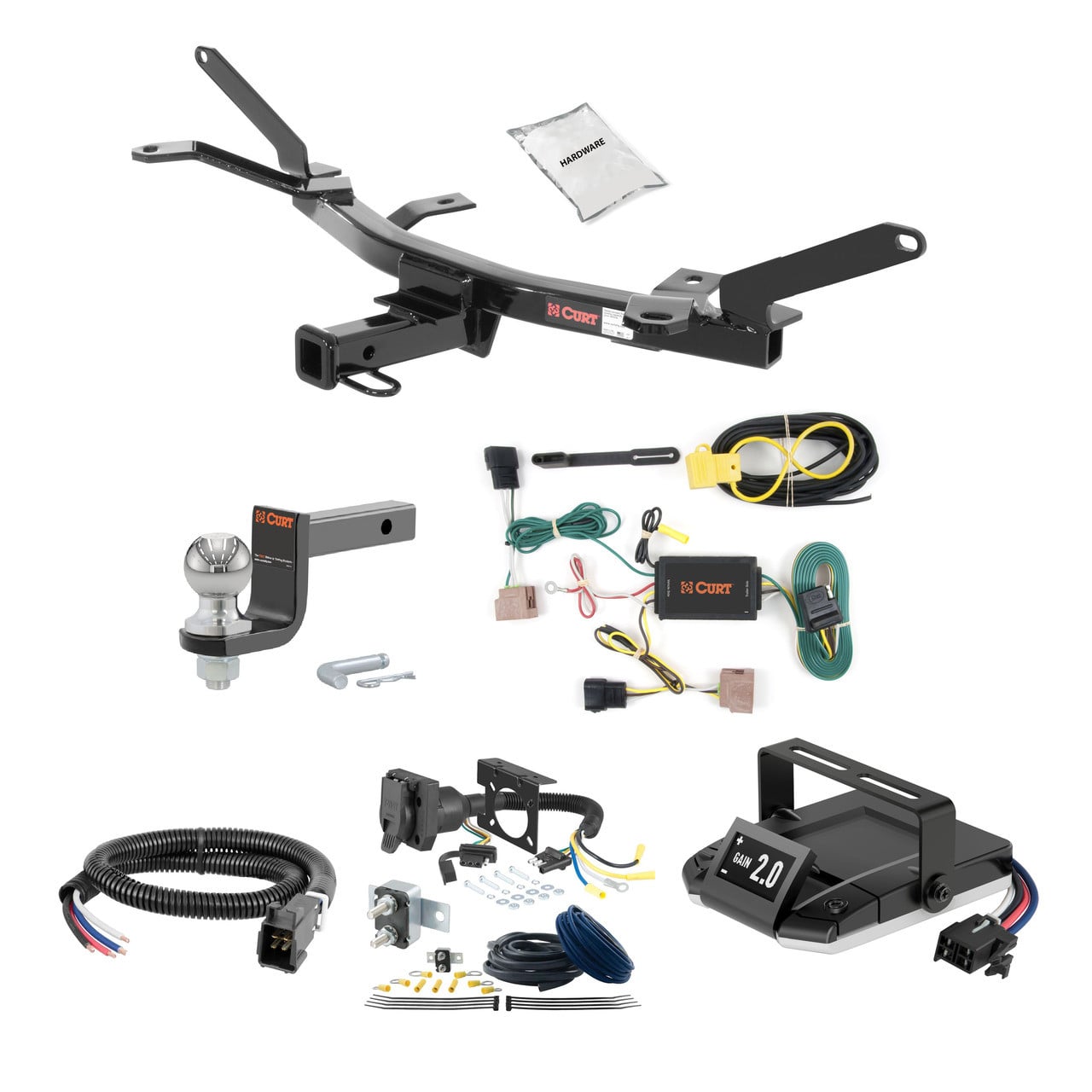

Yes, the 10-12 Ford Fusion 1.25 CURT Trailer Hitch + Assure Proportional Brake Controller Kit HBCW952 (Part #HBCW952) is designed to fit the 2010-2012 Ford Fusion.
The 10-12 Ford Fusion 1.25 CURT Trailer Hitch + Assure Proportional Brake Controller Kit HBCW952 (Part #HBCW952) fits the following vehicles: 2010-2012 Ford Fusion. Always verify your specific year, make, and model before ordering.
The 10-12 Ford Fusion 1.25 CURT Trailer Hitch + Assure Proportional Brake Controller Kit HBCW952 (Part #HBCW952) fits 2010-2012 Ford Fusion models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
The 10-12 Ford Fusion 1.25 CURT Trailer Hitch + Assure Proportional Brake Controller Kit HBCW952 (Part #HBCW952) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 11329 is designed for Ford Fusion. However, drilling is required on each side for this model. You will also need to lower the mufflers and remove rubber plugs from the spare tire well during installation.
Yes, part number 11329 fits Mazda 6 models. Drilling is required on each side for the Mazda 6 sedan model, but no drilling is required for the Mazda 6 Sport Wagon variant. Both require lowering the mufflers and removing rubber plugs from the spare tire well.
Yes, part number 11329 is designed for 06 Lincoln Zephyr and 07-current MKZ models. The installation process is the same as other compatible vehicles: lower mufflers, remove rubber plugs from the spare tire well, and follow the standard installation steps. Some models may require drilling.
This hitch is designed for use with ball mount D-221.
The manual lists a gross load capacity of 2,000 lbs. trailer weight and 200 lbs. tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity.
The kit includes: 2× 1/2-13 UNC carriage bolts (1-1/4"), 2× 1/2-13 UNC carriage bolts (1-1/2"), 4× 1/2-13 UNC serrated flange nuts, 2× .250" × 1.00" × 2.00" square hole spacers, 2× .250" spacer plates, 2× M8×1.25 hex cap screws (30mm), 2× 5/16" flat washers, and 2× 5/16" lock washers.
The manual does not specify which tools are required. Contact Curt Technical Support at 1-866-287-8634 for a complete tool list.
Yes. Step 1 requires you to lower the mufflers and remove two 8mm hex bolts from the bumper beam, as well as remove 2 rubber plugs from the spare tire well.
Before installation, lower the mufflers, remove the two 8mm hex bolts from the bumper beam, and remove the 2 rubber plugs from the spare tire well. Some models may also require drilling and fascia trimming to provide clearance for the hitch.
1. Lower mufflers and remove two 8mm hex bolts from bumper beam and 2 rubber plugs from spare tire well. 2. Raise hitch into position over exhaust, aligning bumper beam weld nuts with each side plate. 3. Install supplied 8mm hex bolts, 5/16" lock washers, and 5/16" flat washers into bumper beam weld nuts. 4. Fishwire a 1/2" × 1-1/4" carriage bolt and CM-SP12 spacer into the bumper beam rail on both sides. 5. Install remaining 1/2" carriage bolts and round spacers into spare tire well and seal holes with silicone caulk. 6. Torque all 8mm fasteners to 23 ft-lbs and all 1/2" fasteners to 110 ft-lbs.
Drilling is required on each side for the Mazda 6 sedan model. No drilling is required for the Mazda 6 Sport Wagon. The manual does not specify the exact hole locations or sizes.
Yes, drilling is required on each side for the Ford Fusion model. The manual does not specify the exact hole locations or sizes.
Fascia trimming may be required to provide clearance for the hitch. The manual does not specify which models require trimming or the extent of trimming needed. Contact Curt Technical Support at 1-866-287-8634 for guidance specific to your vehicle.
Torque all 8mm fasteners to 23 ft-lbs.
Torque all 1/2" fasteners to 110 ft-lbs.
The manual instructs you to 'fishwire' a 1/2" × 1-1/4" carriage bolt and CM-SP12 spacer into the bumper beam rail on both sides, but does not define the term or explain the technique. Contact Curt Technical Support at 1-866-287-8634 for clarification.
Yes. After installing the remaining 1/2" carriage bolts and round spacers into the spare tire well, use silicone caulk or equivalent to seal the holes from exhaust fumes and water.
The hitch has a gross load capacity of 2,000 lbs. trailer weight and 200 lbs. tongue weight. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
Non-trailer loads can be applied to this hitch, but they must be supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
Ford Fusion, Mercury Milan, Mazda 6, 06 Lincoln Zephyr, and 07-current MKZ. Drilling is required on Mazda 6 sedan and Ford Fusion; no drilling on Mazda 6 Sport Wagon.
Drilling is required for Ford Fusion and Mazda 6 sedan models. No drilling is required for Mazda 6 Sport Wagon. Fascia trimming may also be required on some models.
Torque all 8mm fasteners to 23 ft-lbs and all 1/2" fasteners to 110 ft-lbs.
2,000 lbs. trailer weight and 200 lbs. tongue weight, but do not exceed your vehicle manufacturer's recommended towing capacity.
Lower the mufflers, remove two 8mm hex bolts from the bumper beam, and remove 2 rubber plugs from the spare tire well. Some models may require drilling and fascia trimming.
The kit includes: one 30 amp auto-resetting circuit breaker, two #10 ring terminals, two 3/8" ring terminals, two 1/2" ring terminals, three 12-10 gauge butt connectors, 10 feet of 10 ga black/white duplex wire, 20 feet of 10 ga blue cross-linked wire, and eight 8.5" cable ties.
Yes, but with a critical difference: these vehicles require the stop signal wire to be spliced to the light green wire on the turn signal harness connector under the dash, not to the brake pedal switch. Do NOT connect to the red wire with green stripe, as serious damage may occur. All other vehicles connect to the brake pedal switch instead.
You will need: a test light, wire stripper/cutter, crimp tool, and 3/8" box end wrench. The test light is used to identify the cold (switched) side of the brake pedal switch.
Yes. The manual cautions to disconnect the tow vehicle's negative battery cable before installation. Reconnect it only in the final step after all wiring is complete.
Mount the 30 amp circuit breaker near the tow vehicle's positive battery terminal. This keeps the power wire run as short as possible and protects the circuit.
Use 10 gauge (10 ga) black wire from the duplex wire included in the kit. Strip 3/8" of insulation from each end. Crimp a #10 ring terminal to the end that attaches to the circuit breaker stud labeled 'BAT', and a 3/8" or 1/2" ring terminal (sized to fit your battery terminal) to the end that attaches to the positive battery terminal.
Feed the 10 ga duplex wire from the brake controller in the cockpit through the firewall into the engine compartment toward the battery. Cut to length as needed. At the battery end, crimp a 3/8" or 1/2" ring terminal to the white wire and a #10 ring terminal to the black wire. Attach the black wire to the circuit breaker stud labeled 'AUX' and tighten the nut with a 3/8" box end wrench.
When passing the duplex wire through the firewall into the engine compartment, use an existing grommet, add a new grommet, or fill the hole with silicone rubber to insulate and protect the wire. The same protection applies when passing the blue cross-linked wire through any sheet metal at the rear of the vehicle.
In the cockpit, attach the black duplex wire to the brake controller's battery wire (typically black) and the white duplex wire to the brake controller's ground wire (typically white). Use either one of the supplied yellow butt connectors or solder the leads together and insulate with heat shrink tubing.
Locate the brake pedal switch on the back side of the vehicle's brake pedal. Use a test light or volt meter to identify the 'cold' or switched side—this terminal will only show power when the brake pedal is depressed. Attach the stop signal wire (typically red) from the brake controller to the cold side of the switch using a wire tap.
Locate the semi-circle turn signal harness connector on the steering column under the dash. It has two rows of wires: a row of four and a row of seven. Attach the stop signal wire (typically red) from the brake controller to the light green wire using a wire tap. Do NOT connect to the red wire with green stripe, as serious damage may occur.
Feed the 10 ga blue cross-linked wire from the brake controller to the trailer connector at the rear of the vehicle, taking up any slack in the wire. When passing through any sheet metal, use an existing grommet, add a new grommet, or fill the hole with silicone rubber to protect the wire.
Attach the blue cross-linked wire to the brake controller's electric brake wire (typically blue) using one of the supplied yellow butt connectors or by soldering and insulating with heat shrink tubing. At the rear of the vehicle, trim any loose blue wire and attach it to the trailer connector's electric brake terminal. Refer to the trailer connector's wiring diagram for the correct terminal location.
Secure any loose wires with the cable ties provided. Connect the black power wire from the circuit breaker to the positive side of the battery. Connect the white ground wire from the brake controller to the negative side of the battery. Finally, reconnect the tow vehicle's negative battery cable to the battery.
The circuit breaker is 30 amps and auto-resetting. It must be mounted near the positive battery terminal and connected directly to the positive battery terminal via the included black 10 gauge wire.
Use a 3/8" box end wrench to tighten the nuts on the circuit breaker studs labeled 'BAT' and 'AUX'.
The kit includes 10 feet of 10 gauge black/white duplex wire for the battery and brake controller connections, and 20 feet of 10 gauge blue cross-linked wire for the electric brake signal to the trailer connector.
Black wire connects to the positive battery and circuit breaker. White wire connects to the brake controller ground and negative battery. Red wire is the stop signal wire from the brake controller. Blue wire is the electric brake signal wire. The manual notes these are 'typically' these colours but recommends confirming with your brake controller documentation.
Yes. You can solder the leads together and insulate with heat shrink tubing as an alternative to using the supplied yellow butt connectors. This applies to connections between the duplex wire and the brake controller wires, and between the blue cross-linked wire and the brake controller.
The black power wire must connect directly to the positive battery terminal via the 30 amp circuit breaker. Connecting to the fuse panel or any other accessory wiring may damage vehicle wiring and cause trailer brake failure. The circuit breaker protects the circuit and must be the only protection between the battery and the brake control system.
Do NOT connect the stop signal wire to the red wire with green stripe on the turn signal harness. Serious damage may occur. Connect only to the light green wire. Also, do not connect to the brake pedal switch on these vehicles; use the turn signal harness instead.
The kit is universal but requires an existing trailer connector and brake controller. 1989-1991 Ford E & F-Series with ABS use a different stop signal connection (turn signal harness instead of brake pedal switch). Consult your brake controller documentation for compatibility.
No drilling is required. The kit connects to existing components: the battery, brake controller, brake pedal switch (or turn signal harness on 1989-1991 Ford E & F-Series with ABS), and trailer connector.
Do NOT connect the stop signal wire to the red wire with green stripe on the turn signal harness—serious damage may occur. Connect to the light green wire instead, and do not use the brake pedal switch.
Connecting to the fuse panel or accessory wiring may damage vehicle wiring and cause trailer brake failure. The 30 amp circuit breaker must be the only protection between the battery and the brake control system.
Yes, the Curt 56048 is designed for Ford Fusion passenger cars. The harness connects behind the driver and passenger side taillight housings inside the trunk.
The harness is rated for Signal Circuits at 3.0 amps per side and Tail/Running Circuits at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower, as exceeding the product rating can cause loss of warranty, overheating and potential fire.
You will need a Phillips screwdriver, flat blade screwdriver, and panel trim removal tool. A 3/32" drill bit may be needed if a suitable existing grounding point is not available.
The manual does not explicitly state whether the battery must be disconnected. However, the instructions reference routing the black power wire from the vehicle battery in Step 7, and a 10-amp fuse is required for the battery connection. Consult your vehicle owner's manual or the included CME-PCL-INS sheet for battery disconnection requirements.
1. Open the trunk and remove floor coverings and rear scuff panel. 2. On the driver side, locate the taillight wiring connectors and separate them. 3. Insert the harness end with the yellow wire between the separated connectors. 4. Secure the white ground wire to a suitable grounding point. 5. Route the harness end with the green wire to the passenger side and repeat steps 2–3. 6. Adhere the black converter box inside the vehicle near the taillight using double-sided tape. 7. Route the black power wire from the battery as shown on the included CME-PCL-INS sheet. 8. Route the 4-flat connector to the center of the vehicle and out of the trunk when in use; roll up and store in the trunk when not in use. 9. Reinstall all removed items and install the 4-flat dust cover.
Remove the plastic fasteners securing the rear scuff panel, then pull out on the bottom and pull up. Take care not to damage the alignment tabs on the back of the panel.
Pull back the felt liner to locate the vehicle taillight wiring harness connectors. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. Insert the custom wiring harness end (yellow wire for driver side, green wire for passenger side) between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole for the provided screw. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
Drilling may be required. If a suitable existing grounding point (such as an existing screw with nut in the vehicle frame) is not available near the connector, you will need to drill a 3/32" pilot hole for the provided grounding screw. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
The pilot hole should be 3/32" in diameter.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire.
The yellow wire is used on the driver side, the green wire on the passenger side, and the white wire is the ground wire. The black power wire connects to the vehicle battery. The 4-flat connector is routed to the center of the vehicle and out of the trunk when in use.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties.
All steps must be followed to ensure the wiring harness functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Reinstall all items removed during installation, including the rear scuff panel and trunk floor coverings. Install the provided 4-flat dust cover to help prevent corrosion.
Yes, the Curt 56048 is designed for Ford Fusion passenger cars.
A 10-amp maximum fuse is required for the battery connection. Do not exceed this rating.
Signal Circuits are rated at 3.0 amps per side; Tail/Running Circuits at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating.
The 4-way flat electrical adapter converts a vehicle's 4-way flat trailer connector to other trailer connector types (6-way round, 7-way RV blade, or dual 4-way flat). This allows you to tow trailers with different connector styles. Single-output models (57184, 57183, 57185, 57626, 57676) convert to one connector type; dual-output models (57604, 57624, 57672, 57674, 57102) provide two different connector outputs simultaneously.
Yes. Your vehicle must be equipped with a 4-way flat trailer connector. If your vehicle does not have one, you will need to install a custom wiring harness or other 4-way flat trailer connector before installing this adapter.
Both convert a 4-way flat connector to a 7-way RV blade. The difference is that 57185 includes a mounting bracket, while 57184 does not.
Both convert a 4-way flat connector to a 6-way round. The difference is that 57626 includes a mounting bracket, while 57183 does not.
Curt offers three dual-output models that provide both a 4-way flat and a 7-way RV blade output: part numbers 57672, 57674, and 57102. All three include a mounting bracket.
Curt offers two dual-output models that provide both a 4-way flat and a 6-way round output: part numbers 57604 and 57624. Both include a mounting bracket.
You will need: a 1/8" drill bit, drill, Phillips screwdriver, wire stripper, cutting tool, terminal crimpers, and a test light. The manual also lists three self-tapping screws (#10 - 1/2") as required, though these are not included with the product.
No. The three self-tapping screws (#10 - 1/2") used to attach the mounting bracket are not included and must be purchased separately.
Mount the combination harness in a location on the tow vehicle that is within reach of the trailer's wiring harness and near the center of the vehicle. The mounting bracket (if included) should be attached to the vehicle's bumper or other suitable surface.
Yes. You must drill two 1/8" holes: one for the grounding point and one (or more) for the mounting bracket. Before drilling, you must check for brake lines, fuel lines, wiring and other components that may be hidden behind or under the surface to avoid damage.
No. You must never attach the mounting bracket directly to the hitch by cutting, welding or drilling into the hitch. Mount it to the vehicle's bumper or other suitable surface instead.
The adapter uses four wires: Yellow (auxiliary or back-up lights), Blue (electric brakes), Black (positive power with appropriate inline fuse), and White (ground). All wires except black and white must be connected using 12 gauge (minimum) wire and butt connectors to the appropriate vehicle functions.
The white wire is the ground connection. It must be attached with a ring terminal to a 1/8" hole drilled in a suitable grounding point on the vehicle using a #10 - 1/2" self-tapping screw. This ground connection is required for the harness to work properly. The white wire on the vehicle's 4-way flat connector does not support the ground (-) functions of the combination harness.
Yes. The black wire (positive power) must be connected with an appropriate inline fuse. The manual does not specify the fuse amperage rating.
Use 12 gauge (minimum) wire for all connections. The manual specifies this minimum gauge for the remaining wires (yellow, blue, and black) when connecting to appropriate vehicle functions.
Failing to properly ground the product can cause loss of warranty, overheating and potential fire. The white wire must be securely attached to a clean grounding point using a #10 - 1/2" self-tapping screw in a 1/8" hole. The area must be clean of dirt, debris or undercoating.
Before drilling, you must check for brake lines, fuel lines, wiring and any other components that may be hidden behind or under the surface. Drilling into these components can cause damage and personal injury.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding either rating can cause damage or unsafe operation.
Confirm proper function with a test light or by using a properly functioning trailer. This verifies that all connections are working correctly before towing.
Secure any loose wires using cable ties or equivalent product to prevent them from moving, catching on components, or becoming damaged.
Your vehicle must have a 4-way flat trailer connector. If it does not, you will need to install a custom wiring harness or other 4-way flat connector first. Check the part number table to confirm the adapter converts to the connector type you need.
You must purchase three #10 - 1/2" self-tapping screws for the mounting bracket. You will also need an appropriate inline fuse for the black (positive power) wire; the manual does not specify the amperage.
Yes, you must drill two 1/8" holes: one for grounding and one for the mounting bracket. Before drilling, check for brake lines, fuel lines and wiring behind the surface. Never drill into the hitch.
Yellow = auxiliary/back-up lights; Blue = electric brakes; Black = positive power (needs inline fuse); White = ground (must be properly grounded or warranty is void and fire risk exists). Use 12 gauge minimum wire and butt connectors.
Proper grounding of the white wire is critical. Failing to ground it properly can cause loss of warranty, overheating and fire. The grounding point must be clean of dirt, debris and undercoating.
Test with a test light or by using a properly functioning trailer to confirm all connections work. Secure loose wires with cable ties.
