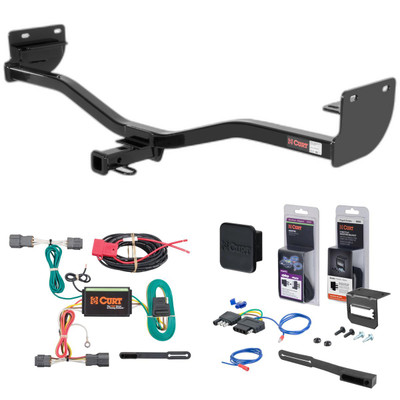

Complete CURT Class 1 1-1/4" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2010 - 2013 Kia Soul w/ LED taillights. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Kia Soul (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Kia Rondo and Soul (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2013 | Kia Soul | w/ LED taillights |
Yes, the 10 - 13 Kia Soul w/ LED taillights Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11110 (Part #5W-CHW-2075) is designed to fit the 2010-2013 Kia Soul.
The 10 - 13 Kia Soul w/ LED taillights Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11110 (Part #5W-CHW-2075) fits the following vehicles: 2010-2013 Kia Soul. Always verify your specific year, make, and model before ordering.
The 10 - 13 Kia Soul w/ LED taillights Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11110 (Part #5W-CHW-2075) fits 2010-2013 Kia Soul models. The 2013 model year is the last year covered by this part number. For newer models, check for an updated version.
The 10 - 13 Kia Soul w/ LED taillights Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11110 (Part #5W-CHW-2075) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 11110 is designed for the Kia Soul. It is compatible with ballmount #55001 or #45501.
No, drilling is not required. The installation notes explicitly state 'NO DRILLING REQUIRED'.
You will need: Phillips screwdriver, flat blade screwdriver, 14mm and 17mm sockets, 12" extension, ratchet, and torque wrench.
Yes. You must lower the exhaust by removing the two rearmost rubber isolators from the hangers before positioning the hitch. The isolators are reinstalled after installation.
All hardware must be torqued to 48 ft-lbs.
The kit includes 6 M10 x 1.25 x 30mm hex bolts (part 10-10271) and 6 7/16" conical toothed washers (part 30-00163).
The manual does not provide specific capacity values. Contact Curt Manufacturing technical support at 877-287-8634 for capacity information, and do not exceed your vehicle manufacturer's recommended towing capacity.

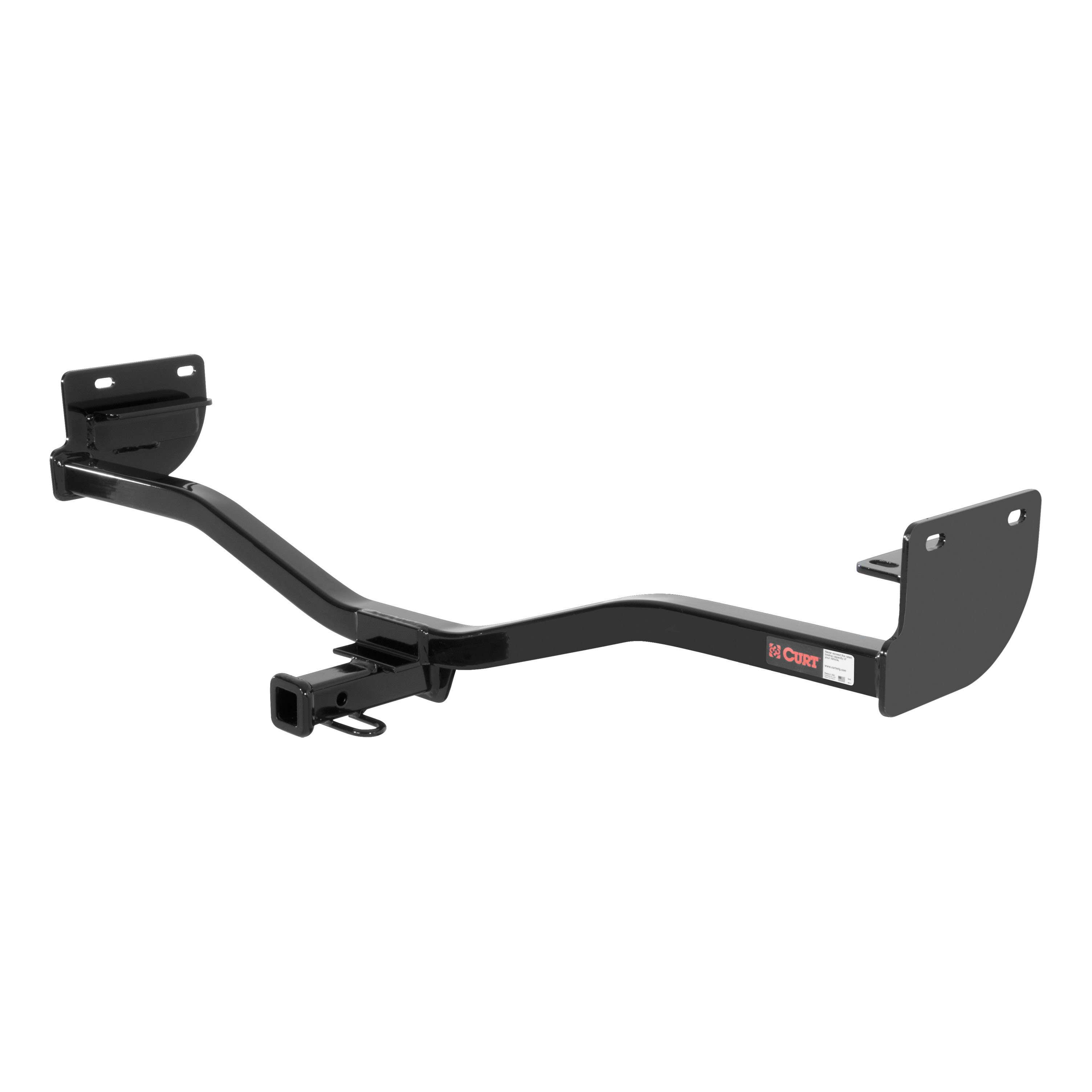

The kit includes the hitch assembly with driver and passenger side plates and mount plates, plus 6 M10 x 1.25 x 30mm hex bolts (part 10-10271) and 6 7/16" conical toothed washers (part 30-00163) for securing the hitch to the frame rails.
The Curt 11110 is designed for use with ballmount #55001 or #45501.
Yes. You must remove the 4 bolts securing the tow hook at the passenger side frame rail and return the tow hook and fasteners to the vehicle owner.
Yes. To ease installation, remove the splash shields in the rear wheel wells by removing the 3 push fasteners and 3 screws securing them. Also remove the 3 push fasteners securing the bottom of the bumper cover. These are reinstalled after the hitch is secured.
Raise the hitch into place by positioning the passenger side plate above the tail pipe and sliding the main body between the tail pipe and the rear bumper cover. Position the mount plates against the bottom of the frame rails and align the holes in the side plates with the holes in the sides of the frame rails.
The hitch is secured using M10 x 1.25 x 30mm hex bolts with 7/16" conical toothed washers. Six bolts total are used: two through each side plate into weld nuts on the outboard sides of the frame rails, and two through the passenger side mount plate into weld nuts on the passenger side frame rail.
The manual does not provide a specific tongue weight capacity. Contact Curt Manufacturing technical support at 877-287-8634 for this specification.
Non-trailer loads can be applied to this hitch, but they must be supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
Do not exceed your vehicle manufacturer's recommended towing capacity. The manual does not specify the hitch's gross load capacity. Contact Curt Manufacturing technical support at 877-287-8634 for capacity details.
Yes, CURT part number 56220 is designed for both Kia Soul and Kia Rondo vehicles. The installation manual covers both applications.
Yes, you must disconnect the negative battery terminal before beginning installation. This is a required safety step before accessing any wiring.
The wiring harness connectors are located behind the taillights at positions S3 and S4. You will need to remove the taillight assemblies first by removing the Phillips drive screws holding each in place, then gently pull the assemblies rearward and out, being careful not to break the alignment tabs.
Release the lock on the taillight connector housings and separate them carefully without damaging the housings. On the driver's side, insert the T-Connector end with the yellow wire between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place. Repeat this process on the passenger's side using the T-Connector end with the green wire.
Route the T-Connector end with the green wire and the 4-flat down through the opening under the taillight and rear bumper fascia. Under the vehicle, route the green wire along the backside of the rear bumper to the passenger's side and up through the opening under the taillight and rear bumper fascia. Route the 4-flat wire to the center of the vehicle. When routing wires, carefully avoid hot pipes, heat shields, the fuel tank or any other areas that might pinch or break the wire. Secure loose wires with the provided cable ties.
The battery connection must be fuse protected with a maximum of 10 amps. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Do not exceed the tow vehicle lamp load rating or the product load rating, whichever is lower. The product specifications are: Signal Circuits – 3.0 amps per side; Tail/Running Lights – 6.0 amps total. Check your vehicle owner's manual or contact the vehicle manufacturer for your vehicle's lamp load rating.
Mount the black converter module on a flat, clean surface behind the removed taillight or on the vehicle's frame, using the double-sided tape provided. The location must be out of the path of spray and debris from the rear wheels and road. Failure to mount the module in a protected area can cause loss of warranty, product failure including lamp malfunction, overheating and potential fire.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle's frame, or drill a 3/32" pilot hole for the provided screw. Clean the ground area from any rust, dirt or paint. Secure the white ground wire using the ring terminal and screw provided.
Drilling may be required if a suitable existing grounding point is not available near the connector. If needed, you will drill a 3/32" pilot hole for the provided ground screw. Before drilling, verify that miscellaneous items hidden behind or under surfaces are not present to avoid damage and personal injury.
Remove the fastener from the rear bumper fascia using a Phillips screwdriver. This fastener is removed to allow routing of the T-Connector end with the green wire and the 4-flat through the opening under the taillight and rear bumper fascia.
A Phillips screwdriver is required to remove the taillight assembly screws and the rear bumper fascia fastener. The manual references a CME-PCL-INS sheet for battery routing details, which should be consulted for any additional tools needed for that portion of the installation.
Yes, you must reinstall all items removed during installation, including the taillight assemblies and the rear bumper fascia fastener.
When routing wires, carefully avoid hot pipes, heat shields, the fuel tank or any other areas that might pinch or break the wire. Use the provided cable ties to secure any loose wires to prevent movement and potential damage.
The CURT 56220 T-Connector is designed for Kia Soul and Kia Rondo vehicles.
Yes, disconnect the negative battery terminal before beginning installation.
A 10 amp maximum fuse is required on the battery connection. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Mount the black converter module on a flat, clean surface behind the removed taillight or on the vehicle's frame using the provided double-sided tape, in an area protected from spray and debris from the rear wheels and road.
