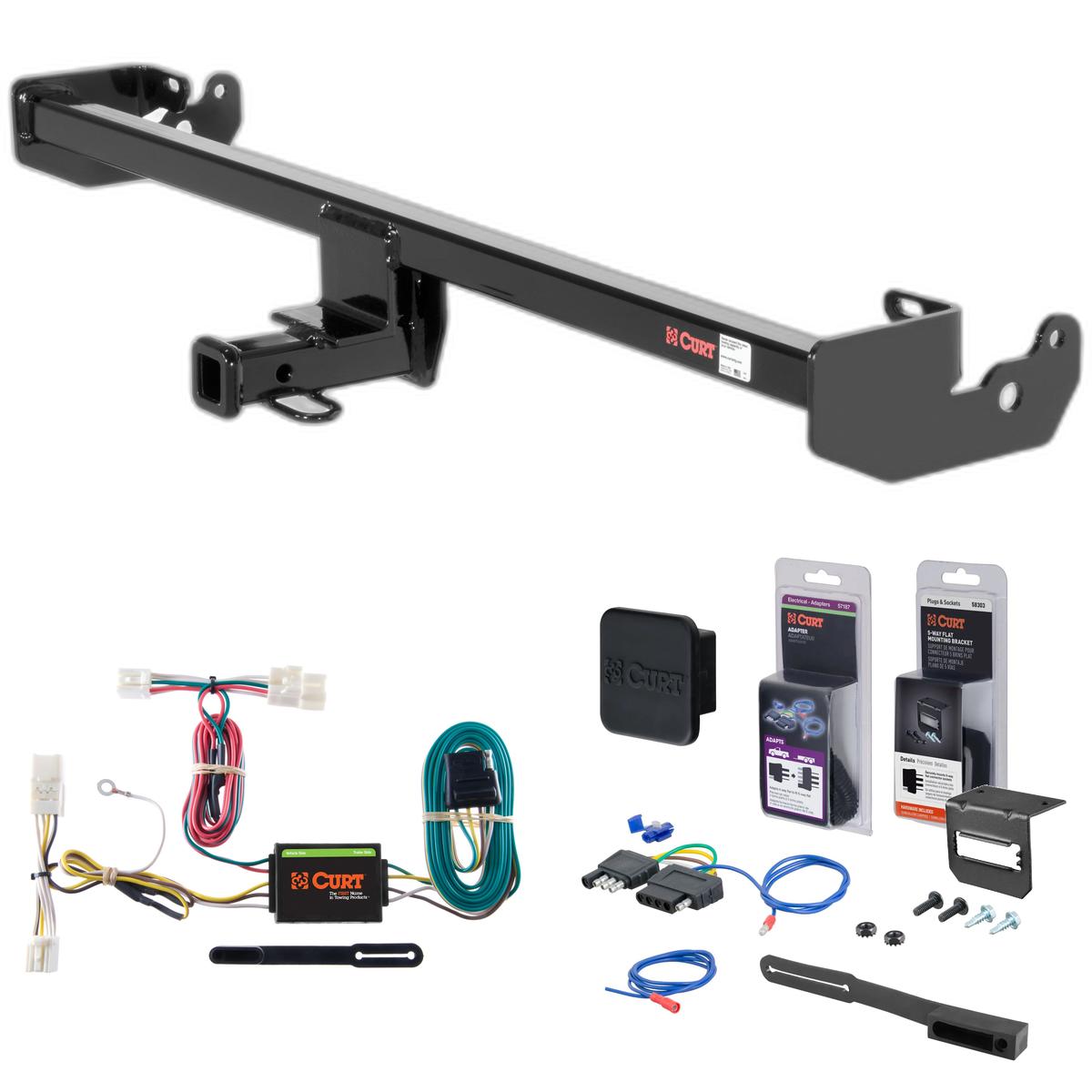

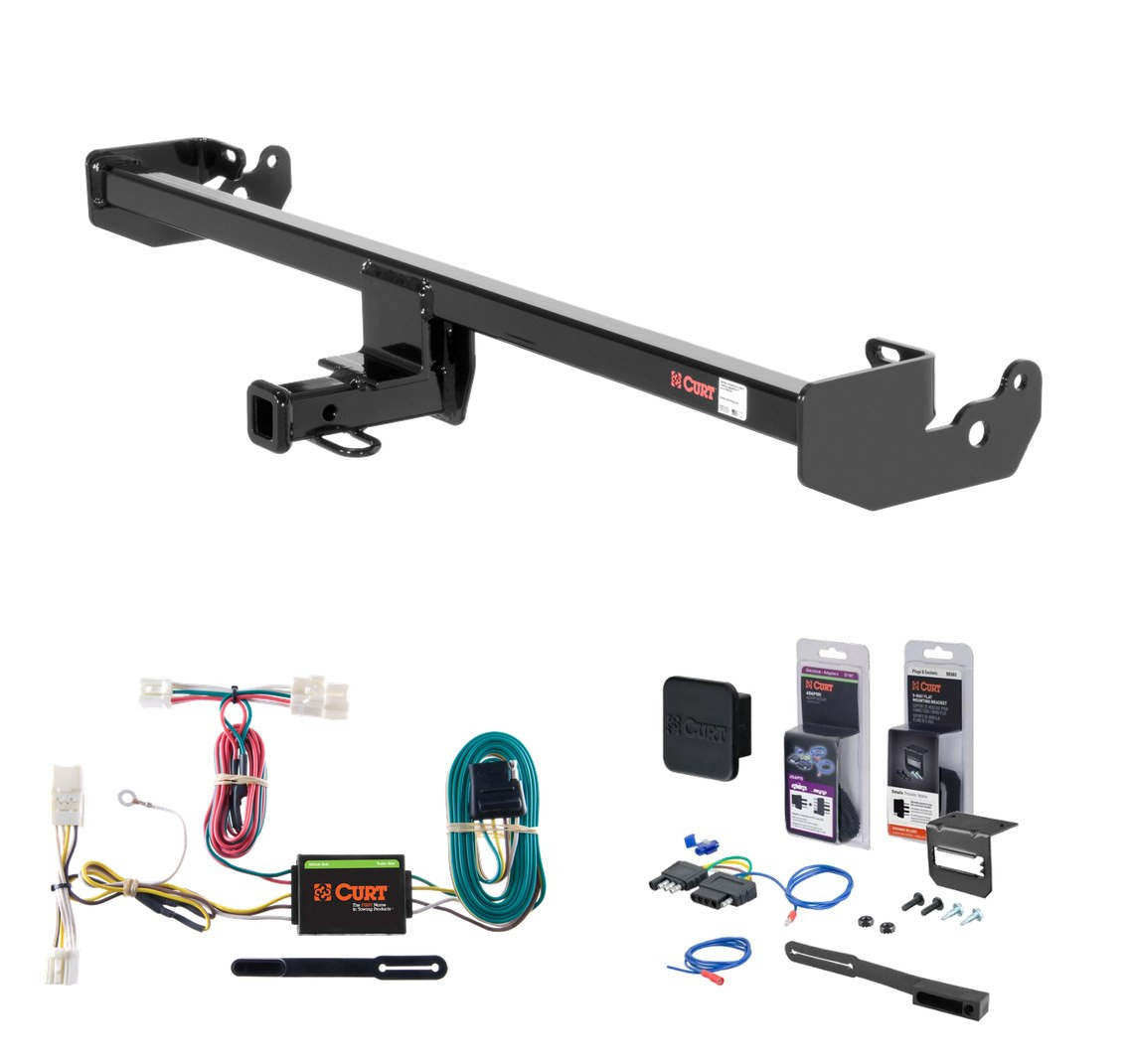

Authorized DealerComplete CURT Class 1 1-1/4" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2011 - 2014 Scion xD. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

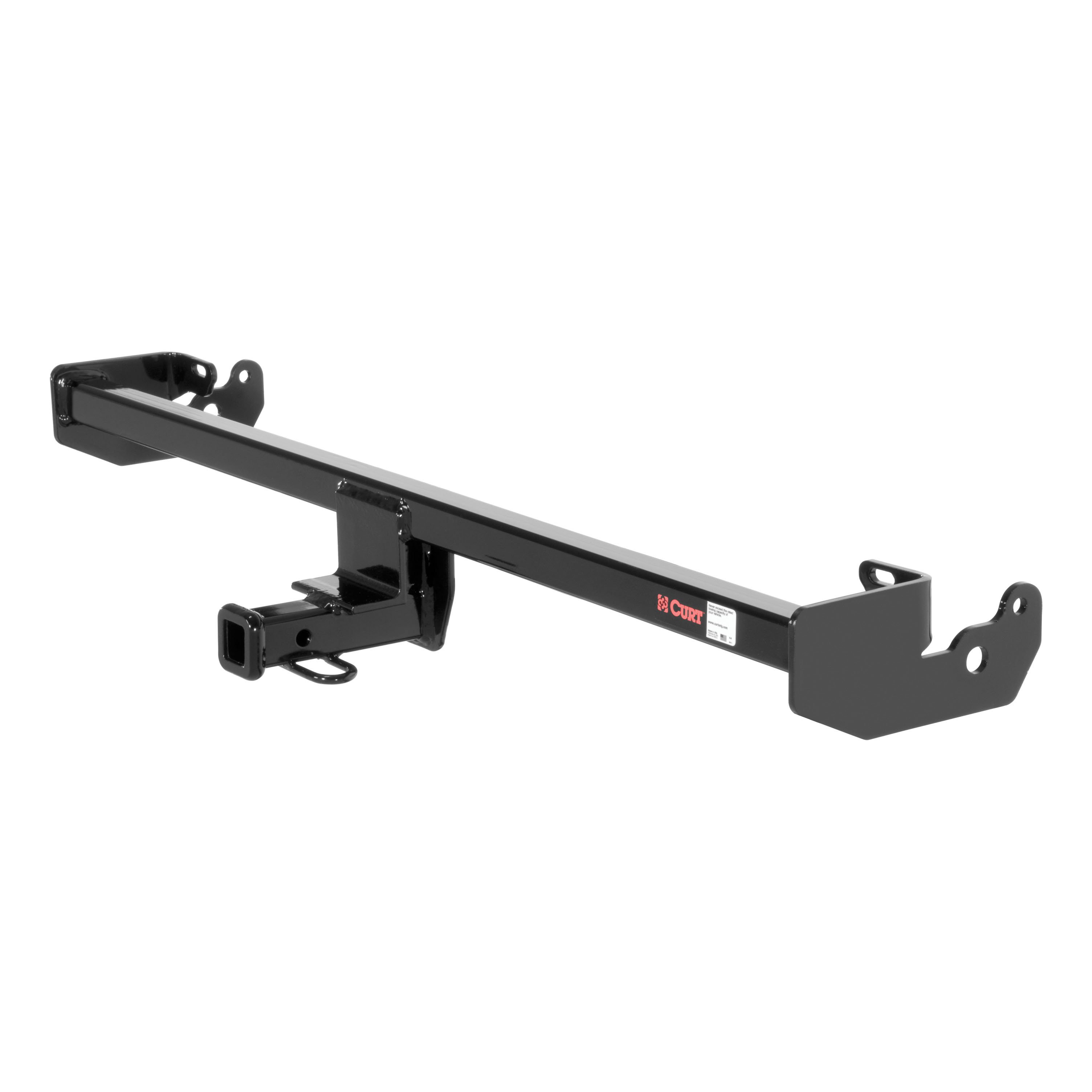

However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Scion xD (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Scion xD (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2014 | Scion xD | — |
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Wed, Sep 16 - Sat, Sep 19
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
The 11 - 14 Scion xD Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11134 (Part #5W-CHW-2732) fits the following vehicles: 2011-2014 Scion xD. Always verify your specific year, make, and model before ordering.
Yes, the 11 - 14 Scion xD Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11134 (Part #5W-CHW-2732) is designed to fit the 2011-2014 Scion xD.
The 11 - 14 Scion xD Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11134 (Part #5W-CHW-2732) fits 2011-2014 Scion xD models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
The 11 - 14 Scion xD Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11134 (Part #5W-CHW-2732) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt hitch model 11134 is designed for the Scion xD. No drilling is required for installation.
Hitch 11134 is designed for use with ballmount #55001 or #45501. Euro mount options are available: #45571 (1 7/8" ball) and #45572 (2" ball).
The manual does not provide the tongue weight capacity specification. Contact Curt Manufacturing technical support at 1-877-287-8634 for this information.
The manual does not provide the trailer weight capacity specification. Contact Curt Manufacturing technical support at 1-877-287-8634 for this information.
Required tools are: flat head screwdriver, ratchet, 12mm socket, 9/16" socket, 15/16" socket, 9/16" boxed end wrench, 15/16" boxed end wrench, and torque wrench.
The kit includes: (2) M8-1.25 x 45 hex bolts, (2) 3/8" washers, (2) 3/8" lock washers, (2) 3/8-16 x 1 1/2 hex bolts, (2) HFN3816 hex flange nuts, (2) 5/8-11 x 2 hex bolts, (2) 5/8" wide washers, and (2) 5/8-11 hex flange nuts.
If an underbody panel is present, it must be removed by removing 7 push-button fasteners. After installation, you can either return the panel to the vehicle owner or trim and reinstall it. Trimming is optional.
Yes. Remove the 2 existing 8mm fasteners from the frame (one from each side) and return them to the vehicle owner before installing the hitch.
No. Loosely install all supplied fasteners first while raising the hitch into position over the exhaust. Tighten them to final torque specifications only after all fasteners are in place.
No. Curt hitch 11134 requires no drilling for installation.
No. Underbody panel trimming is optional. If you choose to trim, the approximate trim dimensions are: 3 5/8 inches, 1 2/8 inches, and 1 5/8 inches. Check fit prior to completing the trim.
All 8mm fasteners must be torqued to 23 ft-lbs.
All 3/8" fasteners must be torqued to 45 ft-lbs.
All 5/8" fasteners must be torqued to 210 ft-lbs.
All non-trailer loads applied to this hitch must be supported by Curt stabilizing straps model 18050.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This is essential for safe operation.
Curt Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If defective, Curt may repair or replace the product at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation. Curt's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
Yes, Curt 11134 is designed for the Scion xD with no drilling required.
You need: flat head screwdriver, ratchet, 12mm, 9/16", and 15/16" sockets, 9/16" and 15/16" boxed end wrenches, and a torque wrench.
No, no drilling is required. Underbody panel trimming is optional.
Torque 8mm fasteners to 23 ft-lbs, 3/8" fasteners to 45 ft-lbs, and 5/8" fasteners to 210 ft-lbs.
Curt 11134 is designed for ballmount #55001 or #45501. Euro mount options #45571 (1 7/8" ball) and #45572 (2" ball) are also available.
All non-trailer loads must be supported by Curt stabilizing straps model 18050.
Periodically check that all fasteners are tight and all structural components are sound.
Yes, Curt part 56136 is designed for the Scion XD. The installation accesses the vehicle's taillight wiring harness located behind the rear access panel.
The Curt 56136 T-Connector is a trailer wiring harness that integrates with your Scion XD's taillight wiring. It includes a converter box and a 4-flat connector that can be routed out when in use and stored away when not needed.
The Curt 56136 includes a T-Connector harness with yellow and green wire ends, a black converter box, double-sided tape, a white ground wire with eyelet and screw, and a 4-flat connector.
You will need basic hand tools. If a suitable grounding point does not exist on the vehicle frame, you will also need a drill with a 3/32" bit to create one.
Open the hatch and remove the rear cargo area floor cover, the foam storage tray underneath it, and the rear scuff panel (held by two plastic fasteners). The taillight wiring harness is then accessible behind the rear access panel.
Locate the vehicle's taillight wiring harness behind the rear access panel on the driver's side. Separate the connectors carefully without damaging the locking tabs. Insert the T-Connector end with the yellow wire between the separated connectors, ensuring the connectors are fully inserted with locking tabs in place. Repeat on the passenger side using the T-Connector end with the green wire.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle's frame. If no suitable point exists, drill a 3/32" hole and secure the white ground wire using the eyelet and screw provided.
Locate a flat spot on the vehicle frame and adhere the black converter box using the double-sided tape provided.
Route the 4-flat connector out from under the rear trim panel to the center of the vehicle when in use. When not in use, roll it up and store it in an out-of-the-way location.
Drilling is required only if a suitable grounding point does not already exist on the vehicle frame. If needed, drill a 3/32" hole for the ground wire. Before drilling, verify that no miscellaneous items are hidden behind or under the surface to avoid damage and personal injury.
Drill a 3/32" hole if a suitable grounding point does not exist on the vehicle frame.
Before drilling, verify that miscellaneous items are not hidden behind or under any surface. Drilling into hidden wiring, fuel lines, or other components can cause damage and personal injury.
After completing all installation steps, re-install all items that were removed during installation, including the rear scuff panel, foam storage tray, and rear cargo area floor cover.
Yes, the Curt 56136 is designed for the Scion XD.
Before drilling, verify that no miscellaneous items are hidden behind or under the surface to avoid damage and personal injury.
