Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
| Finish | GLOSS BLACK POWDER COAT |
| Main Body Shape | Square |
| Material | Carbon Steel |
| Mount Type Description | Blank |
| Receiver Tube Size | 1-1/4 IN |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 300 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity (WC) | 3,500 LB |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 350 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Drop | 3-1/4 IN |
| Finish | GLOSS BLACK POWDER COAT |
| Gross Trailer Weight (GTW) | 3,500 LB |
| Material | Blank |
| Mount Type Description | Blank |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2016 | Jeep Compass | — |

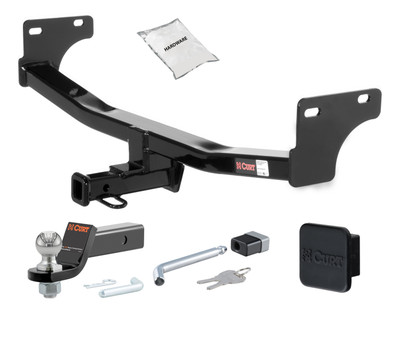

The 11 - 16 JEEP Compass -- 1.25in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit by CURT HWA1546 (Part #HWA1546) fits the following vehicles: 2011-2016 Jeep Compass. Always verify your specific year, make, and model before ordering.
The 11 - 16 JEEP Compass -- 1.25in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit by CURT HWA1546 (Part #HWA1546) fits 2011-2016 Jeep Compass models. The 2016 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 11 - 16 JEEP Compass -- 1.25in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit by CURT HWA1546 (Part #HWA1546) is designed to fit the 2011-2016 Jeep Compass.
The 11 - 16 JEEP Compass -- 1.25in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit by CURT HWA1546 (Part #HWA1546) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the CURT 12057 is designed for 2011-Current Jeep Patriot and Compass SUVs. It is a weight-carrying hitch rated for 3,500 lbs trailer weight and 300 lbs tongue weight. Always verify your vehicle's manufacturer towing capacity before towing.
You will need: ratchet, sockets in 5/8", 3/4", 7mm, and 11mm sizes, tape measure, torque wrench, and safety glasses. Two people may be required to ease installation.
No, drilling is not required. However, fascia trimming is required, and the exhaust must be lowered by removing three rubber isolators.
All 1/2" fasteners must be torqued to 110 ft-lbs (foot-pounds). Use a torque wrench to ensure proper tightness.
The CURT 12057 is rated for a maximum of 3,500 lbs trailer weight and 300 lbs tongue weight. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
Yes. All non-trailer (wheel-less) loads applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
The exhaust must be lowered, not fully removed. Lower it by removing three rubber isolators and support the exhaust to avoid damage. The exhaust is reinstalled after the hitch is secured.
Yes. The CURT 12057 is designed for 2011-Current Jeep Patriot and Compass models, which includes 2015 Compass vehicles.
The CURT 12057 is designed for use with ballmount #D-55001 or #45501. Euro mount options are available: #45571 (1 7/8" ball) and #45572 (2" ball).
The hitch includes: four 1/2-13 UNC Grade 8 hex cap screws (part 10-10407), four 1/2" flat washers (part 30-00133), and four 1/2-13 UNC Grade 8 serrated flange nuts (part 20-00062).
You must temporarily remove: four plastic fasteners and four hex screws from the fascia, three rubber isolators from the exhaust (to lower it), and four nuts securing the heat shield. If a tow loop is present, remove it and return it to the vehicle owner.
Insert the 4" hex bolts with washers into the frame rails from the outside. Raise the hitch into position between the frame rails. Push the front bolts through the mounting plates and loosely install 1/2" flange nuts. Then rotate the hitch up so it touches the fascia to mark trim lines.
Yes, fascia trimming is required. After rotating the hitch to touch the fascia, mark where to trim using the trim diagram provided. Trim dimensions are approximate, so check fit before completing the trim. Refer to the trim diagram on page 2 of the manual for specific measurements.
According to the trim diagram, trim from the fascia center: 2 1/2" to the left, 2 1/4" to the right, 1 5/8" down from center, 2" down from the top, 1/4" and 3/16" at specific points. These dimensions are approximate; check fit prior to completing trim.
Initially, loosely install the 1/2" flange nuts when positioning the hitch. After trimming the fascia and installing all remaining 1/2" bolts, torque all 1/2" fasteners to 110 ft-lbs using a torque wrench.
After torquing all fasteners to 110 ft-lbs, reinstall the heat shield, its fasteners, and the exhaust system.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This helps maintain the integrity and safety of the hitch.
Wear safety glasses at all times during installation. Support the exhaust to avoid possible damage when lowering it. If you are hesitant to undertake this task, contact an authorized CURT installer for assistance. Two people may be required to ease installation.
The installation difficulty is rated as Challenging. The manual recommends that two people may be required, and suggests contacting an authorized CURT installer if you are hesitant to undertake the task yourself.
Professional installation typically takes 30 minutes. Novice (DIY) installation typically takes 60 minutes. Actual time may vary depending on experience and vehicle condition.
CURT Manufacturing warrants the product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty.
The CURT 12057 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Call CURT Manufacturing technical support at 877-287-8634. You can also visit www.curtmfg.com for more information and www.hitchinfo.com for helpful towing tips.
Periodically check all fasteners to ensure they remain tight. If any fasteners are found to be loose, retorque all 1/2" fasteners to 110 ft-lbs using a torque wrench. Loose fasteners can compromise the structural integrity of the hitch and should be addressed immediately.
The trim dimensions are approximate. If the hitch does not fit properly, check the fit before completing the trim. You may need to adjust the trim lines slightly. If problems persist, contact CURT technical support at 877-287-8634 for assistance.
