Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
| Finish | GLOSS BLACK POWDER COAT |
| Main Body Shape | Round |
| Material | Carbon Steel |
| Mount Type Description | Blank |
| Receiver Tube Size | 1-1/4 IN |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 200 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity (WC) | 2,000 LB |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 350 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Drop | 3-1/4 IN |
| Finish | GLOSS BLACK POWDER COAT |
| Gross Trailer Weight (GTW) | 3,500 LB |
| Material | Blank |
| Mount Type Description | Blank |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions

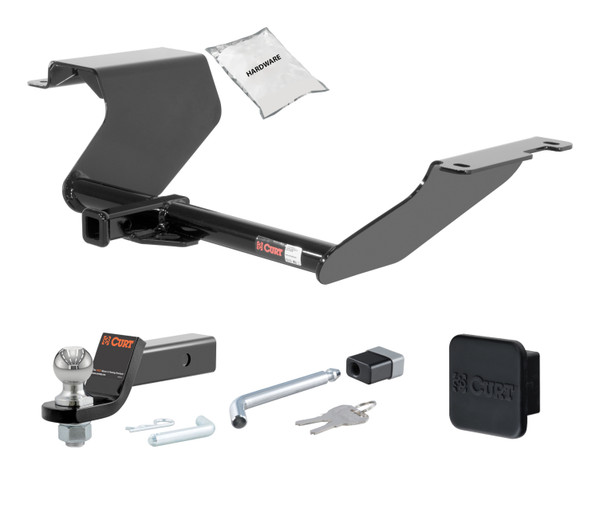

Call 888-634-9494The 12 - 15 Mazda 5 -- 1.25in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit by CURT HWA1766 (Part #HWA1766) fits the following vehicles: 2012-2015 Mazda 5. Always verify your specific year, make, and model before ordering.
The 12 - 15 Mazda 5 -- 1.25in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit by CURT HWA1766 (Part #HWA1766) fits 2012-2015 Mazda 5 models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 12 - 15 Mazda 5 -- 1.25in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit by CURT HWA1766 (Part #HWA1766) is designed to fit the 2012-2015 Mazda 5.
The 12 - 15 Mazda 5 -- 1.25in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit by CURT HWA1766 (Part #HWA1766) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The Curt 11127 is a receiver hitch designed for the Mazda 5. It is designed for use with ball mount D-20 / 45520, with euro mount options available (part numbers 45561 for 1-7/8" ball or 45562 for 2" ball).
Yes, the Curt 11127 is designed for the Mazda 5.
The following tools are required: ratchet, torque wrench, 10mm socket, 11/16" socket, 5" extension, die grinder, and aviation shears.
The kit includes: 4 hex flange nuts (7/16-14), 4 square hole spacers (CM-SP7, .250 x 1.00 x 2.00"), 4 carriage bolts (7/16-14 x 1 1/4), and 2 pieces of 7/16" fishwire.
Yes. The first installation step is to lower the exhaust by removing 3 rubber exhaust hangers. The exhaust is then raised and the hangers are reattached after the hitch is secured.
Yes. The heat shield must be removed by removing 6 fasteners. It is then trimmed and reattached using 4 of the fasteners removed in this step.
Yes. The forward-most access holes in the frame rails must be enlarged to allow 7/16-14 carriage bolts and SP7 spacers to pass through. This is done on both sides. A die grinder is required for this step.
Yes. The heat shield must be trimmed. According to the heat shield trim diagram, trim approximately 10.00 inches from one dimension, 13.00 inches from another, and 1.00 inch from a third. The manual notes that dimensions are approximate and you must confirm fit prior to trimming. Aviation shears are required for this step.
Fishwire is used to thread the 7/16-14 carriage bolts and SP7 spacers through the access holes and out the rear-most holes in the frame rails on both sides. The bolts and spacers are then reversed back through the access holes using the reverse fishwire technique.
Yes. If present, remove any tape covering holes in the frame rails before enlarging the access holes. This is noted in Step 2 of the installation instructions.
All 7/16" hardware must be torqued to 70 ft-lbs.
The manual lists a gross load capacity of 2,000 lbs. trailer weight and 200 lbs. tongue weight when used as a weight-carrying hitch.
All non-trailer loads applied to this product must be supported by 18050 stabilizing straps.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound.
The Curt 11127 is designed for use with ball mount D-20 / 45520. Euro mount options are available: part number 45561 (1-7/8" ball) or 45562 (2" ball).
Yes, the Curt 11127 is designed for the Mazda 5.
Yes. The forward-most access holes must be enlarged using a die grinder, and the heat shield must be trimmed using aviation shears.
You will need a ratchet, torque wrench, 10mm socket, 11/16" socket, 5" extension, die grinder, and aviation shears.
All 7/16" hardware must be torqued to 70 ft-lbs.
The Curt 11127 has a gross load capacity of 2,000 lbs. trailer weight and 200 lbs. tongue weight when used as a weight-carrying hitch.
Yes. All non-trailer loads applied to this product must be supported by 18050 stabilizing straps.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2015 | Mazda 5 | — |
