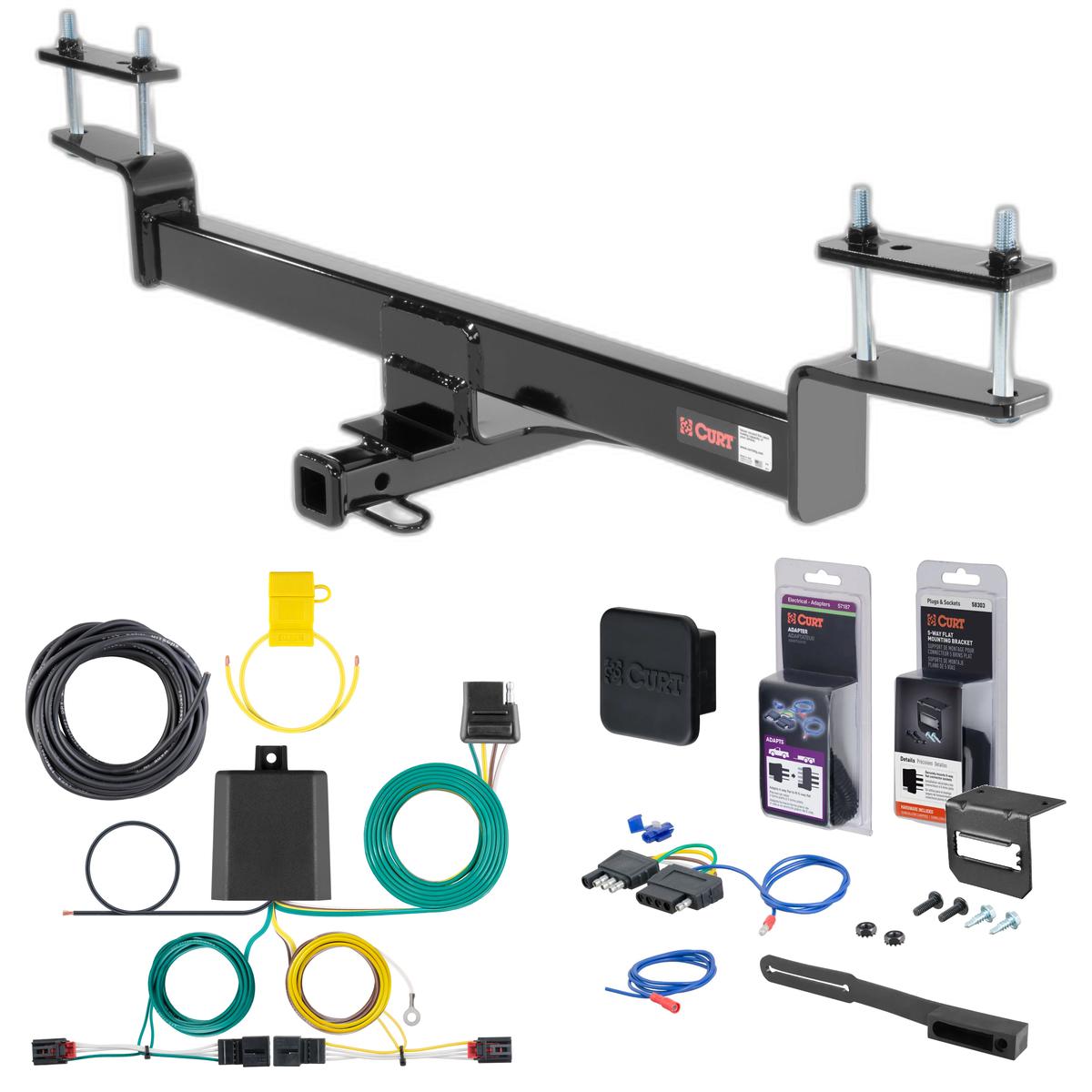

Complete CURT Class 1 1-1/4" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2012 - 2015 Volkswagen Passat Sedan, excluding hands free trunk. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Volkswagen Passat (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Volkswagen Golf R (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|

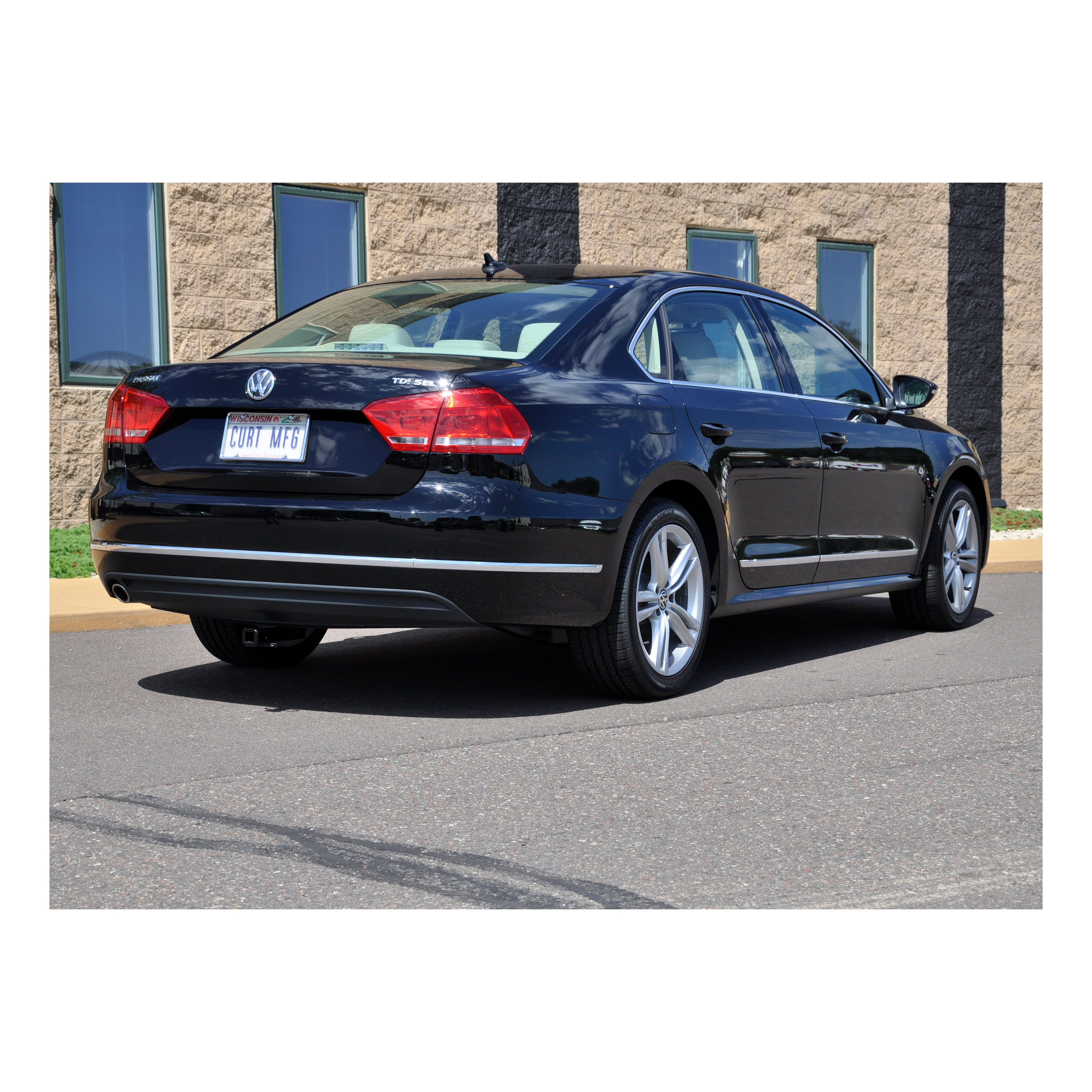

| 2012 - 2015 | Volkswagen Passat | Sedan, excluding hands free trunk |
Yes, the CURT 11234 is designed for Volkswagen Passat Sedan models from 2012 to present. Confirm your vehicle matches this specification before purchasing.
The CURT 11234 is rated for a maximum of 2,000 lbs trailer weight and 200 lbs tongue weight when used as a weight-carrying hitch. You must never exceed your vehicle manufacturer's recommended towing capacity.
Non-trailer (wheel-less) loads applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. See the CURT catalog or visit www.curtmfg.com for further information on the 18050 straps.
The CURT 11234 is designed for use with ballmount #D-55001 or #45501. Euro mount options are available: #45571 (1-7/8" ball) and #45572 (2" ball). Consult CURT or your installer for specific compatibility with your trailer coupler.
No, drilling is not required. The hitch uses existing mounting points on the vehicle's bumper beam supports and drain holes in the trunk pan.
Yes, fascia trimming is required. You must mark and trim the rear plastic fascia using the Fascia Trim Diagram provided. Dimensions are approximate (2.50 in and 4.75 in from the center of the vehicle), so confirm fit prior to trimming. If present, the underbody panel must also be trimmed using the Underbody Trim Diagram (5.50 in from center).
Required tools: ratchet, torque wrench, 3/4" socket, 10mm socket, 9" extension, T-15 and T-25 Torx bits, rotary cutting tool, masking tape, tape measure, silicone caulk, and safety glasses. Safety glasses must be worn at all times during installation.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. Technical support is available at 877-287-8634.
The kit includes: 2× carriage bolts 1/2-13 UNC 1-1/2" (part 10-10287), 4× hex cap screws 1/2-13 UNC 5-1/2" (part 10-10477), 2× serrated flange nuts 1/2-13 UNC (part 20-00062), 4× conical toothed washers 1/2" (part 30-00149), 2× 0.250" spacer plates (part CM-SP62), and 2× nut plate weldments (part 11234-NPWA).
You must remove: the 3 fascia screws and clips holding the rear plastic fascia (retain 2 for reinstallation, return 1 to owner), the spare tire from inside the trunk, and the 2 rearmost rubber drain plugs from the bottom of the trunk pan (return to owner). If present, also remove the underbody panel by removing 5 screws and 5 plastic nuts (save for reinstallation).
1. Remove fascia screws, clips, spare tire, and drain plugs. 2. Mark and trim rear fascia and underbody panel as needed. 3. Flex fascia and place nut plates on bumper beam supports. 4. Seal drain holes with silicone caulk. 5. Raise hitch into position, aligning slots with nut plate holes. 6. Loosely secure with 1/2-13 x 5" hex bolts and washers. 7. Insert spacers and 1/2-13 x 1-1/2" carriage bolts in drain holes, secure from below with flange nuts. 8. Torque all fasteners. 9. Return spare tire and reinstall fascia screws and underbody panel.
Torque all 1/2" x 1-1/2" hardware (carriage bolts at drain holes) to 110 ft-lbs. Torque all 1/2" x 5-1/2" hardware (hex cap screws at nut plates) to 75 ft-lbs. Use a torque wrench to ensure proper tightness.
Loosely secure the hitch into position first using the 1/2-13 x 5" hex bolts and washers. After inserting the spacers and carriage bolts at the drain holes, torque all fasteners in the final step: 1/2" x 1-1/2" hardware to 110 ft-lbs and 1/2" x 5-1/2" hardware to 75 ft-lbs.
The drain holes in the trunk pan are sealed with silicone caulk before inserting the spacer plates and carriage bolts. This prevents water intrusion into the trunk area after the drain plugs are replaced with the hitch fasteners.
After installation, periodically check that all fasteners are tight and all structural components are sound. Verify that the hitch is properly aligned and that the fascia and underbody panel are securely reinstalled. Check that the spare tire is returned to the trunk.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval, but regular inspection before towing is recommended.
Safety glasses must be worn at all times while installing this product. Before beginning installation, read all instructions thoroughly. Using proper tools will greatly improve the quality of the install and reduce the time required. If you are hesitant to undertake this task, contact an authorized CURT installer.
CURT Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. CURT's liability is limited to repair or replacement of defective products and excludes incidental or consequential loss or damage.
Yes, the CURT 11234 is designed for Volkswagen Passat Sedan models from 2012 to present.
Maximum 2,000 lbs trailer weight and 200 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
No, drilling is not required. Fascia trimming is required.
Ratchet, torque wrench, 3/4" and 10mm sockets, 9" extension, T-15 and T-25 Torx bits, rotary cutting tool, masking tape, tape measure, silicone caulk, and safety glasses.
Torque 1/2" x 1-1/2" hardware to 110 ft-lbs and 1/2" x 5-1/2" hardware to 75 ft-lbs.
Safety glasses must be worn at all times during installation.
Non-trailer loads must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads voids the warranty.
Part 56374 is designed for passenger cars with 12-volt negative ground electrical systems. The wiring harness connects at locations P3 and P4 (behind driver and passenger side taillight housings, inside of trunk). Check your vehicle owner's manual to confirm it has a 12-volt negative ground system. If your vehicle does not have this electrical configuration, this product will not function properly.
The product has the following electrical ratings: Signal circuits (turn signals) 5.0 amps per side; Tail/Running circuits 7.5 amps total. The battery connection must be fuse-protected with a 15-amp maximum fuse. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower, as exceeding the rating can cause loss of warranty, overheating and potential fire.
Required tools are: ratchet, ratchet extension, socket (10mm), flathead screwdriver, Phillips screwdriver, Torx bit (T-30), wire crimper, wire stripper, panel trim removal tool, and cutting tool. Proper tools will improve the quality of installation and reduce the time required.
Yes. You must disconnect the negative battery terminal before beginning installation. Locate the battery in your vehicle owner's manual, disconnect the negative terminal, and fasten this wire down and away from the battery. Reconnect the negative battery terminal only after all other installation steps are complete and the fuse has been installed.
Remove the following: all trunk floor coverings and storage trays, the scuff panel (by pulling out at the bottom then up, taking care not to damage alignment tabs), and the interior side trim panels on both driver and passenger sides. These panels must be removed to access the taillight wiring harness connectors located behind them.
1. Behind the removed trim panel, locate the vehicle taillight wiring harness connectors. 2. Separate the connectors from the taillight housing, taking care not to damage the locking tabs. 3. Insert the custom wiring harness end with the yellow wire between the separated connectors. 4. Make sure the connectors are fully inserted with locking tabs in place. 5. Repeat this process on the passenger side using the harness end with the green wire.
You may need to drill a 3/32" pilot hole if a suitable grounding point is not available. Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no existing point is available, drill a 3/32" pilot hole. The area must be free of rust, dirt and paint. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
The pilot hole for the ground wire screw is 3/32". This hole is drilled only if a suitable existing grounding point (such as an existing screw with nut in the vehicle frame) is not available. The area must be free of rust, dirt and paint before securing the white ground wire using the ring terminal and provided screw.
The wiring harness includes the following colors: Green (right turn signal), Red (brake), Yellow (left turn signal), Brown (taillight), and White (ground). The custom wiring harness has two ends: one with a yellow wire (driver side) and one with a green wire (passenger side). The black power wire connects to the vehicle battery positive terminal, and the white ground wire connects to the vehicle body.
The power wire is 12 gauge (12 GA) or larger. This wire routes from the vehicle battery to the converter system and must be secured to the vehicle chassis using the provided cable ties. When passing the power wire through sheet metal, use an existing grommet, add a grommet, or use silicone to protect the wire from sharp edges.
The battery connection must be fuse-protected with a 15-amp maximum fuse. Install the fuse after all other installation steps are complete. Exceeding the 15-amp rating can cause loss of warranty, overheating and potential fire. The fuse holder is provided with the product.
Adhere the black converter box using the provided double-sided tape. Locate a flat spot inside the vehicle near the taillight. The converter box should be mounted in a location where it will not interfere with vehicle operation or be damaged by moving items in the trunk.
When in use, route the 4-flat to the center of the vehicle and out of the trunk. When not in use, roll up and store in a convenient, out-of-the-way location inside the trunk. Secure any loose wires with the provided cable ties to prevent tangling and damage.
1. Reinstall all items removed during installation (trim panels, scuff panel, floor coverings and storage trays). 2. Reconnect the negative battery terminal if it was disconnected at the beginning. 3. Install the provided 4-flat dust cover to help prevent corrosion. 4. Test for proper function by using a test light or connecting a properly wired trailer.
Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower. The product has signal circuit ratings of 5.0 amps per side and tail/running circuit ratings of 7.5 amps total. For specific towing capacity information, check your vehicle owner's manual or contact the vehicle manufacturer.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. Check the 4-flat connector and dust cover regularly, especially before towing. Ensure all cable ties remain secure and that wires have not shifted or become pinched.
No. The CURT 56374 is designed for use only on 12-volt negative ground systems. If your vehicle has a 24-volt system or positive ground electrical system, this product will not function and should not be installed. Check your vehicle owner's manual to confirm your electrical system configuration.
Route the 12 GA power wire to the vehicle battery location taking care to avoid any pinch points and hot or rotating components. Secure the power wire to the vehicle chassis using the provided cable ties. When passing the power wire through sheet metal, use an existing grommet, add a grommet, or use silicone to protect the power wire from sharp edges. Before routing, check for miscellaneous items that may be behind or under any surface to avoid damage and personal injury.
The CURT 56374 is designed for passenger cars with 12-volt negative ground electrical systems. Verify your vehicle has this electrical configuration in your owner's manual. The wiring connects at taillight locations P3 and P4 (inside trunk, behind taillight housings).
You will need: ratchet, ratchet extension, 10mm socket, flathead and Phillips screwdrivers, T-30 Torx bit, wire crimper, wire stripper, panel trim removal tool, and cutting tool.
Yes, disconnect the negative battery terminal before starting installation. Fasten the wire down and away from the battery. Reconnect only after all other steps are complete and the fuse is installed.
Drilling may be required only for the ground wire. If no existing grounding point is available on the vehicle frame, drill a 3/32" pilot hole. Check for hidden items before drilling to avoid damage.
The battery connection must use a 15-amp maximum fuse. Install the fuse after all other steps are complete. Exceeding 15 amps can cause warranty loss, overheating and fire.
Signal circuits: 5.0 amps per side. Tail/Running circuits: 7.5 amps total. Do not exceed the product rating or your vehicle's lamp load rating, whichever is lower.
Periodically inspect all wires and connections for visible damage or loose connections. Check the 4-flat connector and dust cover before each towing use.
Ensure the connectors are aligned correctly and being inserted straight. The connectors should be fully inserted with locking tabs in place. If resistance is felt, do not force the connection as this may damage the locking tabs. Check that you are using the correct harness end (yellow wire for driver side, green wire for passenger side) and that the vehicle taillight connectors have been properly separated from the taillight housing.
Perform these checks: (1) Verify the negative battery terminal is reconnected. (2) Confirm the 15-amp fuse is installed in the fuse holder. (3) Check that all wiring connectors are fully inserted with locking tabs in place. (4) Inspect all wires and connections for visible damage or loose connections. (5) Verify the ground wire ring terminal is securely attached to the vehicle body. (6) Test for proper function using a test light or by connecting a properly wired trailer. If the product still does not function, there may be a wiring connection issue or the vehicle may not have a 12-volt negative ground system.
