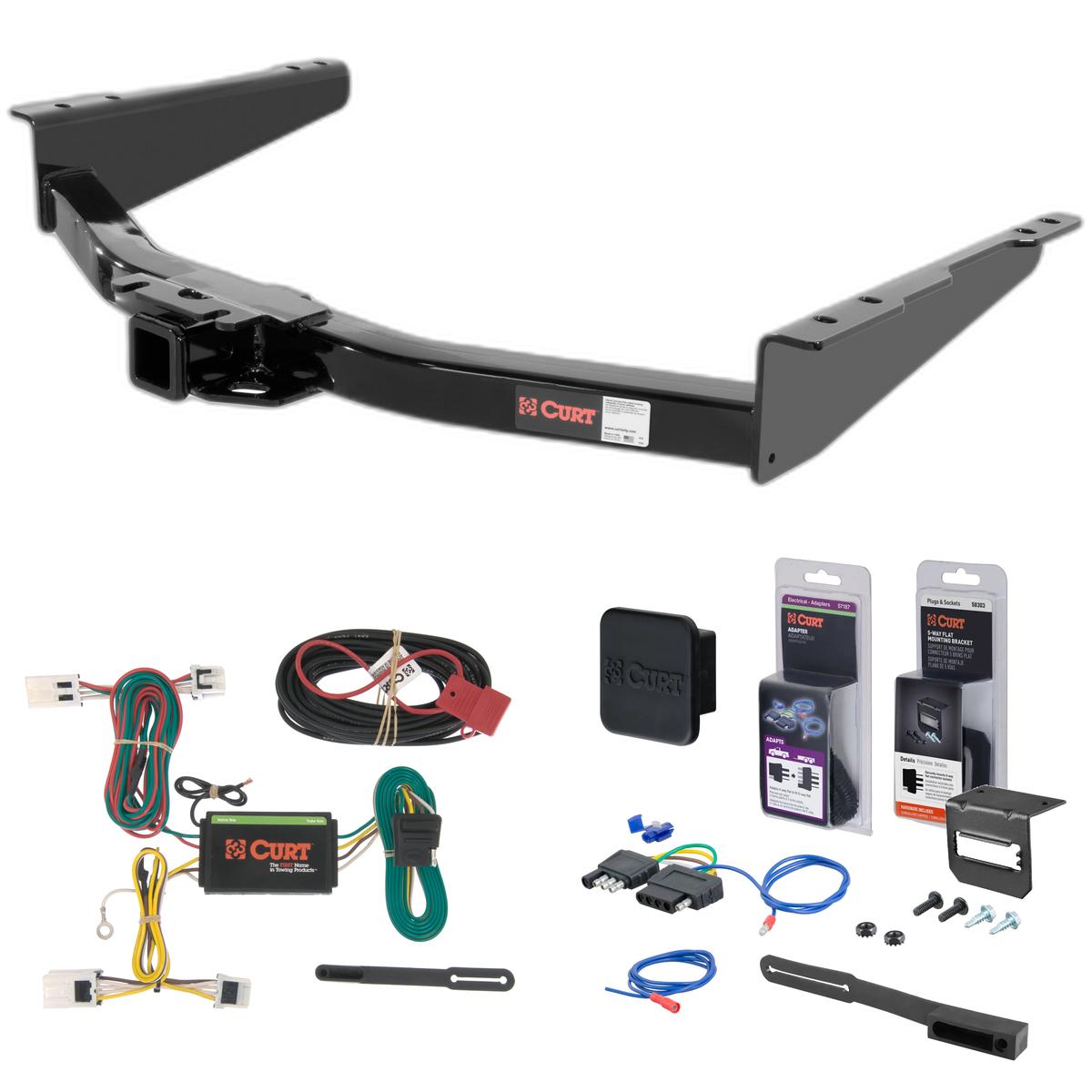

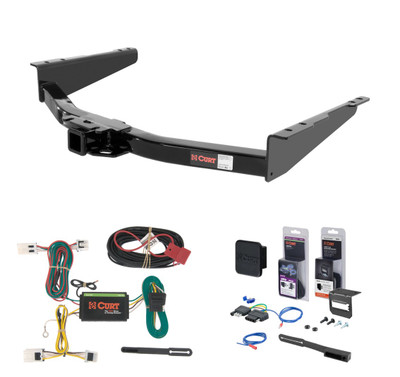

Complete CURT Class 4 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2012 - 2021 Nissan NV2500. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever the next item is on your to-do list -- whether it's arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset -- CURT class 4 trailer hitches offer greater towing power to let you Bring It. These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle. Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans. This particular class 4 hitch fits certain years of the Nissan NV1500, NV2500 and NV3500 (to verify vehicle compatibility, see application info). It provides a weight carrying capacity of 10,000 lbs. GTW and 1,000 lbs. TW. It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs. and a WDTW of 1,200 lbs. CURT class 4 tow hitches are as much suited for work as they are for play. With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component). All CURT class 4 receiver hitches come with a 2" receiver tube opening and all the necessary hardware for a complete installation. From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design. We then combine high-strength steel, precise welding and a co-cured finish of liquid A-coat and durable black powder coat to provide you with a hitch you can depend on. To prove it, we test all our hitches in accordance with SAE J684 for safety.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Nissan NV1500, NV2500 and NV3500 (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 - 2021 | Nissan NV2500 | — |
The 12 - 21 Nissan NV2500 Curt 2" Class 4 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 14000 (Part #5W-CHW-2528) fits the following vehicles: 2012-2021 Nissan NV2500. Always verify your specific year, make, and model before ordering.
Yes, the 12 - 21 Nissan NV2500 Curt 2" Class 4 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 14000 (Part #5W-CHW-2528) is designed to fit the 2012-2021 Nissan NV2500.
The 12 - 21 Nissan NV2500 Curt 2" Class 4 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 14000 (Part #5W-CHW-2528) fits 2012-2021 Nissan NV2500 models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
The 12 - 21 Nissan NV2500 Curt 2" Class 4 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 14000 (Part #5W-CHW-2528) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

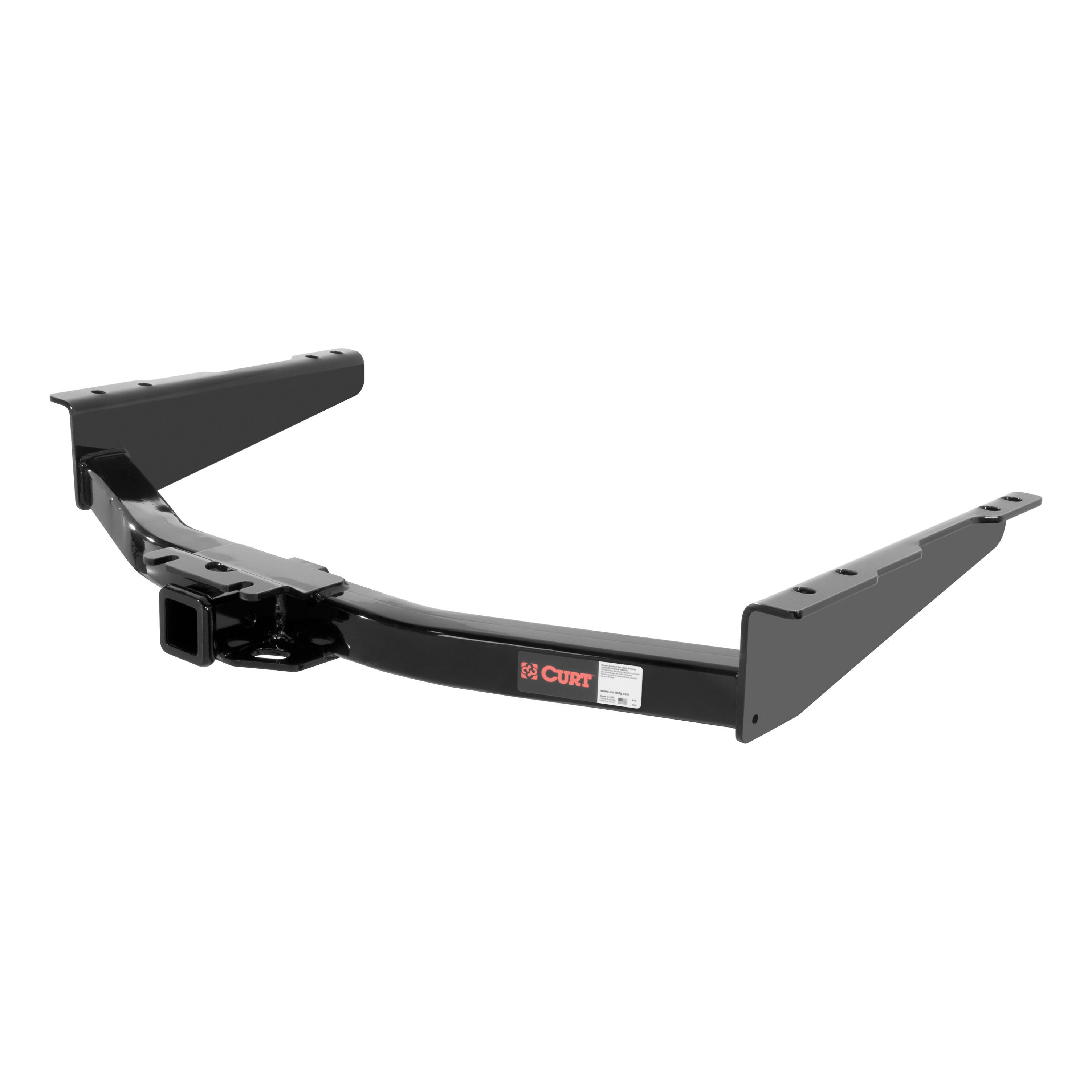

Yes, the Curt 14000 is designed to fit Nissan NV 1500, 2500, and 3500 (all models). No drilling is required because the vehicle has existing weldnuts on both frame rails and slots in the step bumper for installation.
The hitch weight is 30 lbs.
You will need a torque wrench, ratchet, 3/4" socket, and 19mm socket. These are the only tools required for installation.
The kit includes: 8× M12×1.25×40 hex cap screws (part 10-10277), 8× 1/2" conical toothed washers (part 30-00149), 2× 1/2"-13 UNC×1" carriage bolts (part 10-10300), and 2× 1/2"-13 UNC serrated flange nuts (part 20-00062).
No, drilling is not required. The hitch uses existing weldnuts on both frame rails and existing slots in the step bumper, so no modifications to the vehicle structure are necessary.
1. Insert 1/2"-13×1" carriage bolts into the rear step bumper slots. 2. Raise the hitch into position, aligning holes with weldnuts on both frame rails and the carriage bolts. 3. Secure the hitch to the weldnuts using M12×1.25×40 hex bolts and 1/2" conical toothed washers. 4. Secure the hitch to the step bumper using 1/2"-13 hex flange nuts. 5. Torque all fasteners to specification.
Torque all M12 hardware (hex bolts and washers) to 86 ft-lbs. Torque all 1/2" hardware (carriage bolts and flange nuts) to 110 ft-lbs.
Do not exceed your vehicle manufacturer's recommended towing capacity. The manual states that the hitch has a gross load capacity when used as a weight carrying hitch and when used as a weight distribution hitch, but specific capacity values are not provided in this manual. Contact Curt Manufacturing technical support at 1-877-287-8634 or consult your vehicle's owner manual for exact limits.
Periodically check that all fasteners are tight and that all structural components are sound. This helps ensure safe operation and extends the life of the hitch.
Alteration to, misuse of, or improper installation of the hitch voids the warranty. The hitch is warranted to be free of defects in material and workmanship at the time of retail purchase by the original purchaser.
Yes, the Curt 14000 fits all Nissan NV 1500, 2500, and 3500 models. No drilling is required.
You need a torque wrench, ratchet, 3/4" socket, and 19mm socket.
No, drilling is not required. The hitch uses existing weldnuts and step bumper slots.
Torque M12 hardware to 86 ft-lbs and 1/2" hardware to 110 ft-lbs.
The Curt 56148 is designed for Nissan NV 1500, NV 2500, and NV 3500 models. These are full-sized vans in the SUVs, Mini & Full-Sized Vans category. Confirm your exact model year and variant before purchasing.

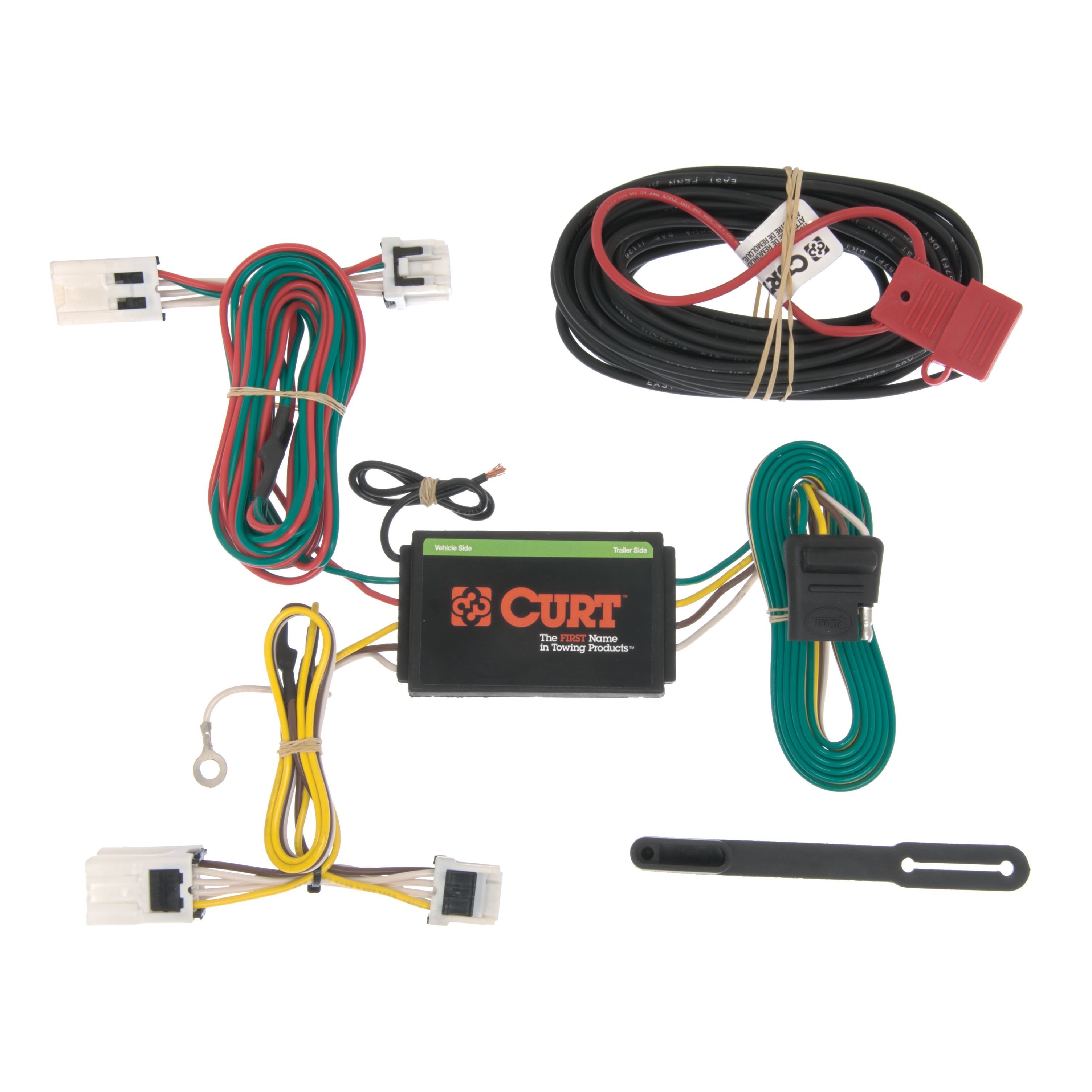

The Curt 56148 is a custom wiring harness that connects your Nissan NV van's taillight circuits to a trailer connector. It includes a converter box and a 4-flat connector for towing applications.
The manual does not specify required tools. However, the installation involves locating connectors, potentially drilling a 3/32" pilot hole for a ground screw, and routing wires. You may need basic hand tools and a drill. Refer to the included CME-PCL-INS sheet for battery connection requirements, which may specify additional tools.
The taillight wiring connectors are located inside the access pockets in the cargo area behind the rear access panels. On the driver side, they are behind the driver side rear access panel (S3). On the passenger side, they are behind the passenger side rear access panel (S4).
1. Locate the vehicle taillight wiring connectors in the cargo area access pockets. 2. Carefully separate the connectors from the taillight housing without damaging the locking tabs. 3. Insert the custom wiring harness end (yellow wire for driver side, red and green wires for passenger side) between the separated connectors. 4. Ensure the connectors are fully inserted with locking tabs in place. Repeat this process on both sides of the vehicle.
Drilling may be required for the ground wire connection. If a suitable existing screw with nut is not available on the vehicle frame near the taillight connector, you will need to drill a 3/32" pilot hole for the provided ground screw. Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury.
Locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle frame. If none exists, drill a 3/32" pilot hole. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and the provided screw. Ensure a clean metal-to-metal connection for proper grounding.
Locate a flat spot inside the vehicle near the taillight and adhere the black converter box using the provided double-sided tape. The converter box should be mounted on a clean, dry surface for secure adhesion.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location inside the trunk. When in use, route it to the center of the vehicle and out of the trunk. Secure any loose wires with the provided cable ties to prevent tangling and damage.
You must remove the rear scuff panel to route the wiring harness to the passenger side. On the passenger side, remove the jack for ease of installation. All removed items must be reinstalled after the wiring harness installation is complete.
Signal Circuits are rated at 3.0 amps per side. Tail/Running Circuits are rated at 6.0 amps total. Do not exceed these product ratings or your tow vehicle's lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire.
The battery connection must be fuse-protected with a maximum 10-amp fuse. Do not exceed this rating. Exceeding the fuse rating can cause loss of warranty, overheating and potential fire.
After installation, test the wiring harness for proper function using a test light or by connecting a properly wired trailer. This ensures all circuits are functioning correctly before towing. Reinstall all items removed during installation, and install the provided 4-flat dust cover to help prevent corrosion.
Do not exceed the product rating (Signal Circuits 3.0 amps per side, Tail/Running Circuits 6.0 amps total) or your tow vehicle's lamp load rating, whichever is lower. Exceeding either limit can cause loss of warranty, overheating and potential fire. Check your vehicle owner's manual or contact the vehicle manufacturer for your specific lamp load rating.
The manual references an included CME-PCL-INS sheet that contains instructions for routing the black power wire from the vehicle battery. This sheet is essential for completing the battery connection portion of the installation. Refer to that sheet for specific routing and connection details.
Yes, the Curt 56148 is designed for Nissan NV 1500, NV 2500, and NV 3500 models.
A 10-amp maximum fuse is required for the battery connection. Do not exceed this rating.
Possibly. You may need to drill a 3/32" pilot hole for the ground screw if an existing screw with nut is not available on the vehicle frame.
Remove the rear scuff panel and the passenger side jack. Both must be reinstalled after installation.
Test the wiring harness using a test light or by connecting a properly wired trailer to verify proper function before towing.
