On Sale Today
Original price was $493.75. Current price is $395.75.You save $98.00 (20%)
Free Shipping
Ships free on all orders

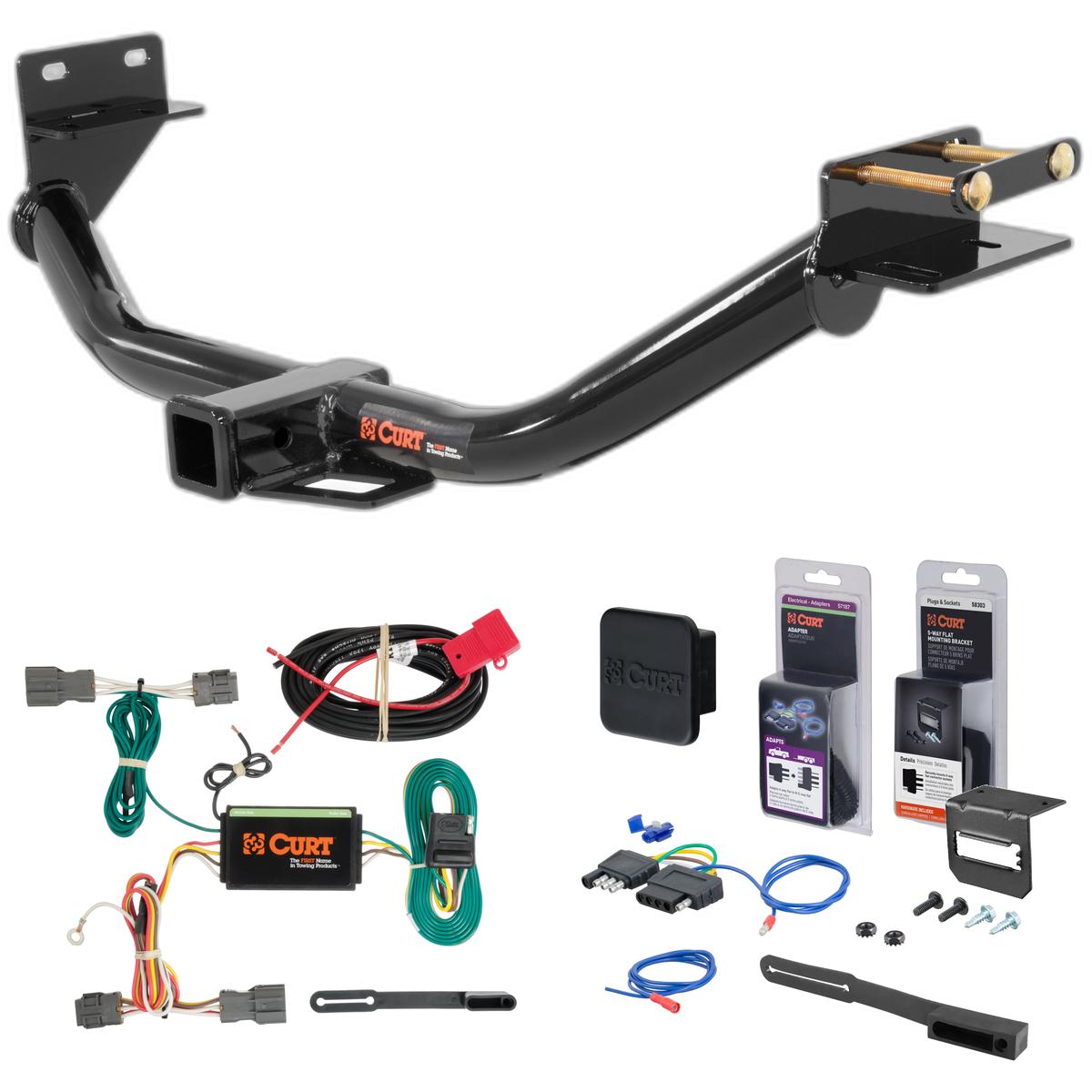

Authorized DealerComplete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2013 - 2018 Hyundai Santa Fe Sport. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Kia Sorento and Hyundai Santa Fe (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 900 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 8,000 lbs. WD and 900 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Kia Borrego, Hyundai Santa Fe and Hyundai Santa Fe Sport (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 - 2018 | Hyundai Santa Fe Sport | — |
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Sat, Sep 5 - Tue, Sep 8
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
The 13 - 18 Hyundai Santa Fe Sport Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13152 (Part #5W-CHW-1865) fits 2013-2018 Hyundai Santa Fe Sport models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
The 13 - 18 Hyundai Santa Fe Sport Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13152 (Part #5W-CHW-1865) fits the following vehicles: 2013-2018 Hyundai Santa Fe Sport. Always verify your specific year, make, and model before ordering.
Yes, the 13 - 18 Hyundai Santa Fe Sport Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13152 (Part #5W-CHW-1865) is designed to fit the 2013-2018 Hyundai Santa Fe Sport.
The 13 - 18 Hyundai Santa Fe Sport Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13152 (Part #5W-CHW-1865) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

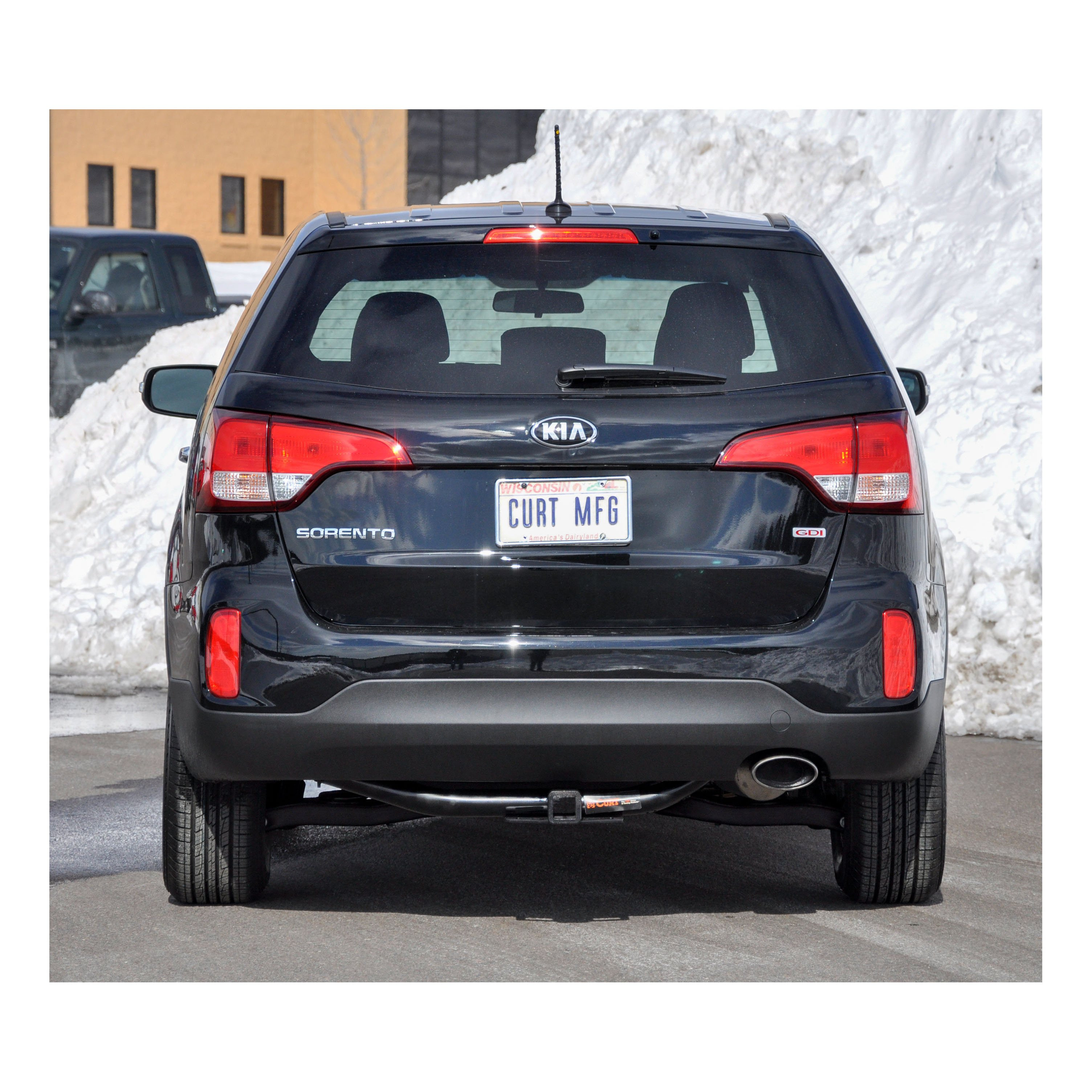

Yes, CURT 13152 is designed for 2014-2015 Kia Sorento (all models). The hitch is a weight-carrying receiver hitch with a maximum trailer weight capacity of 6,000 lbs and tongue weight of 900 lbs when used as a weight-carrying hitch, or 8,000 lbs trailer weight and 900 lbs tongue weight when used as a weight distribution hitch. Always verify your vehicle's manufacturer towing capacity before towing.
Yes, CURT 13152 is designed for 2013-2018 Hyundai Santa Fe with 2.0L or 2.4L 4-cylinder engines only. If your Santa Fe has a different engine size, this hitch is not compatible. The hitch is a weight-carrying receiver hitch with a maximum trailer weight capacity of 6,000 lbs and tongue weight of 900 lbs when used as a weight-carrying hitch, or 8,000 lbs trailer weight and 900 lbs tongue weight when used as a weight distribution hitch.
The hitch weight is 40 lbs.
The following tools are required: ratchet, torque wrench, 6-inch socket extension, 7/16-inch socket, 3/4-inch socket, 17mm socket, screwdriver, and safety glasses. A torque wrench is essential because fasteners must be torqued to specific values (1/2-inch hardware to 110 ft-lbs and 10mm hardware to 48 ft-lbs).
The hitch includes: 4 carriage bolts (1/2-13 UNC, 4-1/2 inch, Grade 8, part 10-10297); 4 serrated flange nuts (1/2-13 UNC, Grade 8, part 20-00062); 4 M10x1.25x25mm hex head cap screws (Class 10.9, part 10-10373); 4 3/8-inch conical toothed washers (part 30-00148); and 1 spacer plate (0.188 inch, part 13152-SP).
No, drilling is not required. The hitch uses existing weldnuts on the frame rails and does not require any drilling, cutting, or welding.
Two people may be required to ease installation. The manual recommends reading all instructions thoroughly before beginning and notes that using proper tools will greatly improve the quality of the install and reduce the time required.
1. Lower and remove the spare tire. 2. Lower the exhaust by removing 3 rubber isolators. 3. Remove the plastic under-body panel from the passenger and driver side frame rails by removing 3 fascia screws from the passenger side and 4 from the driver side; carefully pull down and set aside. 4. Raise the hitch into position and secure to existing weldnuts with M10-1.25 x 25mm bolts and 3/8-inch conical toothed washers. 5. Insert 1/2-13 x 4-1/2-inch carriage bolts through the driver side plate and frame rail, secure with 1/2-13 flange nuts. Insert 1/2-13 x 4-1/2-inch carriage bolts through the 13152-SP spacer, in the passenger side frame rail and out the passenger side plate, secure with 1/2-13 flange nuts. 6. Torque all 1/2-inch hardware to 110 ft-lbs and all 10mm hardware to 48 ft-lbs. 7. Raise exhaust and spare tire back into position and reinstall under-body panels.
The bumper locator pin is a component on both sides of the vehicle that may interfere with the hitch hardware during installation. You may need to bend or trim it to allow hardware clearance. The manual does not specify how much trimming is safe or whether the modification is permanent.
Torque all 1/2-inch hardware to 110 ft-lbs. Torque all 10mm hardware to 48 ft-lbs. A torque wrench is required to achieve these specifications.
Safety glasses should be worn at all times while installing this product. Never exceed your vehicle manufacturer's recommended towing capacity when using the hitch.
After installation, verify that all fasteners are tight and all structural components are sound. Periodically check the receiver hitch to ensure that all fasteners remain tight and all structural components remain sound during the life of the product.
Periodically check the receiver hitch to ensure that all fasteners are tight and all structural components are sound. The manual does not specify an exact inspection interval.
Professional installation time is 40 minutes. Novice (DIY) installation time is 60 minutes.
CURT Manufacturing LLC warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace the product at their option when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation of this product voids the warranty. CURT's liability is limited to repair or replacement of products found to be defective and specifically excludes liability for incidental or consequential loss or damage.
Yes. Maximum capacity: 6,000 lbs trailer / 900 lbs tongue (weight-carrying) or 8,000 lbs trailer / 900 lbs tongue (weight distribution). Always verify your vehicle manufacturer's towing capacity.
No drilling required. The hitch uses existing weldnuts on the frame rails.
Ratchet, torque wrench, 6-inch socket extension, 7/16-inch socket, 3/4-inch socket, 17mm socket, screwdriver, and safety glasses. A torque wrench is essential for proper fastener torque (110 ft-lbs for 1/2-inch hardware, 48 ft-lbs for 10mm hardware).
Yes. You must lower and remove the spare tire, lower the exhaust by removing 3 rubber isolators, and remove the plastic under-body panel from both frame rails. These are reinstalled after the hitch is secured.
Torque all 1/2-inch hardware to 110 ft-lbs. Torque all 10mm hardware to 48 ft-lbs. Use a torque wrench to achieve these specifications.
Weight-carrying: 6,000 lbs trailer weight, 900 lbs tongue weight. Weight distribution: 8,000 lbs trailer weight, 900 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.

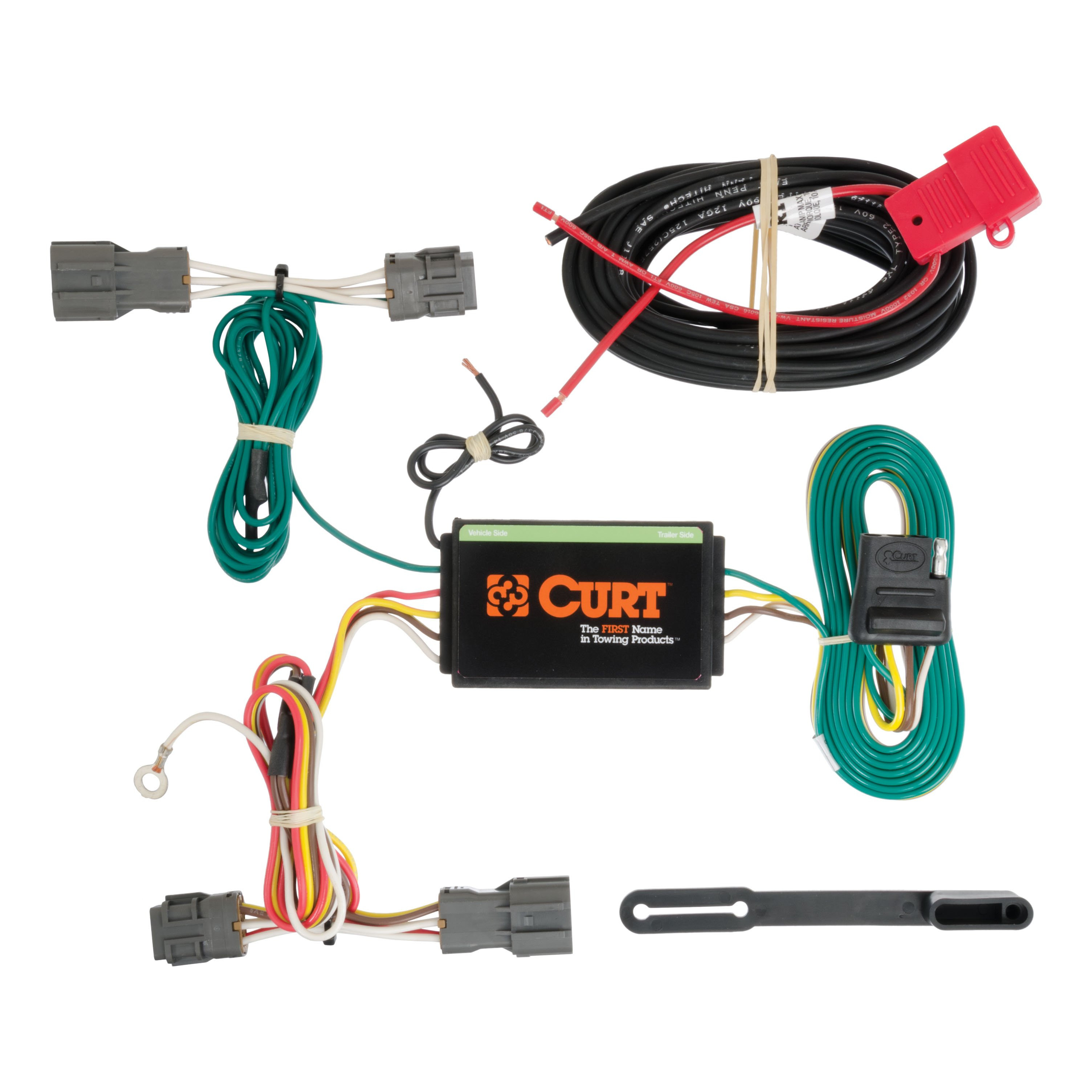

Yes, the Curt 56184 custom wiring harness is designed for Hyundai Santa Fe models. It is also compatible with Kia Borrego. The harness is designed for SUVs, mini and full-sized vans. Verify your specific model year and body style match the vehicle shown in the installation instructions before purchasing.
Yes, the Curt 56184 custom wiring harness is designed for Kia Borrego models. It is also compatible with Hyundai Santa Fe. The harness is designed for SUVs, mini and full-sized vans. Verify your specific model year and body style match the vehicle shown in the installation instructions before purchasing.
The signal circuits are rated at 3.0 amps per side. The tail and running circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower, as exceeding the product rating can cause loss of warranty, overheating and potential fire.
The tail and running circuits are rated at 6.0 amps total. The signal circuits are rated at 3.0 amps per side. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower, as exceeding the product rating can cause loss of warranty, overheating and potential fire.
The following tools are required: ratchet, 10mm socket, Phillips screwdriver, flat blade screwdriver, and panel trim removal tool. You will also need a test light or properly wired trailer to test the harness after installation.
The harness includes: a provided screw for the ground wire connection, a ring terminal for the white ground wire, double-sided tape for mounting the converter box, cable ties for securing loose wires, and a 4-flat dust cover to help prevent corrosion. A separate CME-PCL-INS sheet is included with battery power wire routing information.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
Drilling may be required for the ground wire connection. The manual instructs you to locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable existing point is available, you may drill a 3/32" pilot hole for the provided screw. The area must be free of rust, dirt and paint before securing the white ground wire with the ring terminal.
If drilling is necessary for the ground wire connection, drill a 3/32" pilot hole. This is only required if no suitable existing screw with nut is available in the vehicle frame near the connector. The area must be free of rust, dirt and paint before installation.
Yes. On the Hyundai Santa Fe, you must pass the wiring harness end through the grommet from the body panel and cut a slit in it. Run the wiring harness end with the yellow wire through the slit and pass the connectors through the hole, then seat the grommet in the hole it was removed from.
Yes. On the Kia Borrego, you must make a small slit in the grommet. Route the custom wiring harness end with the yellow wire out from inside the vehicle through the grommet hole, insert it between the separated connectors, then run the wire through the slit and re-install the grommet into the opening.
The black converter box must be mounted inside the vehicle or in a protected area, located on a flat spot near the taillight. Adhere it using the provided double-sided tape. The converter module must be mounted in a protected area; failure to do so can cause loss of warranty or product failure, including lamp malfunction, overheating or potential fire.
When in use, route the 4-flat to the rear of the vehicle and out the tailgate. When not in use, roll it up and store in a convenient, out-of-the-way location. Secure any loose wires with the provided cable ties. On the Kia Borrego, route the 4-flat out from under the driver side rear trim panel and up between the side of the rear storage compartment and the rear trim panel.
On the Hyundai Santa Fe, the wiring harness end with the yellow wire connects to the driver side taillight, and the wiring harness end with the green wire connects to the passenger side taillight. Route the yellow wire end to the driver side first, then route the green wire end to the passenger side behind the removed scuff panel.
On the Kia Borrego, the wiring harness end with the yellow wire connects to the driver side taillight, and the wiring harness end with the green wire connects to the passenger side taillight. Start on the driver side with the yellow wire, then route the green wire end to the passenger side.
The ground wire is white. It must be secured using the ring terminal and provided screw to a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame, or to a 3/32" pilot hole drilled in a rust-free, clean area.
The power wire is black. It must be routed from the vehicle's battery as shown on the included CME-PCL-INS sheet. The battery connection must be fuse-protected with a 10-amp maximum fuse.
Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. This is especially important when drilling the 3/32" pilot hole for the ground wire screw.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly. After testing, install the provided 4-flat dust cover to help prevent corrosion.
Reinstall all items removed during installation, including: taillight housings, rear scuff panel, rear access panels, foam patches, wire grommets, rear cargo compartment, cargo loops, rear trim panels, jack and jack mounting bracket (on Kia), and any trunk floor coverings or storage compartment items. Install the provided 4-flat dust cover to help prevent corrosion.
The Curt 56184 custom wiring harness fits Hyundai Santa Fe and Kia Borrego models (SUVs, mini and full-sized vans). Verify your specific model year and body style before purchasing.
You need: ratchet, 10mm socket, Phillips screwdriver, flat blade screwdriver, and panel trim removal tool. You will also need a test light or properly wired trailer to test the harness after installation.
Drilling may be required only for the ground wire connection if no suitable existing screw with nut is available in the vehicle frame. If drilling is necessary, drill a 3/32" pilot hole in a rust-free, clean area.
The battery connection must be fuse-protected with a 10-amp maximum fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire.
The converter box must be mounted inside the vehicle or in a protected area on a flat spot near the taillight using the provided double-sided tape. Failure to mount it in a protected area can cause loss of warranty or product failure.
Test for proper function by using a test light or connecting a properly wired trailer. All installation steps must be followed to ensure the wiring harness functions properly.
