CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2016 - 2020 Kia Sorento
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2016 - 2020 Kia Sorento. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Kia Sorento (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 750 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Hyundai Santa Fe, Santa Fe XL and Veracruz and Kia Sedona and Sorento (factory tow package required; to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2016 - 2020 | Kia Sorento | — |
Yes, the 16 - 20 Kia Sorento Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13195 (Part #5W-CHW-2062) is designed to fit the 2016-2020 Kia Sorento.
The 16 - 20 Kia Sorento Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13195 (Part #5W-CHW-2062) fits 2016-2020 Kia Sorento models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
The 16 - 20 Kia Sorento Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13195 (Part #5W-CHW-2062) fits the following vehicles: 2016-2020 Kia Sorento. Always verify your specific year, make, and model before ordering.
The 16 - 20 Kia Sorento Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13195 (Part #5W-CHW-2062) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13195 fits Kia Sorento models from 2016 to present. The hitch is designed as a weight-carrying receiver hitch with a maximum trailer weight capacity of 5,000 lbs. and tongue weight capacity of 750 lbs.
Yes, CURT part number 13195 fits Hyundai Santa Fe models from 2019 to present. The hitch is designed as a weight-carrying receiver hitch with a maximum trailer weight capacity of 5,000 lbs. and tongue weight capacity of 750 lbs.
The CURT 13195 hitch has a maximum trailer weight capacity of 5,000 lbs. and a tongue weight capacity of 750 lbs. when used as a weight-carrying hitch. You must never exceed your vehicle manufacturer's recommended towing capacity.
Required tools are: socket wrench, torque wrench, 10-inch socket extension, 3/4-inch socket, 14mm socket, 17mm socket, 11/16-inch socket, Phillips screwdriver, and safety glasses. Using proper tools will greatly improve the quality of the install and reduce the time required.
The hitch includes: (2) 1/2-13 UNC carriage bolts 4-1/2 inches long, Grade 8, zinc-plated (part 10-10297); (2) 1/2-13 UNC serrated flange nuts, Grade 8, zinc-plated (part 20-00062); (3) M10x1.25 hex cap screws 30mm long, Class 10.9, zinc-plated (part 10-10271); (3) 3/8-inch conical toothed washers, zinc-plated (part 30-00148); (2) 7/16-14 UNC carriage bolts 4-1/2 inches long, Grade 8, zinc-plated (part 10-10270); and (2) 7/16-14 UNC serrated flange nuts, Grade 8, zinc-plated (part 20-00103).
Yes. You must temporarily lower the spare tire before beginning installation. The spare tire is raised back into position in the final step after the hitch is fully installed and all fasteners are torqued.
Yes. You must temporarily remove the underbody panel on the driver side of the vehicle by removing (5) screws and (2) nuts. Retain the screws for reinstallation. The panel is reinstalled in reverse order after the hitch is fully installed.
Yes. You must temporarily lower the exhaust by removing (3) rubber isolators: (1) isolator toward the rear of the muffler, (1) isolator toward the front of the muffler, and (1) isolator on the exhaust tube forward of the muffler. The exhaust is raised back and the isolators are reattached after the hitch is fully installed.
Yes. You must remove (1) rubber plug from the bottom of the passenger side frame rail and (1) rubber plug from the bottom of the driver side frame rail. These plugs should be returned to the vehicle owner after removal.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, you can contact an authorized CURT installer for additional assistance.
The installation difficulty level is rated as Moderate. Professional installation time is approximately 90 minutes, while novice (DIY) installation time is approximately 45 minutes.
No. When raising the hitch into position, the (2) M10 hex bolts and washers on the passenger side and (1) M10 hex bolt and washer on the driver side should be loosely installed into the existing weldnuts. They are fully torqued to 48 lb-ft in a later step after all carriage bolts are installed.
The 1/2-inch carriage bolts and hex flange nuts must be torqued to 110 lb-ft.
The 7/16-inch carriage bolts and hex flange nuts must be torqued to 60 lb-ft.
The M10 hex cap screws and conical toothed washers must be torqued to 48 lb-ft.
Two M10 hex bolts with 3/8-inch conical toothed washers are installed into existing weldnuts on the passenger side of the vehicle.
One M10 hex bolt with a 3/8-inch conical toothed washer is installed into an existing weldnut on the driver side of the vehicle.
Two 1/2-inch carriage bolts are installed through the hitch and existing holes in the driver side frame rail. They are secured with 1/2-inch hex flange nuts and torqued to 110 lb-ft.
Two 7/16-inch carriage bolts are installed through the hitch and existing holes in the passenger side frame rail. They are secured with 7/16-inch hex flange nuts and torqued to 60 lb-ft.
Safety glasses should be worn at all times while installing this product.
All non-trailer loads applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. CURT recommends the use of 18050 stabilizing straps for all non-trailer (wheel-less) loads.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing inspection is important for safe operation.
CURT Manufacturing LLC. warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace the product at their option when the product is returned, prepaid, with proof of purchase. Alteration to, misuse of, or improper installation voids the warranty. CURT's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
You can call CURT Technical Support at 877-287-8634 for help or questions about installation. If you are hesitant to undertake the installation on your own, you can also contact an authorized CURT installer for additional assistance.
CURT 13195 fits 2016-present Kia Sorento and 2019-present Hyundai Santa Fe. Maximum towing capacity is 5,000 lbs. trailer weight and 750 lbs. tongue weight.
You need: socket wrench, torque wrench, 10-inch socket extension, 3/4-inch, 14mm, 17mm, and 11/16-inch sockets, Phillips screwdriver, and safety glasses.
You must temporarily lower the spare tire, remove the driver-side underbody panel (5 screws and 2 nuts), lower the exhaust (3 rubber isolators), and remove 2 rubber frame plugs.
Torque 1/2-inch hardware to 110 lb-ft, 7/16-inch hardware to 60 lb-ft, and M10 hardware to 48 lb-ft.
Professional installation takes approximately 90 minutes; novice (DIY) installation takes approximately 45 minutes. Installation difficulty is rated as Moderate.
Never exceed your vehicle manufacturer's recommended towing capacity. All non-trailer loads must be supported by CURT 18050 stabilizing straps, or warranty is voided.
Periodically check that all fasteners are tight and all structural components are sound.
The Curt 56332 fits Kia Sorento models with a factory tow package. It does not fit EX and Limited trim levels equipped with the 2.0L 4-cylinder engine. Check your vehicle's documentation to confirm whether your Sorento has the factory tow package and engine size before purchasing.
Yes, the Curt 56332 is compatible with Hyundai Santa Fe models. No factory tow package requirement is listed for the Santa Fe application.
Yes, the Curt 56332 is compatible with Hyundai Veracruz models.
Yes, the Curt 56332 is compatible with Kia Sedona models.

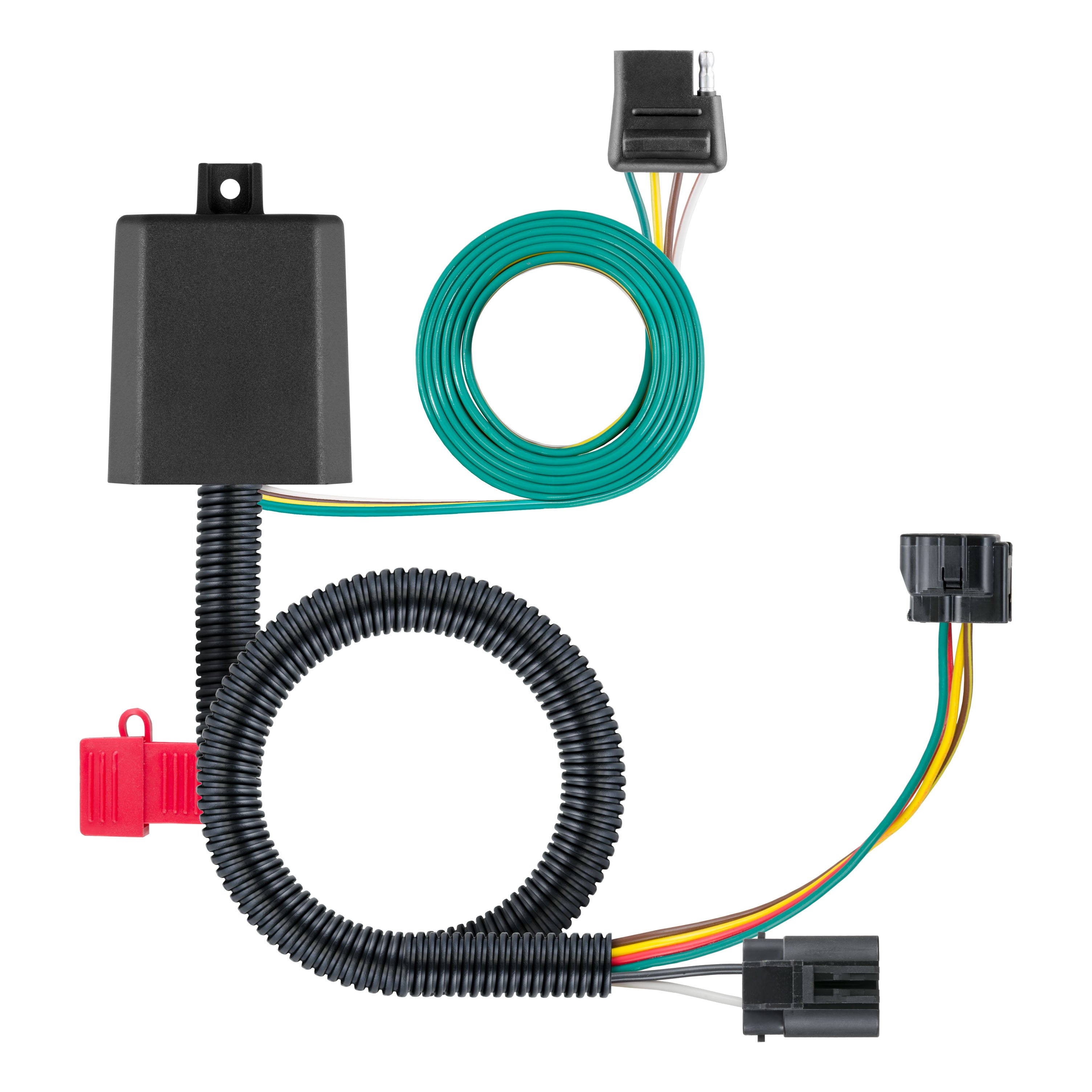

The Curt 56332 has a maximum rating of 3.0 amps per side for signal circuits and 6.0 amps total for tail and running circuits. The battery connection must be fuse protected with a 10 amp maximum fuse. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower.
You will need a flat blade screwdriver and side cutter. The harness comes with a 10 amp fuse, double-sided tape, and cable ties.
A 10 amp fuse is required. The fuse is provided with the harness and must be inserted into the in-line fuse holder to complete installation. The battery connection must be fuse protected with a 10 amp maximum.
On Santa Fe and Sorento models, the vehicle taillight wiring connector is located behind the rear tire on the driver side, on the outside frame rail.
On Veracruz models with a factory tow package, the vehicle taillight wiring connector is located near the rear tire on the passenger side, along the frame.
1. Locate the vehicle taillight wiring connector (location varies by model—see installation steps for your vehicle). 2. Remove the protective cap from the custom wiring harness. 3. Insert the custom wiring harness into the vehicle connector. 4. Ensure the connector is fully inserted with locking tabs in place. The connector will be similar in design to the one on the custom harness.
Route the 4-flat to the center of the vehicle by going over the exhaust along the bumper. Avoid any areas that may cut, pinch or melt the wire. Secure any loose wires with the provided cable ties.
Mount the black converter box on a flat, clean surface that is out of the path of spray and debris from the rear wheels and road. Use the provided double-sided tape to adhere it. Secure any loose wires with the provided cable ties. Failure to mount the box in a protected area can cause loss of warranty, product failure, overheating and potential fire.
Insert the provided 10 amp fuse into the in-line fuse holder. This is the final step. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Exceeding the product rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating (3.0 amps per side for signal circuits, 6.0 amps total for tail and running circuits) or your tow vehicle's lamp load rating, whichever is lower.
The battery connection must be fuse protected with a 10 amp maximum to prevent overheating and potential fire. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly.
The Curt 56332 fits Hyundai Santa Fe, Hyundai Veracruz, Kia Sedona, and Kia Sorento with factory tow package (excluding EX and Limited with 2.0L 4Cyl).
The harness includes a 10 amp fuse, double-sided tape, and cable ties. You will need a flat blade screwdriver and side cutter.
No drilling is required. The harness connects to the existing vehicle taillight connector and is mounted using provided double-sided tape.
Signal circuits: 3.0 amps per side. Tail/running circuits: 6.0 amps total. Battery connection must use a 10 amp fuse maximum. Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower.
The manual does not specify whether the battery must be disconnected. Consult your vehicle owner's manual or contact the vehicle manufacturer for safety guidance.
