| Finish | GLOSS BLACK POWDER COAT |
| Main Body Shape | Square |
| Material | Carbon Steel |
| Mount Type Description | Blank |
| Receiver Tube Size | 1-1/4 IN |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 300 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity (WC) | 3,500 LB |
| Side Application Type Description | Blank |
| T-Connector Location | S1,S2 |
| Tail Light Circuits | 6.0 Amps |
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
| Battery-Powered | Yes |
| Converter Type | Circuit Protected, Powered, Potted |
| Electrical System Type | 2W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Ball Diameter | 2 IN |
| 10282 | Yes |
| Color | Black |
| Drop | 2 IN |
| Gross Trailer Weight (GTW) | 7,500 LB |
| Material | Carbon Steel |
| Receiver Tube Size | 2 IN |
| Shank Diameter | 2 IN |
| Tongue Weight (TW) | 750 LB |
| Truckload Dom Pickup Location | Eau Claire, Wi |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
Notes:
Notes:
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 | Jeep Compass | Built in Mexico |

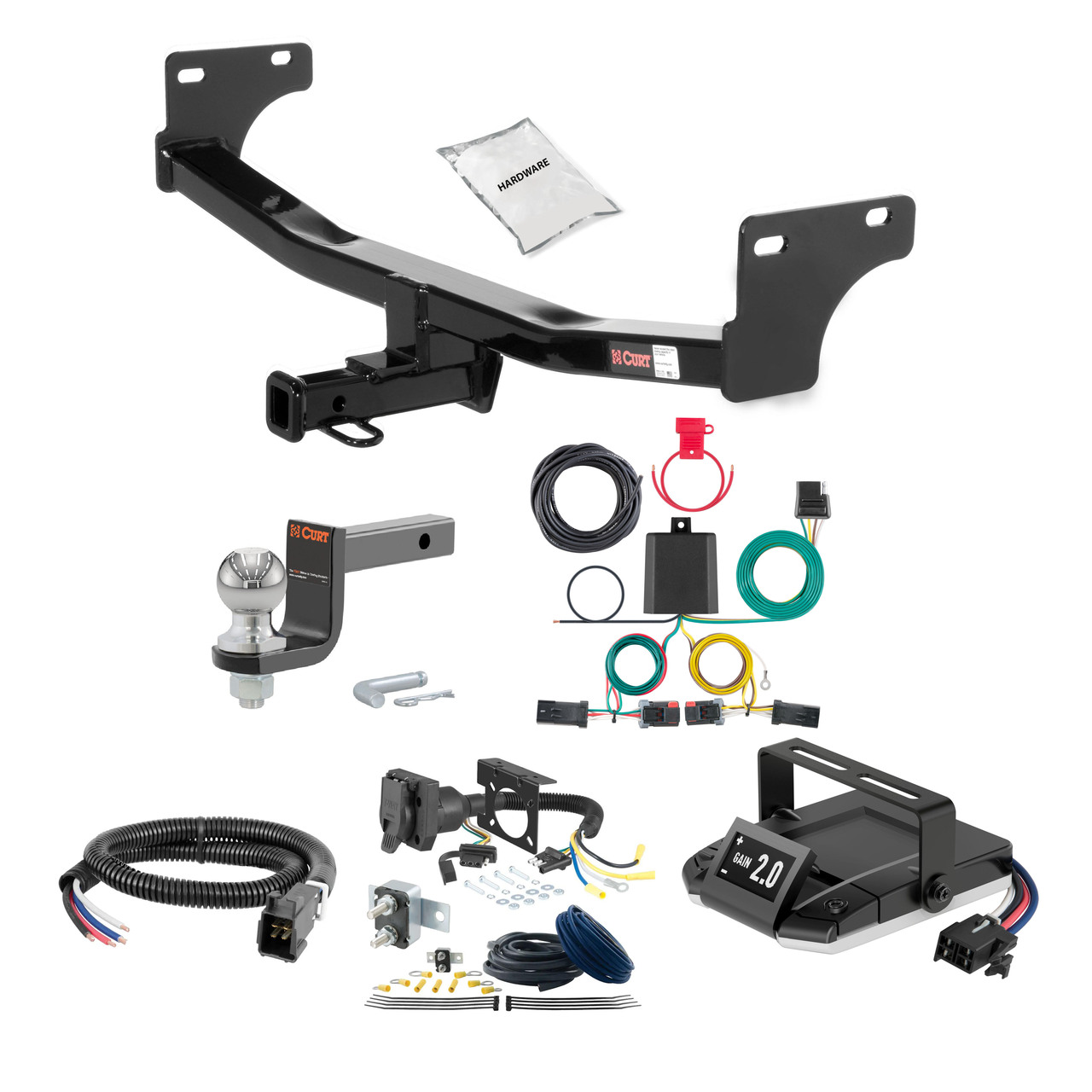

The 17-17 JEEP Compass Built in Mexico 2 CURT Trailer Hitch + Assure Proportional Brake Controller Kit HBCW1543 (Part #HBCW1543) fits the following vehicles: 2017 Jeep Compass. Always verify your specific year, make, and model before ordering.
Yes, the 17-17 JEEP Compass Built in Mexico 2 CURT Trailer Hitch + Assure Proportional Brake Controller Kit HBCW1543 (Part #HBCW1543) is designed to fit the 2017 Jeep Compass.
The 17-17 JEEP Compass Built in Mexico 2 CURT Trailer Hitch + Assure Proportional Brake Controller Kit HBCW1543 (Part #HBCW1543) fits 2017 Jeep Compass models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The 17-17 JEEP Compass Built in Mexico 2 CURT Trailer Hitch + Assure Proportional Brake Controller Kit HBCW1543 (Part #HBCW1543) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

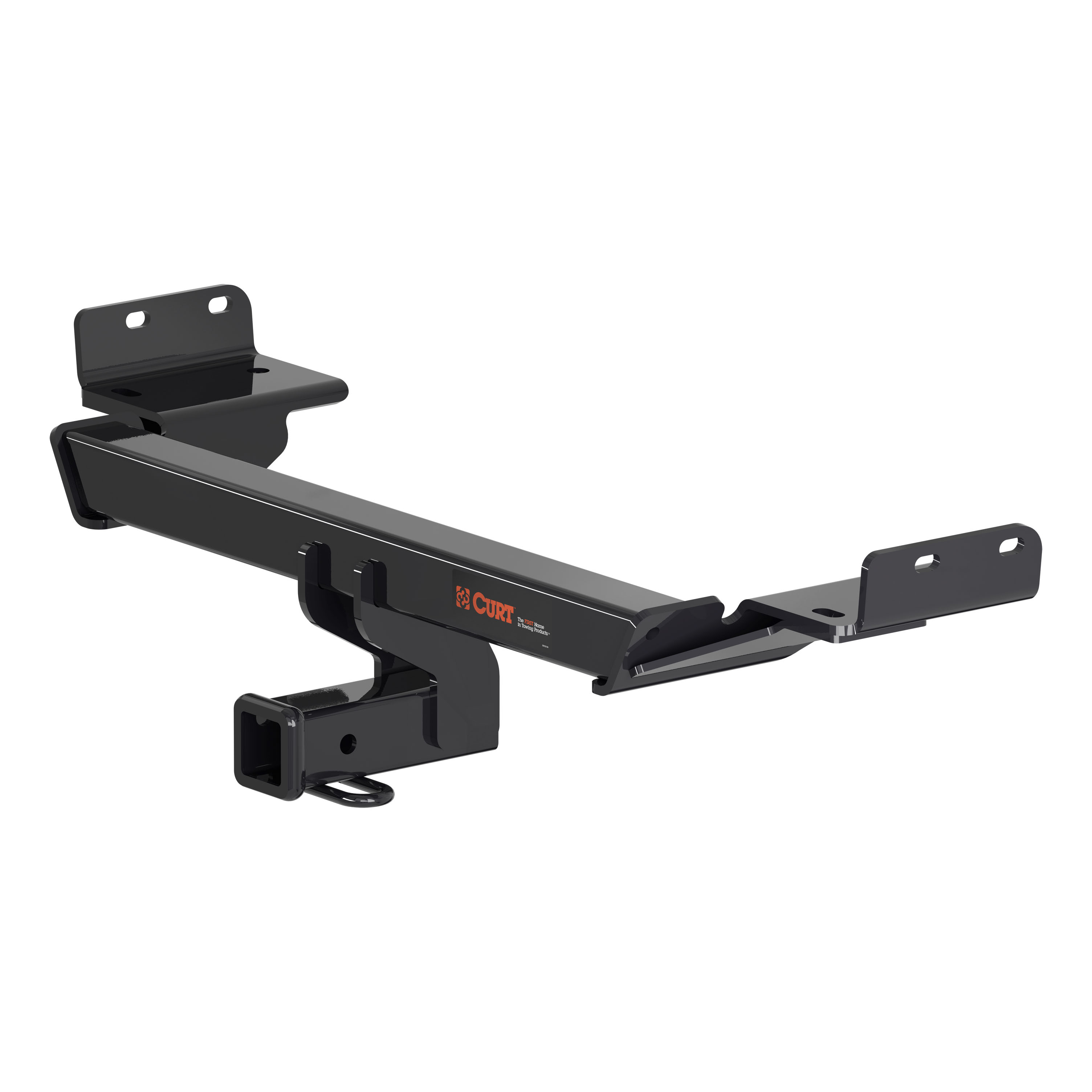

Yes, the CURT 12057 is designed for 2011-Current Jeep Patriot and Compass SUVs. It is a weight-carrying hitch rated for 3,500 lbs trailer weight and 300 lbs tongue weight. Always verify your vehicle's manufacturer towing capacity before towing.
You will need: ratchet, sockets in 5/8", 3/4", 7mm, and 11mm sizes, tape measure, torque wrench, and safety glasses. Two people may be required to ease installation.
No, drilling is not required. However, fascia trimming is required, and the exhaust must be lowered by removing three rubber isolators.
All 1/2" fasteners must be torqued to 110 ft-lbs (foot-pounds). Use a torque wrench to ensure proper tightness.
The CURT 12057 is rated for a maximum of 3,500 lbs trailer weight and 300 lbs tongue weight. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
Yes. All non-trailer (wheel-less) loads applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
The exhaust must be lowered, not fully removed. Lower it by removing three rubber isolators and support the exhaust to avoid damage. The exhaust is reinstalled after the hitch is secured.
Yes. The CURT 12057 is designed for 2011-Current Jeep Patriot and Compass models, which includes 2015 Compass vehicles.
The CURT 12057 is designed for use with ballmount #D-55001 or #45501. Euro mount options are available: #45571 (1 7/8" ball) and #45572 (2" ball).
The hitch includes: four 1/2-13 UNC Grade 8 hex cap screws (part 10-10407), four 1/2" flat washers (part 30-00133), and four 1/2-13 UNC Grade 8 serrated flange nuts (part 20-00062).
You must temporarily remove: four plastic fasteners and four hex screws from the fascia, three rubber isolators from the exhaust (to lower it), and four nuts securing the heat shield. If a tow loop is present, remove it and return it to the vehicle owner.
Insert the 4" hex bolts with washers into the frame rails from the outside. Raise the hitch into position between the frame rails. Push the front bolts through the mounting plates and loosely install 1/2" flange nuts. Then rotate the hitch up so it touches the fascia to mark trim lines.
Yes, fascia trimming is required. After rotating the hitch to touch the fascia, mark where to trim using the trim diagram provided. Trim dimensions are approximate, so check fit before completing the trim. Refer to the trim diagram on page 2 of the manual for specific measurements.
According to the trim diagram, trim from the fascia center: 2 1/2" to the left, 2 1/4" to the right, 1 5/8" down from center, 2" down from the top, 1/4" and 3/16" at specific points. These dimensions are approximate; check fit prior to completing trim.
Initially, loosely install the 1/2" flange nuts when positioning the hitch. After trimming the fascia and installing all remaining 1/2" bolts, torque all 1/2" fasteners to 110 ft-lbs using a torque wrench.
After torquing all fasteners to 110 ft-lbs, reinstall the heat shield, its fasteners, and the exhaust system.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This helps maintain the integrity and safety of the hitch.
Wear safety glasses at all times during installation. Support the exhaust to avoid possible damage when lowering it. If you are hesitant to undertake this task, contact an authorized CURT installer for assistance. Two people may be required to ease installation.
The installation difficulty is rated as Challenging. The manual recommends that two people may be required, and suggests contacting an authorized CURT installer if you are hesitant to undertake the task yourself.
Professional installation typically takes 30 minutes. Novice (DIY) installation typically takes 60 minutes. Actual time may vary depending on experience and vehicle condition.
CURT Manufacturing warrants the product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty.
The CURT 12057 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Call CURT Manufacturing technical support at 877-287-8634. You can also visit www.curtmfg.com for more information and www.hitchinfo.com for helpful towing tips.
Periodically check all fasteners to ensure they remain tight. If any fasteners are found to be loose, retorque all 1/2" fasteners to 110 ft-lbs using a torque wrench. Loose fasteners can compromise the structural integrity of the hitch and should be addressed immediately.
The trim dimensions are approximate. If the hitch does not fit properly, check the fit before completing the trim. You may need to adjust the trim lines slightly. If problems persist, contact CURT technical support at 877-287-8634 for assistance.
The kit includes: one 30 amp auto-resetting circuit breaker, two #10 ring terminals, two 3/8" ring terminals, two 1/2" ring terminals, three 12-10 gauge butt connectors, 10 feet of 10 ga black/white duplex wire, 20 feet of 10 ga blue cross-linked wire, and eight 8.5" cable ties.
Yes, but with a critical difference: these vehicles require the stop signal wire to be spliced to the light green wire on the turn signal harness connector under the dash, not to the brake pedal switch. Do NOT connect to the red wire with green stripe, as serious damage may occur. All other vehicles connect to the brake pedal switch instead.
You will need: a test light, wire stripper/cutter, crimp tool, and 3/8" box end wrench. The test light is used to identify the cold (switched) side of the brake pedal switch.
Yes. The manual cautions to disconnect the tow vehicle's negative battery cable before installation. Reconnect it only in the final step after all wiring is complete.
Mount the 30 amp circuit breaker near the tow vehicle's positive battery terminal. This keeps the power wire run as short as possible and protects the circuit.
Use 10 gauge (10 ga) black wire from the duplex wire included in the kit. Strip 3/8" of insulation from each end. Crimp a #10 ring terminal to the end that attaches to the circuit breaker stud labeled 'BAT', and a 3/8" or 1/2" ring terminal (sized to fit your battery terminal) to the end that attaches to the positive battery terminal.
Feed the 10 ga duplex wire from the brake controller in the cockpit through the firewall into the engine compartment toward the battery. Cut to length as needed. At the battery end, crimp a 3/8" or 1/2" ring terminal to the white wire and a #10 ring terminal to the black wire. Attach the black wire to the circuit breaker stud labeled 'AUX' and tighten the nut with a 3/8" box end wrench.
When passing the duplex wire through the firewall into the engine compartment, use an existing grommet, add a new grommet, or fill the hole with silicone rubber to insulate and protect the wire. The same protection applies when passing the blue cross-linked wire through any sheet metal at the rear of the vehicle.
In the cockpit, attach the black duplex wire to the brake controller's battery wire (typically black) and the white duplex wire to the brake controller's ground wire (typically white). Use either one of the supplied yellow butt connectors or solder the leads together and insulate with heat shrink tubing.
Locate the brake pedal switch on the back side of the vehicle's brake pedal. Use a test light or volt meter to identify the 'cold' or switched side—this terminal will only show power when the brake pedal is depressed. Attach the stop signal wire (typically red) from the brake controller to the cold side of the switch using a wire tap.
Locate the semi-circle turn signal harness connector on the steering column under the dash. It has two rows of wires: a row of four and a row of seven. Attach the stop signal wire (typically red) from the brake controller to the light green wire using a wire tap. Do NOT connect to the red wire with green stripe, as serious damage may occur.
Feed the 10 ga blue cross-linked wire from the brake controller to the trailer connector at the rear of the vehicle, taking up any slack in the wire. When passing through any sheet metal, use an existing grommet, add a new grommet, or fill the hole with silicone rubber to protect the wire.
Attach the blue cross-linked wire to the brake controller's electric brake wire (typically blue) using one of the supplied yellow butt connectors or by soldering and insulating with heat shrink tubing. At the rear of the vehicle, trim any loose blue wire and attach it to the trailer connector's electric brake terminal. Refer to the trailer connector's wiring diagram for the correct terminal location.
Secure any loose wires with the cable ties provided. Connect the black power wire from the circuit breaker to the positive side of the battery. Connect the white ground wire from the brake controller to the negative side of the battery. Finally, reconnect the tow vehicle's negative battery cable to the battery.
The circuit breaker is 30 amps and auto-resetting. It must be mounted near the positive battery terminal and connected directly to the positive battery terminal via the included black 10 gauge wire.
Use a 3/8" box end wrench to tighten the nuts on the circuit breaker studs labeled 'BAT' and 'AUX'.
The kit includes 10 feet of 10 gauge black/white duplex wire for the battery and brake controller connections, and 20 feet of 10 gauge blue cross-linked wire for the electric brake signal to the trailer connector.
Black wire connects to the positive battery and circuit breaker. White wire connects to the brake controller ground and negative battery. Red wire is the stop signal wire from the brake controller. Blue wire is the electric brake signal wire. The manual notes these are 'typically' these colours but recommends confirming with your brake controller documentation.
Yes. You can solder the leads together and insulate with heat shrink tubing as an alternative to using the supplied yellow butt connectors. This applies to connections between the duplex wire and the brake controller wires, and between the blue cross-linked wire and the brake controller.
The black power wire must connect directly to the positive battery terminal via the 30 amp circuit breaker. Connecting to the fuse panel or any other accessory wiring may damage vehicle wiring and cause trailer brake failure. The circuit breaker protects the circuit and must be the only protection between the battery and the brake control system.
Do NOT connect the stop signal wire to the red wire with green stripe on the turn signal harness. Serious damage may occur. Connect only to the light green wire. Also, do not connect to the brake pedal switch on these vehicles; use the turn signal harness instead.
The kit is universal but requires an existing trailer connector and brake controller. 1989-1991 Ford E & F-Series with ABS use a different stop signal connection (turn signal harness instead of brake pedal switch). Consult your brake controller documentation for compatibility.
No drilling is required. The kit connects to existing components: the battery, brake controller, brake pedal switch (or turn signal harness on 1989-1991 Ford E & F-Series with ABS), and trailer connector.
Do NOT connect the stop signal wire to the red wire with green stripe on the turn signal harness—serious damage may occur. Connect to the light green wire instead, and do not use the brake pedal switch.
Connecting to the fuse panel or accessory wiring may damage vehicle wiring and cause trailer brake failure. The 30 amp circuit breaker must be the only protection between the battery and the brake control system.
Yes, the 56344 custom wiring harness is designed for Jeep Compass vehicles in the SUVs, Mini & Full-Sized Vans category. The manual confirms this as the primary application.
The 56344 is a custom wiring harness that connects your vehicle's taillight wiring to a 4-flat connector, allowing you to tow a trailer. It includes a converter box that processes the vehicle's taillight signals for trailer use.
You will need a panel trim removal tool. The manual also indicates you may need a drill with a 3/32" bit if a suitable existing grounding point is not available near the taillight connector.
Yes, you must disconnect the negative battery terminal before beginning installation. This is the first step in the installation process and is required for safety.
Open the tailgate and remove the two plastic fasteners holding each taillight assembly in place. Carefully remove both taillights, taking care not to damage the alignment tabs. The manual provides four new fasteners for reinstalling the taillight assemblies after the harness is connected.
Locate the vehicle's taillight wiring harness connectors. Partially slide out the red lock on the top of each connector. Separate the connectors from the taillight housing, being careful not to damage the locking tabs. Insert the custom wiring harness end (yellow wire for driver side, green wire for passenger side) between the separated connectors, ensuring they are fully inserted with locking tabs in place.
Locate a suitable grounding point near the taillight connector, such as an existing screw with nut in the vehicle frame. If no suitable point exists, drill a 3/32" pilot hole. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
Drilling may be required if a suitable existing grounding point is not available near the taillight connector. If drilling is necessary, you will drill a 3/32" pilot hole for the provided grounding screw. Before drilling, check for hidden items behind or under any surface to avoid damage and personal injury.
Route the harness end with the green wire down through the opening under the driver side taillight, over to the passenger side along the backside of the bumper, and up through the opening under the passenger side taillight. The black converter box should be adhered to a flat spot inside the vehicle near the taillight using the provided double-sided tape. The black power wire from the battery should be routed as shown on the included CME-PCL-INS sheet.
Mount the black converter box on a flat spot inside the vehicle near the taillight. Use the provided double-sided tape to adhere it securely.
When not in use, roll up the 4-flat connector and store it in a convenient, out-of-the-way location. When in use, route it to the center of the vehicle. Secure any loose wires with the provided cable ties.
The 56344 has the following circuit ratings: Signal Circuits are rated at 3.0 amps per side, and Tail/Running Circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower.
The battery connection must be fuse protected with a maximum of 10 amps. Exceeding this rating can cause loss of warranty, overheating and potential fire.
After installation is complete, test the wiring harness for proper function by using a test light or by connecting a properly wired trailer. All steps must be followed to ensure the harness functions properly.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire. The battery connection must be fuse protected with a maximum of 10 amps.
Reinstall all items removed during installation, including the taillight assemblies using the four new fasteners provided. Reconnect the negative battery terminal. Install the provided 4-flat dust cover to help prevent corrosion.
Yes, the Curt 56344 is designed for Jeep Compass vehicles.
You need a panel trim removal tool. A drill with 3/32" bit may be needed if you must create a grounding hole.
Yes, disconnect the negative battery terminal before starting installation.
Drilling may be required only if no suitable existing grounding point is available; you would drill a 3/32" pilot hole for the ground screw.
The battery connection must be fuse protected with a maximum of 10 amps.
Test for proper function using a test light or by connecting a properly wired trailer.
The 4-way flat electrical adapter converts a vehicle's 4-way flat trailer connector to other trailer connector types (6-way round, 7-way RV blade, or dual 4-way flat). This allows you to tow trailers with different connector styles. Single-output models (57184, 57183, 57185, 57626, 57676) convert to one connector type; dual-output models (57604, 57624, 57672, 57674, 57102) provide two different connector outputs simultaneously.
Yes. Your vehicle must be equipped with a 4-way flat trailer connector. If your vehicle does not have one, you will need to install a custom wiring harness or other 4-way flat trailer connector before installing this adapter.
Both convert a 4-way flat connector to a 7-way RV blade. The difference is that 57185 includes a mounting bracket, while 57184 does not.
Both convert a 4-way flat connector to a 6-way round. The difference is that 57626 includes a mounting bracket, while 57183 does not.
Curt offers three dual-output models that provide both a 4-way flat and a 7-way RV blade output: part numbers 57672, 57674, and 57102. All three include a mounting bracket.
Curt offers two dual-output models that provide both a 4-way flat and a 6-way round output: part numbers 57604 and 57624. Both include a mounting bracket.
You will need: a 1/8" drill bit, drill, Phillips screwdriver, wire stripper, cutting tool, terminal crimpers, and a test light. The manual also lists three self-tapping screws (#10 - 1/2") as required, though these are not included with the product.
No. The three self-tapping screws (#10 - 1/2") used to attach the mounting bracket are not included and must be purchased separately.
Mount the combination harness in a location on the tow vehicle that is within reach of the trailer's wiring harness and near the center of the vehicle. The mounting bracket (if included) should be attached to the vehicle's bumper or other suitable surface.
Yes. You must drill two 1/8" holes: one for the grounding point and one (or more) for the mounting bracket. Before drilling, you must check for brake lines, fuel lines, wiring and other components that may be hidden behind or under the surface to avoid damage.
No. You must never attach the mounting bracket directly to the hitch by cutting, welding or drilling into the hitch. Mount it to the vehicle's bumper or other suitable surface instead.
The adapter uses four wires: Yellow (auxiliary or back-up lights), Blue (electric brakes), Black (positive power with appropriate inline fuse), and White (ground). All wires except black and white must be connected using 12 gauge (minimum) wire and butt connectors to the appropriate vehicle functions.
The white wire is the ground connection. It must be attached with a ring terminal to a 1/8" hole drilled in a suitable grounding point on the vehicle using a #10 - 1/2" self-tapping screw. This ground connection is required for the harness to work properly. The white wire on the vehicle's 4-way flat connector does not support the ground (-) functions of the combination harness.
Yes. The black wire (positive power) must be connected with an appropriate inline fuse. The manual does not specify the fuse amperage rating.
Use 12 gauge (minimum) wire for all connections. The manual specifies this minimum gauge for the remaining wires (yellow, blue, and black) when connecting to appropriate vehicle functions.
Failing to properly ground the product can cause loss of warranty, overheating and potential fire. The white wire must be securely attached to a clean grounding point using a #10 - 1/2" self-tapping screw in a 1/8" hole. The area must be clean of dirt, debris or undercoating.
Before drilling, you must check for brake lines, fuel lines, wiring and any other components that may be hidden behind or under the surface. Drilling into these components can cause damage and personal injury.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding either rating can cause damage or unsafe operation.
Confirm proper function with a test light or by using a properly functioning trailer. This verifies that all connections are working correctly before towing.
Secure any loose wires using cable ties or equivalent product to prevent them from moving, catching on components, or becoming damaged.
Your vehicle must have a 4-way flat trailer connector. If it does not, you will need to install a custom wiring harness or other 4-way flat connector first. Check the part number table to confirm the adapter converts to the connector type you need.
You must purchase three #10 - 1/2" self-tapping screws for the mounting bracket. You will also need an appropriate inline fuse for the black (positive power) wire; the manual does not specify the amperage.
Yes, you must drill two 1/8" holes: one for grounding and one for the mounting bracket. Before drilling, check for brake lines, fuel lines and wiring behind the surface. Never drill into the hitch.
Yellow = auxiliary/back-up lights; Blue = electric brakes; Black = positive power (needs inline fuse); White = ground (must be properly grounded or warranty is void and fire risk exists). Use 12 gauge minimum wire and butt connectors.
Proper grounding of the white wire is critical. Failing to ground it properly can cause loss of warranty, overheating and fire. The grounding point must be clean of dirt, debris and undercoating.
Test with a test light or by using a properly functioning trailer to confirm all connections work. Secure loose wires with cable ties.
