2017 - 2021 Mercedes-Benz GLC43 AMG Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13290CURT$408.98In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2017 - 2021 Mercedes-Benz GLC43 AMG
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

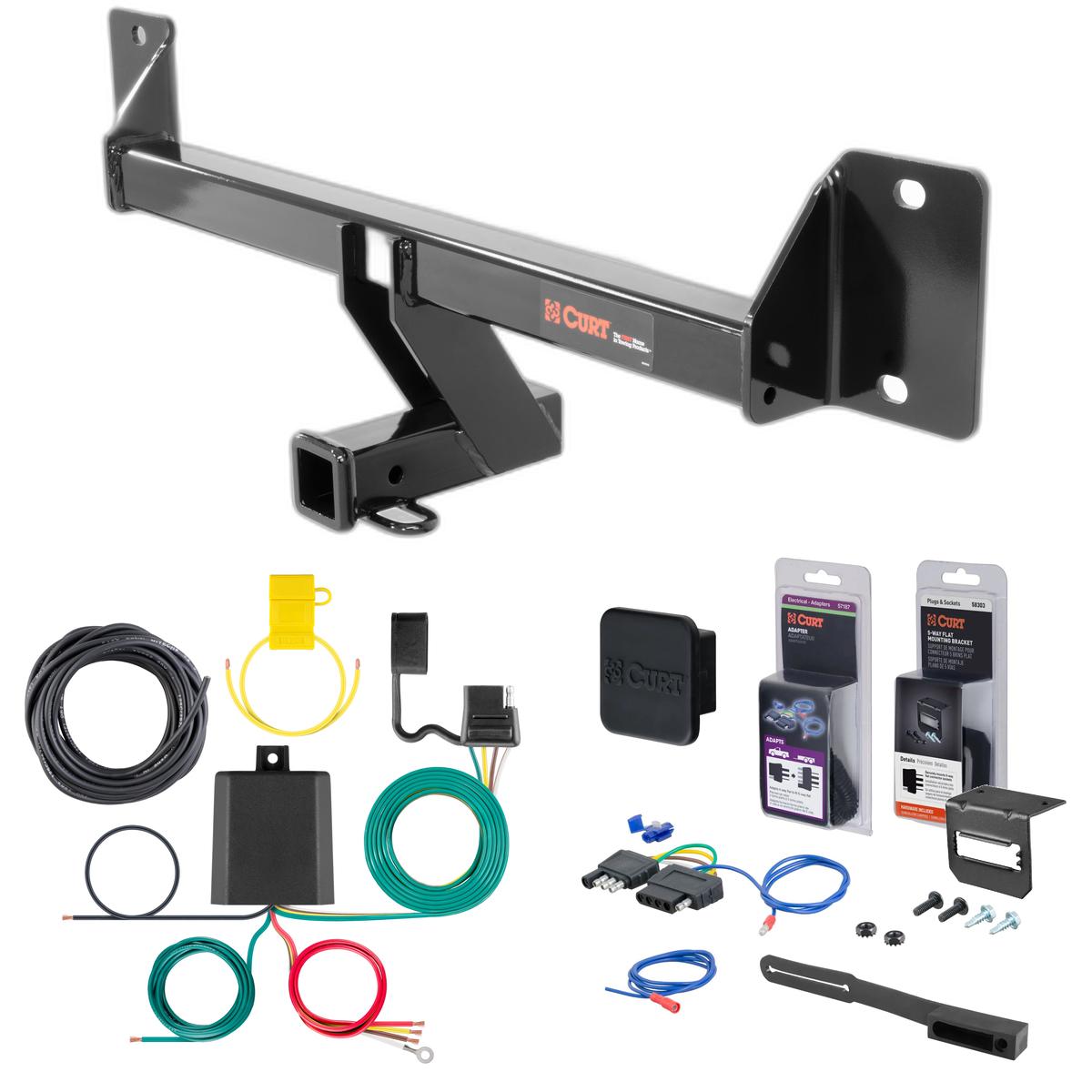

Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2017 - 2021 Mercedes-Benz GLC43 AMG. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Mercedes-Benz GLC300 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 6,000 lbs. GTW and 900 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Mercedes-Benz GLC Series (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494One-year Limited
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2021 | Mercedes-Benz GLC43 AMG | — |
The 17 - 21 Mercedes-Benz GLC43 AMG Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13290 (Part #5W-CHW-2365) fits the following vehicles: 2017-2021 Mercedes-Benz GLC43 AMG. Always verify your specific year, make, and model before ordering.
The 17 - 21 Mercedes-Benz GLC43 AMG Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13290 (Part #5W-CHW-2365) fits 2017-2021 Mercedes-Benz GLC43 AMG models. The 2021 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 17 - 21 Mercedes-Benz GLC43 AMG Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13290 (Part #5W-CHW-2365) is designed to fit the 2017-2021 Mercedes-Benz GLC43 AMG.
The 17 - 21 Mercedes-Benz GLC43 AMG Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13290 (Part #5W-CHW-2365) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

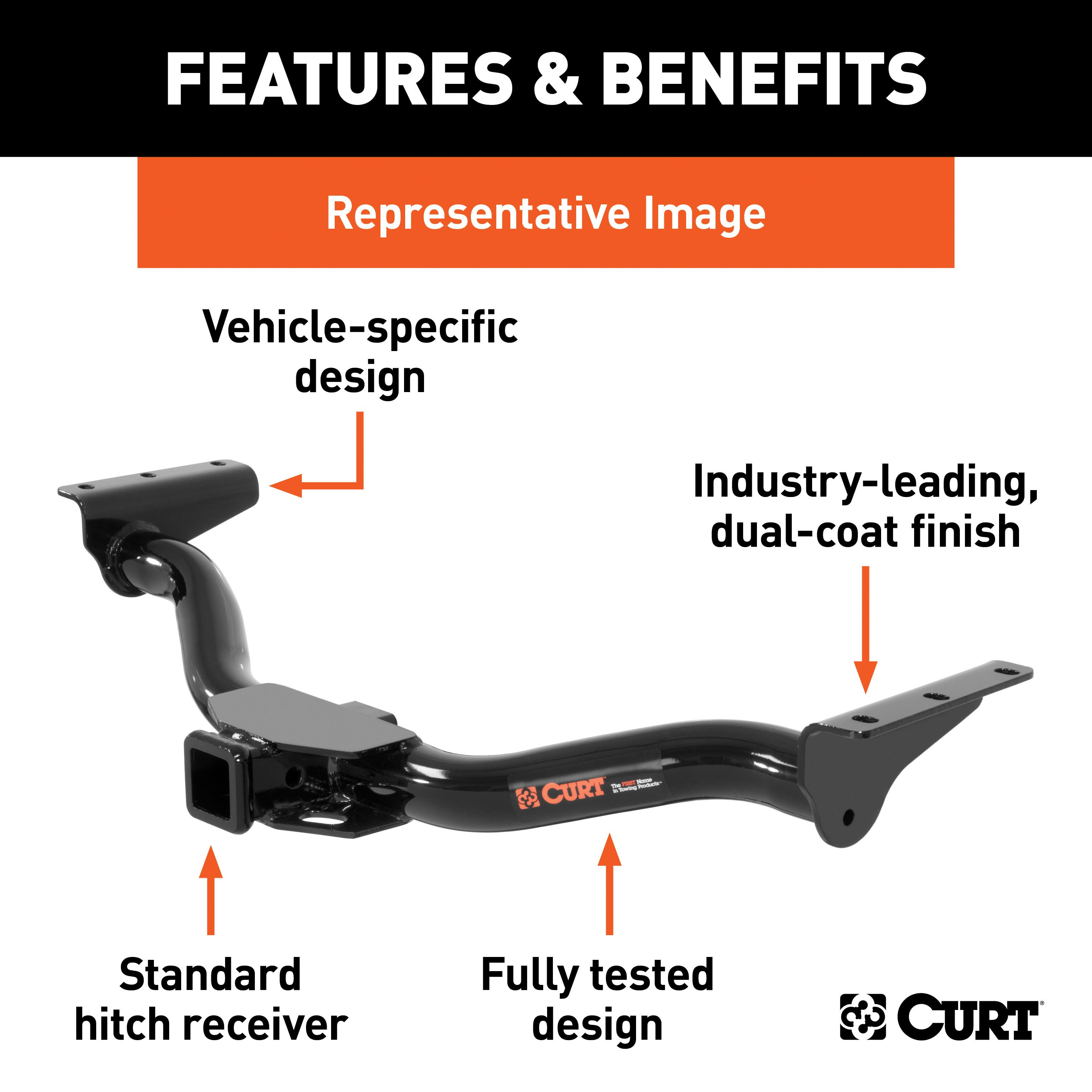

Yes, CURT part 13290 is designed for 2016-present Mercedes GLC 300 and GLC 43 AMG SUVs. The hitch is a weight-carrying style with a 6,000 lbs trailer weight capacity and 900 lbs tongue weight capacity. Always verify your vehicle's manufacturer towing capacity before towing.
The CURT 13290 is rated for a maximum trailer weight of 6,000 lbs and a tongue weight of 900 lbs. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating.
Never exceed your vehicle manufacturer's recommended towing capacity. The hitch itself is rated for 6,000 lbs trailer weight and 900 lbs tongue weight, but your vehicle may have a lower limit. Check your vehicle's owner manual for the maximum towing capacity.
CURT recommends the use of 18050 stabilizing straps for all non-trailer (wheel-less) loads. For more information about stabilizing straps, see the CURT catalog or visit www.curtmfg.com.
Required tools include: T40 Torx bit socket, E12 inverted Torx bit socket, 8mm socket, 10mm socket, 18mm socket, torque wrench, aviation shears, ratchet, 8-inch socket extension, and a pry tool. Safety glasses must be worn at all times during installation.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, CURT recommends contacting an authorized CURT installer for additional assistance. You can call technical support at 877.287.8634 for help.
Professional installation time is approximately 90 minutes. Installation is rated as moderate difficulty. Novice installation may take longer.
No drilling is required to install the CURT 13290. However, trimming of the heat shield is required: you must trim a 2.00" × 3.00" section using aviation shears. All dimensions are approximate; confirm fit prior to trimming.
Yes. Installation requires removing the exhaust tips (4 screws, 2 on each side, using T40 Torx bit socket) and lowering the exhaust by removing 3 rubber isolators. The exhaust is reinstalled in step 8 after the hitch is secured.
Yes. The bumper beam must be removed by removing M12 hardware using an 18mm socket. It is then reinstalled over the hitch and loosely secured with M12 hardware in step 6, then fully torqued in step 7.
Yes. The lower rear fascia must be removed by removing 6 screws (3 on each side) using a 10mm socket and 4 push pins (2 on each side) using a pry tool. Unclip electrical harnesses. Start by partially removing the rear wheel trim piece and gently pull the fascia away by releasing press-in tabs along the top. The fascia is reinstalled in step 8.
Yes. You must open the cargo area, lift and remove the rear floor panel, and remove 1 Torx screw from the threshold. Use a plastic pry tool to dislodge and remove the threshold. Then remove the floor pan to access and unplug 2 electrical sensor plugs on the passenger side of the rear trunk wall. Dislodge the grommet and push it to the rear/outside of the vehicle.
The heat shield must be trimmed 2.00" × 3.00" using aviation shears, measured from the center line of the vehicle as shown in the trim diagram. The heat shield is removed by removing 10 nuts using an 8mm socket. All dimensions are approximate; confirm fit prior to trimming. The trimmed heat shield is reinstalled in step 8.
All M12 hardware must be torqued to 55 ft-lbs. This is done in step 7 after the bumper beam is loosely secured over the hitch in step 6.
Installation sequence: (1) Remove exhaust tips using T40 Torx bit socket; (2) Lower exhaust by removing rubber isolators and access electrical sensors in cargo area; (3) Remove lower rear fascia using 10mm socket and pry tool; (4) Remove and trim heat shield using 8mm socket and aviation shears; (5) Remove bumper beam using 18mm socket; (6) Install hitch on vehicle frame using existing studs and loosely secure bumper beam with M12 hardware; (7) Torque all M12 hardware to 55 ft-lbs; (8) Reinstall all removed components in reverse order.
Yes. Removing the exhaust bracket from the bumper beam may ease installation. If you choose to do this, remove 2 screws (1 on each side) using an E12 inverted Torx bit socket. The bracket is reinstalled in step 8.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This helps maintain safe operation and extends the life of the hitch.
CURT Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, CURT may repair or replace it at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty.
The CURT 13290 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
You can call CURT technical support at 877.287.8634. For more information, visit www.curtmfg.com. For helpful towing tips, visit www.hitchinfo.com.
Yes, the CURT 13290 is designed for 2016-present Mercedes GLC 300 and GLC 43 AMG SUVs with a 6,000 lbs trailer and 900 lbs tongue weight capacity.
You need T40 and E12 Torx bit sockets, 8mm/10mm/18mm sockets, torque wrench, aviation shears, ratchet, 8-inch extension, pry tool, and safety glasses.
All M12 hardware must be torqued to 55 ft-lbs in step 7 after the bumper beam is loosely secured.
Professional installation takes approximately 90 minutes. Installation is rated moderate difficulty; novice installation may take longer.
The hitch is rated for 6,000 lbs trailer weight and 900 lbs tongue weight, but you must never exceed your vehicle manufacturer's recommended towing capacity.
Part 56560 is designed for SUVs and Vans (S-series vehicles). The manual does not list specific vehicle makes, models, or years. Contact CURT or consult a fitment database to confirm compatibility with your vehicle before purchasing.

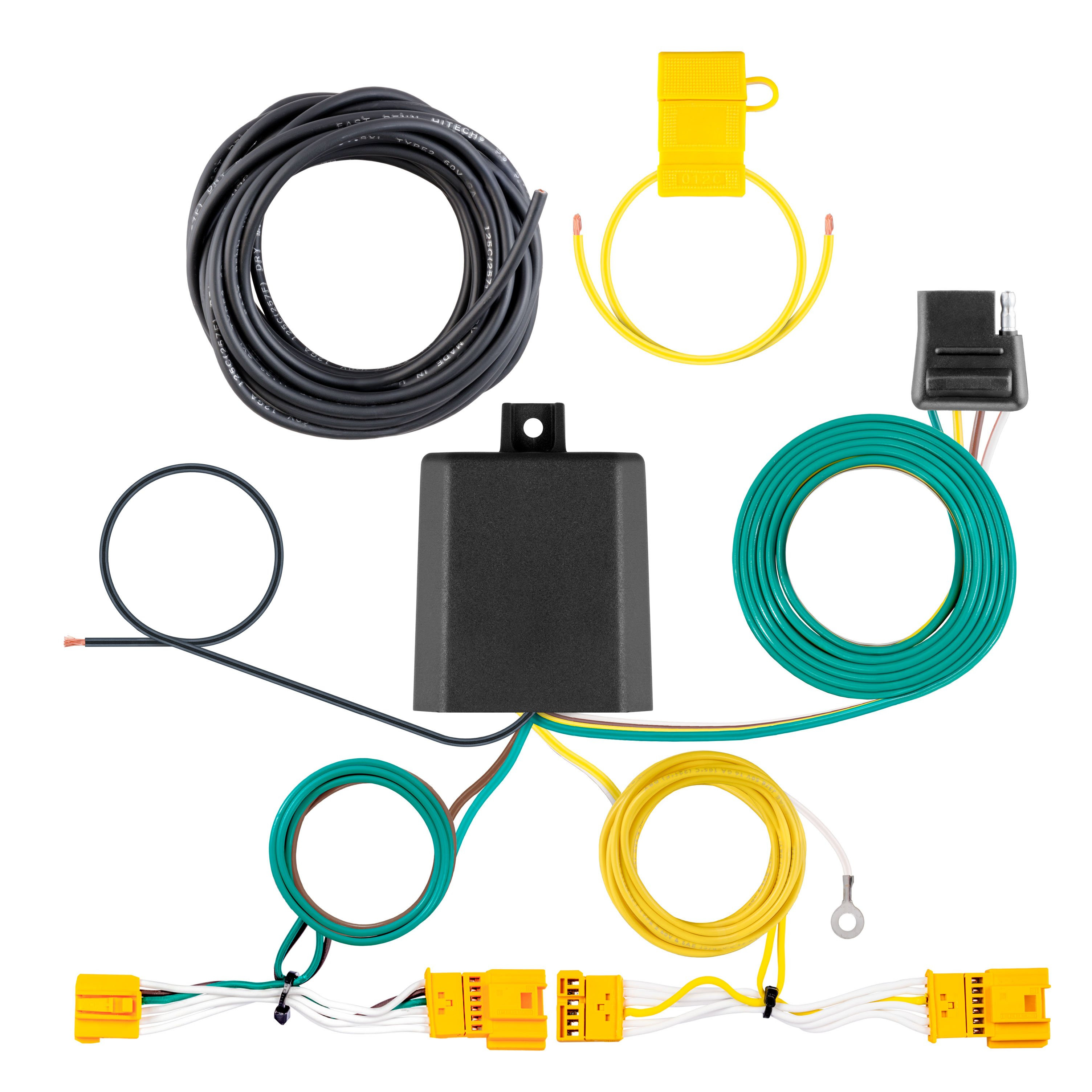

Part 56560 is a wiring converter system that integrates trailer lighting functions with your vehicle's electrical system. It routes power and signal wires from your vehicle's taillight circuits to a 4-flat connector for trailer use. The system includes a powered converter module that manages signal circuits (5.0 amps per side) and tail/running circuits (7.0 amps total).
Yes. The manual explicitly states: 'This converter system is to be used only on 12 volt negative ground systems.' If your vehicle uses a different electrical system, this product is not compatible.
Required tools are: ratchet, test light, 6-inch extension, wire crimper, 10mm socket, wire stripper, 10mm wrench, drill, Phillips screwdriver, 3/32-inch drill bit, crimp tool, and trim panel tool. Proper tools will improve installation quality and reduce time required.
Yes. Step 1 requires you to open the hood, remove the battery cover, locate the vehicle negative battery post, and disconnect the negative battery cable. The cable must be isolated to protect it from creating an electrical system ground, which could cause damage to the vehicle's electrical system.
The installation difficulty is rated as 'Difficult'. This rating is based on time and effort involved and may vary depending on installer expertise, vehicle condition, and proper tools and equipment.
Drilling may be required. Step 7 instructs you to locate a grounding point such as an existing screw or bolt in the vehicle frame, or drill a 3/32-inch pilot hole if no existing fastener is available. The area must be free from rust, dirt, and paint. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
The system uses five wire colors: Green (right turn signal), Red (brake), Yellow (left turn signal), Brown (taillight), and White (ground). The black power wire connects to the vehicle battery positive terminal. These colors are used to route signals from the vehicle's taillight circuits to the converter module and 4-flat connector.
Signal circuits are rated at 5.0 amps per side. Tail and running circuits are rated at 7.0 amps total. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
The battery connection must be fuse-protected with a maximum 15-amp fuse. The powered converter lead instruction sheet shows a fuse holder with a 10-amp fuse maximum. Install the fuse after all other installation steps are complete. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Step 6 instructs you to locate a flat surface behind the passenger-side trim panel in an out-of-the-way area and mount the lighting modules box using double-sided tape provided.
Step 8 provides two routing options: (1) Route the black power wire through the vehicle interior following the existing vehicle wire harness along trim panels, up to the firewall area, then exit through a grommet in the firewall to the battery compartment; or (2) Locate a vent or grommet in the rear cargo area, route the wire through to exit the vehicle, then route along the vehicle frame to the battery compartment. Avoid any areas or moving components that might pinch or break the wire. Step 9 references the 'Powered Converter Lead Instruction Sheet' on the last page for detailed battery connection instructions.
Step 7 instructs you to locate a grounding point such as an existing screw or bolt in the vehicle frame, or drill a 3/32-inch pilot hole if necessary. The area must be free from rust, dirt, and paint—use an abrasive pad or paper to remove rust and paint. Secure the white ground wire with the ring terminal on the existing fastener or with the provided ground screw. Before drilling, check for miscellaneous items hidden behind or under any surface to avoid damage and personal injury.
Step 3 requires you to open the rear hatch, remove the threshold plate and floor covering, then locate and remove the trim panels to access the taillight wiring connectors. Step 4 instructs you to route the connector with the green wire along the threshold, under, up, and behind the passenger-side trim panel, then insert the mating connectors with the green wire into the taillight and vehicle wiring harness. Step 5 repeats this process for the yellow wire on the driver's side. The wiring locations are S3 (driver side rear access panel) and S4 (passenger side rear access panel).
Step 10 instructs you to route the 4-flat to the center of the cargo area. When not in use, store the 4-way flat in a convenient, out-of-the-way location. Secure any loose wires with the provided cable ties.
Once the 12-volt power wire is connected to the harness, verify that the harness is functioning by attaching the battery and testing with a test light, multimeter, 4-flat tester, or a functioning trailer. The manual also recommends testing for proper function after all installation steps are complete.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. This helps maintain proper function and safety.
Follow these safety precautions: (1) Do not lay tools across the positive battery terminal (typically red) as this can cause a ground short leading to sparks and electrical shocks. (2) Ensure the negative battery cable is isolated after disconnection to prevent grounding to a metal item, which could damage the vehicle's electrical system. (3) Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. (4) When routing the power wire, avoid pinch points and hot or rotating components. (5) When passing the power wire through sheet metal, use an existing grommet, add a grommet, or use silicone to protect the wire from sharp edges.
Step 11 instructs you to reconnect the negative battery terminal, install the provided 4-flat dust cover to help prevent corrosion, and reinstall all removed items in the reverse order of disassembly to complete the installation.
The red brake wire carries the brake signal from the vehicle's taillight circuit. If using the converter as a powered module for a two-wire system, the red brake wire must be grounded according to the Powered Converter Lead Instruction Sheet.
The power wire is 12 GA (12 gauge) or larger. This wire routes from the vehicle battery to the converter module and must be protected by a fuse holder with a maximum 10-amp fuse.
Step 1 instructs you to open the hood on the passenger's side of the engine compartment and remove the battery cover and set it aside. You will reinstall it in Step 11 when you reinstall all removed items in the reverse order of disassembly.
Part 56560 is designed for SUVs and Vans (S-series). Verify compatibility with your specific vehicle model and year before purchasing.
Yes, if your vehicle has a 12-volt negative ground electrical system. This product is not compatible with other electrical system types.
You need: ratchet, test light, 6-inch extension, wire crimper, 10mm socket, wire stripper, 10mm wrench, drill, Phillips screwdriver, 3/32-inch drill bit, crimp tool, and trim panel tool.
Yes. You must disconnect the negative battery cable before beginning installation and reconnect it after all wiring is complete.
Drilling may be required. You may need to drill a 3/32-inch pilot hole for the ground wire connection if no existing fastener is available. Check for hidden items before drilling.
The battery connection must be fuse-protected with a maximum 15-amp fuse. The converter uses a 10-amp fuse maximum. Install the fuse after all other steps are complete.
After connecting the battery, test the harness with a test light, multimeter, 4-flat tester, or a functioning trailer to verify proper function.
Periodically inspect all wires and connections to ensure there is no visible damage or loose connections.
