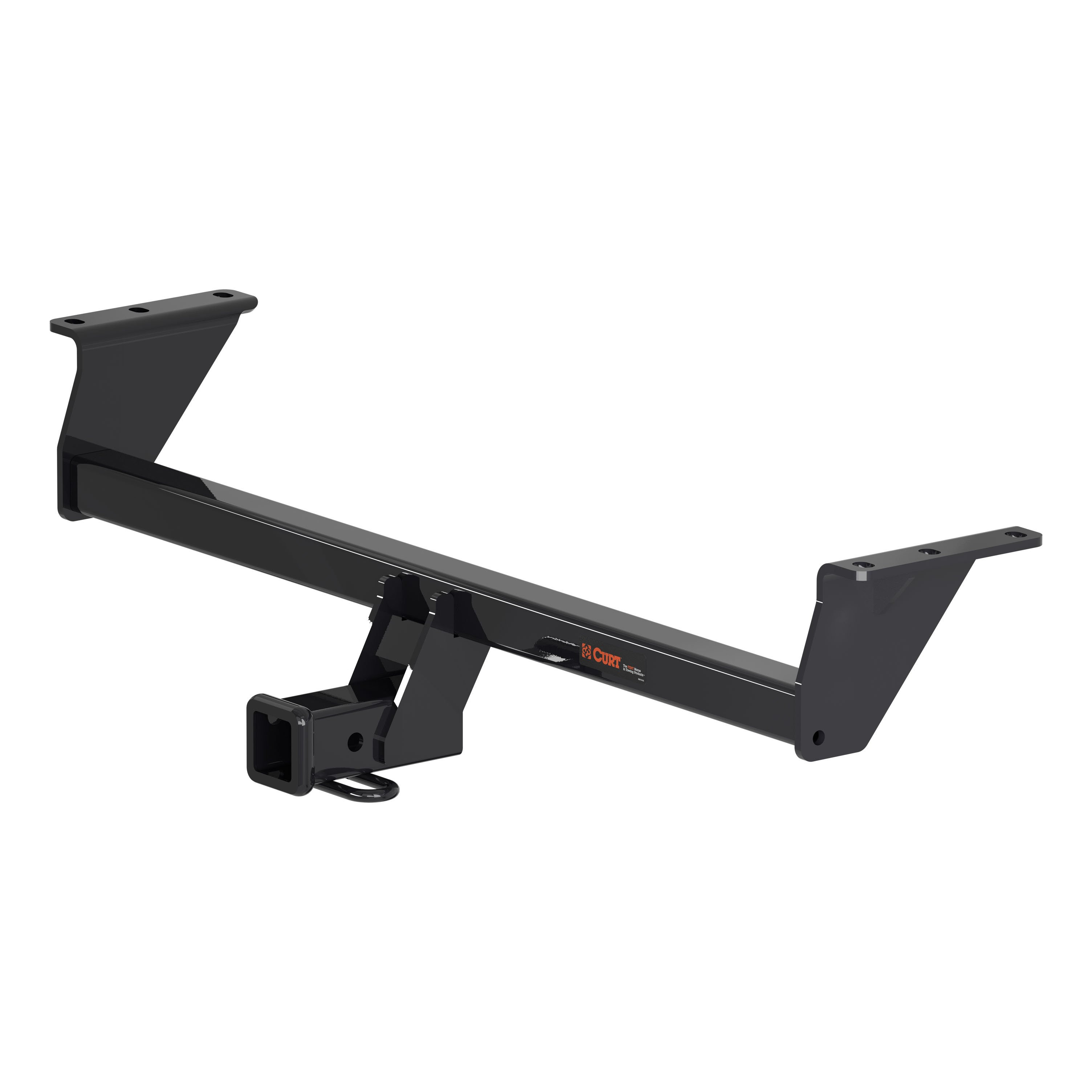

Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2017 - 2019 Nissan Rogue Sport. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Nissan Qashqai and Rogue Sport (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 3,500 lbs. GTW and 525 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Nissan Rogue Sport (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2022 | Nissan Rogue Sport | — |
The 17 - 22 Nissan Rogue Sport Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13377 (Part #5W-CHW-2556) fits the following vehicles: 2017-2022 Nissan Rogue Sport. Always verify your specific year, make, and model before ordering.
The 17 - 22 Nissan Rogue Sport Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13377 (Part #5W-CHW-2556) fits 2017-2022 Nissan Rogue Sport models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 17 - 22 Nissan Rogue Sport Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13377 (Part #5W-CHW-2556) is designed to fit the 2017-2022 Nissan Rogue Sport.
The 17 - 22 Nissan Rogue Sport Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13377 (Part #5W-CHW-2556) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13377 is designed for 2017-present Nissan Rogue Sport models.
The CURT 13377 is rated for a maximum trailer weight of 3,500 lbs. and a tongue weight of 525 lbs. when used as a weight-carrying hitch. Never exceed your vehicle manufacturer's recommended towing capacity.
You will need: a ratchet, torque wrench, 10mm socket, 18mm socket, 19mm socket, 10mm boxed end wrench, 6-inch socket extension, die grinder, and safety glasses. The manual indicates this is an easy installation.
No drilling is required. However, you will need to use a die grinder to enlarge an existing access hole on the driver side to 1.125 inches.
Two people may be required to ease installation. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance.
You must remove the emissions canister (held by 2 nuts) and the tow loop (held by 6 M12 bolts on the passenger side). The tow loop should be returned to the vehicle owner. The emissions canister is reinstalled after the tow loop is removed.
Torque M12 hardware to 79 ft-lbs. and 1/2-inch hardware to 110 ft-lbs.
The kit includes: (1) M12×1.25 hex head cap screw (part 10-10277), (1) 1/2-inch conical tooth washer (part 30-00149), (2) 1/2-13 UNC carriage bolts 1.5 inches long (part 10-10287), (2) 0.250×1.00×2.00-inch square hole spacers (part CM-SP12), (2) 1/2-13 UNC serrated flange nuts (part 20-00062), and (2) 1/2-inch fishwires (part 1_2 FISHWIRE).
Thread the two 1/2-inch fishwires through the carriage bolts and spacers, then feed them through the enlarged access hole in the driver side frame rail. Once the hitch is raised into position, feed the fishwires through the rearmost holes on the hitch, then remove the fishwires. The carriage bolts and spacers remain in place to help position the hitch.
1. Remove emissions canister (2 nuts). 2. Remove tow loop (6 M12 bolts on passenger side) and reinstall emissions canister. 3. Enlarge driver side access hole to 1.125 inches using die grinder. 4. Thread fishwires through carriage bolts and spacers, then through the access hole. 5. Raise hitch into position, feed fishwires through rearmost hitch holes, remove fishwires, and fasten hitch using M12 bolts and 1/2-inch hardware. 6. Torque all fasteners to specification.
Wear safety glasses at all times while installing this product. Read all instructions thoroughly before beginning installation. If you are hesitant to undertake this task, contact an authorized CURT installer.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This should be done regularly to maintain safe operation.
CURT Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty.
The CURT 13377 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
The manual does not specify whether the battery must be disconnected. Contact CURT technical support at 877-287-8634 for clarification on this step.
Bending the heat shield slightly will ease access to one of the two nuts holding the emissions canister, which makes step 2 (removing the tow loop) easier to complete.
Three of the six M12 bolts removed from the tow loop in step 2 are reused to fasten the hitch to the vehicle in step 5. One additional M12 bolt is also used, along with a 1/2-inch conical tooth washer and two 1/2-inch hex flanged nuts.
Yes, the CURT 13377 is designed for 2017-present Nissan Rogue Sport models.
Maximum 3,500 lbs. trailer weight and 525 lbs. tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
Ratchet, torque wrench, 10mm and 18mm sockets, 10mm boxed end wrench, 6-inch extension, die grinder, and safety glasses. No drilling is required, but you will enlarge an existing hole with the die grinder.
Yes, remove the emissions canister and tow loop. The tow loop must be returned to the vehicle owner, and the emissions canister is reinstalled after the tow loop is removed.
Torque M12 hardware to 79 ft-lbs. and 1/2-inch hardware to 110 ft-lbs.
Periodically check that all fasteners are tight and all structural components are sound.
Yes, the 56397 Custom Wiring Harness is designed for the Nissan Rogue Sport. It is classified as an SUV wiring harness in the S (SUVs, Mini & Full-Sized Vans) category.
The 56397 is a Custom Wiring Harness made by Curt Manufacturing. It provides electrical connections for trailer lighting on compatible vehicles. The harness includes signal circuits (3.0 amps per side) and tail/running circuits (6.0 amps total), and connects to the vehicle's taillight wiring to power a trailer's 4-flat connector.
You will need: ratchet, 10mm socket, socket extension, flat blade screwdriver, panel trim removal tool, wire stripper, wire crimper, cutting tool, and fish wire.
The harness includes: custom wiring harness ends with yellow and green wires, white ground wire with ring terminal, black converter box with double-sided tape for mounting, provided screw for grounding, cable ties for securing loose wires, and a 4-flat dust cover.
The manual does not explicitly state whether the battery must be disconnected before installation. However, it does require that the battery connection be fuse-protected with a 10-amp max fuse during the installation process. Consult your vehicle owner's manual or the manufacturer for battery disconnection requirements.
The manual provides step-by-step installation instructions for a single installer using basic hand tools. No mention is made of requiring professional installation or additional people. However, you should be comfortable working with vehicle trim panels, electrical connectors, and basic wiring.
Open the vehicle trunk. On the driver side, locate and remove the two fasteners securing the taillight in place. Gently pull the taillight rearward, taking care not to damage the alignment tabs on the back. The vehicle taillight wiring harness connectors will be visible on the back of the taillight housing. Separate these connectors from the taillight, taking care not to damage the locking tabs.
Route the custom wiring harness end with the yellow wire along the rear bumper and up behind the fender to the opening underneath the removed driver-side taillight. Route the custom wiring harness end with the green wire to the passenger side along the rear bumper, following the same path to the passenger-side taillight opening.
Insert the custom wiring harness end (with yellow wire for driver side, green wire for passenger side) between the separated vehicle taillight connectors. Make sure the connectors are fully inserted with locking tabs in place. Then reinstall the taillight by pushing it back into position and securing the two fasteners.
You should first locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable existing point is available, you may drill a 3/32" pilot hole for the provided screw. The area must be free of rust, dirt and paint. Always check for miscellaneous items hidden behind or under surfaces before drilling to avoid damage and personal injury.
Drill a 3/32" pilot hole for the provided ground screw. The area should be free of rust, dirt and paint. Always check for miscellaneous items hidden behind or under surfaces before drilling.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw. Secure the white ground wire using the ring terminal and provided screw. The area must be free of rust, dirt and paint.
Mount the black converter box on a flat clean surface that is out of the path of spray and debris from the rear wheels and road. Use the provided double-sided tape to adhere it. Failure to mount the box in a protected area can cause loss of warranty, product failure, overheating and potential fire.
When in use, route the 4-flat to the center of the vehicle. When not in use, roll it up and store in a convenient, out-of-the-way location. Secure any loose wires with the provided cable ties.
The battery connection must be fuse-protected with a 10-amp max fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Signal Circuits are rated at 3.0 amps per side. Tail/Running Circuits are rated at 6.0 amps total. Do not exceed these product ratings or the tow vehicle lamp load rating, whichever is lower.
All steps must be followed to ensure the wiring harness functions properly. Once installed, test for proper function by using a test light or connecting a properly wired trailer.
Do not exceed the product rating (Signal Circuits 3.0 amps per side, Tail/Running Circuits 6.0 amps total) or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
After installation, reinstall all items removed during installation and install the provided 4-flat dust cover to help prevent corrosion. Test for proper function by using a test light or connecting a properly wired trailer.
From underneath the vehicle, locate and remove the push fasteners from the trim panel to access the area underneath the removed taillight. This allows you to route the custom wiring harness end with the yellow wire along the rear bumper and up behind the fender.
Yes, the Curt 56397 Custom Wiring Harness is designed for the Nissan Rogue Sport.
You will need a ratchet, 10mm socket, socket extension, flat blade screwdriver, panel trim removal tool, wire stripper, wire crimper, cutting tool, and fish wire.
Only if no existing grounding point is available. You may need to drill a 3/32" pilot hole for the ground screw, but you should first check for an existing screw with nut in the vehicle frame.
The battery connection must be fuse-protected with a 10-amp max fuse. Do not exceed this rating.
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 6.0 amps total. Do not exceed these ratings or the vehicle's lamp load rating, whichever is lower.
Test for proper function by using a test light or connecting a properly wired trailer.
