CURT
On Sale Today
Original price was $500.75. Current price is $408.10.You save $92.65 (19%)
Free Shipping
Ships free on all orders
Authorized Dealer
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Verify Fitment
Select your vehicle to confirm this part fits.
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Mon, Sep 14 - Thu, Sep 17
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout

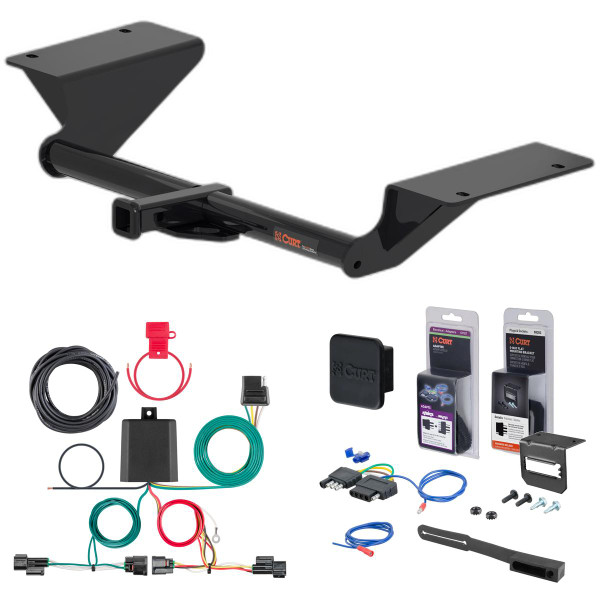

Complete CURT Class 1 1-1/4" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2018 - 2022 Honda Accord Sedan, excluding hybrid. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
However you define adventure -- whether it's climbing onto the back of a mountain bike, hunting from the top of a tree stand or camping with the family a long way from nowhere -- CURT class 1 hitches provide a light-duty towing receiver to help you Bring It. Each is made to fit a specific vehicle, providing easier installation, a better fit and optimal towing capacity. Custom class 1 trailer hitches are available for a variety of smaller vehicle types, including the compact car, crossover, minivan and small SUV. This particular class 1 hitch is designed to be a custom hitch for certain years of the Honda Accord (to verify vehicle compatibility, see the CURT application guide at curtmfg.com). Tested in accordance with SAE J684, it offers a weight carrying capacity of 2,000 lbs. GTW and 200 lbs. TW. It is equipped with 1-1/4" receiver tube opening to accept a ball mount shank or other hitch mount. This class 1 hitch also comes with all necessary mounting hardware. With its lightweight design and smaller receiver tube size, a class 1 hitch is especially useful for adding cargo space with a hitch-mounted bike rack or cargo carrier. They can also typically be used to tow small trailers such as a utility trailer, kayak trailer or teardrop camper (never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). Though CURT class 1 trailer hitches are only intended for light-duty towing, we apply the same principles of quality as we do to the rest of our rear mount hitches. Each class 1 hitch is made with hands-on engineering, high-strength steel and precise welding. We use a co-cured finish of liquid A-coat, inside and out, and durable black powder coat to provide a lasting defense against rust, chips and UV rays.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Honda Accord (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2022 | Honda Accord | Sedan, excluding hybrid |
The 18 - 22 Honda Accord Sedan, excluding hybrid Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11525 (Part #5W-CHW-1714) fits the following vehicles: 2018-2022 Honda Accord. Always verify your specific year, make, and model before ordering.
Yes, the 18 - 22 Honda Accord Sedan, excluding hybrid Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11525 (Part #5W-CHW-1714) is designed to fit the 2018-2022 Honda Accord.
The 18 - 22 Honda Accord Sedan, excluding hybrid Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11525 (Part #5W-CHW-1714) fits 2018-2022 Honda Accord models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
The 18 - 22 Honda Accord Sedan, excluding hybrid Curt 1-1/4" Class 1 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 11525 (Part #5W-CHW-1714) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the CURT 11525 is designed for 2018-present Honda Accord Sedan models. It is a weight-carrying hitch with a maximum trailer weight capacity of 2,000 lbs and tongue weight capacity of 200 lbs. Always verify your vehicle's manufacturer towing capacity before towing.
The CURT 11525 has a maximum trailer weight capacity of 2,000 lbs and a tongue weight capacity of 200 lbs. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
Required tools are: torque wrench, ratchet, safety glasses, 11/16", 10mm and 14mm sockets, die grinder or aviation shears, tape measure, and marker. A power drill with 1/2" drill bit is also needed for drilling mounting holes.
Two people may be required to ease installation. The manual rates this as a moderate to challenging installation. If you are hesitant to undertake this task, contact an authorized CURT installer for assistance. Technical support is available at 877-287-8634.
Yes, drilling is required. You must drill two 1/2" mounting holes in both frame rails. The hitch is used to mark the rearward mounting hole locations, which are then drilled and enlarged to accommodate the fishwire hardware.
Yes, heat shield trimming is required. Remove the rearward most screw in the heat shields on both frame rails. Measure 5" forward on the heat shield and make a 1.25" hole in line with the screw hole on both sides. Flattening the heat shield around the removed screw will aid in installing the forward flange nuts.
Yes, the passenger side muffler must be temporarily removed. Remove the two flange nuts attaching it to the exhaust pipe using a 14mm socket. The exhaust must also be lowered by removing five rubber isolators (two on each muffler and one in the center) before installation begins.
Lower the exhaust by removing five rubber isolators: two on each muffler and one in the center of the exhaust. Remove the passenger side muffler by removing the two flange nuts attaching it to the exhaust pipe with a 14mm socket. The exhaust is reinstalled in reverse order after the hitch is secured.
All 7/16" hardware must be torqued to 59 ft-lbs. This includes the carriage bolts and hex flange nuts. Use a torque wrench to ensure proper tightening.
The kit includes: two 7/16-14 UNC 1-1/2" carriage bolts (part 10-10282), two 7/16-14 UNC 1" carriage bolts (part 10-10311), four 7/16-14 UNC hex flange nuts (part 20-00103), two .250 x 1.00 x 3.00" square hole spacers (part CM-SP6), two .250 x .88 x 2.25" square hole spacers (part CM-SP2), and four 7/16" fishwires (part 7_16 FISHWIRE).
1. Lower exhaust by removing five rubber isolators and the passenger side muffler. 2. Remove the rearward heat shield screw and trim heat shields (1.25" hole 5" forward). 3. Position hitch, mark rearward mounting holes, drill with 1/2" bit. 4. Reverse fishwire the 1-1/2" carriage bolts and spacers through drilled holes, then reverse fishwire the 1" carriage bolts and spacers into forward mounting slots. 5. Raise hitch and loosely secure with hex flange nuts. 6. Torque all 7/16" hardware to 59 ft-lbs and reinstall exhaust.
Safety glasses must be worn at all times during installation. Read all instructions thoroughly before beginning. If you are hesitant to undertake this task, contact an authorized CURT installer. Never exceed your vehicle manufacturer's recommended towing capacity.
All non-trailer (wheel-less) loads applied to this hitch must be supported by 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. See the CURT catalog or visit www.curtmfg.com for further information.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing inspection helps maintain the integrity and safety of the installation.
The CURT 11525 is designed for use with ball mount part number 45520. Euro mount options are available: part 45561 (1 7/8" ball) and part 45562 (2" ball).
Yes, the CURT 11525 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and SAE J684.
Yes, the CURT 11525 fits 2018-present Honda Accord Sedan models with a maximum towing capacity of 2,000 lbs trailer weight and 200 lbs tongue weight.
Yes, you must drill two 1/2" holes in the frame rails. Heat shield trimming (1.25" hole) and exhaust lowering are also required.
You need a torque wrench, ratchet, 11/16", 10mm and 14mm sockets, power drill with 1/2" bit, die grinder or shears, tape measure, marker, and safety glasses.
All 7/16" hardware must be torqued to 59 ft-lbs using a torque wrench.
Maximum trailer weight is 2,000 lbs and tongue weight is 200 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
Yes, the passenger side muffler must be temporarily removed using a 14mm socket. The exhaust must also be lowered by removing five rubber isolators.
Two people may be required to ease installation. If hesitant, contact an authorized CURT installer or call technical support at 877-287-8634.
Yes, the Curt 56402 is designed for Honda Accord Sedan in passenger car configuration. The harness connects to the existing taillight connectors on both driver and passenger sides. Verify your vehicle matches the listed application before purchase.
The Curt 56402 is a custom wiring harness that integrates with your vehicle's existing taillight system to provide trailer lighting control. It includes a converter box, power wire, ground wire, and 4-flat connector for trailer connection.
You will need: ratchet, ratchet extension, 10mm socket, Phillips screwdriver, panel trim removal tool, wire stripper, wire crimper, cutting tool, and fish wire. A drill may be needed if a suitable existing grounding screw is not available.
The harness includes: custom wiring harness with yellow and green wire ends, white ground wire with ring terminal, black converter box, provided screw for grounding, double-sided tape for converter box mounting, 4-flat connector, 4-flat dust cover, and cable ties for securing loose wires.
The yellow wire end connects at the driver side taillight, and the green wire end connects at the passenger side taillight. Each harness end inserts between the separated taillight connectors, with locking tabs fully seated.
1. Open the trunk and remove all floor coverings. 2. Locate and remove the taillight trim cover. 3. Remove the two fasteners securing the taillight. 4. Gently pull the taillight outward, taking care not to damage the alignment tabs on the back. 5. Separate the connectors from the taillight housing without damaging the locking tabs.
Route the custom wiring harness with the yellow wire from underneath the vehicle along the rear bumper and up behind the fender to the opening under the removed driver-side taillight. Route the green wire end to the passenger side along the rear bumper. Route the black power wire from the vehicle battery as shown on the included CME-PCL-INS sheet. Route the 4-flat connector to the center of the vehicle and out of the trunk when in use; roll up and store inside the trunk when not in use.
Drilling may be required for the ground wire. Locate a suitable grounding point near the taillight connector, such as an existing screw with a nut in the vehicle frame. If no suitable existing screw is available, drill a 3/32" pilot hole. The area must be free of rust, dirt and paint. Always check for hidden items behind or under surfaces before drilling to avoid damage and personal injury.
Signal circuits are rated at 3.0 amps per side. Tail and running circuits are rated at 6.0 amps total. Do not exceed these ratings or the tow vehicle lamp load rating, whichever is lower, as exceeding the product rating can cause loss of warranty, overheating and potential fire.
The battery connection must be fuse-protected with a maximum 10-amp fuse. Exceeding this rating can cause loss of warranty, overheating and potential fire.
Mount the black converter box on a flat clean surface that is out of the path of spray and debris from the rear wheels and road. Use the provided double-sided tape to adhere it securely.
Use the provided cable ties to secure any loose wires. This helps prevent damage and keeps the installation neat.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness functions properly.
Yes, install the provided 4-flat dust cover to help prevent corrosion of the connector.
Honda Accord Sedan (passenger car configuration).
10-amp maximum fuse protection on the battery connection.
Drilling may be required for the ground wire if no suitable existing screw is available; drill a 3/32" pilot hole if needed.
Ratchet, ratchet extension, 10mm socket, Phillips screwdriver, panel trim removal tool, wire stripper, wire crimper, cutting tool, and fish wire.
Signal circuits: 3.0 amps per side. Tail/running circuits: 6.0 amps total. Do not exceed these or the vehicle lamp load rating.
