Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
| Finish | GLOSS BLACK POWDER COAT |
| Main Body Shape | Square |
| Material | Carbon Steel |
| Mount Type Description | Blank |
| Receiver Tube Size | 1-1/4 IN |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity (WC) | 2,000 LB |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 200 LB |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 350 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Drop | 3-1/4 IN |
| Finish | GLOSS BLACK POWDER COAT |
| Gross Trailer Weight (GTW) | 3,500 LB |
| Material | Blank |
| Mount Type Description | Blank |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2022 | Hyundai Kona | Excluding electric |

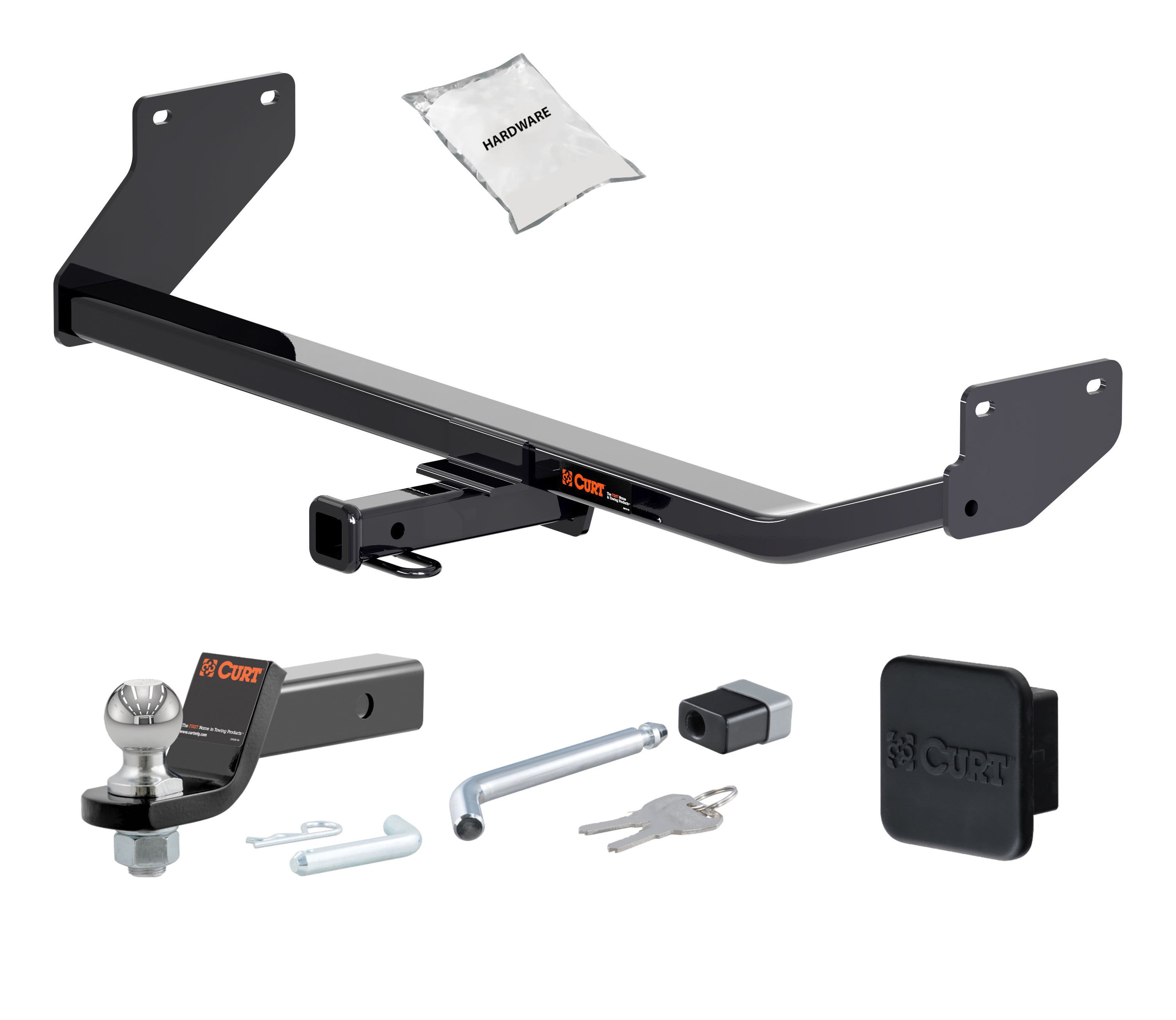

The 18 - 22 Hyundai Kona Excluding electric 1.25in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit by CURT HWA1428 (Part #HWA1428) fits the following vehicles: 2018-2022 Hyundai Kona. Always verify your specific year, make, and model before ordering.
The 18 - 22 Hyundai Kona Excluding electric 1.25in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit by CURT HWA1428 (Part #HWA1428) fits 2018-2022 Hyundai Kona models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 18 - 22 Hyundai Kona Excluding electric 1.25in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit by CURT HWA1428 (Part #HWA1428) is designed to fit the 2018-2022 Hyundai Kona.
The 18 - 22 Hyundai Kona Excluding electric 1.25in. CURT Trailer Hitch + Ball Mount + Cover + Lock Kit by CURT HWA1428 (Part #HWA1428) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT 11529 is designed for 2018-Present Hyundai Kona SUV models. The hitch is a weight-carrying receiver hitch rated for a maximum of 2,000 lbs trailer weight and 200 lbs tongue weight. Always verify your vehicle's manufacturer towing capacity before towing, as you must never exceed it.
Yes, CURT 11529 fits both AWD and RWD Hyundai Kona models. However, AWD models require an additional step: the exhaust must be lowered by removing 2 rubber isolators before installation and raised back into position after torquing the hitch fasteners. RWD models do not require this exhaust work.
CURT 11529 is designed for use with ball mount #45521. Euro mount options are also available: #45571 (1 7/8" ball) or #45572 (2" ball). Consult the CURT catalog or website at www.curtmfg.com for compatibility and specifications of these ball mounts.
CURT 11529 includes: 4 bolts (7/16-14 UNC, 1-1/4", Grade 8, part 10-10281); 4 serrated flange nuts (7/16-14 UNC, Grade 8, part 20-00103); 4 pieces of 7/16" fishwire (part 7_16 FISHWIRE); and 4 spacers (part 11529-SP). All fasteners are Grade 8 and zinc-plated.
Required tools: screwdriver, 10mm socket, 11/16" socket, 6" socket extension, ratchet, torque wrench, and safety glasses. The manual notes that using proper tools will greatly improve installation quality and reduce installation time.
No. CURT 11529 is a no-drill installation. The hitch uses the fishwire method to route fasteners through existing lower holes in the outside of the frame rails, eliminating the need for drilling.
No electrical wiring is required. However, the electrical harness must be relocated from under the driver side of the bumper beam to above the bumper beam as part of Step 1 of the installation process. This is a repositioning task, not an electrical modification.
Two people may be required to ease installation. The manual recommends reading all instructions thoroughly before beginning and notes that 2 people may be needed, though it does not state this is mandatory for all installations.
1. Move the electrical harness from under the driver side bumper beam to above it. Remove the underbody panel from the passenger side frame rail and save it. 2. On AWD models only, lower the exhaust by removing 2 rubber isolators. 3. Fishwire the 7/16" carriage bolts and spacers into the lower holes in the outside of the frame rails. 4. Raise the hitch into position, feeding fishwires through the hitch holes, and loosely secure with 7/16" hex flange nuts. 5. Torque the 7/16" hardware to 59 lb-ft, raise the exhaust back into place (AWD only), and reinstall the panel.
Fishwire is a method of routing fasteners through existing holes without drilling. For CURT 11529, you thread the 7/16" fishwire (included) through the lower holes in the outside of the frame rails, then feed the 7/16" carriage bolts and spacers through the fishwire to position them in the frame. This allows the hitch to be installed without creating new holes.
No. After raising the hitch into position and feeding the fishwires through the hitch holes, you should loosely secure the fasteners with the 7/16" hex flange nuts. Only after all fasteners are in place should you torque them to the final specification of 59 lb-ft.
All 7/16" hardware (bolts and hex flange nuts) must be torqued to 59 lb-ft. This torque is applied after the hitch is positioned and all fasteners are loosely secured.
CURT 11529 is rated for a maximum of 2,000 lbs trailer weight and 200 lbs tongue weight. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower. Always verify your Hyundai Kona's towing limits before towing.
No. All non-trailer (wheel-less) loads applied to this hitch must be supported by CURT 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty. See the CURT catalog or visit www.curtmfg.com for information on the 18050 stabilizing straps.
Safety glasses must be worn at all times while installing this product. If you are hesitant to undertake the installation yourself, contact an authorized CURT installer for assistance. You can reach CURT technical support at 877-287-8634 for help or questions.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. The manual does not specify a retorque interval, but regular inspection is recommended to maintain safe operation.
Yes. CURT Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, CURT may repair or replace the product at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation. CURT's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
CURT 11529 complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5, and SAE J684.
Yes, CURT 11529 fits 2018-Present Hyundai Kona SUV models (both AWD and RWD). Rated for 2,000 lbs trailer weight and 200 lbs tongue weight. Always verify your vehicle's manufacturer towing capacity.
Screwdriver, 10mm socket, 11/16" socket, 6" extension, ratchet, torque wrench, and safety glasses. No power tools are required.
No. CURT 11529 is a no-drill installation using the fishwire method to route fasteners through existing frame rail holes.
On AWD models only, the exhaust must be lowered by removing 2 rubber isolators before installation and raised back after torquing. The electrical harness must be relocated from under the driver side bumper beam to above it. RWD models do not require exhaust work.
All 7/16" fasteners (bolts and hex flange nuts) must be torqued to 59 lb-ft after the hitch is positioned and all fasteners are loosely secured.
CURT 11529 is rated for 2,000 lbs trailer weight and 200 lbs tongue weight, but you must never exceed your vehicle manufacturer's recommended towing capacity.
No. All non-trailer loads must be supported by CURT 18050 stabilizing straps. Failure to do so voids the warranty. See www.curtmfg.com for details.
Periodically check that all fasteners are tight and all structural components are sound. No specific retorque interval is stated in the manual.
