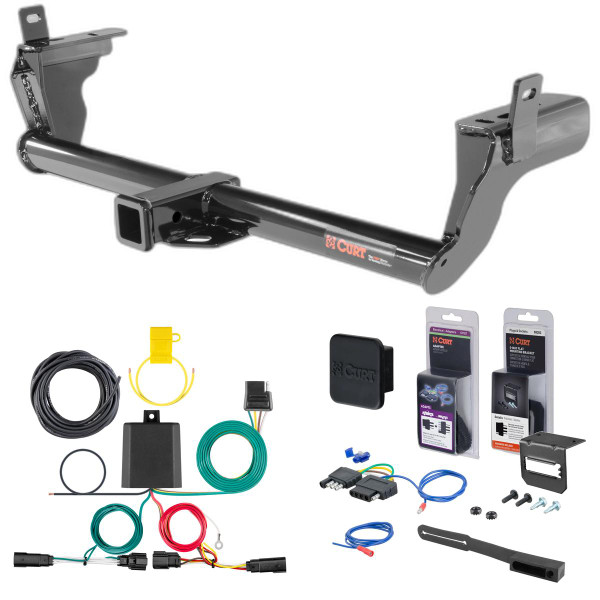

Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 2019 - 2024 Ford Edge Titanium or ST only. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Ford Edge (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 600 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Ford Edge Titanium (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2024 | Ford Edge | Titanium or ST only |
The 19 - 24 Ford Edge Titanium or ST only Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13234 (Part #5W-CHW-953) fits the following vehicles: 2019-2024 Ford Edge. Always verify your specific year, make, and model before ordering.
The 19 - 24 Ford Edge Titanium or ST only Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13234 (Part #5W-CHW-953) fits 2019-2024 Ford Edge models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 19 - 24 Ford Edge Titanium or ST only Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13234 (Part #5W-CHW-953) is designed to fit the 2019-2024 Ford Edge.
The 19 - 24 Ford Edge Titanium or ST only Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13234 (Part #5W-CHW-953) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The manual does not provide the hitch weight or specific towing capacity values in the document reviewed. Contact CURT Manufacturing technical support at 1-877-287-8634 or visit www.curtmfg.com for these specifications.
CURT part 13234 is designed for the Ford Edge. However, the manual does not specify which model years or generations it fits. Contact CURT Manufacturing at 1-877-287-8634 or check www.curtmfg.com to confirm fitment for your specific vehicle year and trim level.
Yes. If your vehicle is equipped with a hands-free lift gate, perform the kick motion on the left or right side of the receiver tube to operate it. The hitch installation does not interfere with this feature.
You will need: 7/32" socket, 3/4" socket, 10mm socket, ratchet, torque wrench, aviation shears, and safety glasses. If your Ford Edge is a Sport model, you will also need a 5.5mm socket and T20 Torx bit to remove exhaust bezels.
The kit includes: 6× 1/2-13 UNC grade 8 carriage bolts (1-1/2" long), 6× 0.250 x 1.50 x 3.00" square hole spacers (CM-SP4), 6× 1/2-13 UNC grade 8 serrated flange nuts, and 4× 1/2" fishwire.
Yes. If you plan to carry non-trailer loads on this hitch, you must use CURT stabilizing straps part 18050. These are not included and are required to support any non-trailer load. Failure to use them will void the product warranty.
No. The manual states 'NO DRILLING REQUIRED'. The hitch uses existing frame mounting holes accessed through the underbody.
Yes. You must lower the exhaust by removing 2 rubber isolators mounted to the muffler. If your Ford Edge is a Sport model, you must also remove the exhaust bezels using a 5.5mm socket and T20 Torx bit. The exhaust is raised back into position after the hitch is installed.
Yes. You must remove the panels from behind the rear wheels by removing 2 hex nuts using a 10mm socket and 2 screws with a 7/32" socket. These panels are trimmed and reinstalled after the hitch is mounted.
You must trim the center underbody panel outer tabs to allow easier mounting of the hitch. You must also trim the removed underbody side panels as shown in the installation diagram to allow for reinstallation. The diagram shows trim dimensions of 1.88" and 0.75" on the center panel, and 7.25" and 3.5" on the side panels. These modifications are permanent.
Possibly. The manual notes that the washer/nut may require trimming of the washer for reinstallation of the underbody panels. Check fit during reassembly and trim if necessary.
Fishwiring is a technique to guide fasteners through difficult-to-access mounting holes. For this hitch: (1) Thread the 1/2" fishwire through 3 CM-SP4 spacers and 3 carriage bolts into the mounting holes on both frame rails. (2) Raise the hitch over the exhaust and thread the fishwires into the mounting holes. (3) Raise the hitch into position, remove the fishwires, and install the 6 supplied 1/2" hex flange nuts. This allows you to position the hitch without having to manually hold fasteners in place.
The hitch side plates will be located between the center underbody panel tabs and the frame rails.
All 1/2" fasteners must be torqued to 110 lb-ft. This includes the 6 carriage bolts and 6 hex flange nuts that secure the hitch to the frame.
CURT Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, CURT will repair or replace it at their option when returned prepaid with proof of purchase. The warranty is voided by alteration, misuse, or improper installation. CURT's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
Non-trailer loads can be carried only if they are supported by CURT stabilizing straps part 18050. All non-trailer loads must be supported by these straps. Failure to properly support non-trailer loads will void the product warranty.
Do not exceed your vehicle manufacturer's recommended towing capacity. The hitch is designed to support the Ford Edge's factory towing limits. Consult your vehicle owner's manual for the specific capacity.
After installation, verify that all fasteners are tight and all structural components are sound. Periodically check the receiver hitch to ensure that all fasteners remain tight and that all structural components are sound. This is especially important before towing.
Periodically check this receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval, but regular inspection before towing is recommended.
CURT 13234 is designed for the Ford Edge. Confirm your specific model year with CURT at 1-877-287-8634 or www.curtmfg.com.
You need: 7/32", 3/4", and 10mm sockets, ratchet, torque wrench, aviation shears, and safety glasses. Sport models also need a 5.5mm socket and T20 Torx bit.
No drilling is required. The hitch uses existing frame mounting holes. However, you must lower the exhaust and trim underbody panels.
All 1/2" fasteners must be torqued to 110 lb-ft.
Yes. CURT stabilizing straps part 18050 are required for any non-trailer load. Failure to use them voids the warranty.
Verify all fasteners are tight and all structural components are sound. Periodically recheck before towing.
The CURT 56437 is a powered converter harness designed for SUVs and vans. It converts the vehicle's factory taillight signals into a 4-flat trailer connector, allowing you to tow a trailer with proper lighting control. The system includes a converter box that processes brake, turn signal, and taillight signals from your vehicle's rear lights.
The CURT 56437 is designed for SUVs and vans with 12-volt negative ground electrical systems. The manual does not list specific vehicle models or years. Check your vehicle owner's manual to confirm it has a 12-volt negative ground system, or contact the vehicle manufacturer. The wiring locations shown in the manual are representative; actual locations may vary by vehicle.
No. The converter system is designed only for 12-volt negative ground systems. It will not function on 24-volt systems or vehicles with positive ground electrical systems.
Required tools are: ratchet, cutting tool, socket extension, wire crimper, Torx bit T-25, wire stripper, small flathead screwdriver, panel trim removal tool, and flathead screwdriver. You will also need a pry tool (not listed but referenced in Steps 3 and 4) and a fish wire or equivalent (cut-up wire hanger, stiff wire, rope or string) to route wires through blind holes.
The kit includes: a black converter box, a T-connector with yellow wire, a green wire for passenger-side routing, a black power wire, a white ground wire with ring terminal, a provided screw for grounding, double-sided tape for mounting the converter box, a 4-flat dust cover, zip ties for securing loose wires, and a 15-amp fuse holder with fuse. Butt connectors are referenced in the wiring diagram.
Yes. You must disconnect the negative battery terminal before beginning installation. Fasten this wire down and away from the battery during the installation. Reconnect the negative battery terminal only after all other installation steps are complete and before testing the harness.
The installation is rated as moderate difficulty. The manual states that proper tools will improve the quality of installation and reduce the time required. All steps must be followed to ensure the product functions properly. No specific installation time is provided.
Step 1 is to locate the vehicle battery on the driver side in the engine compartment and disconnect the negative terminal. Fasten this wire down and away from the battery during the installation.
Using a pry tool and being careful not to dent or scratch the vehicle, loosen the taillight and pull rearward to remove. Behind the taillight, locate the vehicle taillight wiring harness connectors. Disconnect the housing by releasing the locking tabs. Set the taillight to the side. Repeat this process on both the driver and passenger sides.
Fish wire is used to push or pull the electrical harness through blind holes (holes you cannot see through). You insert the fish wire through the blind hole, locate it on the other side, use tape to secure the harness to the fish wire, and pull it back up. Fish wire can be a cut-up wire hanger, stiff wire, rope or string. If the wire gets hung up, you may need to push back down, wiggle it around, or twist it to loosen it.
Locate a flat clean surface that is out of the path of spray and debris from the rear wheels and road. Adhere the black converter box using the provided double-sided tape. Mounting the box in a protected area is critical—failure to do so can cause loss of warranty, product failure, overheating and potential fire.
You need to locate a suitable grounding point near the converter box, such as an existing screw with nut in the vehicle frame. If no existing screw is available, you may drill a 3/32" pilot hole for the provided screw. The area should be free of rust, dirt and paint. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
When passing the power wire through sheet metal, use an existing grommet, add a grommet, or use silicone to protect the power wire from sharp edges. This prevents the wire from being damaged and causing electrical faults or fire.
The battery connection must be fuse-protected with a 15-amp maximum fuse. Do not exceed this rating. Exceeding the product rating can cause loss of warranty, overheating and potential fire.
Signal circuits (turn signals): 5.0 amps per side. Tail/Running circuits: 7.5 amps total. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
Use 12 GA (12-gauge) wire or larger for the power wire from the vehicle battery to the converter. The manual specifies routing 12 GA wire to the vehicle battery location.
The wire colors are: Green = Right turn signal, Red = Brake, Yellow = Left turn signal, Brown = Taillight. These colors correspond to the trailer lighting functions controlled by the converter.
On the driver side under the vehicle, find the fish wire and secure the T-connector end with the yellow wire to it. Pull the T-connector end up to the taillight pocket. Install the connector onto the factory wiring to keep it from falling down. Make sure the connectors are fully inserted with locking tabs in place.
Route the green wire to the passenger side, up and out of the way. Use the fish wire method (Step 5) to route the green wire to the passenger-side taillight pocket, similar to how the yellow wire is routed on the driver side.
Route the trailer 4-flat connector to the center of the vehicle and mount it near the hitch. Secure any loose wires with the provided zip ties.
Route the black power wire from the vehicle battery as shown on the last page of the manual (page 5). The black wire connects to the positive (+) battery terminal using a ring terminal. The wire must be 12 GA or larger and routed to avoid pinch points and hot or rotating components. Secure the power wire to the vehicle chassis using the provided cable ties.
Attach the ring terminal of the white ground wire to the vehicle body using the provided screw. Locate a suitable grounding point near the converter box, such as an existing screw with nut in the vehicle frame. If necessary, drill a 3/32" pilot hole for the provided screw. The area should be free of rust, dirt and paint before securing the ground wire.
Before drilling or routing wires, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. When routing the power wire, avoid pinch points and hot or rotating components. Use a pry tool carefully to avoid denting or scratching the vehicle. Disconnect the negative battery terminal before beginning installation. When passing the power wire through sheet metal, use an existing grommet, add a grommet, or use silicone to protect the wire from sharp edges.
Once the 12-volt power wire is connected to the harness, verify that the harness is functioning by attaching the battery and testing with a test light, 4-flat tester, or a functioning trailer. Reinstall all items removed during installation and reconnect the negative battery terminal. Install the provided 4-flat dust cover to help prevent corrosion.
After installation is complete: (1) Verify the harness is functioning using a test light, 4-flat tester, or functioning trailer. (2) Reinstall all items removed during installation. (3) Reconnect the negative battery terminal. (4) Install the provided 4-flat dust cover to help prevent corrosion. (5) Install the 15-amp fuse in the fuse holder after all other steps are complete.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. The manual does not specify an inspection interval. For more detailed maintenance information, contact CURT Group or check the product warranty information at warranty.curtgroup.com/surveys.
The CURT 56437 is designed for SUVs and vans with 12-volt negative ground electrical systems. Check your vehicle owner's manual to confirm your system type, or contact the vehicle manufacturer. Wiring locations are representative and may vary by vehicle.
Yes, disconnect the negative battery terminal before starting installation. Fasten the wire away from the battery. Reconnect it only after all installation steps are complete and before testing.
Drilling is optional. You only need to drill a 3/32" pilot hole if no existing screw with nut is available for grounding the converter box. Before drilling, check for hidden items behind or under surfaces to avoid damage.
The battery connection must use a 15-amp maximum fuse. Do not exceed this rating, as it can cause loss of warranty, overheating and potential fire.
Use 12 GA (12-gauge) wire or larger for the power wire from the vehicle battery to the converter.
