This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Subaru Ascent (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 750 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 5,000 lbs. WD and 750 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. This particular plug-in connector provides a 4-way flat socket and is designed to be a custom wiring option for certain years of the Subaru Ascent, Forester, Outback, Crosstrek and XV Crosstrek (to verify your vehicle compatibility, see application info). It comes with all necessary hardware to establish a solid connection. It also comes with a dust cover to keep the connector socket clean when not in use. To ensure long-lasting reliability, all CURT custom wiring connectors are thoroughly tested for optimal functionality. Stress is the last thing you should feel when towing a trailer -- whether you're hauling your RV to that favorite camping destination, your ATVs up to the hunting grounds or your fishing boat to the new hidden hotspot. At CURT, we think your towing equipment should add to the enjoyment of your experience, not detract from it.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494One-Year Limited Warranty
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2024 | Subaru Ascent | — |

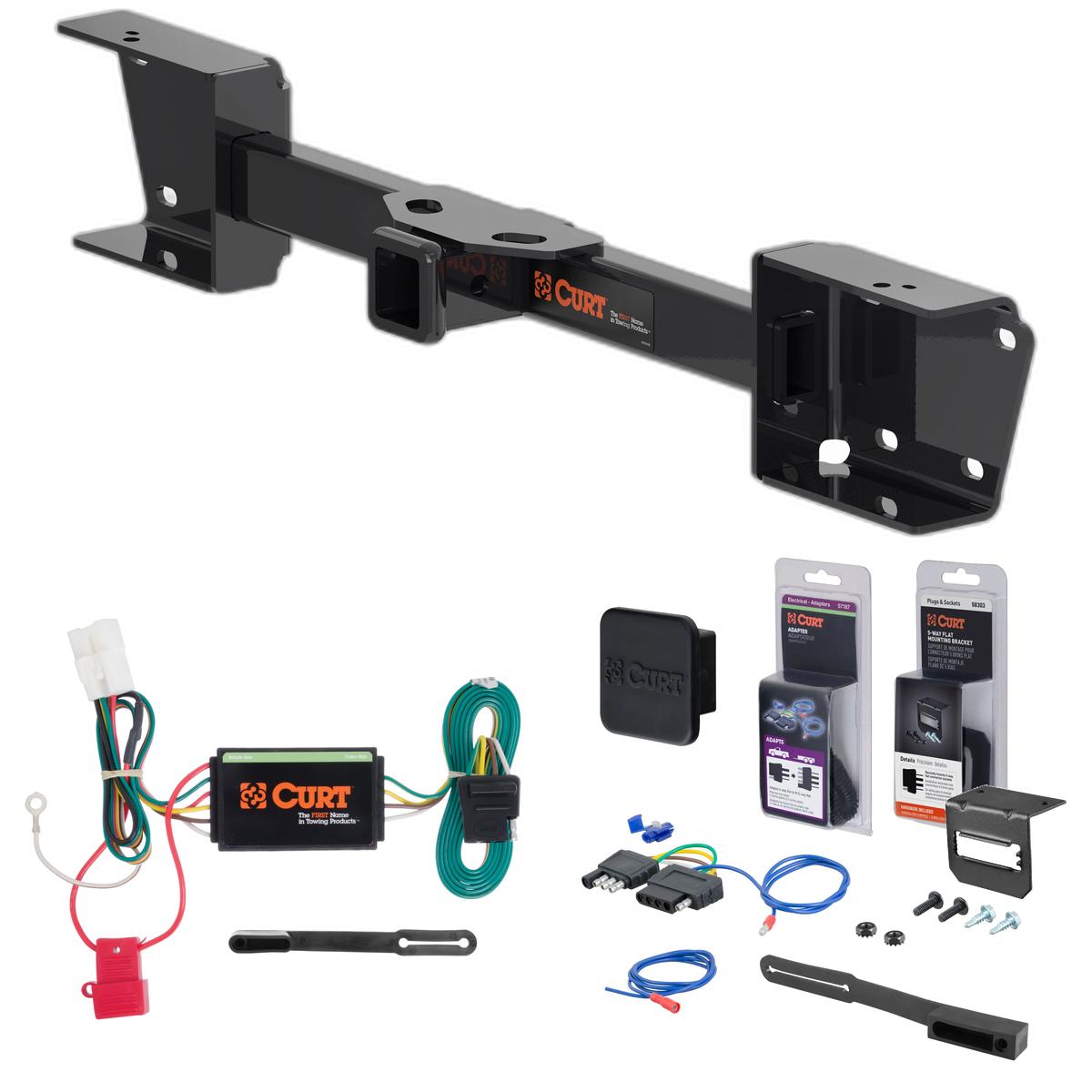

The 19 - 24 Subaru Ascent Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13448 (Part #5W-CHW-2735) fits 2019-2024 Subaru Ascent models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 19 - 24 Subaru Ascent Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13448 (Part #5W-CHW-2735) fits the following vehicles: 2019-2024 Subaru Ascent. Always verify your specific year, make, and model before ordering.
Yes, the 19 - 24 Subaru Ascent Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13448 (Part #5W-CHW-2735) is designed to fit the 2019-2024 Subaru Ascent.
The 19 - 24 Subaru Ascent Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit Tow Boat/Utility Trailer with Surge Brakes 13448 (Part #5W-CHW-2735) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13448 is designed for 2019-present Subaru Ascent SUVs. This is a weight-carrying hitch with a 5,000 lb trailer weight capacity and 750 lb tongue weight capacity. Always verify your vehicle matches the 2019-present model year and Ascent nameplate before purchasing.
When used as a weight-carrying hitch, the 13448 supports 5,000 lbs trailer weight and 750 lbs tongue weight. When used as a weight distribution hitch, it also supports 5,000 lbs trailer weight and 750 lbs tongue weight. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The hitch weight is 120 lbs.
Required tools are: safety glasses, ratchet, 6-inch socket extension, 8 mm socket, 10 mm socket, 17 mm socket, screwdriver, panel removal tool, torque wrench, and hammer. No drilling is required.
The hitch includes: 6 M10×1.25 hex head cap screws (part 10-10271), 6 conical washers 7/16 inch (part 30-00163), and 2 cable ties 3/16 inch × 8 inch 50 lb UV black (part 600043). The factory M10 nuts removed during installation are reused.
Yes, the bumper must be removed. The installation requires removal of the rear fascia, splash guards, and wire harnesses from the bumper beam. The bumper beam is then removed by unbolting it from the vehicle frame. After the hitch is installed, the bumper beam is returned to the vehicle owner.
Two people may be required to ease installation. The manual lists this as an installation tip to improve the quality of the install and reduce the time required.
The installation is rated as challenging. The manual recommends reading all instructions thoroughly before beginning, using proper tools, and contacting an authorized CURT installer if you are hesitant to undertake the task on your own. Technical support is available at 877-287-8634.
No, drilling is not required. The hitch uses existing vehicle holes and studs on the frame rails.
Yes, in Step 9 you must use a hammer to bend the bumper mounting flange inward toward the front of the vehicle to allow the hitch to mount flush. This is a permanent modification to the bumper beam.
All M10 hardware (the supplied M10 bolts and factory M10 nuts) must be torqued to 48 lb-ft.
Installation follows 11 steps: (1) remove 6 plastic expanding fasteners from fascia bottom, (2) remove splash guards with 8 mm bolts, (3) remove expanding fasteners under splash guards, (4) remove push rivets from wheel wells, (5) remove taillight panel bolts with 10 mm socket, (6) remove fascia by pulling gently and unplugging wires, (7) remove 2 wire harnesses from bumper top, (8) remove 3 M10 bolts and 1 M10 nut from each side with 17 mm socket, (9) bend bumper mounting flange inward with hammer, (10) raise hitch over bumper studs, install supplied bolts and washers, attach wire harnesses and zip tie, torque all M10 hardware to 48 lb-ft, (11) reinstall fascia in reverse order and reconnect plugs.
Remove fascia in this order: (1) remove 6 plastic expanding fasteners from the bottom, (2) remove 2 bolts from each splash guard using 8 mm socket, (3) remove 1 expanding fastener under each splash guard, (4) remove 1 push rivet from each wheel well by depressing the center with a screwdriver (use panel removal tool to pry out), (5) open liftgate and remove panel near taillight on both sides by pulling straight back from the top, remove the 1 bolt connecting fascia to vehicle body on each side using 10 mm socket, (6) starting from wheel well and working toward center, pull fascia gently and unplug any attached wires. Set all removed parts aside for reinstallation.
After removing the fascia and wire harnesses, remove the bumper beam by unbolting it from the frame. Using a 17 mm socket, remove 3 M10 bolts and 1 M10 nut from each side (6 bolts and 2 nuts total). Set the nuts aside for reattachment in Step 10. Return the bumper beam and bolts to the vehicle owner.
Raise the hitch into position by placing it over the bumper studs on both sides of the frame. Secure the factory M10 nuts that were removed in Step 8. Install the supplied M10 bolts and conical washers. Attach the 2 wire harnesses to the top of the hitch and secure them with the 2 supplied cable ties. Torque all M10 hardware to 48 lb-ft.
Reinstall the fascia in reverse order of removal (Steps 1-6). Be sure to reconnect all plugs that were disconnected during fascia removal. Note that the fascia has a removable panel for hitch usage; this panel can be removed when using the hitch and reinstalled when the hitch is not in use.
Safety glasses must be worn at all times while installing this product. Read all instructions thoroughly before beginning. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. Technical support is available at 877-287-8634.
Periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. This ongoing maintenance is essential for safe towing.
The manual instructs you to periodically check the receiver hitch to ensure all fasteners are tight and all structural components are sound. The manual does not specify an exact interval, but regular inspection before towing is recommended.
Yes, CURT 13448 fits 2019-present Subaru Ascent SUVs. It has a 5,000 lb trailer weight and 750 lb tongue weight capacity, but you must not exceed your vehicle manufacturer's towing capacity.
You need: safety glasses, ratchet, 6-inch socket extension, 8/10/17 mm sockets, screwdriver, panel removal tool, torque wrench, and hammer. No drilling is required.
Yes, you must remove the rear fascia, splash guards, and bumper beam. The bumper beam is then returned to the vehicle owner after hitch installation.
No drilling is required. However, you must use a hammer to bend the bumper mounting flange inward in Step 9 to allow the hitch to mount flush.
All M10 hardware must be torqued to 48 lb-ft. This includes the supplied M10 bolts and the factory M10 nuts.
The hitch supports 5,000 lbs trailer weight and 750 lbs tongue weight, but you must never exceed your vehicle manufacturer's recommended towing capacity.
Periodically check that all fasteners are tight and all structural components are sound before and during use.

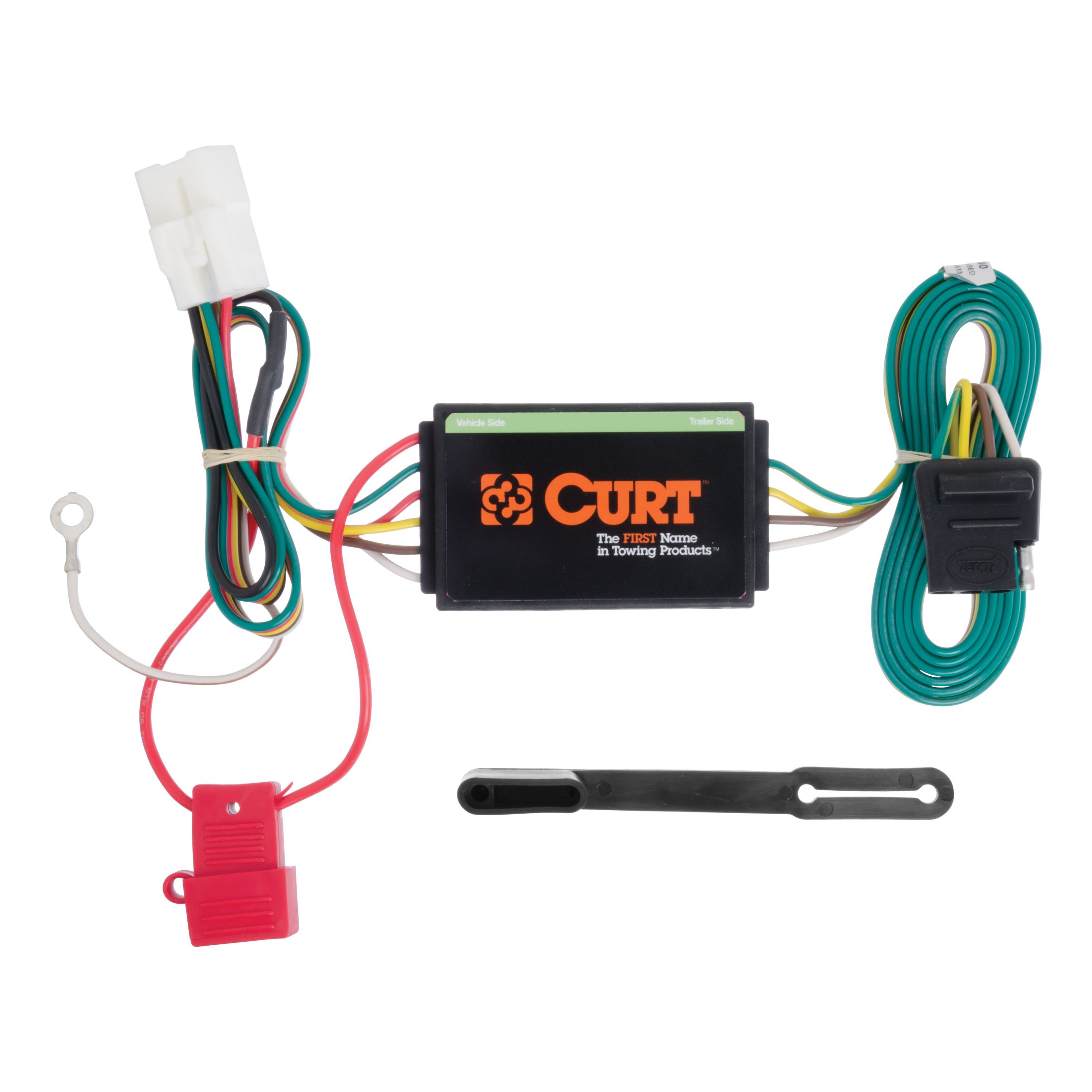

Yes, the Curt 56040 vehicle-to-trailer connector fits Subaru Forester models from 2009 onwards, including 2009–2013 and 2014+ versions. However, the wiring harness location differs between these model years, so follow the instructions specific to your year. The connector does not fit Subaru Crosstrek or XV Crosstrek Hybrid models.
No. The Curt 56040 is designed for Subaru Crosstrek and XV Crosstrek models, but explicitly excludes Hybrid versions. If you have a Hybrid model, contact Curt Manufacturing or your vehicle manufacturer to confirm compatibility.
The Curt 56040 is rated for Signal Circuits at 3.0 amps per side and Tail/Running Circuits at 6.0 amps total. The battery connection must be fuse-protected with a 10-amp maximum fuse. Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower, as exceeding it can cause loss of warranty, overheating and potential fire.
You will need a 10mm socket, a ratchet, and a panel trim removal tool. These are the only tools specified in the manual. Additional tools such as a drill may be needed if you must drill a pilot hole for the ground screw, depending on whether a suitable existing screw is available in your vehicle.
Yes. The first step of installation is to locate the vehicle battery on the driver side under the hood and disconnect the negative battery terminal. This must be done before proceeding with any other installation steps.
On 2009–2013 Forester models, the vehicle wiring harness connectors are located on the driver side under the trays in the trunk. You must first remove all trunk floor coverings and the plastic fasteners securing the trays in the center and on the driver side to access them.
On Subaru Outback models, the vehicle wiring harness connectors are tucked up behind the driver side inner fender trim, visible near the rubber grommet in the floor and the cargo anchor. You must first remove trunk floor coverings and trays to access this area.
On 2014+ Forester and XV Crosstrek models, the vehicle taillight wiring harness connectors are located on the driver side behind the rear trim panel. Pull back on the rear trim panel to locate them.
Insert the custom connector end into the vehicle connector. Make sure the connectors are fully inserted with locking tabs in place. Do not proceed until the connection is secure and the locking tabs are engaged.
Not necessarily. First, locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable existing screw is available, you may drill a 3/32" pilot hole for the provided screw. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw if needed. The area should be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and provided screw.
Locate a flat spot inside the vehicle, near the taillight, and adhere the black converter box using the provided double-sided tape. Ensure the surface is clean and flat to allow the tape to bond securely.
Install a red 10-amp fuse into the in-line fuse holder. This is the maximum fuse rating allowed; do not use a fuse with a higher amperage rating.
When in use, route the 4-flat to the center of the vehicle. When not in use, roll it up and store in a convenient, out-of-the-way location. Secure any loose wires with the provided cable ties to prevent tangling and damage.
After installation, reinstall all items removed during the install and reconnect the negative battery terminal. Install the provided 4-flat dust cover to help prevent corrosion. Test the connector for proper function by using a test light or connecting a properly wired trailer.
Test the connector for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring connector will function properly.
Yes, the Curt 56040 fits Subaru Ascent, Forester (all years), Outback, Crosstrek, and XV Crosstrek—but excludes Hybrid models. Confirm your model year and drivetrain before purchasing.
You need a 10mm socket, ratchet, and panel trim removal tool. A drill may be needed if no existing ground screw is available.
Yes, disconnect the negative battery terminal before starting installation.
Drilling is not required if an existing screw with nut is available in the vehicle frame for the ground connection. If not, drill a 3/32" pilot hole for the provided screw.
The maximum fuse rating is 10 amps. Do not exceed this rating or the tow vehicle's lamp load rating, whichever is lower.
