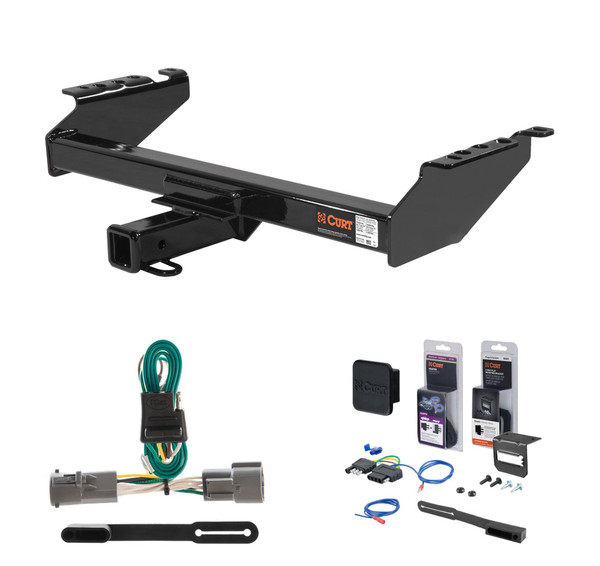

Complete CURT Class 4 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 1987 - 1996 Ford F-250 Old body, excluding 10" drop bumper and 1973 - 1979 crew cab. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever the next item is on your to-do list -- whether it's arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset -- CURT class 4 trailer hitches offer greater towing power to let you Bring It. These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle. Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans. This particular class 4 hitch fits certain years of the Dodge D100, D150, D200, D250, D300, D350, Ram 1500, 2500 or 3500 and Ford Bronco, F100, F150, F250, F250 HD or F350 (to verify vehicle compatibility, see application info). It provides a weight carrying capacity of 10,000 lbs. GTW and 1,000 lbs. TW. It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs. and a WDTW of 1,200 lbs. CURT class 4 tow hitches are as much suited for work as they are for play. With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component). All CURT class 4 receiver hitches come with a 2" receiver tube opening and all the necessary hardware for a complete installation. From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design. We then combine high-strength steel, precise welding and a co-cured finish of liquid A-coat and durable black powder coat to provide you with a hitch you can depend on. To prove it, we test all our hitches in accordance with SAE J684 for safety.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Ford F150, F250, F250 HD and F350 (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
Experts available to answer your questions

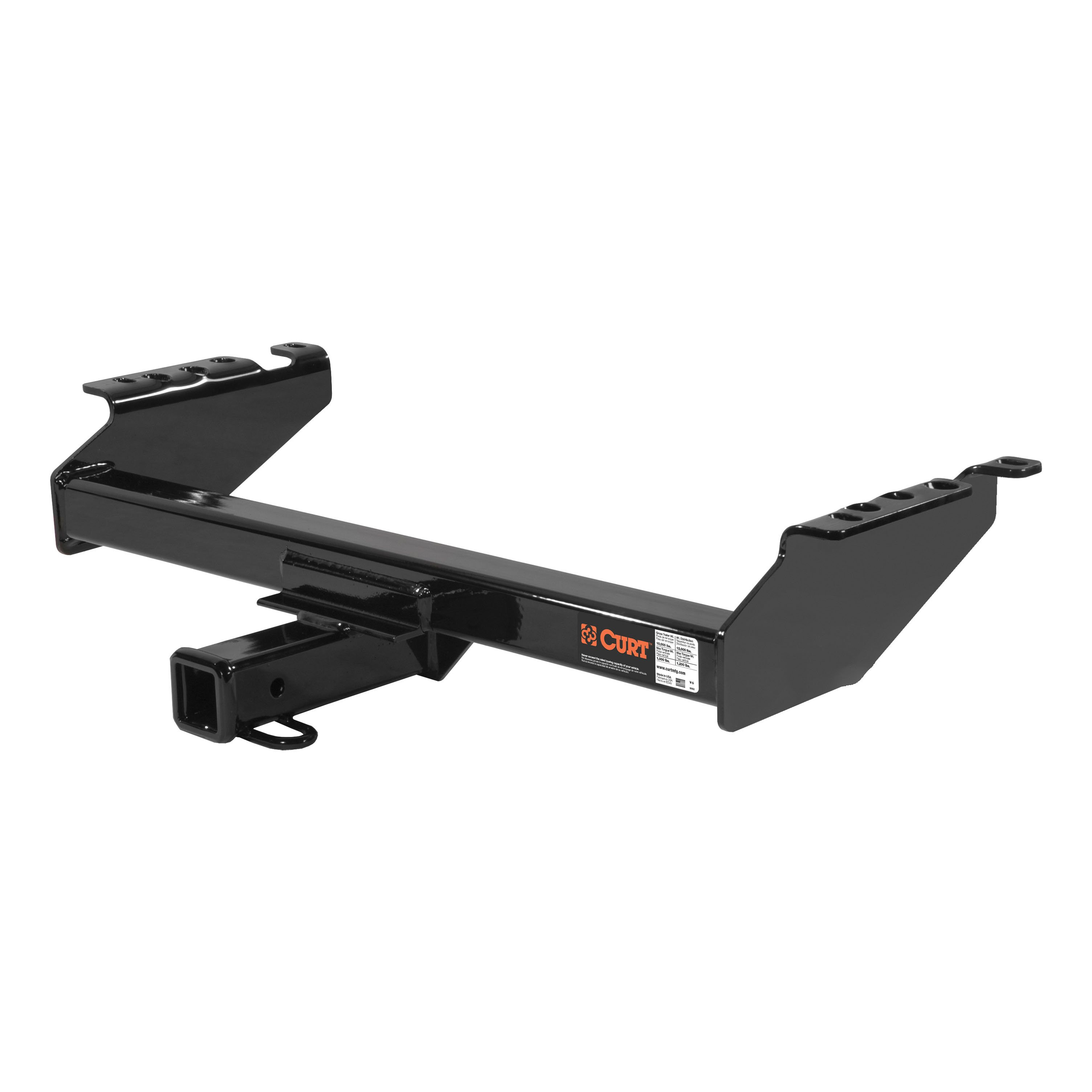

Call 888-634-9494Yes, CURT model 14001 fits 1973-1997 Ford F-Series trucks, except 1973-1979 crew cab models. Your 1985 F-150 is compatible. Note that if your truck has a lower spare tire, you will need to lower it before installation.
No. CURT model 14001 is not compatible with 1973-1979 Ford F-Series crew cab models. It fits 1980-1997 F-Series crew cabs and all other F-Series models from 1973-1997 (except the excluded crew cab years).
Yes, CURT model 14001 fits 1978-1997 Ford Bronco full size. Your 1990 Bronco is compatible. Note that the bumper bolts can be loosened and the bumper raised to increase clearance for the hitch during installation.
Yes, CURT model 14001 fits 1967-2002 Dodge full size vehicles. Your 1985 Dodge is compatible. If the bumper interferes with the receiver hitch, loosen the bumper brackets and reposition them upward, then re-tighten.
When used as a weight carrying hitch: 10,000 lbs trailer weight and 1,000 lbs tongue weight. When used as a weight distribution hitch: 12,000 lbs trailer weight and 1,200 lbs tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
The hitch weight is 50 lbs.
The kit includes: 6 carriage bolts (1/2-13 UNC, grade 8, part number 10-10288), 6 serrated flange nuts (1/2-13 UNC, grade 8, part number 20-00062), and 8 square hole spacers (0.250 x 1.50 x 2.00 inch, part number CM-SP1).
No. The kit includes all required fasteners: 6 carriage bolts and 6 flange nuts for the 6 mounting holes. You will also receive 8 spacers, with 2 spacers required at the middle mounting hole on each side (4 total) and 2 additional spacers included.
A torque wrench is required to tighten all fasteners to 110 ft-lbs. Drilling equipment is required to create the mounting holes using the step drilling method (1/8" pilot hole, then 3/8", then 1/2" final hole). For Ford Bronco installations, thin wire is needed for the fishwiring technique on the two forward bolts on each side.
Yes, if your 1973-1997 Ford F-Series has a lower spare tire, you must lower it before installation. The installation notes state "LOWER SPARE TIRE" for this application. After installation is complete, you can reposition the spare tire if necessary.
Yes, drilling is required. The manual explicitly states "DRILLING REQUIRED" and "NO TRIMMING REQUIRED." You must drill six 1/2" mounting holes using the step drilling method: first a 1/8" pilot hole, then 3/8", then finish with 1/2".
The step drilling method involves three stages: (1) drill a 1/8" pilot hole, (2) drill a 3/8" hole, (3) finish with a 1/2" hole. This method is required for Ford F-Series and Dodge full size installations to create the six 1/2" mounting holes.
Yes, you must drill six 1/2" holes on a Ford Bronco. However, the drilling procedure differs from F-Series: you do not use the step drilling method. The manual notes to "take extra care around the gas tank" when drilling. Additionally, the two forward bolts on each side must be fishwired (a thin wire wrapped around the bolt and through the spacer) due to tight gas tank clearance.
Fishwiring is a technique used on 1978-1997 Ford Bronco installations. It involves wrapping a thin wire around the end of the bolt and through the square hole spacer. This technique is required for the two forward bolts on each side of the Bronco due to tight clearance with the gas tank. The bolts are fed through using the access hole in the crossmember next to the frame.
You can use existing holes for the first two bolts. The Dodge installation procedure uses the existing 1/2" round holes at the rear of the frame for the first and third mounting positions. You then use the hitch as a template to drill the two remaining holes to 1/2" diameter. All six holes receive 1/2" carriage bolts and spacers.
No. The manual explicitly states "NO TRIMMING REQUIRED." Drilling is required, but no cutting, trimming, or modification of vehicle body panels is necessary.
All fasteners must be tightened to 110 ft-lbs using a torque wrench. This applies to all six mounting bolts on all vehicle applications (Ford F-Series, Ford Bronco, and Dodge full size).
The carriage bolts are 1/2-13 UNC (1/2 inch diameter, 13 threads per inch, Unified National Coarse), grade 8, 2 inches long. Part number 10-10288. Six bolts are included.
The flange nuts are 1/2-13 UNC (1/2 inch diameter, 13 threads per inch, Unified National Coarse), grade 8, serrated. Part number 20-00062. Six nuts are included.
The spacers are 0.250 x 1.50 x 2.00 inches (square hole spacers). Part number CM-SP1. Eight spacers are included in the kit.
Due to the large size of the middle mounting hole, a spacer must be placed between the hitch and the flange nut at that location on both sides. This means two spacers are used at the middle hole on each side (four total), with two additional spacers included in the kit.
1. Using the large hole in the hitch hanger as a guide, place it over the stock rivet on each side of the frame. Center the hitch and mark the six holes to be drilled. 2. Using the step drilling method (1/8" pilot, 3/8" intermediate, 1/2" final), drill the six 1/2" mounting holes. Place a 1/2" carriage bolt and spacer through each hole in the frame. 3. Raise the hitch into position and secure each bolt with a 1/2" flange nut. 4. Tighten all fasteners to 110 ft-lbs with a torque wrench. 5. Reposition the spare tire if necessary.
1. Using the largest hole in the hitch hanger as a guide, place it over the stock rivet on each side of the frame. Center the hitch and mark the six holes to be drilled. 2. Drill the six 1/2" holes, taking extra care around the gas tank. 3. Place a 1/2" carriage bolt and spacer in each hole. For the two forward holes on each side, use the fishwiring technique (wrap thin wire around the bolt and through the spacer) and feed bolts through the access hole in the crossmember. 4. Raise the hitch into position and secure each bolt with a 1/2" flange nut. 5. Tighten all fasteners to 110 ft-lbs with a torque wrench.
1. At the rear of the frame, find the 1/2" round holes. 2. In the first and third 1/2" round holes, place a 1/2" carriage bolt and spacer down through the frame. 3. Raise the hitch into position and secure with a 1/2" flange nut on each bolt, hand tighten only. 4. Center the hitch and use it as a template to drill the two remaining holes to 1/2" diameter. 5. Place a 1/2" x 2" carriage bolt and spacer in all mounting holes and secure with a 1/2" flange nut. 6. Tighten all fasteners to 110 ft-lbs with a torque wrench.
For Ford F-Series and Ford Bronco, tighten fasteners to 110 ft-lbs after raising the hitch into position. For Dodge full size, hand tighten the first two bolts only when initially securing the hitch, then after drilling the remaining holes and installing all bolts, tighten all fasteners to 110 ft-lbs with a torque wrench.
For Ford F-Series and Ford Bronco: After using the large/largest hole in the hitch hanger as a guide over the stock rivet on each side of the frame, center the hitch on the frame before marking the six holes to be drilled. For Dodge full size: After hand tightening the first two bolts, center the hitch and use it as a template to drill the two remaining holes.
For Ford Bronco: The bumper bolts can be loosened and the bumper raised to increase clearance for the hitch. Re-tighten the bolts after installation. For Dodge full size: Loosen the bumper brackets and reposition them upward, then re-tighten.
If the 9/16" slots in the hitch hangers line up with the small 1/4" holes in the vehicle frame on some Ford F-Series models, drill these holes out to 1/2" to accommodate the carriage bolts.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify a retorque interval, but regular inspection of fastener tightness is recommended.
Do not exceed your vehicle manufacturer's recommended towing capacity. The CURT 14001 has a gross load capacity of 10,000 lbs trailer weight / 1,000 lbs tongue weight (weight carrying) or 12,000 lbs trailer weight / 1,200 lbs tongue weight (weight distribution), but you must follow the lower of either the hitch capacity or your vehicle manufacturer's limit.
CURT 14001 fits 1973-1997 Ford F-Series (except 73-79 crew cab), 1978-1997 Ford Bronco full size, and 1967-2002 Dodge full size. Check your vehicle year and model against these ranges.
The kit includes 6 carriage bolts (1/2-13 UNC, 2" long), 6 flange nuts (1/2-13 UNC), and 8 square hole spacers. All fasteners are grade 8 steel.
Yes, drilling is required. You must drill six 1/2" mounting holes. For Ford F-Series, use the step drilling method (1/8" pilot, 3/8" intermediate, 1/2" final). For Ford Bronco and Dodge, drilling procedures differ. No trimming is required.
All fasteners must be tightened to 110 ft-lbs using a torque wrench. This applies to all six mounting bolts on all vehicle applications.
Weight carrying: 10,000 lbs trailer / 1,000 lbs tongue. Weight distribution: 12,000 lbs trailer / 1,200 lbs tongue. Do not exceed your vehicle manufacturer's recommended towing capacity.
Yes. You must use the fishwiring technique for the two forward bolts on each side due to gas tank clearance. This involves wrapping thin wire around the bolt and feeding it through an access hole in the crossmember. Take extra care when drilling around the gas tank.
Yes, the Curt 55316 is designed for Ford F-150 pickup trucks. It is also compatible with Ford F-250, F-350, F-250 heavy duty, and F-350 heavy duty models. Confirm your vehicle matches one of these applications before purchasing.
Yes, the Curt 55316 is compatible with Ford F-250, F-350, F-250 heavy duty, and F-350 heavy duty pickup trucks, as well as the F-150.

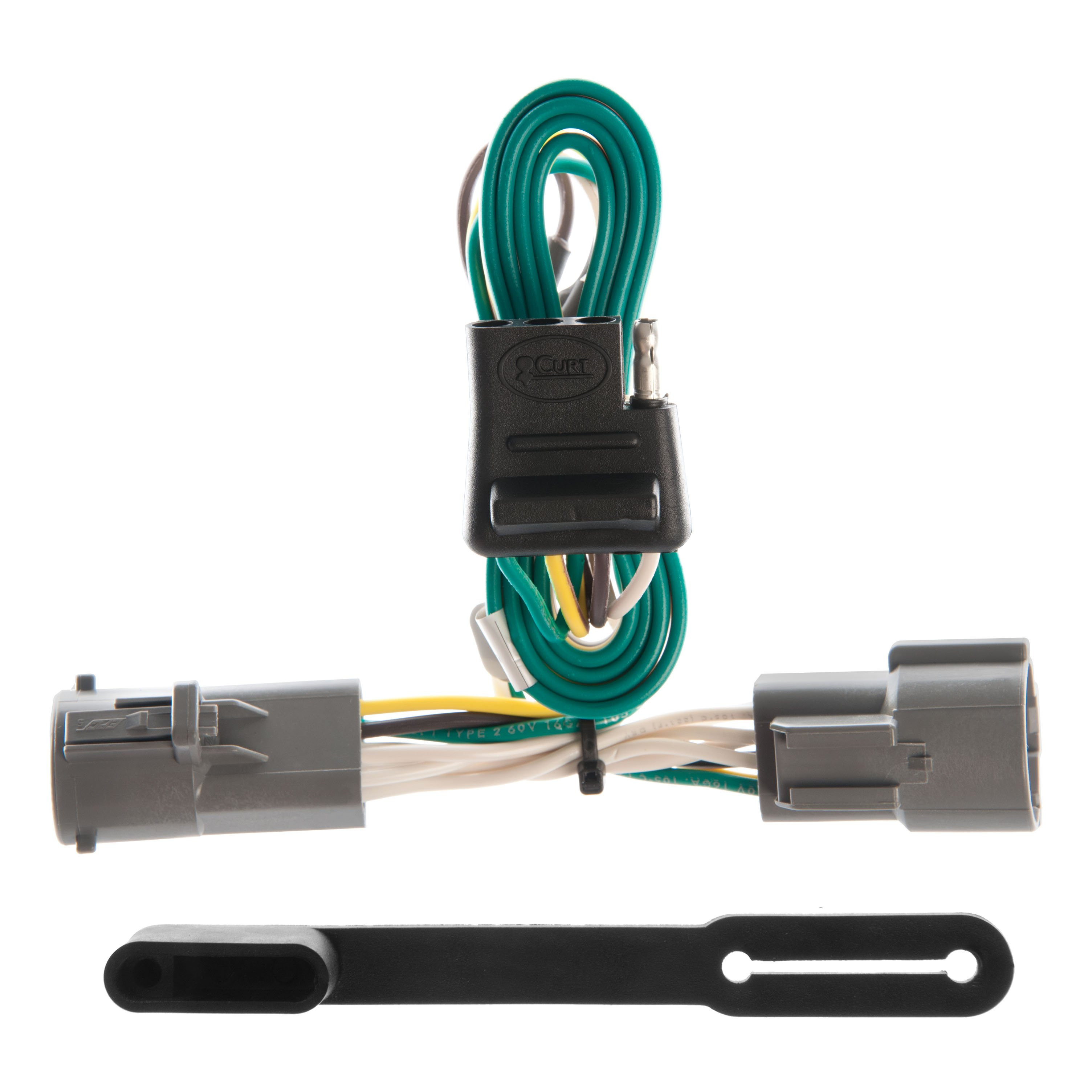

The Curt 55316 is a custom wiring harness that connects to your vehicle's taillight wiring. The harness end with the yellow wire inserts between the separated taillight connectors. The harness terminates in a 4-flat connector for trailer use.
Lowering the spare tire is not required but may ease installation. The manual notes that lowering the vehicle spare tire may make the installation easier, so consider this if you encounter tight access to the taillight connectors.
1. Locate the vehicle taillight wiring harness connectors and separate them from the taillight housing, taking care not to damage the locking tabs. 2. Insert the custom wiring harness end with the yellow wire between the separated connectors, ensuring they are fully inserted with locking tabs in place. 3. Route the 4-flat connector to the center of the vehicle and out of the trunk when in use; roll up and store in the trunk when not in use. Secure loose wires with the provided cable ties. 4. Reinstall all removed items and install the provided 4-flat dust cover.
When in use, route the 4-flat connector to the center of the vehicle and out of the trunk. When not in use, roll up and store in a convenient, out-of-the-way location inside the trunk.
The Curt 55316 includes the custom wiring harness with a yellow wire end, cable ties for securing loose wires, and a 4-flat dust cover to help prevent corrosion.
Do not exceed the product rating or your tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire. Check your vehicle owner's manual or contact the vehicle manufacturer for your specific lamp load rating.
After installation, test for proper function by using a test light or by connecting a properly wired trailer. All steps must be followed to ensure the wiring harness functions properly.
The yellow wire is the end of the custom wiring harness that inserts between the separated taillight connectors during installation. It is part of the connector interface that links the harness to your vehicle's taillight wiring.
The provided 4-flat dust cover helps prevent corrosion of the 4-flat connector. Install it after completing the wiring harness installation.
Yes, you must take care not to damage the locking tabs when separating the taillight connectors. Handle the connectors carefully during Step 1 to avoid damaging these tabs, which are essential for securing the connections.
The Curt 55316 fits Ford F-150, F-250, F-350, F-250 heavy duty, and F-350 heavy duty pickup trucks.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating, and potential fire.
The manual lists no tools as needed for installation.
Test for proper function using a test light or by connecting a properly wired trailer.
The harness includes cable ties for securing wires and a 4-flat dust cover to prevent corrosion.
