Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.

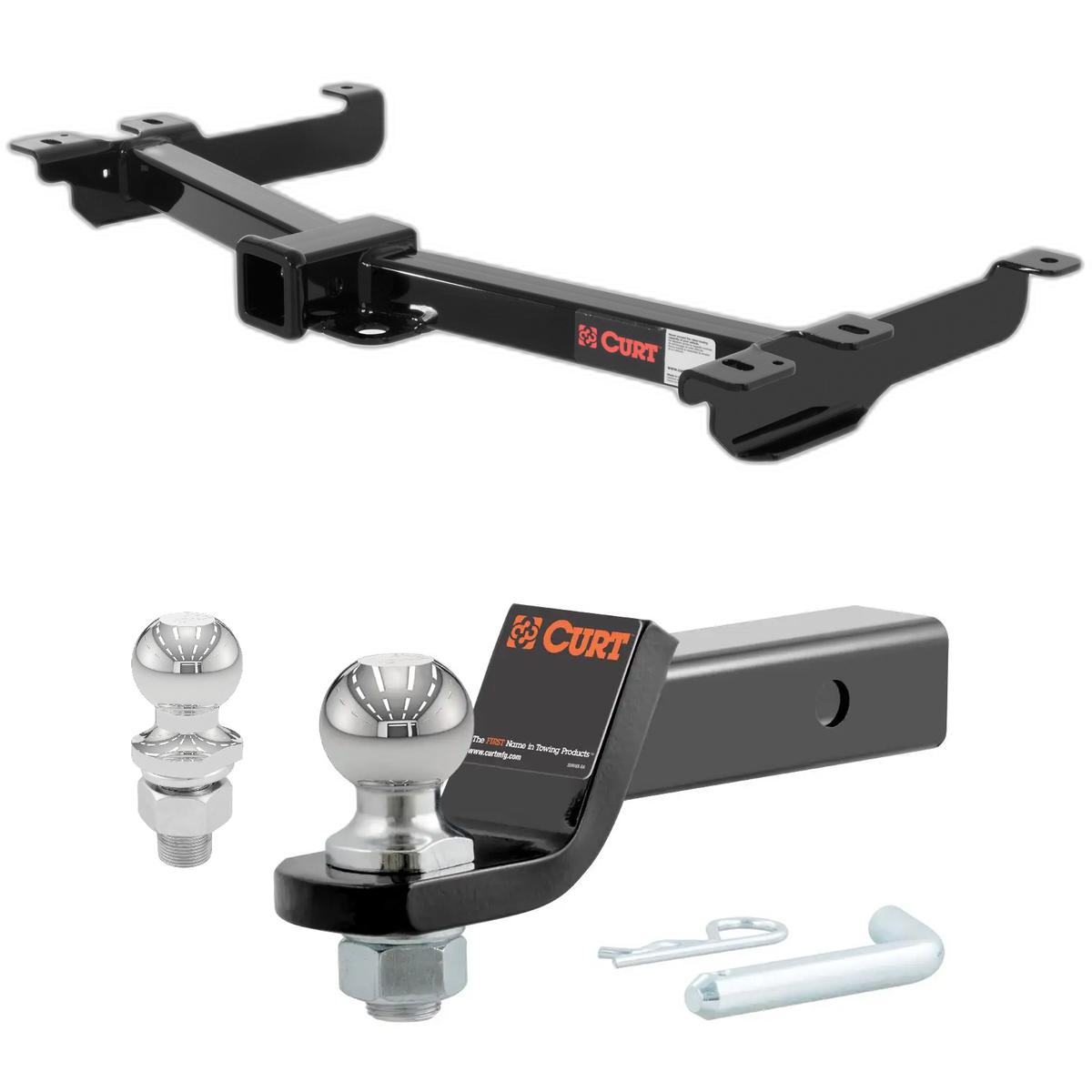

This fits: 1988-1999 GMC C1500 With Roll Pan Bumper

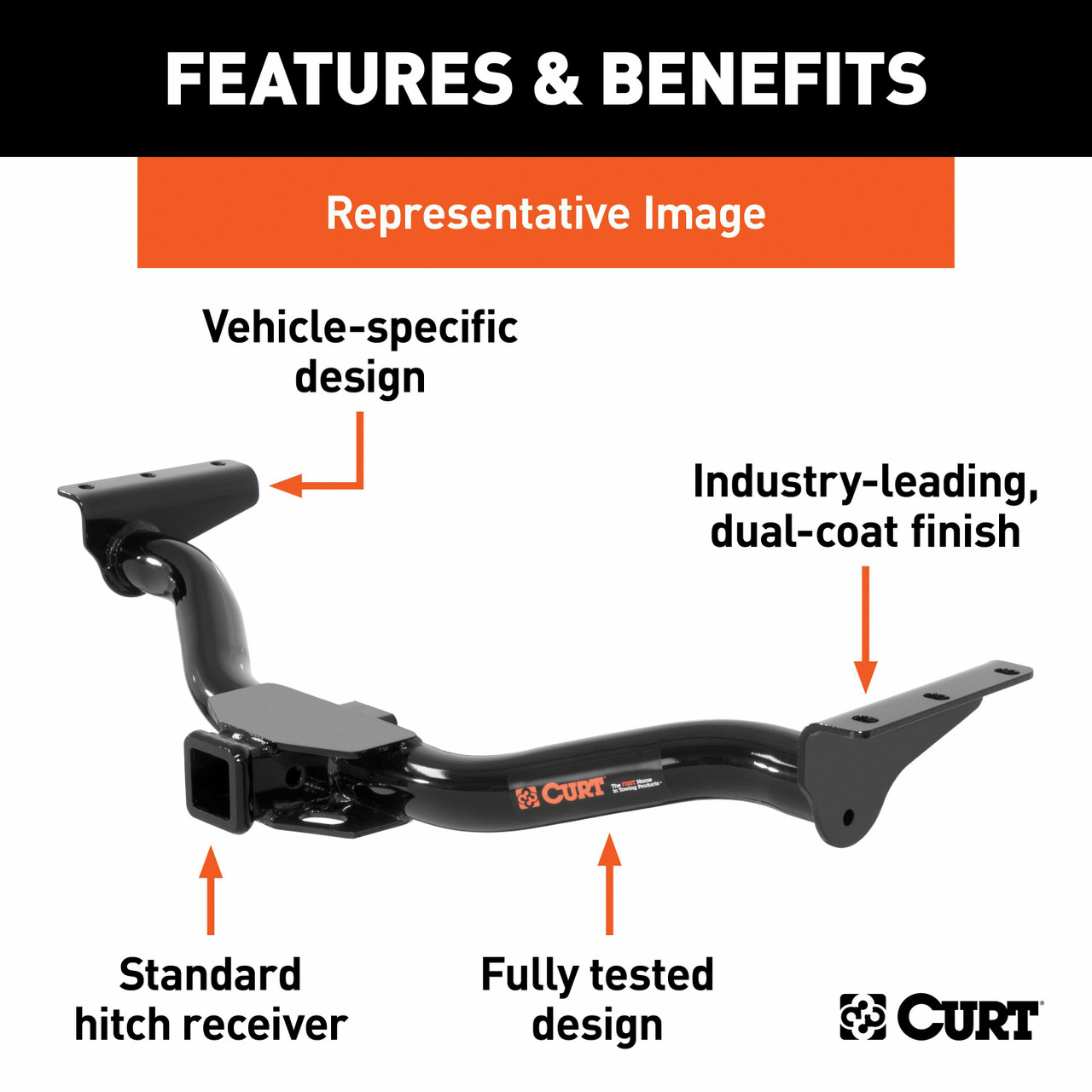

Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Chevy C1500 or K1500 and GMC C1500 or K1500 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 500 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 8,000 lbs. WD and 800 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware
1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999 GMC C1500 With Roll Pan Bumper Class 3 Trailer Hitch, 2" Receiver, Select Chevrolet, GMC C1500, K1500
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1988 - 1999 | GMC C1500 | With Roll Pan Bumper |
The 1988-1999 GMC C1500 With Roll Pan Bumper CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13942-003) fits the following vehicles: 1988-1999 GMC C1500. Always verify your specific year, make, and model before ordering.
The 1988-1999 GMC C1500 With Roll Pan Bumper CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13942-003) fits 1988-1999 GMC C1500 models. The 1999 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 1988-1999 GMC C1500 With Roll Pan Bumper CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13942-003) is designed to fit the 1988-1999 GMC C1500.
The 1988-1999 GMC C1500 With Roll Pan Bumper CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13942-003) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 13942 is designed for 1988-1998 Chevy/GMC 1500 trucks equipped with a roll pan. If your truck does not have a roll pan, this hitch is not compatible.
No. Curt part number 13942 is specifically designed for 1988-1998 Chevy/GMC 1500 trucks with a roll pan. The installation requires roll pan modification, so the hitch is not compatible with trucks without a roll pan.
The manual lists gross load capacity specifications for both weight-carrying and weight-distribution modes, but the specific values are blank in the document provided. Contact Curt Manufacturing or your dealer for the exact trailer weight and tongue weight capacities. Always verify that your vehicle's towing capacity does not exceed the manufacturer's recommended limit.
Yes. Prior to installation, you must loosen or remove the spare tire. Some vehicles may require an aftermarket spare tire repositioner to retain the spare tire under the vehicle after installation. The manual notes that not all models will have the same spare tire configuration, so check your specific truck.
Yes. Prior to installation, remove the ground wire that is bolted to the bottom of the driver side frame rail. After the hitch is installed, relocate this ground wire to the .281" square hole in the frame bracket using the 1/4-20 carriage bolt and nylon lock nut provided in the kit. Note that some vehicles may not have the ground wire located in this position.
No. The install notes state that no drilling is required. However, roll pan modification is required. The roll pan must be cut in the license plate area to provide access for the drawbar installation.
The roll pan requires cutting in the license plate area to provide access for the drawbar. The manual notes that the license plate must be repositioned when the drawbar is installed. You must obtain vehicle owner approval before beginning the installation.
You will need: a ratchet, one extension, sockets in 7/16", 3/4", and 21mm sizes, and a torque wrench. These tools are necessary to fasten the hitch to the frame and achieve the correct torque specifications.
The kit includes: 6 bolts (1/2-13 UNC, 1-3/4", grade 8, yellow zinc, part 10-10272); 4 spacers (.250 x 1.50 x 2.00" square hole, part CM-SP1); 2 spacers (.250 x 1.00 x 2.00" square hole, part CM-SP12); 1 carriage bolt (part 10-10509); 1 nylon lock hex nut (part 20-00148); and 6 serrated flange nuts (1/2-13 UNC, grade 8, yellow zinc, part 20-00062).
All 1/2-13 fasteners must be torqued to 110 lb. ft.
All 1/4-20 fasteners must be torqued to 12 lb. ft. This includes the carriage bolt and nylon lock nut used to relocate the ground wire to the frame bracket.
1. Loosen or remove the spare tire and remove the ground wire from the driver side frame rail. 2. Loosely fasten the hitch to the frame. 3. Torque all 1/2-13 fasteners to 110 lb. ft. and all 1/4-20 fasteners to 12 lb. ft. 4. Cut the roll pan in the license plate area for drawbar access. 5. Relocate the ground wire to the .281" square hole in the frame bracket using the 1/4-20 carriage bolt and nylon lock nut.
Do not exceed your vehicle manufacturer's recommended towing capacity. While Curt part number 13942 has its own load ratings, your vehicle's manufacturer specifications take precedence. Consult your vehicle owner's manual for the maximum towing capacity for your specific 1988-1998 Chevy/GMC 1500.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify a maintenance interval, so perform this check regularly, especially before towing.
The hitch weight specification is listed in the manual but the value is blank in the document provided. Contact Curt Manufacturing or your dealer for the exact hitch weight.
Curt part number 13942 fits 1988-1998 Chevy/GMC 1500 trucks with a roll pan only.
No drilling is required. Roll pan modification (cutting in the license plate area) is required.
Ratchet, extension, 7/16", 3/4", and 21mm sockets, and a torque wrench.
Torque 1/2-13 fasteners to 110 lb. ft. and 1/4-20 fasteners to 12 lb. ft.
Yes, loosen or remove the spare tire before installation. Some vehicles may require an aftermarket spare tire repositioner.
Do not exceed your vehicle manufacturer's recommended towing capacity. Specific load ratings are listed in the manual but values are blank; contact Curt Manufacturing for details.
