Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 1993-1998 Jeep Grand Cherokee Including Laredo and with Skid Shield
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Jeep Grand Cherokee ZJ (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 500 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 8,000 lbs. WD and 800 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware
1993, 1994, 1995, 1996, 1997, 1998 Jeep Grand Cherokee Including Laredo and with Skid Shield Class 3 Hitch, 2" Receiver, Select Jeep Grand Cherokee ZJ (Concealed Main Body)
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1993 - 1998 | Jeep Grand Cherokee | Including Laredo and with Skid Shield |

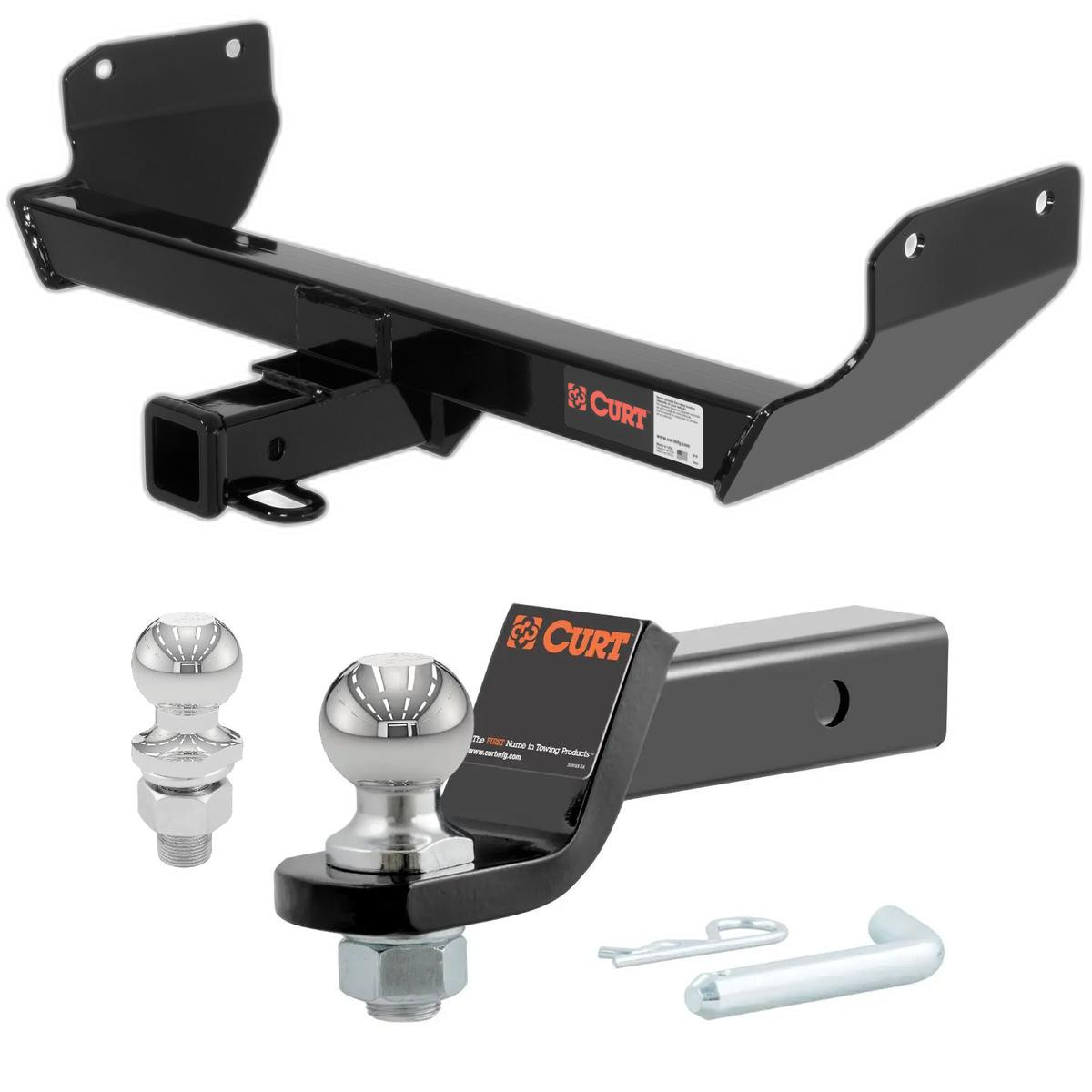

The 1993-1998 Jeep Grand Cherokee Including Laredo and with Skid Shield CURT Class 3 Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13048-001) fits the following vehicles: 1993-1998 Jeep Grand Cherokee. Always verify your specific year, make, and model before ordering.
Yes, the 1993-1998 Jeep Grand Cherokee Including Laredo and with Skid Shield CURT Class 3 Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13048-001) is designed to fit the 1993-1998 Jeep Grand Cherokee.
The 1993-1998 Jeep Grand Cherokee Including Laredo and with Skid Shield CURT Class 3 Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13048-001) fits 1993-1998 Jeep Grand Cherokee models. The 1998 model year is the last year covered by this part number. For newer models, check for an updated version.
The 1993-1998 Jeep Grand Cherokee Including Laredo and with Skid Shield CURT Class 3 Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13048-001) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 13048 (also listed as RRH13048) is designed specifically for 1993–1998 Jeep Grand Cherokee models. No drilling is required for installation.
No. The Curt 13048 requires no drilling. Installation uses two existing frame studs at the end of the frame and an existing weld nut at the forward attachment point.
The kit includes: 6 flat washers (1/2 inch, part 30-00133), 2 hex head cap screws M12×1.75 45 mm (part 10-10459), 4 hex nuts M12×1.75 (part 20-00136), and 6 lock washers (1/2 inch, part 30-00153). These fasteners attach the hitch to existing frame studs and weld nuts.
All fasteners must be torqued to 79 lb-ft. This applies to both the studs at the end of the frame and the forward attachment bolt.
Only if your Jeep Grand Cherokee has a sided fuel tank shield. In that case, remove the nuts and flat washers from the two studs at the end of the frame, and remove the bolt and washer assembly from the forward attachment. These parts will be replaced during installation with the fuel tank shield sandwiched between the frame and side bracket.
1. Raise the hitch into position over the two existing studs at the end of the frame and hand-tighten the lock washers and nuts only. 2. Install the hex head bolt, flat washer, and lock washer into the existing weld nut at the forward hole. 3. Torque all fasteners to 79 lb-ft. If your vehicle has a sided fuel tank shield, remove the original fasteners first and sandwich the shield between the frame and side bracket before installing the new fasteners.
1. Remove the nuts and flat washers from the two studs at the end of the frame and discard them. 2. Remove the bolt and washer assembly from the forward attachment and discard it. 3. Position the fuel tank shield so it will be sandwiched between the frame and side bracket. 4. Install the hex head bolt, flat washer, and lock washer into the existing weld nut at the forward hole. 5. Torque all fasteners to 79 lb-ft.
Do not exceed your vehicle manufacturer's recommended towing capacity. The Curt 13048 has its own gross load capacity ratings for weight-carrying and weight-distribution modes, but your vehicle's limit takes precedence. Consult your Jeep Grand Cherokee owner's manual for the manufacturer's towing capacity.
Periodically check the hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval, so inspect before each towing trip and at regular maintenance intervals.
Curt Manufacturing warrants the product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, Curt may repair or replace it at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation. Curt's liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
Yes, the Curt 13048 is designed for 1993–1998 Jeep Grand Cherokee. No drilling is required.
No drilling is required. The hitch uses two existing frame studs and an existing weld nut.
Torque all fasteners to 79 lb-ft.
The kit includes 6 flat washers (1/2 inch), 2 hex head cap screws (M12×1.75), 4 hex nuts (M12×1.75), and 6 lock washers (1/2 inch).
Only if your Jeep has a sided fuel tank shield. If so, remove the original fasteners; the shield will be sandwiched between the frame and side bracket during installation.
Periodically check that all fasteners are tight and structural components are sound.
