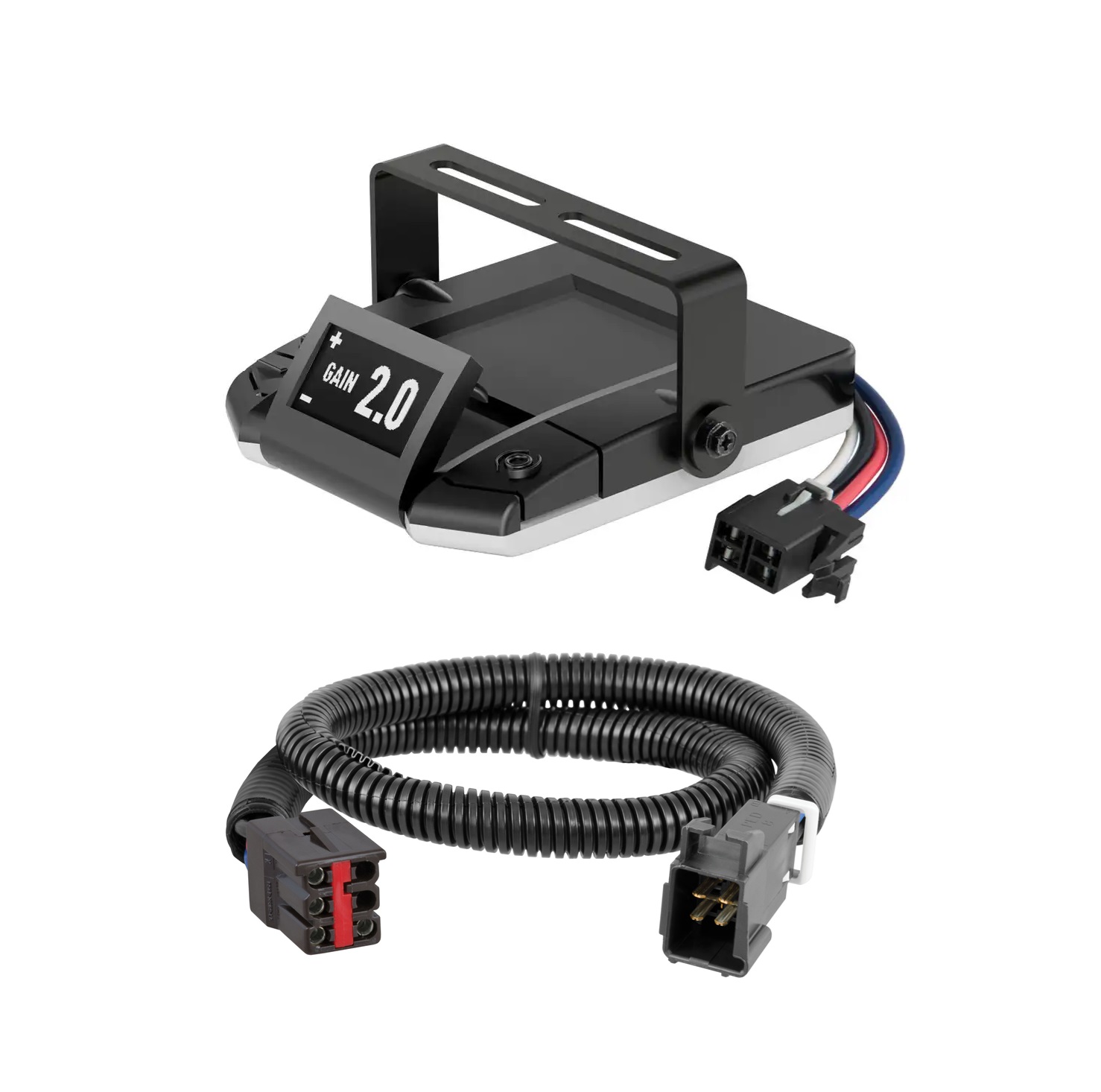

1995-2003 Ford Windstar All CURT Assure Proportional 1-4 Axel Auto Leveling Motion-Sensing Trailer Brake Controller

Name: 1995-2003 Ford Windstar All CURT Assure Proportional 1-4 Axel Auto Leveling Motion-Sensing Trailer Brake Controller
Brand: CURT
SKU: CBC1-132
Price: 185.39 USD
Availability: InStock

Verify Fitment

Select your vehicle to confirm this part fits.

Fits the following vehicles:

Vehicle Specific

1995 - 2003 Ford Windstar
Confirmed to Fit

Ask a Question About This Product

Our in-house experts typically reply within one business day.

Related products

Shop all

2003-2008 Ford E-150 All CURT Assure Proportional 1-4 Axel Auto Leveling Motion-Sensing Trailer Brake ControllerCURT In Stock

2003-2014 Toyota Tundra All CURT Assure Proportional 1-4 Axel Auto Leveling Motion-Sensing Trailer Brake ControllerCURT In Stock

2003-2007 Hummer H2 All CURT Assure Proportional 1-4 Axel Auto Leveling Motion-Sensing Trailer Brake ControllerCURT In Stock

2003-2022 Toyota 4Runner All CURT Assure Proportional 1-4 Axel Auto Leveling Motion-Sensing Trailer Brake ControllerCURT In Stock

2003-2024 Toyota Sequoia All CURT Assure Proportional 1-4 Axel Auto Leveling Motion-Sensing Trailer Brake ControllerCURT In Stock

Year	Make & Model	Notes
1995 - 2003	Ford Windstar	—

This kit is for: 1995-2003 Ford Windstar All

The CURT Assure brake control comes with a pressure-sensitive manual override button, a 1-1/2" wide OLED display and a triple-axis motion-sensing accelerometer, all to empower your adventure and provide smooth, responsive stops every time. The triple-axis accelerometer lays the foundation for this advanced electric brake controller, detecting the inertia of the vehicle and trailer on any grade. This means that whether you are going up or down a hill, the Assure is able to produce the exact amount of brake power needed, compensating for the angle and motion of the vehicle. The accelerometer also responsively adjusts this braking power as the vehicle slows down, putting the least amount of stress possible on your vehicle and trailer. The Assure trailer brake controller also features a high-quality OLED screen, displaying brake activity and providing an interface for the driver to control and monitor the trailer brakes. The display offers a clear picture with its 128 x 64 dot matrix screen, and the display can be tilted up for a clear visibility, whether the brake control is mounted above or below the dash. The manual override of the Assure allows brake pressure to be applied any time and in any amount. This can be used to help slow the vehicle down or correct trailer sway. The override button is pressure sensitive, giving you complete control over the trailer brake power. The CURT Assure can be used with two to eight trailer brakes, and it is compatible with ABS, cruise control, low-voltage systems and PWM systems. It has built-in reverse-polarity and short-circuit protectors, as well as low voltage and trailer disconnect indicators. Like all CURT brake controls, the Assure trailer brake controller installs using one of our vehicle-specific quick plug harnesses. It also comes with mounting hardware for a complete installation and is backed by a limited lifetime warranty.

Plug-and-play install with vehicle-specific quick plug harness Included
Operates 2-8 trailer brakes at a time (1-4 axles)
Built-in reverse-polarity and short-circuit protection
Compatible with low-voltage systems, PWM systems, ABS and cruise control
Assure Proportional Trailer Brake Controller with Dynamic Screen
Pressure-sensitive manual override button for precise braking power
Large, high-quality 1-1/2" OLED screen displays full text readout
Sleek, low-profile design with tactile buttons
Triple-axis, motion-sensing accelerometer for highly responsive, smooth stops
Third axis provides dynamic power adjustments when going up or down a hill
Display can be tilted for different mounting options, above or below the dash
Diagnostic alerts notify of potential problems like low voltage or disconnect
User-selectable power output and trailer brake light activation
Automatic leveling and calibration eliminate setup requirements
Mounts at various angles, above or below the dash, to increase usability
Nine levels of sensitivity adjustment for varying loads or driving conditions
Auto sleep mode prevents battery drain

Specifications

Shipping Weight	2.000
Axles	1-4
Mount Angles	Various
Warranty	Limited Lifetime
Display	OLED Screen
Finish	Black
Activation	Tri-axis inertia
Level Adjust	Auto
