Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 1996-2025 Chevrolet Express 2500 All
When we came to the limits of towing capacity, we wanted to know what else was out there. What could we discover off the beaten path? So, we kept going. CURT class 5 Xtra Duty hitches begin a class of their own, beyond class 4 and beyond anything the standards dictate. They are designed for the hard road where only full-size pickup trucks, vans and SUVs dare to tread. They are capable of pulling almost any heavy-duty trailer, including toy haulers, dump trailers, logging trailers, small yacht trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular Xtra Duty class 5 trailer hitch offers a gross trailer weight capacity of 16,000 lbs. and an extra-high tongue weight capacity of 2,400 lbs. It features a 2" x 2" receiver tube opening to accept a ball mount or hitch-mounted accessory, such as a cargo carrier or winch mount. It is designed to be a custom-fit trailer hitch for certain years of the Chevy Express 1500, 2500 or 3500 and GMC Savana 1500, 2500 or 3500 (to verify compatibility with your vehicle, see application info). For a little extra towing power and stability, this class 5 hitch can also be used in combination with a weight distributing hitch. It is rated for 17,000 lbs. WD and 2,400 lbs. WDTW. In our drive to create a more powerful hitch, CURT has not neglected the finer details. Our class 5 trailer hitches are welded with precision and go through multiple stages of cleaning to create a smooth surface that is ready to accept our co-cured finish. To protect them from corrosion, chipping and UV damage, these hitches are immersed in a liquid A-coat and then finished in a high-quality black carbide powder coat. They come with grade-8 mounting hardware for solid installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes strong, grade-8 installation hardware
1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025 Chevrolet Express 2500 All Xtra Duty Class 5 Trailer Hitch, 2" Receiver, Select Chevy Express, GMC Savana
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1996 - 2025 | Chevrolet Express 2500 | — |

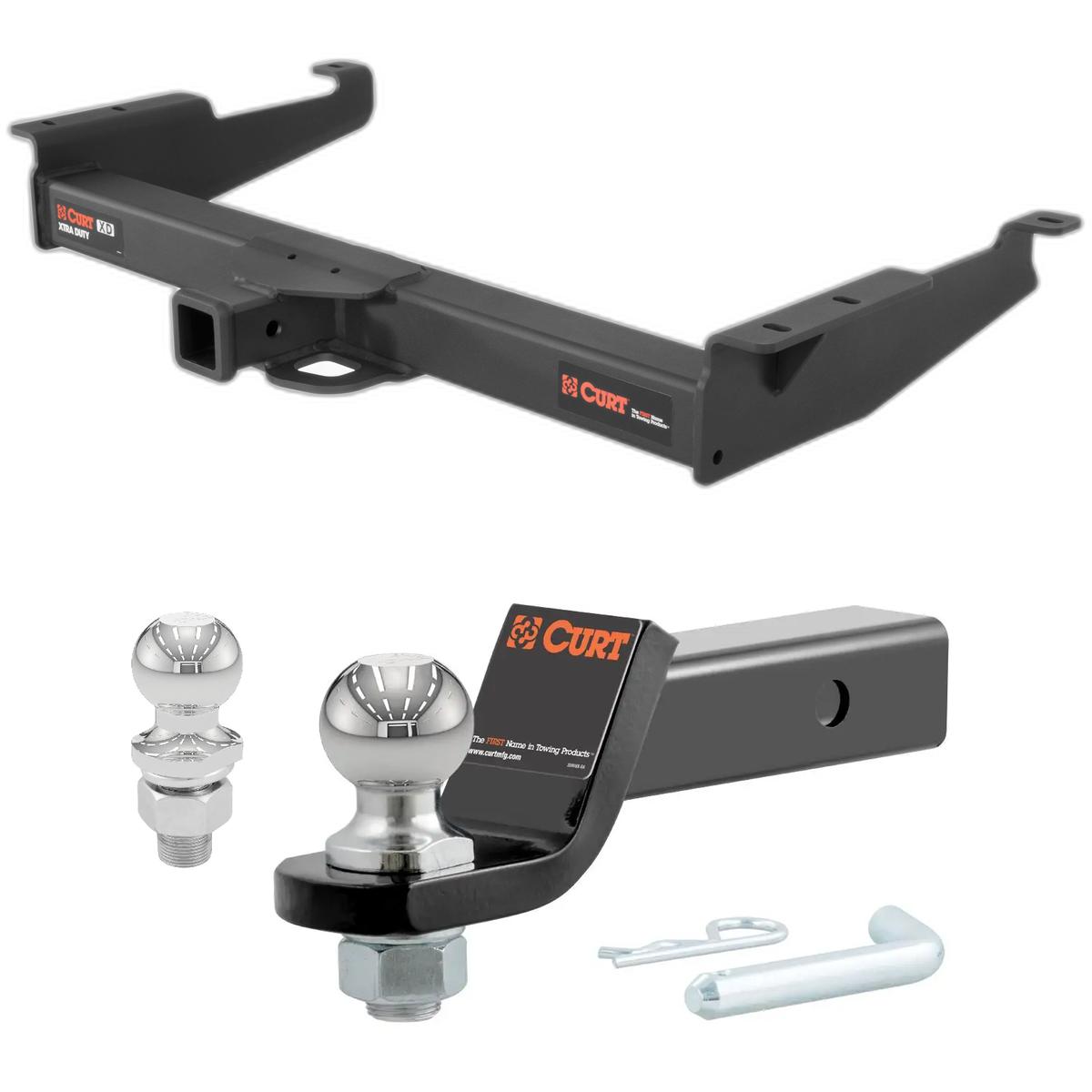

The 1996-2025 Chevrolet Express 2500 All Xtra Duty CURT Class 5 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-15320-002) fits 1996-2025 Chevrolet Express 2500 models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 1996-2025 Chevrolet Express 2500 All Xtra Duty CURT Class 5 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-15320-002) is designed to fit the 1996-2025 Chevrolet Express 2500.
The 1996-2025 Chevrolet Express 2500 All Xtra Duty CURT Class 5 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-15320-002) fits the following vehicles: 1996-2025 Chevrolet Express 2500. Always verify your specific year, make, and model before ordering.
The 1996-2025 Chevrolet Express 2500 All Xtra Duty CURT Class 5 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-15320-002) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The hitch weight is 40 lbs.
Yes, the Curt 15320 is designed for Chevrolet Express and GMC Savana vehicles.
You will need a ratchet, 3/4" and 7/8" sockets, and a torque wrench.
No, drilling is not required. The hitch uses existing access holes in the frame rails.
The kit includes: two 9/16"-12 UNC Grade 8 bolts (1-1/2" long), two 9/16" serrated flange nuts, four 1/2"-13 UNC Grade 8 bolts (1-1/2" long), four 1/2" serrated flange nuts, two 9/16" square hole spacers (0.313 x 1.00 x 2.50"), four 1/2" square hole spacers (0.250 x 1.00 x 2.50"), one 9/16" fishwire, and two 1/2" fishwires.
1. Install all hardware and spacers through the frame rail access holes, using fishwires if necessary to pull hardware through. Ensure 9/16" hardware is used in the vehicle's rearmost mounting locations. 2. Raise the hitch into position and attach with hex flange nuts. 3. Torque all 1/2" hardware to 110 ft-lbs and all 9/16" hardware to 150 ft-lbs.
All 1/2" hardware must be torqued to 110 ft-lbs.
All 9/16" hardware must be torqued to 150 ft-lbs.
Professional installation typically takes 40 minutes. DIY installation for a novice typically takes 54 minutes.
Yes, fishwire may be used to help pull hardware through the holes in the frame rails. The kit includes one 9/16" fishwire and two 1/2" fishwires for this purpose.
The 9/16" hardware must be used in the vehicle's rearmost mounting locations.
The manual does not specify the towing capacity. You must not exceed your vehicle manufacturer's recommended towing capacity. Contact Curt Manufacturing technical support at 1-877-287-8634 for capacity information.
Periodically check that all fasteners are tight and that all structural components are sound.
The manual recommends periodically checking the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. No specific interval is provided; consult your vehicle owner's manual or contact Curt Manufacturing technical support at 1-877-287-8634 for recommended inspection intervals.
Yes, the Curt 15320 is designed for Chevrolet Express and GMC Savana vehicles.
No drilling is required. The hitch uses existing frame rail access holes.
You need a ratchet, 3/4" and 7/8" sockets, and a torque wrench.
Torque all 1/2" hardware to 110 ft-lbs and all 9/16" hardware to 150 ft-lbs.
The hitch weight is 40 lbs.
Professional installation takes approximately 40 minutes; DIY installation for a novice takes approximately 54 minutes.
