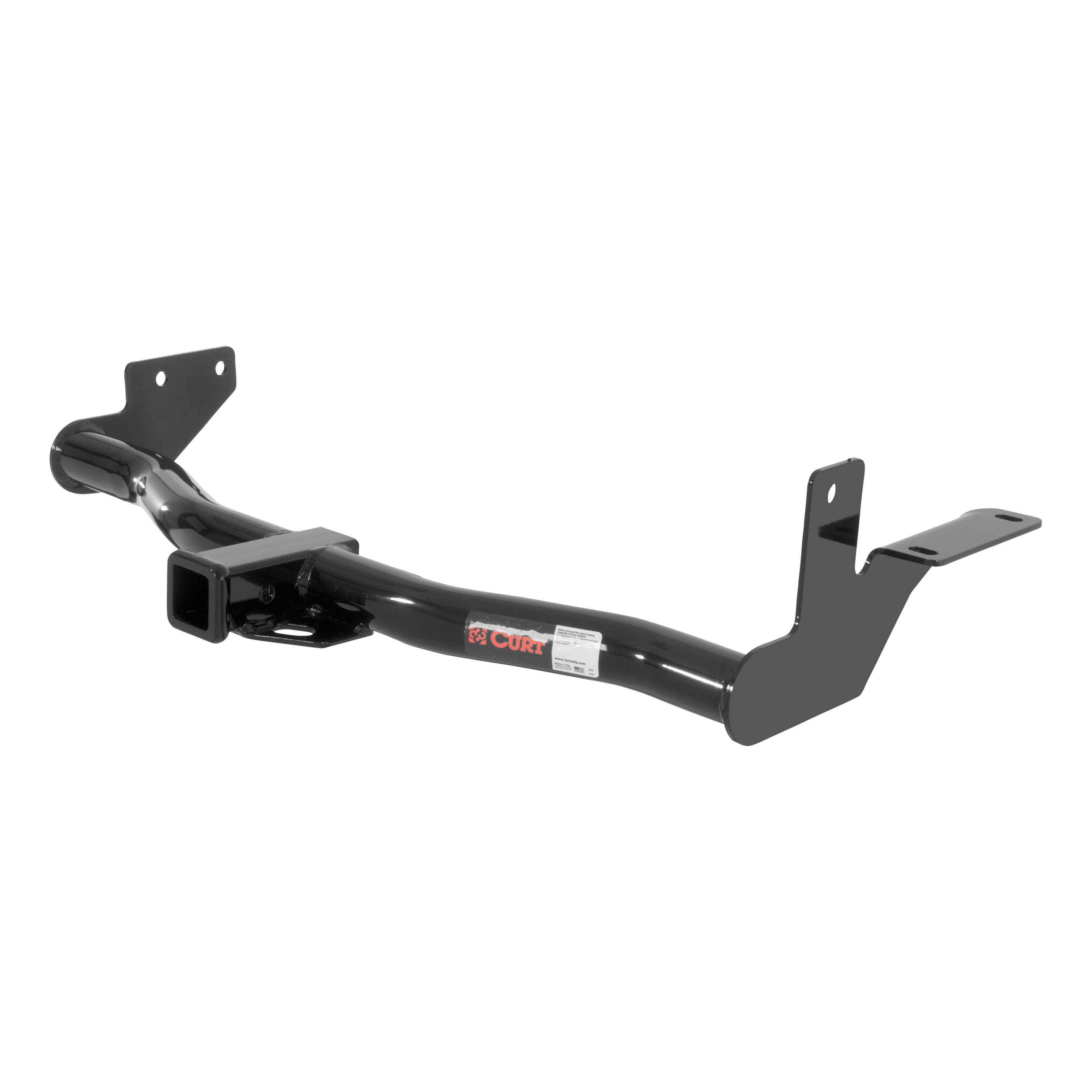

Complete CURT Class 3 2" trailer hitch and 7-way custom wiring kit engineered for the 1998 - 2002 Passport With under-vehicle spare. Vehicle-specific fit, plug-and-play installation, supports trailers with electric brakes, auxiliary 12V power and reverse lights.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Honda Passport, Isuzu Axiom and Isuzu Rodeo (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 400 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 6,000 lbs. WD and 600 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
CURT custom wiring connectors and harnesses are the easiest way to outfit your vehicle with a trailer wiring connection for towing. Each one is custom-fitted to work with a specific make and model. This particular 7-way RV blade socket is designed to be a custom wiring option for certain years of the Honda Pilot and Passport (see application info to verify fitment). It provides a universal trailer connection for the tail lights, brake lights, reverse lights, turn signals, electronic trailer brakes and auxiliary power. 7prong taillight wiring can be used as a replacement or new wiring and is typically used for towing fifth wheel and gooseneck trailers. This 7 way female outlet comes with all necessary hardware to establish a solid connection, as well as a dust cover to keep the connector socket clean when not in use. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this factory tow package socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation. Instead of cutting, splicing and soldering into your vehicle's wiring system, the custom wiring connector uses a single OEM compatible plug and instantly provides a standard vehicle-to-trailer hitch wiring connection. To ensure long-lasting reliability, all CURT custom tconnector wiring is thoroughly tested for optimal functionality.
Experts available to answer your questions
Call 888-634-9494The Curt 13222 receiver hitch fits 1998-2004 Isuzu Rodeo models, with one exception: it will not fit models equipped with the 3.5L engine. If your Rodeo has a 3.5L engine, this hitch is not compatible.
Yes, the Curt 13222 is compatible with 2002-2003 Isuzu Axiom models.
Yes, the Curt 13222 is compatible with 1998-2002 Honda Passport models, except those equipped with the 3.5L engine.
The Curt 13222 has two capacity ratings depending on how it is used. When used as a weight carrying hitch: 4000 lbs maximum trailer weight and 400 lbs maximum tongue weight. When used as a weight distribution hitch: 6000 lbs maximum trailer weight and 600 lbs maximum tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
The hitch weight is 30 lbs.
The Curt 13222 includes: one 1/2" fishwire carriage bolt, six 5/8" flat washers, three 5/8" hex head cap screws (HHCS) grade 8, two 1/2" S-con washers, two M12x1.25 hex head cap screws class 10.9, one 1/2-13 UNC serrated flange nut grade 8, one 0.250 x 1.50 x 2.00" square hole spacer, one 1/2-13 UNC carriage bolt grade 8, and three 5/8-11 UNC serrated flange nuts grade 8.
No, drilling is not required. The Curt 13222 uses existing weldnuts in the vehicle frame on the passenger side and existing slots in the tow hook mounting pad on the driver side.
The manual does not specify which tools are required for installation. Contact Curt Manufacturing or your installer to confirm the tools needed.
Position the hitch on the vehicle as shown in the diagram, aligning the holes in the hitch with the existing weldnuts in the vehicle frame on the passenger side and the slots in the tow hook mounting pad on the driver side. Loosely install the hex bolts before tightening.
The fishwire carriage bolt and spacer are installed through the end of the frame on the passenger side. This fastener helps secure the hitch at that mounting point.
Tighten fasteners in this order: 1) fasteners on the driver side, 2) fastener on the side of the frame on the passenger side, 3) fasteners on the bottom of the frame on the passenger side last. This sequence ensures proper alignment and seating.
Use two 5/8" flat washers for spacing between the hitch and tow hook mounting pad on the driver side.
Torque specifications for the Curt 13222 are: M12 fasteners to 86 lb-ft, 1/2" fasteners to 110 lb-ft, and 5/8" fasteners to 210 lb-ft.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This helps maintain safe operation and prevent loosening due to vibration and use.
Do not exceed your vehicle manufacturer's recommended towing capacity. While the Curt 13222 has rated capacities of 4000 lbs (weight carrying) or 6000 lbs (weight distribution) for trailer weight, your vehicle's manufacturer may specify a lower limit. Always follow the vehicle manufacturer's guidance.
The Curt 13222 fits 1998-2004 Isuzu Rodeo, 2002-2003 Isuzu Axiom, and 1998-2002 Honda Passport, except models with 3.5L engines.
No, drilling is not required. The hitch uses existing weldnuts in the vehicle frame and existing slots in the tow hook mounting pad.
Torque M12 fasteners to 86 lb-ft, 1/2" fasteners to 110 lb-ft, and 5/8" fasteners to 210 lb-ft.
Weight carrying: 4000 lbs trailer, 400 lbs tongue. Weight distribution: 6000 lbs trailer, 600 lbs tongue. Do not exceed your vehicle manufacturer's recommended capacity.
The estimated installation time is 30 minutes.
Yes, CURT part 56421 is designed for both Honda Pilot and Honda Passport SUVs. However, the installation procedure differs between the two vehicles. Honda Pilot installation follows steps 2A through 10A, while Honda Passport installation follows steps 2B through 7B. Both vehicles then proceed to the common steps 11 onwards.
The product has the following electrical ratings: signal circuits are rated at 3.0-amps per side, and tail/running circuits are rated at 6.0-amps total. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Required tools are: 8mm socket, ratchet, socket extension, cutting tool, panel trim removal tool, large Phillips screwdriver, small flat head screwdriver, and impact screwdriver with large Phillips head. Proper tools will improve the quality of installation and reduce the time required.
Yes. Step 1 requires you to locate the vehicle battery using the owner's manual, then disconnect the negative battery terminal. Fasten this wire down and away from the battery when completing the installation. The powered converter lead instruction sheet also specifies: disconnect the negative battery cable before wiring the power wire.
The installation difficulty level is rated as Moderate. The manual recommends reading all instructions thoroughly before beginning and following all steps to ensure the product functions properly.
Drilling may be required for the ground connection. Step 13 instructs you to locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw if no existing point is available. The area should be free of rust, dirt, and paint. A caution warns to check for miscellaneous items hidden behind or under any surface before drilling to avoid damage and personal injury.
Three fuses are required: one 10-amp (red) inline fuse installed in the fuse holder on the factory harness during the initial wiring steps, and two additional fuses installed in the engine compartment fuse panel. In Step 14, install two 20-amp (yellow) fuses in locations three and eleven, and one 30-amp (pink) fuse in location two of the fuse panel next to the brake fluid reservoir. The battery connection must be fuse-protected with a 10-amp max.
The power wire is 12 GA (12 gauge) or larger. This wire routes from the vehicle battery to the converter system. The powered converter lead instruction sheet specifies that the 12 GA wire should be routed to the vehicle battery location, taking care to avoid pinch points and hot or rotating components.
The converter output wires are: Green for right turn, Red for brake, Yellow for left turn, and Brown for taillight. These wires connect to the trailer lighting system.
The black converter box is mounted using the provided double-sided tape. Step 13 instructs you to locate a flat spot on the floor board of the vehicle and adhere the converter box using this tape. The converter should be positioned near the grounding point.
Step 12 instructs you to use a cutting tool to carefully cut the grommet, creating a large enough opening for the custom wiring harness to pass through while allowing the grommet to be pushed back into place in the vehicle body. After routing the harness, use the provided tube of silicone to seal around the custom wiring harness.
If the backup sensor housing is already connected to a harness, you will need to disconnect it. After installing the custom wiring harness to the vehicle wiring harness, reconnect the backup sensor to the single wire connector on the custom wiring harness. This allows the backup sensor to continue functioning. Make sure all connectors are fully inserted with locking tabs in place.
Routing varies by vehicle. For Honda Pilot: the white connector end routes between the vehicle floor pan and the driver-side wall, in front of the jack mount and behind the access panel (Step 8A). The round housing feeds down through the grommet under the third row seat, with the USCAR plug fitting through the oval opening sideways (Step 10A). For Honda Passport: the harness runs under the carpet and through the grommet hole, with the USCAR plug fitting through the oval opening sideways (Step 7B). For both vehicles, the wiring routes in the center of the vehicle (above the spare tire on the Pilot) and is secured with zip ties as needed before plugging into the 7-way socket connector (Step 11).
The converter system is designed for use only on 12-volt negative ground systems. The powered converter lead instruction sheet explicitly states: "This converter system is to be used only on 12 volt negative ground systems."
When passing the power wire through sheet metal, use an existing grommet, add a grommet, or use silicone to protect the power wire from sharp edges. The powered converter lead instruction sheet warns: "When passing the power wire through sheet metal, use an existing grommet, add a grommet or use silicone to protect the power wire from sharp edges."
Do not lay tools across the positive terminal (typically labeled with red covers or a red "+" symbol). This can cause a ground to short, causing sparks and/or electrical shocks. Additionally, disconnect the negative battery cable before wiring the power wire to avoid accidental short circuits.
After completing all installation steps and reconnecting the negative battery terminal, verify that the harness is functioning by attaching the battery and testing with a test light, 4-flat tester, or a functioning trailer. The manual states: "Once the 12 volt power wire is connected to the harness verify that the harness is functioning by attaching the battery and testing with a test light, 4-flat tester, or a functioning trailer."
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. This helps maintain proper function and safety of the wiring harness.
If lights do not function, perform the following checks: (1) Verify the inline fuse is good. (2) Check the grounding location using a test light by attaching the clip end to the ground location and using the probe end on the power wire from the battery. (3) Make sure the surface around the ring terminal is raw or bare metal, free of rust, dirt, and paint. Poor grounding is a common cause of non-functioning lights.
Yes, CURT 56421 is designed for both Honda Pilot and Honda Passport. Installation procedures differ between the two vehicles, but both are fully supported.
You need: 8mm socket, ratchet, socket extension, cutting tool, panel trim removal tool, large Phillips screwdriver, small flat head screwdriver, and impact screwdriver with large Phillips head.
Yes, disconnect the negative battery terminal before beginning installation. Fasten the wire down and away from the battery.
Drilling may be required for the ground connection. You may need to drill a 3/32" pilot hole for the ground screw if no existing mounting point is available. Check for hidden items before drilling.
Install one 10-amp (red) inline fuse in the factory harness, then install two 20-amp (yellow) fuses and one 30-amp (pink) fuse in the engine compartment fuse panel locations 3, 11, and 2 respectively.
Signal circuits: 3.0-amps per side. Tail/running circuits: 6.0-amps total. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
CURT 56421 is designed for 12-volt negative ground systems only.
Test with a test light, 4-flat tester, or a functioning trailer after reconnecting the battery and completing all installation steps.
Possible causes include: (1) a faulty inline fuse, (2) poor grounding connection, or (3) corroded or painted surface around the ring terminal. Check the inline fuse first. Then use a test light to verify the grounding location by attaching the clip end to the ground location and the probe end to the power wire from the battery. Ensure the surface around the ring terminal is raw or bare metal, free of rust, dirt, and paint.
