Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 1998-2003 Isuzu Rodeo With Under-Vehicle Spare
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Honda Passport, Isuzu Axiom and Isuzu Rodeo (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 400 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 6,000 lbs. WD and 600 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes installation hardware

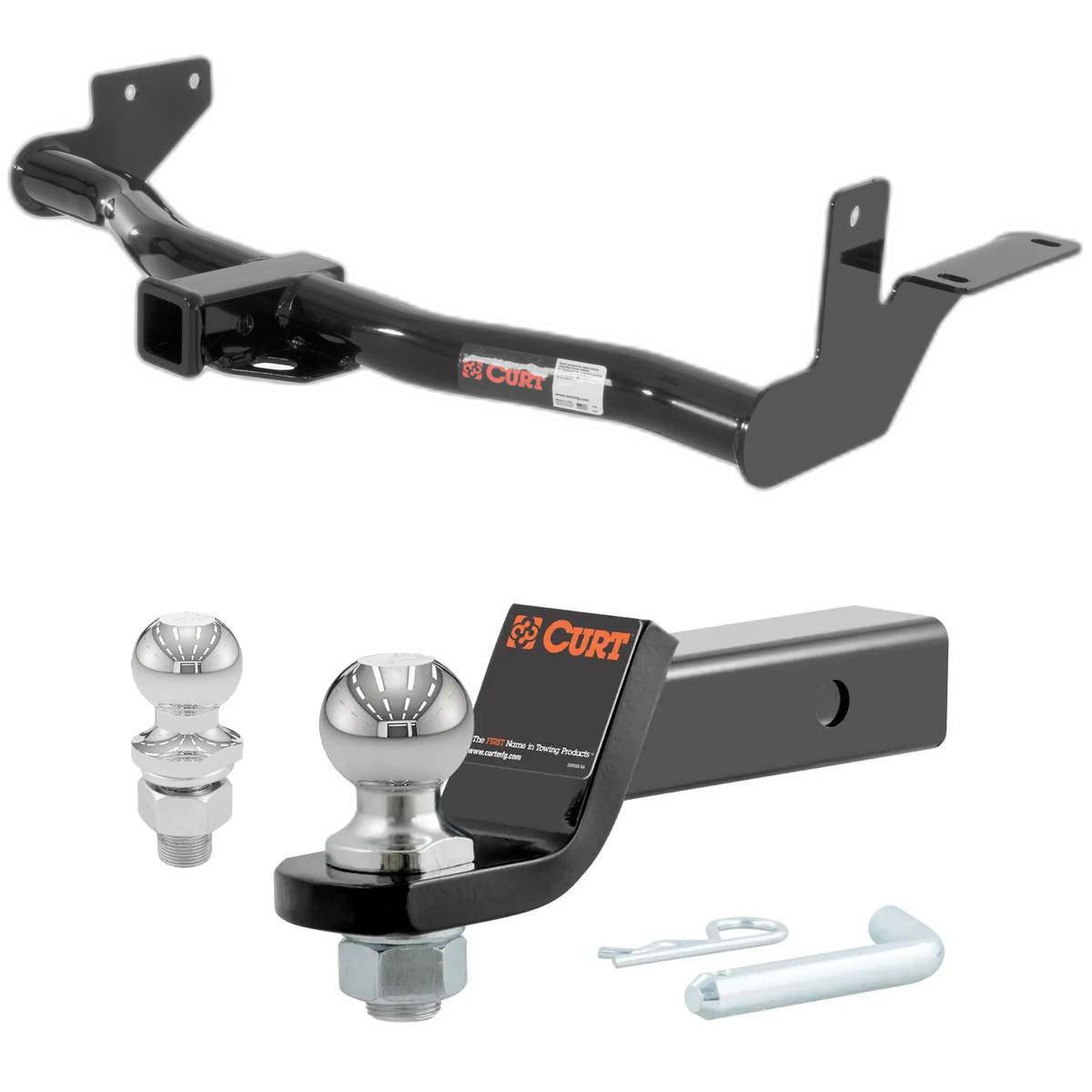

1998, 1999, 2000, 2001, 2002, 2003 Isuzu Rodeo With Under-Vehicle Spare Class 3 Trailer Hitch, 2" Receiver, Select Honda Passport, Isuzu Axiom, Rodeo
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1998 - 2003 | Isuzu Rodeo | With Under: Vehicle Spare |
The 1998-2003 Isuzu Rodeo With Under-Vehicle Spare CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13222-002) fits the following vehicles: 1998-2003 Isuzu Rodeo. Always verify your specific year, make, and model before ordering.
Yes, the 1998-2003 Isuzu Rodeo With Under-Vehicle Spare CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13222-002) is designed to fit the 1998-2003 Isuzu Rodeo.
The 1998-2003 Isuzu Rodeo With Under-Vehicle Spare CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13222-002) fits 1998-2003 Isuzu Rodeo models. The 2003 model year is the last year covered by this part number. For newer models, check for an updated version.
The 1998-2003 Isuzu Rodeo With Under-Vehicle Spare CURT Class 3 Trailer Hitch, 2" Receiver + 2" Ball + 1-7/8" Ball Kit (Part #CHD-13222-002) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The Curt 13222 receiver hitch fits 1998-2004 Isuzu Rodeo models, with one exception: it will not fit models equipped with the 3.5L engine. If your Rodeo has a 3.5L engine, this hitch is not compatible.
Yes, the Curt 13222 is compatible with 2002-2003 Isuzu Axiom models.
Yes, the Curt 13222 is compatible with 1998-2002 Honda Passport models, except those equipped with the 3.5L engine.
The Curt 13222 has two capacity ratings depending on how it is used. When used as a weight carrying hitch: 4000 lbs maximum trailer weight and 400 lbs maximum tongue weight. When used as a weight distribution hitch: 6000 lbs maximum trailer weight and 600 lbs maximum tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
The hitch weight is 30 lbs.
The Curt 13222 includes: one 1/2" fishwire carriage bolt, six 5/8" flat washers, three 5/8" hex head cap screws (HHCS) grade 8, two 1/2" S-con washers, two M12x1.25 hex head cap screws class 10.9, one 1/2-13 UNC serrated flange nut grade 8, one 0.250 x 1.50 x 2.00" square hole spacer, one 1/2-13 UNC carriage bolt grade 8, and three 5/8-11 UNC serrated flange nuts grade 8.
No, drilling is not required. The Curt 13222 uses existing weldnuts in the vehicle frame on the passenger side and existing slots in the tow hook mounting pad on the driver side.
The manual does not specify which tools are required for installation. Contact Curt Manufacturing or your installer to confirm the tools needed.
Position the hitch on the vehicle as shown in the diagram, aligning the holes in the hitch with the existing weldnuts in the vehicle frame on the passenger side and the slots in the tow hook mounting pad on the driver side. Loosely install the hex bolts before tightening.
The fishwire carriage bolt and spacer are installed through the end of the frame on the passenger side. This fastener helps secure the hitch at that mounting point.
Tighten fasteners in this order: 1) fasteners on the driver side, 2) fastener on the side of the frame on the passenger side, 3) fasteners on the bottom of the frame on the passenger side last. This sequence ensures proper alignment and seating.
Use two 5/8" flat washers for spacing between the hitch and tow hook mounting pad on the driver side.
Torque specifications for the Curt 13222 are: M12 fasteners to 86 lb-ft, 1/2" fasteners to 110 lb-ft, and 5/8" fasteners to 210 lb-ft.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This helps maintain safe operation and prevent loosening due to vibration and use.
Do not exceed your vehicle manufacturer's recommended towing capacity. While the Curt 13222 has rated capacities of 4000 lbs (weight carrying) or 6000 lbs (weight distribution) for trailer weight, your vehicle's manufacturer may specify a lower limit. Always follow the vehicle manufacturer's guidance.
The Curt 13222 fits 1998-2004 Isuzu Rodeo, 2002-2003 Isuzu Axiom, and 1998-2002 Honda Passport, except models with 3.5L engines.
No, drilling is not required. The hitch uses existing weldnuts in the vehicle frame and existing slots in the tow hook mounting pad.
Torque M12 fasteners to 86 lb-ft, 1/2" fasteners to 110 lb-ft, and 5/8" fasteners to 210 lb-ft.
Weight carrying: 4000 lbs trailer, 400 lbs tongue. Weight distribution: 6000 lbs trailer, 600 lbs tongue. Do not exceed your vehicle manufacturer's recommended capacity.
The estimated installation time is 30 minutes.
