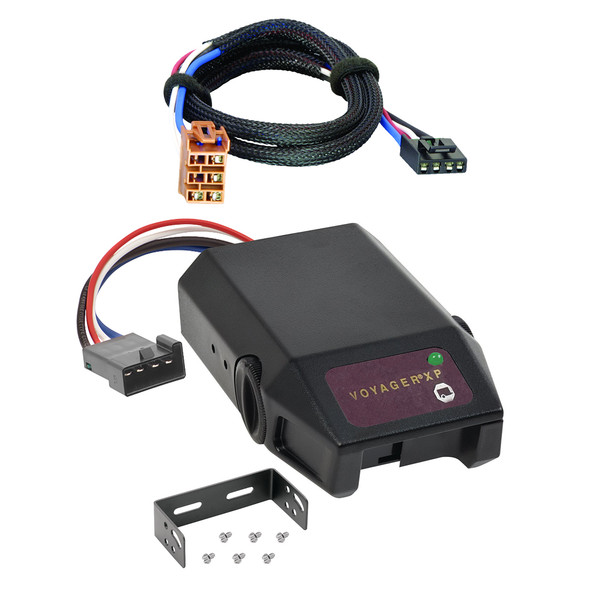

The Raybestos Voyager XP electric brake controller provides secure trailer braking when you need it most. As a tried-and-true proportional brake controller, the Voyager XP utilizes patented braking sensor technology and advanced electronics to provide a smooth braking response in any stopping situation. Its bi-colored LED brake indicator assures a complete connection between your vehicle and trailer, with the color changing gradually from green, which notes a completed circuit, to red to indicate relative braking power. This versatile controller has a compact design, a conveniently located power control knob to adjust settings, and a simple level knob for easy leveling during installation. Plus, the Voyager has a Plug & Play feature that allows for quick and easy connection with your vehicle?s wiring. The Raybestos Voyager XP trailer brake controller works with 1-4 axle trailers, comes with all the mounting hardware needed for installation.
| BRAND: | RAYBESTOS |
| PART NUMBER: | 761-9035 |
| WEIGHT: | 0.7 LBS |
| MATERIAL: | PLASTIC |
| BRAKE CONTROL TYPE: | PROPORTIONAL |
| TRAILER BRAKE WHEEL QUANTITY: | UP TO EIGHT WHEELS |
| LEVELING CAPABLE: | YES |
| BRAKE TYPE: | Electric |
| Diagnostic Capable: | YES |
| DISPLAY TYPE: | LED OUTPUT |
| HYDRAULIC CONNECTIONS: | NO |
| SOLID STATE CONSTRUCTION: | YES |
| CIRCUIT BREAKER PROTECTED: | YES |
| HOUSING COLOR: | BLACK |
| BRACKET INCLUDED: | YES |
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2001 - 2002 | GMC Yukon Denali | w/Amber Turn Signals |

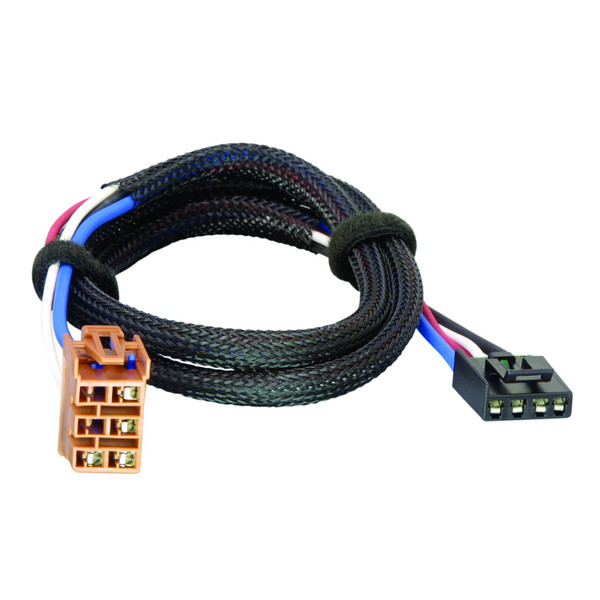

The adapter is designed for vehicles that have an Electric Junction Box located in the interior of the vehicle underneath the dashboard, left of the steering column, just above the carpet. The manual does not specify which vehicle makes, models, or years are compatible. Contact the manufacturer or your vehicle dealer to confirm your vehicle has this junction box before purchasing.
The adapter connects an electric trailer brake control unit to your vehicle's electrical system. It plugs into the mating connection point in the vehicle's Electric Junction Box to supply power and signals for controlling electric trailer brakes.
The Electric Junction Box is located in the interior of the vehicle underneath the dashboard, left of the steering column, just above the carpet. Remove the cover to access the mating connection point for electric trailer brakes, which is located in the top row, second from the left.
Before plugging the adapter into the vehicle, plug the brake control adapter into the mating receptacle on the backside of the brake control unit itself. This must be done before attaching the adapter to the vehicle connector.
Locate the mating connection point in the Electric Junction Box (top row, second from the left) and plug the adapter into it. After plugging in, verify that battery (+) power is supplied to the adapter by carefully probing it with a circuit tester.
After plugging the adapter into the Electric Junction Box, carefully probe it with a circuit tester to verify that battery (+) power is supplied to the adapter.
No. All vehicles come with a location for installation of an Electric Brake Control Adapter, but not all vehicles have complete connections to the battery and/or wiring to the rear of the vehicle for electric trailer brakes. If your vehicle has power supplied for the electric trailer brakes and appropriate wiring to the rear, proceed directly to step 4. If not, you will need an Electric Brake Control Wiring Kit.
You will need an Electric Brake Control Wiring Kit. This kit includes wires to connect the vehicle's brake control feed wire (blue) and battery (+) power supply wire (red) from the Electrical Center Box under the hood to the adapter and rear of the vehicle. An in-line fuse or circuit breaker is also required for this installation.
The Electrical Center Box is located under the hood on the driver's side of the vehicle. You must open the hood and remove the box lid and cover to access the brake control feed wire (blue) and battery (+) supply wire (red).
The vehicle's brake control feed wire is blue. It is located in the Electrical Center Box under the hood on the driver's side.
The vehicle's battery (+) power supply wire is red. It is located in the Electrical Center Box under the hood on the driver's side, in the same location as the blue brake control feed wire.
Yes. To access the brake control feed wire (blue) in the Electrical Center Box, you must temporarily remove the vehicle's support brace. After installing the wiring kit, reinstall the Electrical Center Box cover, lid, and support brace.
Yes. An in-line fuse or circuit breaker is required if you are using an Electric Brake Control Wiring Kit to complete the installation.
After installing the wiring kit, reinstall the Electrical Center Box cover, lid, and support brace. Then plug the brake control adapter into the vehicle's electric brake control harness connector and follow all brake control manufacturer's installation instructions.
Yes. After plugging the brake control adapter into the vehicle's electric brake control harness connector, you must follow all brake control manufacturer's installation instructions. The manufacturer's instructions will cover mounting the unit and performing test procedures.
Do not exceed the lower of the towing manufacturer rating or a maximum of 4 axles with 8 brakes (24 amps). Overloading the circuit can cause fires. Consult your vehicle's owner's manual and instruction sheet for additional information.
Overloading the circuit can cause fires. Do not exceed the lower of the towing manufacturer rating or a maximum of 4 axles with 8 brakes (24 amps).
The adapter fits vehicles with an Electric Junction Box located under the dashboard, left of the steering column. Check your vehicle's owner's manual or contact the manufacturer to confirm compatibility.
If your vehicle lacks complete electric trailer brake wiring, you will need an Electric Brake Control Wiring Kit and an in-line fuse or circuit breaker. You will also need a circuit tester to verify power.
1. Plug the adapter into the brake control unit first. 2. Locate the Electric Junction Box under the dashboard and plug the adapter in. 3. Verify power with a circuit tester. 4. If wiring is incomplete, install a wiring kit. 5. Follow the brake control manufacturer's instructions.
An in-line fuse or circuit breaker is required only if you need to install an Electric Brake Control Wiring Kit due to incomplete vehicle wiring.
Maximum 4 axles with 8 brakes (24 amps), or the lower of your towing manufacturer's rating. Do not exceed this to prevent fire risk.
