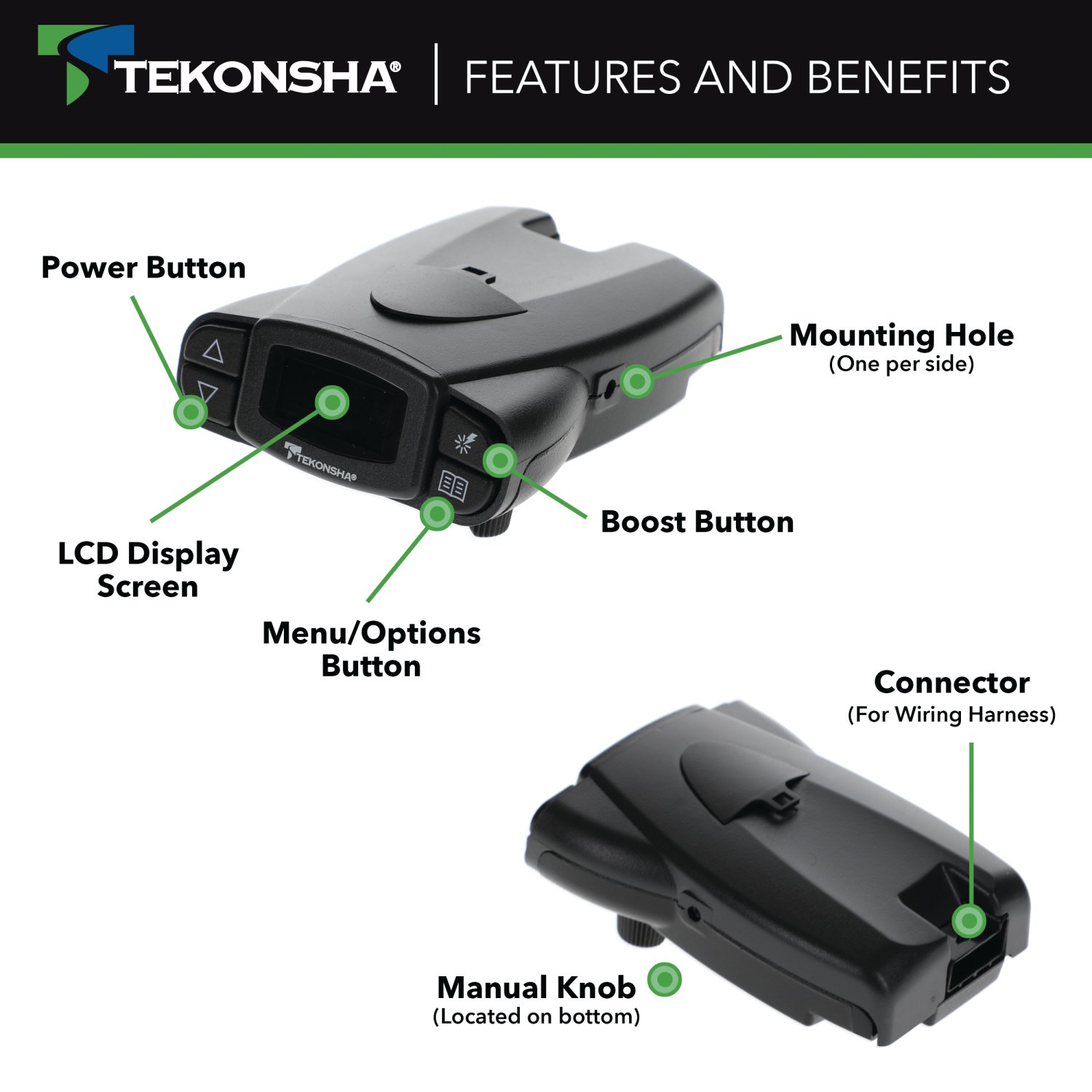

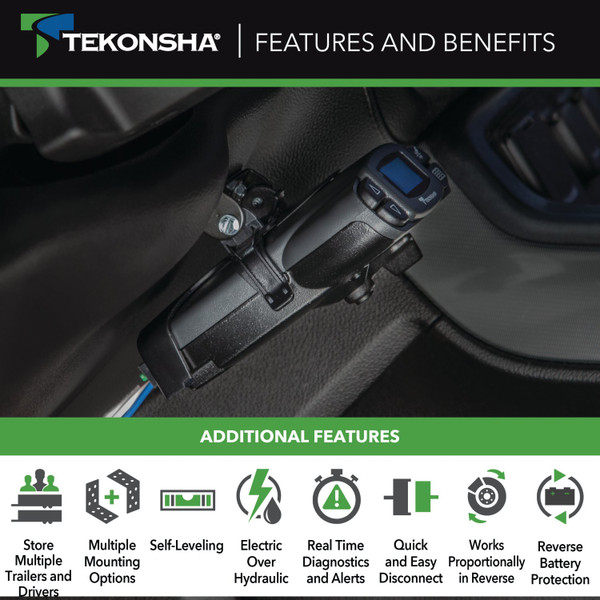

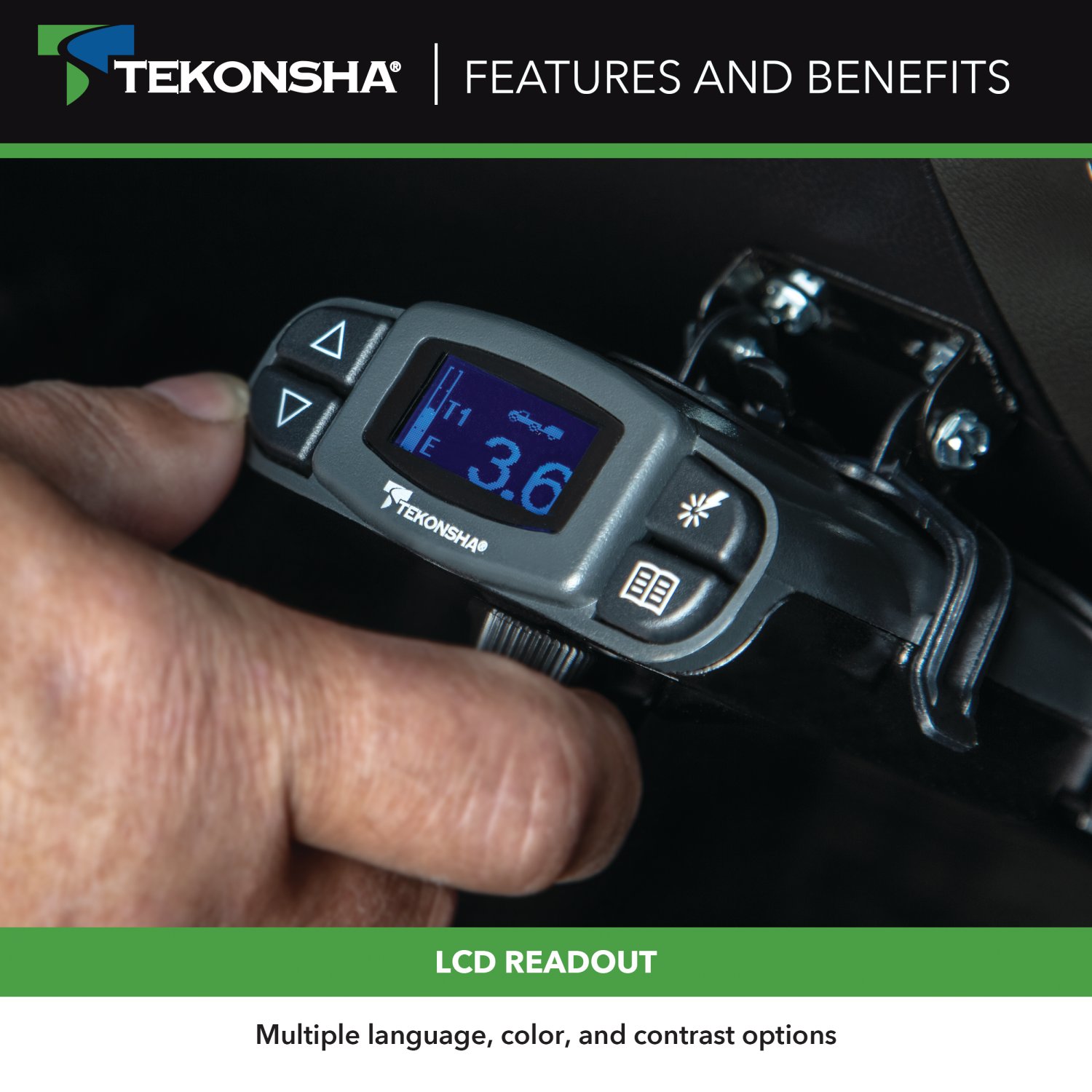

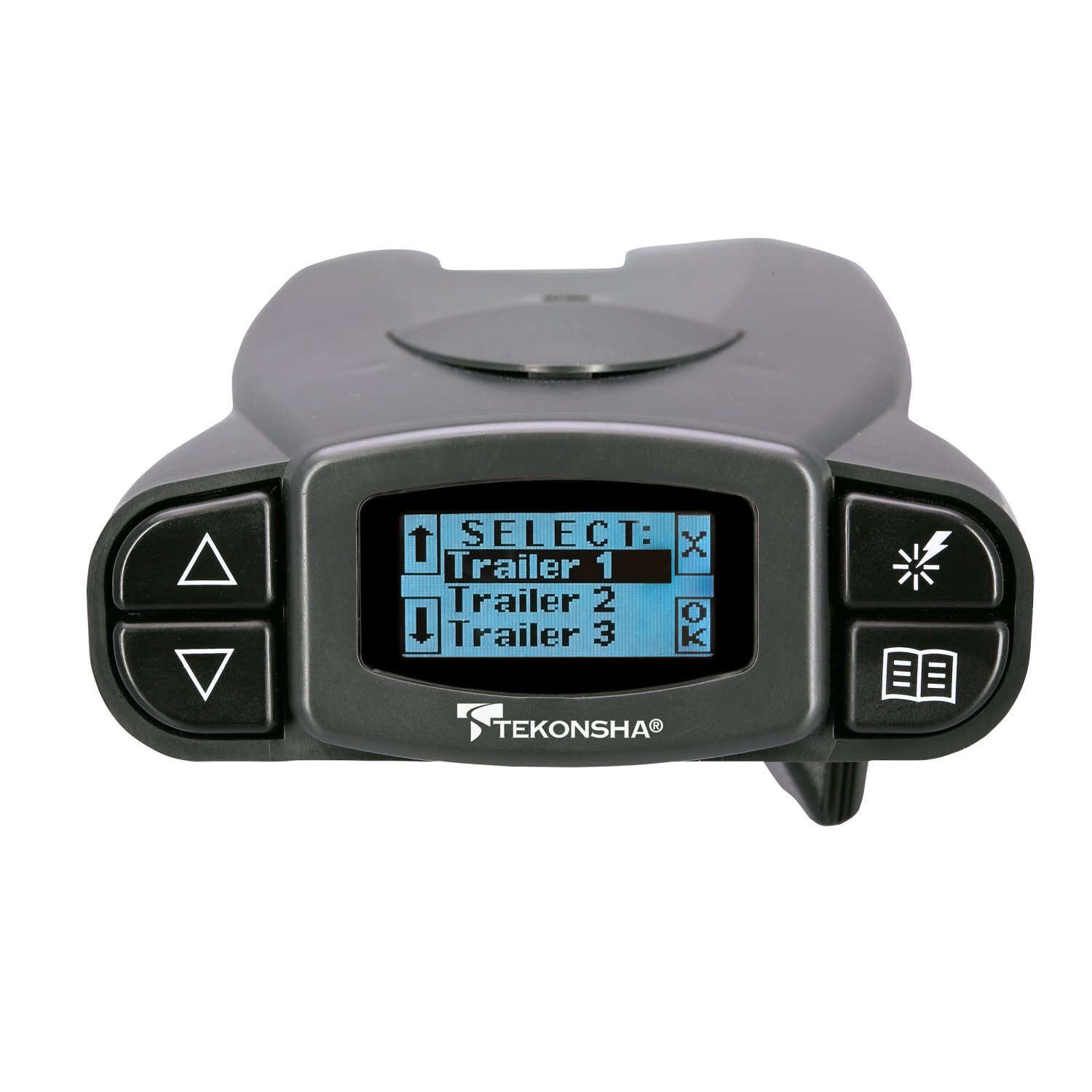

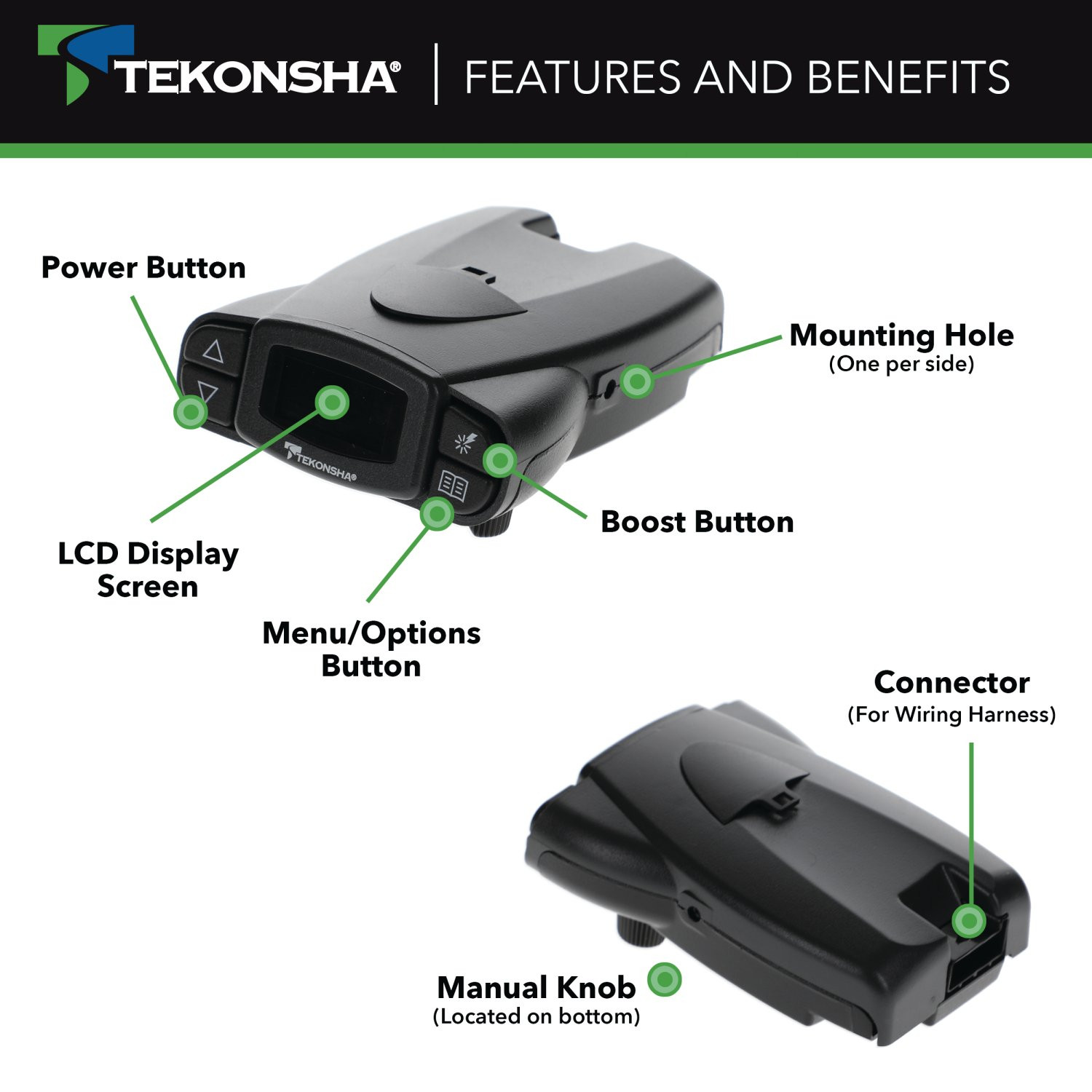

The Tekonsha Prodigy P3 electric trailer brake controller is the epitome of excellence when it comes to trailer braking. As one of the most asked for units on the market, this proportional brake controller utilizes primary sensor technology to provide a smooth braking response in any stopping situation. With up-front push-button controls and a distinct, tri-lingual, multi-color LCD display, this intelligent brake controller makes it easy to adjust trailer braking preferences and monitor braking activity. The Prodigy P3 shares many of the same great features as the Prodigy P2, including a power output button to quickly and easily set your desired braking power, a boost option that lets you apply up to three levels of additional trailer braking power, especially when hauling heavier loads, and manual override. You can also choose between electric or electric over hydraulic braking, and more, with just the push of a button! What sets the P3 apart is its storage. With this unit, you have the ability to create and store up to five trailer settings and/or driver preferences and easily adjust them as needed. This compact, dash-hugging proportional brake control has everything you need to stop safely when on the road. When you?re done towing, the P3?s snap-in dash mounting clip, Plug & Play port for two plug adapters, and removeable electrical connector allow the unit to be quickly stored. The Prodigy P3 works with trailers with 1-4 axles, comes with all the mounting hardware needed for installation, and is backed by a limited lifetime warranty.
| BRAND: | TEKONSHA |
| PART NUMBER: | 90195 |
| WARRANTY: | Limited Lifetime Warranty |
| WEIGHT: | 1.4 LBS |
| MATERIAL: | PLASTIC |
| BRAKE CONTROL TYPE: | PROPORTIONAL |
| TRAILER BRAKE WHEEL QUANTITY: | UP TO EIGHT WHEELS |
| LEVELING CAPABLE: | Self-leveling |
| BRAKE TYPE: | Electric or Electric over Hydraulic |
| Diagnostic Capable: | YES |
| DISPLAY TYPE: | DIGITAL OUTPUT |
| HYDRAULIC CONNECTIONS: | NO |
| SOLID STATE CONSTRUCTION: | YES |
| CIRCUIT BREAKER PROTECTED: | YES |
| HOUSING COLOR: | BLACK |
| BRACKET INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.

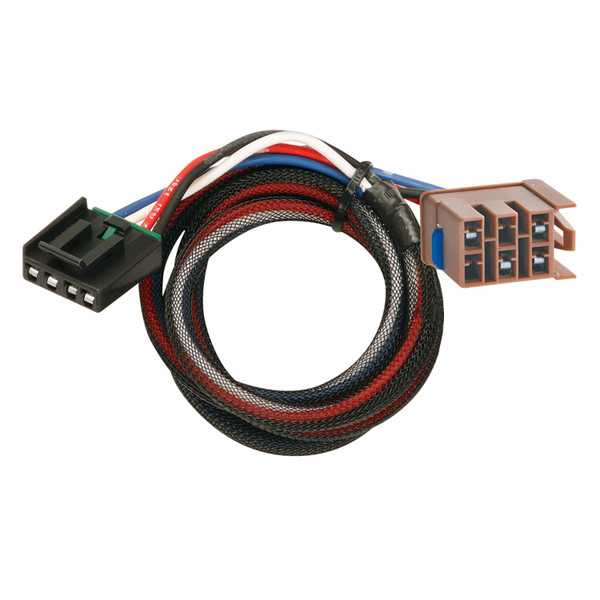

Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-9494Yes, the 2003-2007 Hummer H2 Tekonsha Prodigy P3 Proportional Brake Controller for Trailers with 1 to 4 Axles Black 90195 (Part #90195 70163) is designed to fit the 2003-2007 Hummer H2.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2003 - 2007 | Hummer H2 | — |
The 2003-2007 Hummer H2 Tekonsha Prodigy P3 Proportional Brake Controller for Trailers with 1 to 4 Axles Black 90195 (Part #90195 70163) fits the following vehicles: 2003-2007 Hummer H2. Always verify your specific year, make, and model before ordering.
The 2003-2007 Hummer H2 Tekonsha Prodigy P3 Proportional Brake Controller for Trailers with 1 to 4 Axles Black 90195 (Part #90195 70163) fits 2003-2007 Hummer H2 models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2003-2007 Hummer H2 Tekonsha Prodigy P3 Proportional Brake Controller for Trailers with 1 to 4 Axles Black 90195 (Part #90195 70163) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
