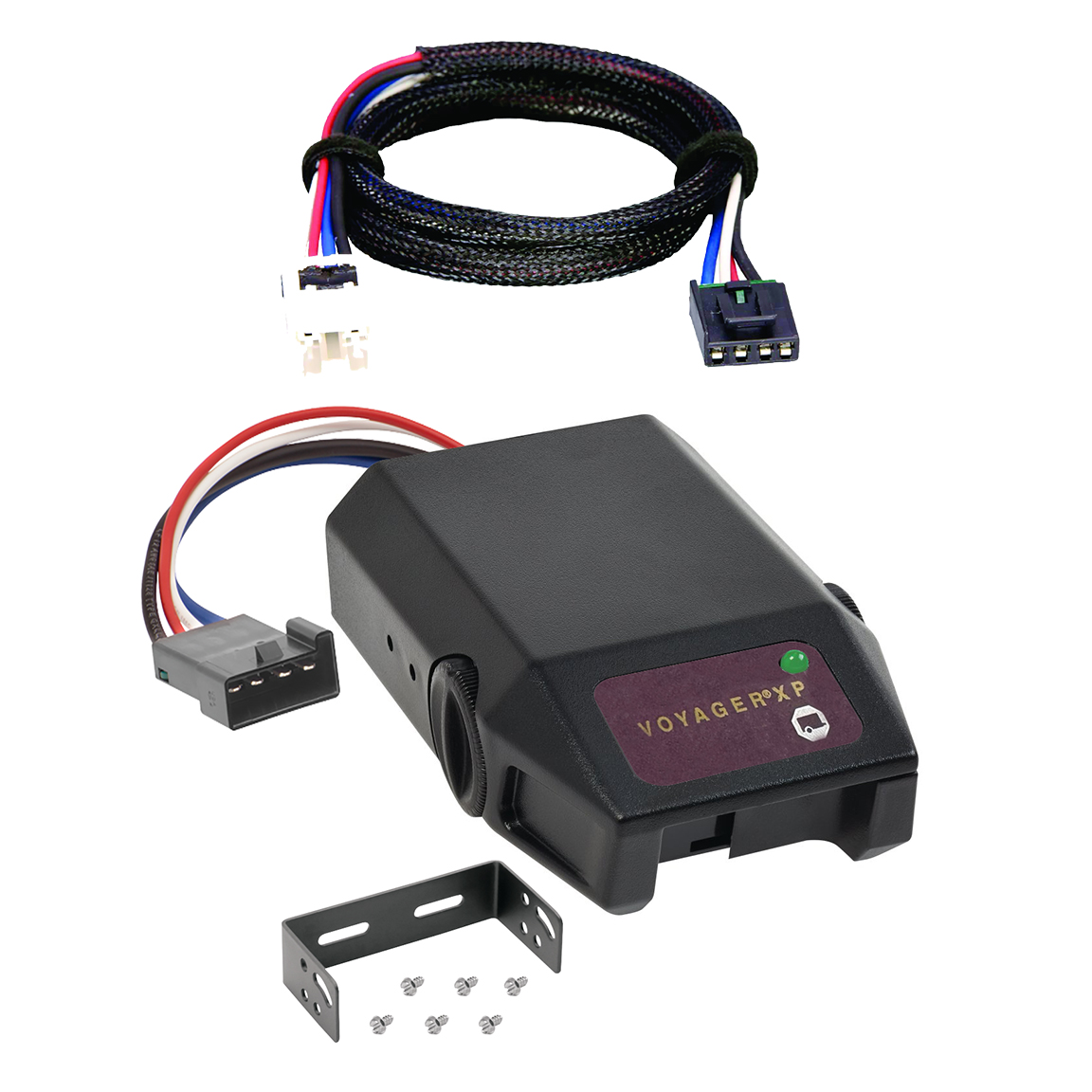

The Raybestos Voyager XP electric brake controller provides secure trailer braking when you need it most. As a tried-and-true proportional brake controller, the Voyager XP utilizes patented braking sensor technology and advanced electronics to provide a smooth braking response in any stopping situation. Its bi-colored LED brake indicator assures a complete connection between your vehicle and trailer, with the color changing gradually from green, which notes a completed circuit, to red to indicate relative braking power. This versatile controller has a compact design, a conveniently located power control knob to adjust settings, and a simple level knob for easy leveling during installation. Plus, the Voyager has a Plug & Play feature that allows for quick and easy connection with your vehicle?s wiring. The Raybestos Voyager XP trailer brake controller works with 1-4 axle trailers, comes with all the mounting hardware needed for installation.
| BRAND: | RAYBESTOS |
| PART NUMBER: | 761-9035 |
| WEIGHT: | 0.7 LBS |
| MATERIAL: | PLASTIC |
| BRAKE CONTROL TYPE: | PROPORTIONAL |
| TRAILER BRAKE WHEEL QUANTITY: | UP TO EIGHT WHEELS |
| LEVELING CAPABLE: | YES |
| BRAKE TYPE: | Electric |
| Diagnostic Capable: | YES |
| DISPLAY TYPE: | LED OUTPUT |
| HYDRAULIC CONNECTIONS: | NO |
| SOLID STATE CONSTRUCTION: | YES |
| CIRCUIT BREAKER PROTECTED: | YES |
| HOUSING COLOR: | BLACK |
| BRACKET INCLUDED: | YES |
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 | Nissan Pathfinder Armada | — |
The 2004-2004 Nissan Pathfinder Armada Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70321) fits the following vehicles: 2004 Nissan Pathfinder Armada. Always verify your specific year, make, and model before ordering.
The 2004-2004 Nissan Pathfinder Armada Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70321) fits 2004 Nissan Pathfinder Armada models. The 2004 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2004-2004 Nissan Pathfinder Armada Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70321) is designed to fit the 2004 Nissan Pathfinder Armada.
The 2004-2004 Nissan Pathfinder Armada Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70321) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

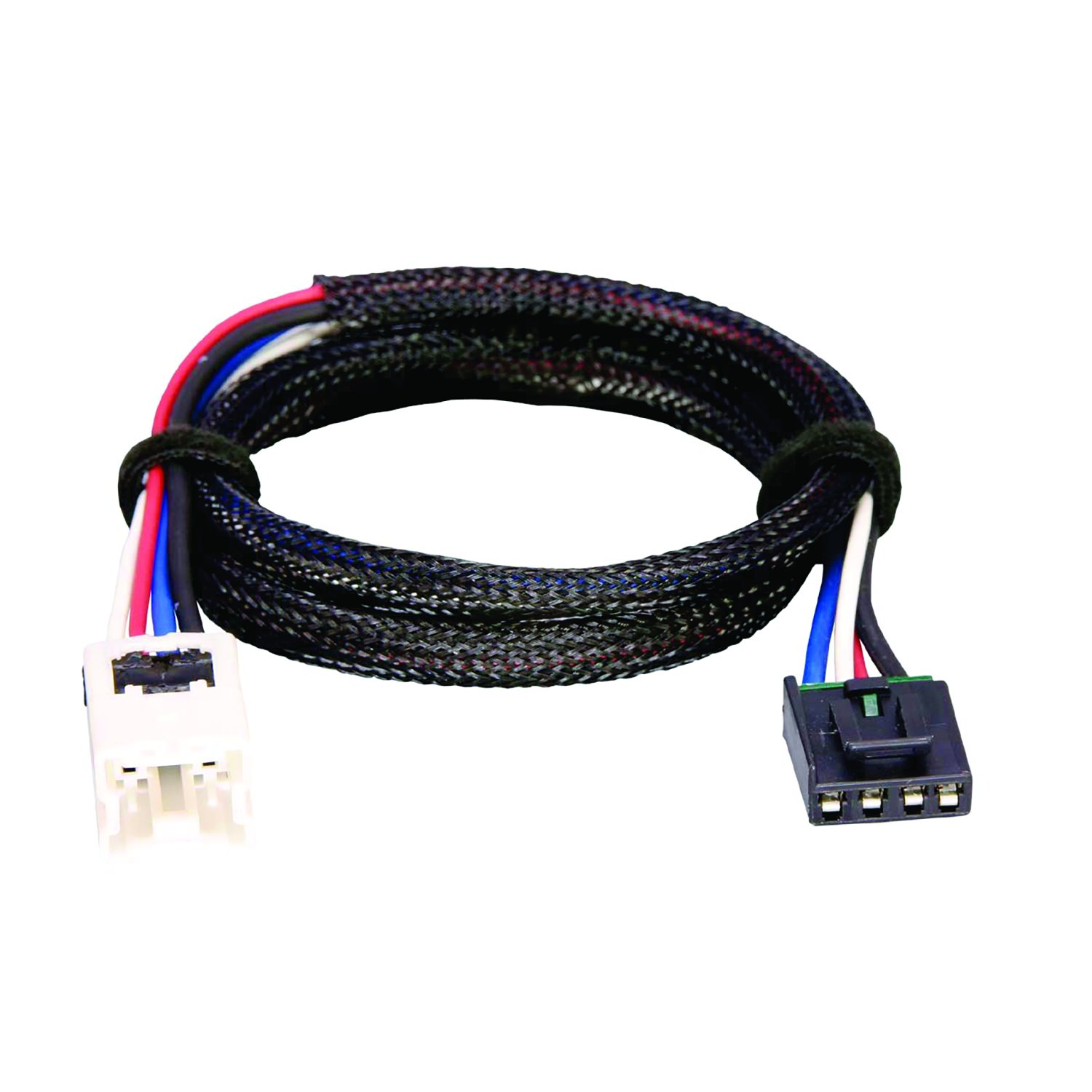

The Electric Trailer Brake Control Wiring Adapter is a connector that allows you to plug an aftermarket electric trailer brake controller into your vehicle's factory electric brake control harness. It acts as an interface between the vehicle's brake system and the brake controller, enabling you to control trailer brakes independently.
No. The adapter is designed for vehicles equipped with an OEM (factory) electric brake control harness. The harness is located underneath and to the left of the steering column, taped to another harness near the emergency brake pedal, and has a 6-pin connector. If your vehicle does not have this harness, the adapter will not be compatible.
The adapter itself may be compatible, but vehicles not equipped with an OEM trailer tow package may require additional fuses and relays to complete the output and battery feed circuits. These components are sold separately. You must consult your vehicle's owner's manual to determine the correct locations and specifications for these additional components.
The adapter supports a maximum of 6 brakes on 3 axles, with a maximum current draw of 18 amps. You must not exceed this limit or the towing manufacturer's rating, whichever is lower. Overloading the circuit can cause fires.
First, plug the brake control adapter into the mating receptacle on the backside of the brake control unit. Only after this connection is made should you plug the adapter into the vehicle's electric brake control harness connector. This sequence prevents accidental electrical contact during installation.
The harness is located underneath and to the left of the steering column. It is taped to another harness near the emergency brake pedal. The harness has a 6-pin connector that mates with the adapter connector.
Yes. After connecting the adapter, you must follow all installation instructions provided by the electric brake control manufacturer. You must also mount the brake control unit as directed by the manufacturer and perform all test procedures as instructed. The adapter is only one part of the complete installation.
The adapter fits vehicles with an OEM electric brake control harness (6-pin connector located under the steering column, left side, near the emergency brake pedal). Check your vehicle's owner's manual to confirm your vehicle has this harness.
Maximum 6 brakes on 3 axles (18 amps). Do not exceed this limit or your vehicle's towing manufacturer rating, whichever is lower. Overloading can cause fires.
Plug the adapter into the brake control unit first, then plug the adapter into the vehicle's 6-pin harness connector. Do not reverse this order.
Yes, you may need additional fuses and relays (sold separately) to complete the output and battery feed circuits. Consult your vehicle's owner's manual for the correct locations and specifications.
