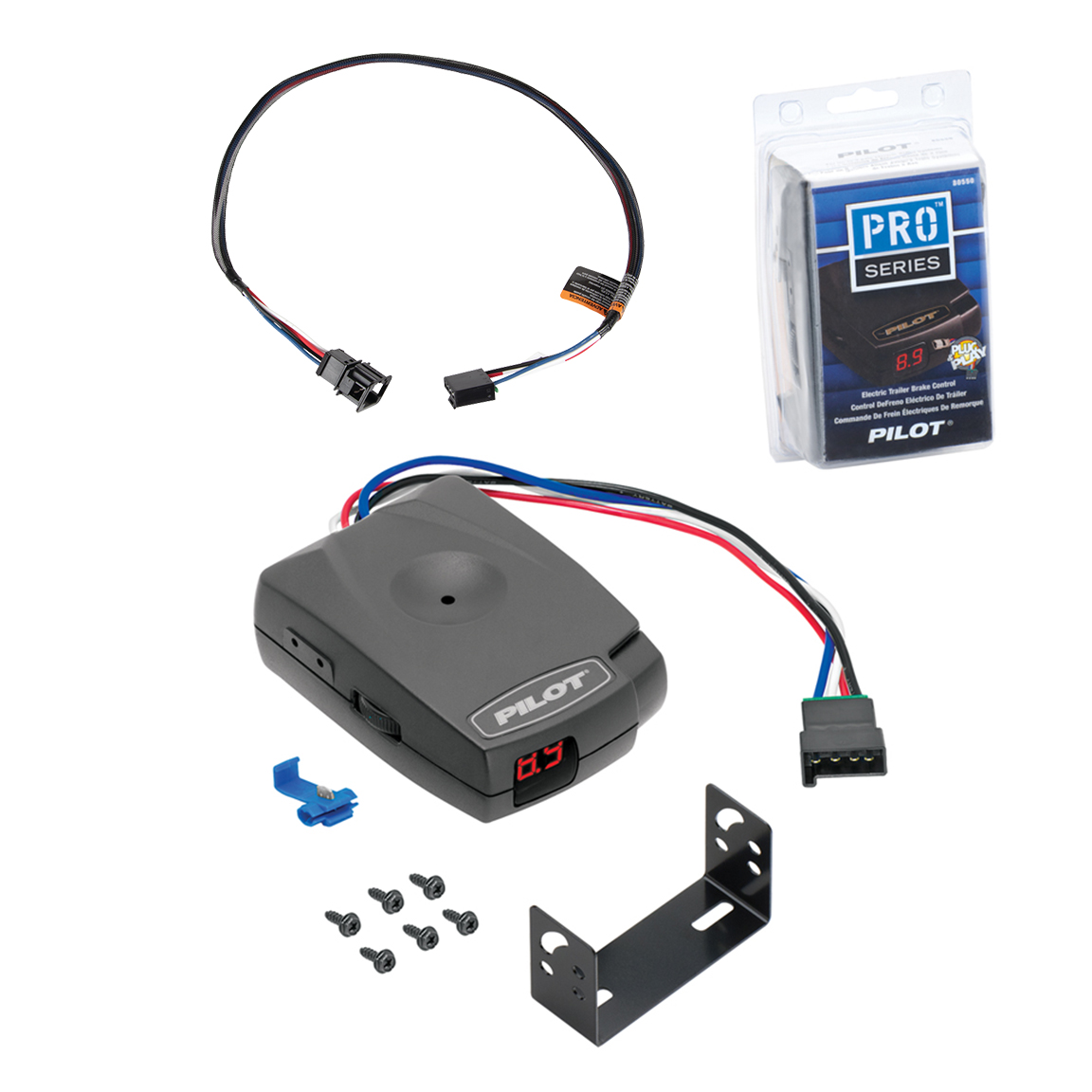

The Pro Series Pilot trailer brake controller is a great option for those who tow light loads at all hours of the day and night, in all types of weather. Its dark, smokey lens makes it ideal for direct light applications, creating optimum visibility to read the large, two-digit display. The Pilot brake controller kit is a time-based controller that works by electronically connecting your vehicle and your trailer. When you hit the brakes in your tow vehicle, it generates an output signal that ramps up, or increases over a period of time, applying braking power to your trailer at a fixed rate. Its large, easy-to-read dual digit display shows power output and the aggressiveness with which the controller applies the brakes. The Pilot also has manual override to help you brake safely when an unexpected stop pops up. It features advanced internal circuit protection, real time diagnostics, short circuit protection, and loss of ground. Because the Pilot is time-based, it can be mounted in any direction. Plus, the Plug & Play feature allows for quick and easy connection with your vehicle’s wiring. The Pilot trailer brake controller works with 1-3 axle trailers, comes with all the mounting hardware needed for installation, and is backed by a limited 1-year warranty.
| BRAND: | TEKONSHA |
| PART NUMBER: | 80550 |
| WARRANTY: | Limited Lifetime Warranty |
| WEIGHT: | 0.6 LBS |
| MATERIAL: | PLASTIC |
| BRAKE CONTROL TYPE: | TIMED |
| TRAILER BRAKE WHEEL QUANTITY: | UP TO SIX WHEELS |
| BRAKE TYPE: | ELECTRIC |
| Diagnostic Capable: | YES |
| DISPLAY TYPE: | LED OUTPUT |
| HYDRAULIC CONNECTIONS: | NO |
| SOLID STATE CONSTRUCTION: | YES |
| CIRCUIT BREAKER PROTECTED: | NO |
| HOUSING COLOR: | BLACK |
| BRACKET INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2017 | Volkswagen Touareg | — |
The 2004-2017 Volkswagen Touareg Tekonsha Pilot Trailer Time Delay Brake Controller for Trailers with 1 to 3 Axles 80550 (Part #80550 70367) fits 2004-2017 Volkswagen Touareg models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2004-2017 Volkswagen Touareg Tekonsha Pilot Trailer Time Delay Brake Controller for Trailers with 1 to 3 Axles 80550 (Part #80550 70367) is designed to fit the 2004-2017 Volkswagen Touareg.
The 2004-2017 Volkswagen Touareg Tekonsha Pilot Trailer Time Delay Brake Controller for Trailers with 1 to 3 Axles 80550 (Part #80550 70367) fits the following vehicles: 2004-2017 Volkswagen Touareg. Always verify your specific year, make, and model before ordering.
The 2004-2017 Volkswagen Touareg Tekonsha Pilot Trailer Time Delay Brake Controller for Trailers with 1 to 3 Axles 80550 (Part #80550 70367) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 3072-037 is designed for Volkswagen, Audi, and Porsche vehicles. However, the brake control connector location varies by brand: Volkswagen connectors are located either under the dashboard or behind the lower kick panel near the emergency brake pedal; Audi connectors are centered behind the dashboard between the steering column and radio; Porsche connectors are behind the dashboard on the right side of the steering wheel. Consult your vehicle's specific section in the manual for exact location.
You will need: test-probe, trim panel remover, 8mm socket, and Torx 20 driver.
The manual requires that the vehicle be off with the keys removed from the ignition before beginning installation. While the manual does not explicitly state to disconnect the battery, you must always read, understand and follow all warnings and instructions printed on the tow vehicle's battery.
Always wear safety glasses and use all safety precautions during installation. Do not pinch or cut wires when reinstalling trim panels. Do not exceed the lower of the towing manufacturing rating (including in your vehicle owner's manual) or the specific amperage ratings stated on the product. Always read, understand and follow all warnings and instructions printed on the tow vehicle's battery.

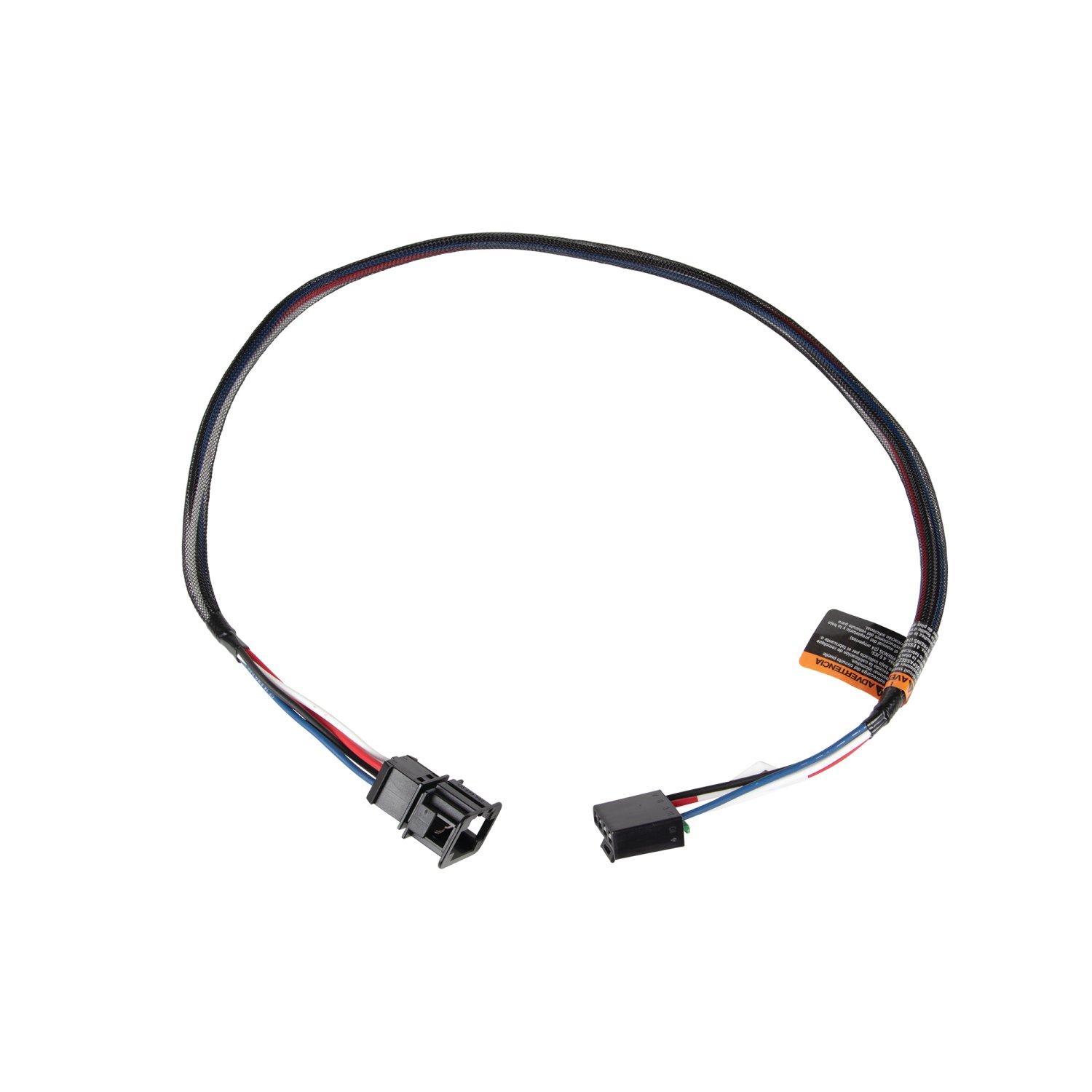

The 3072-037 is an Electric Trailer Brake Control Wiring Adapter designed for Volkswagen, Audi, and Porsche vehicles. It connects to the vehicle's electric brake control harness connector to enable trailer brake control functionality. The adapter must be plugged into the vehicle's mating brake control connector, and all brake control manufacturer's installation instructions must be followed after installation.
On Volkswagen vehicles, the brake control plug can be located either under the dashboard or behind the lower kick panel near the emergency brake pedal. If under the dashboard, remove two Torx T20 screws under the lower dash panel and pull down the dash panel to locate the mating 4-pin connector wrapped in grey foam tape. If behind the kick panel, remove the lower kick panel and door sill as needed to locate the mating connector wrapped in grey foam tape.
On Audi vehicles, the brake control connector is located centered behind the dashboard between the steering column and the radio. To access it, locate and remove two 8mm bolts under the dash panel, then remove the two small trim panels on each side of the steering column. The mating brake control connector is wrapped in grey foam tape.
On Porsche vehicles, the brake control mating plug is located behind the dash panel on the right side of the steering wheel, wrapped in grey foam tape.
If the connector is under the dashboard, remove two Torx T20 screws under the lower dash panel. If the connector is behind the kick panel, remove the lower kick panel and door sill as needed. The mating connector in both locations is wrapped in grey foam tape.
Remove two 8mm bolts under the dash panel, then remove the two small trim panels on each side of the steering column. The brake control connector is centered behind the dashboard between the steering column and the radio, wrapped in grey foam tape.
Plug the brake control adapter into the vehicle's electric brake control harness connector. After connecting the adapter, follow all brake control manufacturer's installation instructions. Reinstall all plastic trim panels, thresholds, storage covers, floor covering and other items removed during installation, being careful not to pinch or cut the wires.
After plugging the brake control adapter into the vehicle's electric brake control harness connector, follow all brake control manufacturer's installation instructions. Then reinstall all plastic trim panels, thresholds, storage covers, floor covering and other items that were removed during installation, being careful not to pinch or cut the wires.
Do not exceed the lower of two values: the towing manufacturing rating stated in your vehicle owner's manual, or the specific amperage ratings stated on the product itself. Check both sources and use the lower value.
Make sure the vehicle is off with the keys removed from the ignition before beginning installation.
A trim panel remover is a tool used to safely remove interior trim panels without damaging them. It is required for this installation because you must remove various dashboard and kick panel trim pieces to access the brake control connector on Volkswagen and Audi vehicles.
