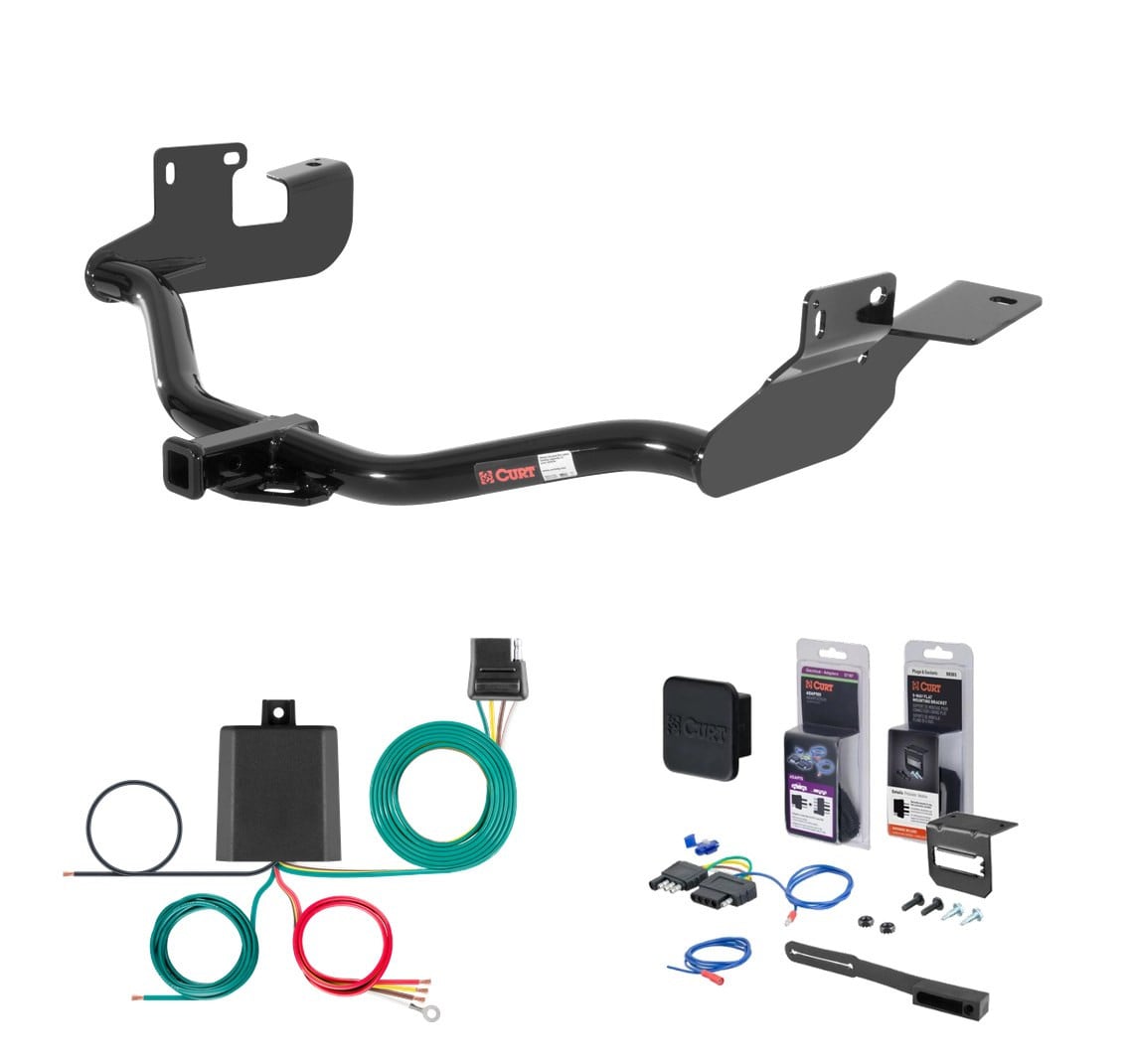

Complete CURT Class 2 1-1/4" trailer hitch and 4-flat custom wiring kit engineered for the 2008 - 2011 Mercury Mariner Without factory 1-1/4" receiver hitch. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever the next checkpoint is on your adventure -- whether it's getting your bike on the trail before sunrise or making it to the campground before dark -- CURT class 2 hitches let you Bring It with confidence. These receiver hitches are made to handle most light-duty towing applications and offer a custom fit for your vehicle. Typically used on full-size cars, crossovers, compact SUVs, minivans or even compact pickup trucks, a CURT class 2 trailer hitch complements the design of smaller vehicles. This particular class 2 hitch is made to be a custom hitch for certain years of the Ford Escape, Mazda Tribute and Mercury Mariner (to verify vehicle compatibility, see application info). It offers a weight carrying capacity of 3,500 lbs. GTW and 350 lbs. TW. Class 2 trailer hitches can typically be used to tow a variety of lightweight trailers, such as a small utility trailer, small fishing boat trailer or popup camper (NOTE: Never exceed the lowest weight capacity of any towing component). They are also perfect for adding cargo space to your vehicle with a bike rack or cargo carrier. This class 2 hitch features a 1-1/4" receiver tube to accept a ball mount shank or other hitch-mounted accessory. For safety, it is tested in accordance with SAE J684. A custom trailer hitch design requires extra care, and as such, CURT class 2 hitches are engineered using real vehicles and hands-on research. We use high-strength steel, robotic welding and rigorous testing to produce hitches that are built to fit your lifestyle. To ensure that each hitch will be a reliable extension of your vehicle, we also finish our hitches in a co-curing of liquid A-coat and black powder coat, giving them long-lasting rust and wear resistance.
CURT custom wiring connectors are the easiest way to outfit your vehicle with a CURT trailer wiring connection. They are built with some of the most advanced technology in the industry, and each one is custom-fitted to work with a specific make and model. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this special socket is not equipped on every vehicle, a CURT custom wiring connector -- also called a T-connector -- utilizes the socket for simple, stress-free installation. Rather than requiring you to cut, splice and solder into your vehicle's wiring system, the custom wiring connector uses a single OEM-compatible plug and instantly provides a standard, universal vehicle-to-trailer wiring connection, typically in the form a 4-way flat. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Ford Escape, Mazda Tribute, and Mercury Mariner (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494One-Year Limited
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2011 | Mercury Mariner | Without factory 1: 1/4" receiver hitch |

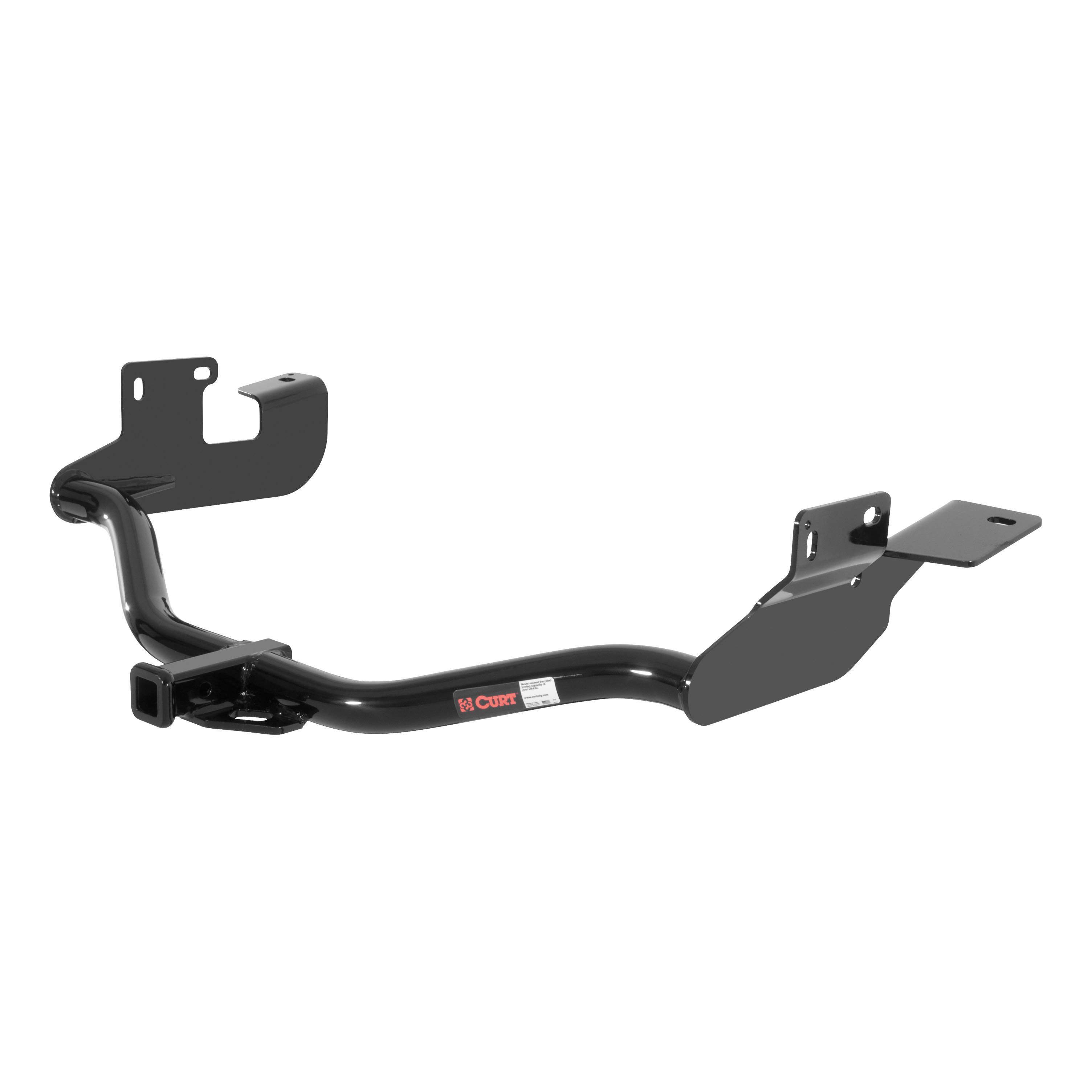

Yes, Curt part number 12060 is designed for the Ford Escape, Mazda Tribute, and Mercury Mariner. The hitch is a receiver-style hitch with a gross load capacity of 3,500 lbs trailer weight and 350 lbs tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
Curt 12060 is designed for use with ball mount #D-55001-55. Euro mount options are also available: #45571 (1-7/8" ball) and #45572 (2" ball).
The gross load capacity when used as a weight-carrying hitch is 3,500 lbs trailer weight and 350 lbs tongue weight. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The hitch includes: 6× 1/2-13 UNC grade 8 carriage bolts (1-3/4" long), 6× 1/2-13 UNC grade 8 hex nuts, 6× 1/2" conical tooth washers, 6× 0.250 × 1.00 × 3.00" square hole spacers, 1× 0.375 × 1.25 × 2.50" square hole spacer, and 2× 1/2" fishwire.
Required tools are: ratchet, 3/4" socket, torque wrench, and die grinder with carbide bit. The die grinder is needed because drilling may be required to create access holes in the frame rail.
Drilling may be required. If your vehicle has access to put the bolt and spacer into the frame rail from the end, no drilling is needed. Some vehicles have different tie-down hooks that allow access to frame rail ends. If access is not available, you may need to drill an access hole in the frame using a die grinder with carbide bit.
If your vehicle is equipped with an exhaust vibration dampener that interferes with the side plate, you will need to bend or pry the dampener away from the side plate as needed. This may require modification of the exhaust bracket.
1. Use fishwire to pull carriage bolts and square hole spacers through holes in the bottom of the frame rail (may require drilling an access hole). 2. Place spacer on passenger side bolt and raise hitch into position. Hand tighten the fasteners. 3. Fishwire the remaining fasteners into position and secure with conical tooth washers and hex nuts. 4. Torque all 1/2" fasteners to 110 lb-ft.
All 1/2" fasteners must be torqued to 110 lb-ft. Use a torque wrench to ensure proper tightening.
Non-trailer loads can be applied to this hitch only if they are supported by 18050 stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This helps maintain safe operation and preserve the warranty.
Curt Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt may repair or replace it at their option when returned prepaid with proof of purchase. Alteration, misuse, or improper installation voids the warranty. Curt's liability is limited to repair or replacement of defective products and excludes liability for incidental or consequential loss or damage.
Yes, Curt 12060 is designed for Ford Escape, Mazda Tribute, and Mercury Mariner. Towing capacity is 3,500 lbs trailer weight and 350 lbs tongue weight, but do not exceed your vehicle manufacturer's recommended capacity.
Drilling may be required if your vehicle does not have accessible frame rail ends. If access is available, no drilling is needed. A die grinder with carbide bit is included in the required tools.
You need a ratchet, 3/4" socket, torque wrench, and die grinder with carbide bit. The torque wrench is essential for tightening fasteners to 110 lb-ft.
All 1/2" fasteners must be torqued to 110 lb-ft using a torque wrench.
Yes. All non-trailer loads must be supported by 18050 stabilizing straps. Failure to do so voids the warranty.

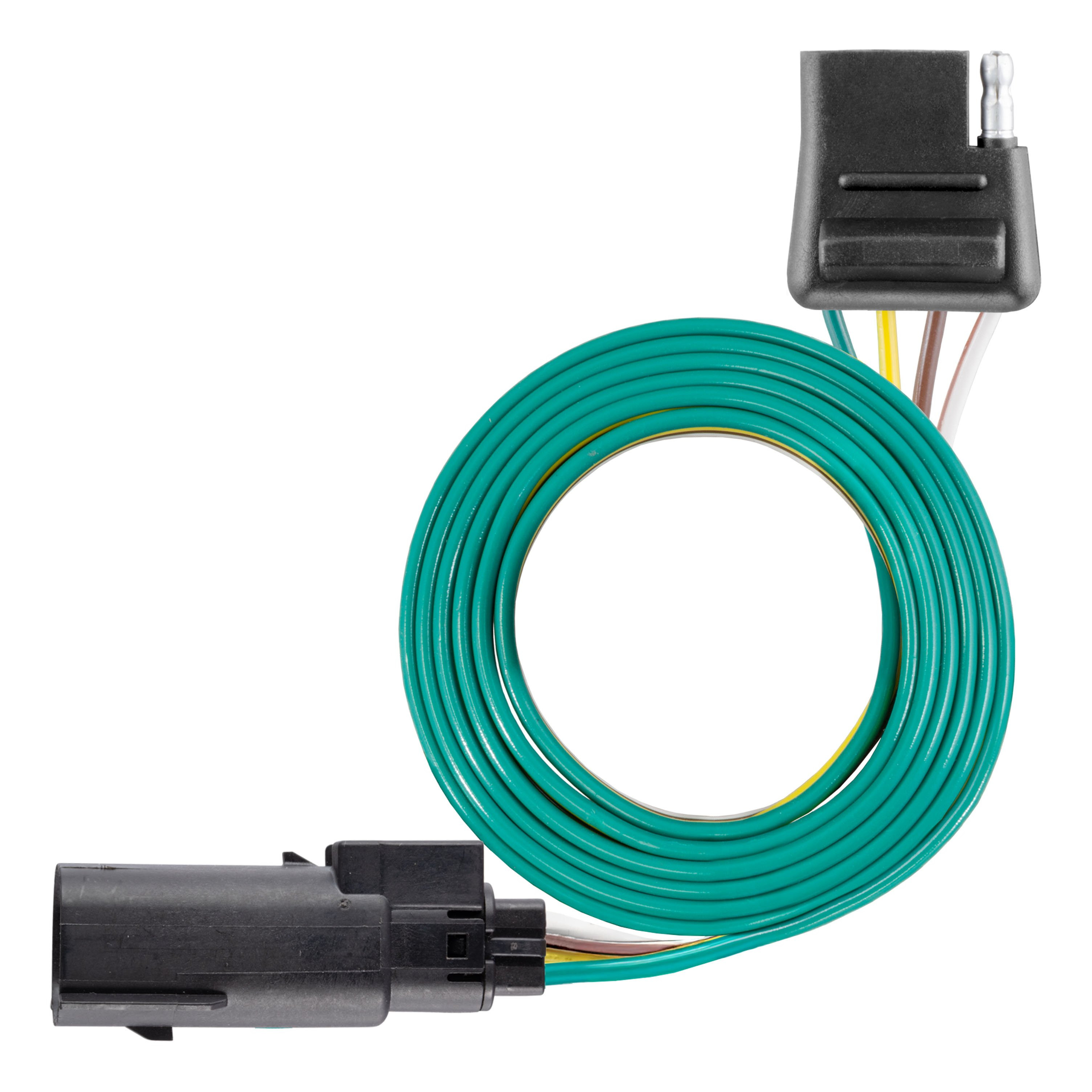

The Curt 56558 is a T-connector trailer tow harness that connects to your vehicle's factory trailer tow harness connector. It allows you to connect a trailer's electrical connector to your vehicle's towing system, enabling trailer lights and brake signals to function properly.
The Curt 56558 is designed for vehicles equipped with a factory trailer tow harness connector located on the driver side underneath the vehicle. Check under your vehicle on the driver side to confirm you have this connector before purchasing. The manual does not list specific vehicle makes, models or years.
You will need: a ratchet, wire cutters, a 10mm socket, and a test light. The test light is used after installation to verify the harness is functioning correctly.
The package includes the T-connector trailer tow harness, cable ties for securing loose wires, and a 4-flat dust cover to help prevent corrosion. A bracket for securing the 4-way connector is not included and must be sourced separately.
Yes. You must disconnect the negative battery terminal before beginning installation. Using a 10mm socket, remove the negative battery terminal and isolate it to prevent it from making contact with a metal object, which could damage the vehicle's electrical system.
1. Disconnect the negative battery terminal using a 10mm socket and isolate it. 2. Locate the factory trailer tow harness connector on the driver side underneath the vehicle. 3. Remove the protective plug carefully without damaging the connector mounting tabs. 4. Insert the trailer tow harness into the mating vehicle connector, being careful not to break or damage the connector tabs. 5. Route the 4-way flat connector along the rear bumper fascia to the center of the vehicle and secure it into a bracket (not included). 6. Secure any loose wires with the provided cable ties. 7. Reconnect the negative battery terminal and install the provided 4-flat dust cover. 8. Test the harness with a test light, 4-flat tester, multimeter, or functioning trailer to verify proper operation.
Set the protective plug aside after carefully removing it. Be careful not to damage the connector mounting tabs during removal. The manual does not specify whether the plug should be retained or discarded after installation.
Route the 4-way flat connector along the rear bumper fascia and over to the center of the vehicle. Secure it into a bracket (not included) and secure any loose wires with the provided cable ties to prevent damage and ensure a neat installation.
Do not exceed the product rating or your tow vehicle's lamp load rating, whichever is lower. The manual does not specify the product's maximum rating. Contact Curt Manufacturing or consult your vehicle's owner manual for specific capacity information.
Yes. The battery connection must be fuse-protected. Exceeding the product rating without proper fuse protection can cause loss of warranty, overheating, and potential damage to the vehicle's electrical system.
After installation, verify that the harness is functioning by attaching the battery and testing with a test light, 4-flat tester, multimeter, or a functioning trailer. This confirms all connections are correct and the harness is ready for use.
Perform periodic inspection of all wires and connections to ensure there is no visible damage or loose connections. This helps prevent corrosion and electrical failures. The provided 4-flat dust cover should be installed to help prevent corrosion.
The Curt 56558 requires a factory trailer tow harness connector on the driver side underneath your vehicle. Check for this connector before purchasing. The manual does not list specific vehicle compatibility.
You need a ratchet, wire cutters, 10mm socket, and test light. A bracket for securing the 4-way connector is not included and must be sourced separately.
Yes, you must disconnect the negative battery terminal using a 10mm socket before beginning installation to prevent electrical damage.
Yes, the battery connection must be fuse-protected. Exceeding the product rating without proper fuse protection can cause overheating and damage.
Test the harness with a test light, 4-flat tester, multimeter, or functioning trailer to confirm proper operation before towing.
