Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2008-2012 INFINITI EX35 All

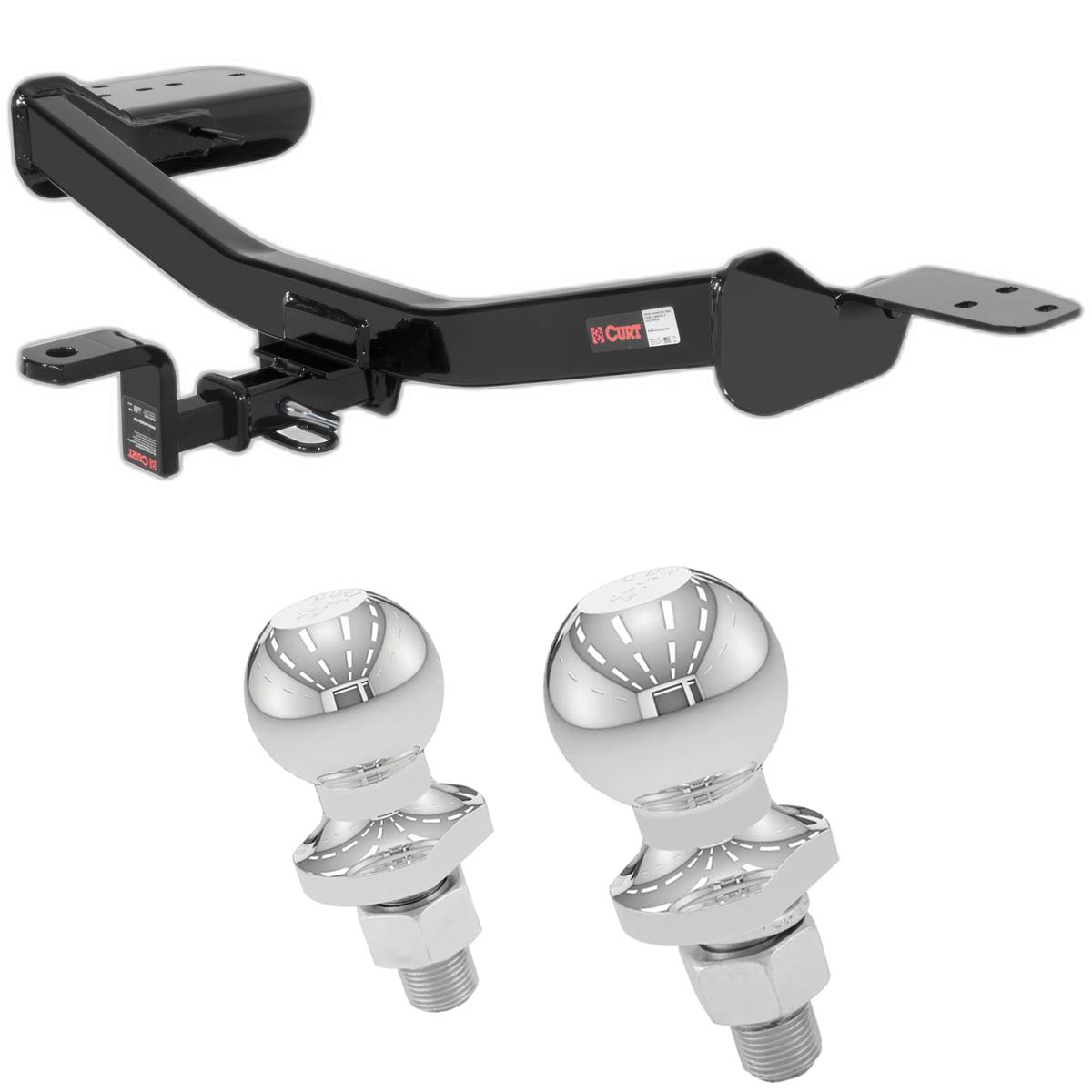

Connect to your lifestyle with a custom hitch receiver from CURT. All of our custom hitches are designed for a vehicle-specific fit, manufactured with pride, finished for industry-leading rust resistance and tested to rigorous SAE J684 standards for safety. This class 1 trailer hitch and ball mount combination is designed for a custom fit on select years of the Infiniti EX35, EX37 and QX50 (see application info to verify fitment). The hitch integrates with the vehicle's frame and provides a useful and dependable 1-1/4" x 1-1/4" receiver. The receiver is perfect for attaching the included ball mount and towing a small trailer, or for adding cargo space with a hitch-mounted cargo carrier, bike rack or other accessory. This particular class 1 hitch is rated for 1,500 pounds gross trailer weight and 150 pounds tongue weight (never exceed the lowest-rated towing component). The ball mount included with this trailer hitch quickly and easily installs into the hitch receiver and has a 3/4" trailer ball hole (trailer ball not included). It can be mounted in the rise or drop position to promote level towing. Like all CURT custom hitches, this class 1 hitch is protected with our co-cured finishing process. It is descaled for a smooth surface, immersed in liquid A-coat for rust resistance inside and out, covered with a durable black powder coat and finally co-cured for an industry-leading rust, chip and UV-resistant shield. No matter where you're headed or which season of the year you’re towing in, this CURT hitch is equipped for long-lasting resilience to the elements. It features an open-back receiver for easy cleaning, and it comes with all the hardware necessary for the installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Not compatible for use with vertical hanging bicycles (bike racks that require the bicycles to be hung / mounted vertically)
Includes ball mount #45521, installation hardware, pin & clip
2008, 2009, 2010, 2011, 2012 INFINITI EX35 All Class 1 Trailer Hitch, 1-1/4" Ball Mount, Select Infiniti EX35, EX37, QX50
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2012 | Infiniti EX35 | — |
The 2008-2012 INFINITI EX35 All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-115103-003) fits the following vehicles: 2008-2012 Infiniti EX35. Always verify your specific year, make, and model before ordering.
The 2008-2012 INFINITI EX35 All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-115103-003) fits 2008-2012 Infiniti EX35 models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2008-2012 INFINITI EX35 All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-115103-003) is designed to fit the 2008-2012 Infiniti EX35.
The 2008-2012 INFINITI EX35 All Class 1 Trailer Hitch, 1-1/4" Ball Mount (Part #CHD-115103-003) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, Curt part number 11510 is designed for Infiniti EX35, EX37 Journey, and QX50 models, including AWD versions.
Yes, Curt part number 11510 is compatible with QX50 models including AWD versions.
The manual lists a gross load capacity of 1,500 lbs. trailer weight and 150 lbs. tongue weight for weight-carrying use. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The hitch weighs 120 lbs.
No. All non-trailer loads applied to this hitch must be supported by auxiliary stabilizing straps. Failure to properly support non-trailer loads will void the product warranty.
Do not exceed your vehicle manufacturer's recommended towing capacity. The hitch itself has a gross load capacity of 1,500 lbs. trailer weight and 150 lbs. tongue weight, but your Infiniti's factory specifications may impose a lower limit. Consult your vehicle owner's manual.
No. The hitch uses existing weldnuts on both frame rails. No drilling is required.
You will need: a straight screwdriver, a ratchet, a 3-inch socket extension, a 10-inch socket extension, a 12mm socket, a 14mm socket, and a torque wrench.
It is recommended to have two people to ease the installation.
Yes. You must remove exhaust hanger bolts and lower the exhaust system to access the hitch mounting points. The exhaust is then repositioned and reattached to the hitch using supplied bolts and the inverted rubber isolators from the muffler.
Remove (3) exhaust hanger bolts per side on rear hangers, remove the long bolt from the driver side hanger on the other side of the muffler, and remove (1) nut from each of the exhaust hangers just forward from the rear axle. The exhaust should then rest on the cross brace under the exhaust.
The tow loop is removed and returned to the customer. Both sides are removed.
The rubber isolators are attached to the muffler and must be inverted (flipped) before installation. After raising the hitch and muffler together, you invert both rubber isolators and install them over the studs on the hitch. This allows the exhaust hanger pegs on the muffler to sit above the exhaust hanger studs on the hitch.
If the hitch and muffler are not raised together, the muffler will not be able to be reinstalled with the hitch in place. The positioning of the exhaust hanger pegs relative to the hitch studs depends on both components being raised as a unit.
All 8mm fasteners must be torqued to 23 lb-ft.
All 10mm fasteners must be torqued to 45 lb-ft.
The kit includes: (6) 3/8-inch conical toothed washers, (2) 7/16-inch conical toothed washers, (2) M10 – 1.25 x 30 hex bolts, and (6) M8 – 1.25 x 30 hex head tap bolts.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound.
Curt Manufacturing warrants this product to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If the product is found to be defective, Curt may repair or replace it at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation. Liability is limited to repair or replacement and excludes incidental or consequential loss or damage.
Yes, the Curt 11510 is designed for Infiniti EX35, EX37 Journey, and QX50 (including AWD).
No drilling is required. The hitch uses existing weldnuts on the frame rails.
You will need a ratchet, 12mm and 14mm sockets, 3-inch and 10-inch socket extensions, a torque wrench, and a straight screwdriver.
Two people are recommended to ease the installation.
Torque all 8mm fasteners to 23 lb-ft and all 10mm fasteners to 45 lb-ft.
The hitch has a gross load capacity of 1,500 lbs. trailer weight and 150 lbs. tongue weight, but you must not exceed your vehicle manufacturer's recommended towing capacity.
No. All non-trailer loads must be supported by auxiliary stabilizing straps, or the warranty will be voided.
