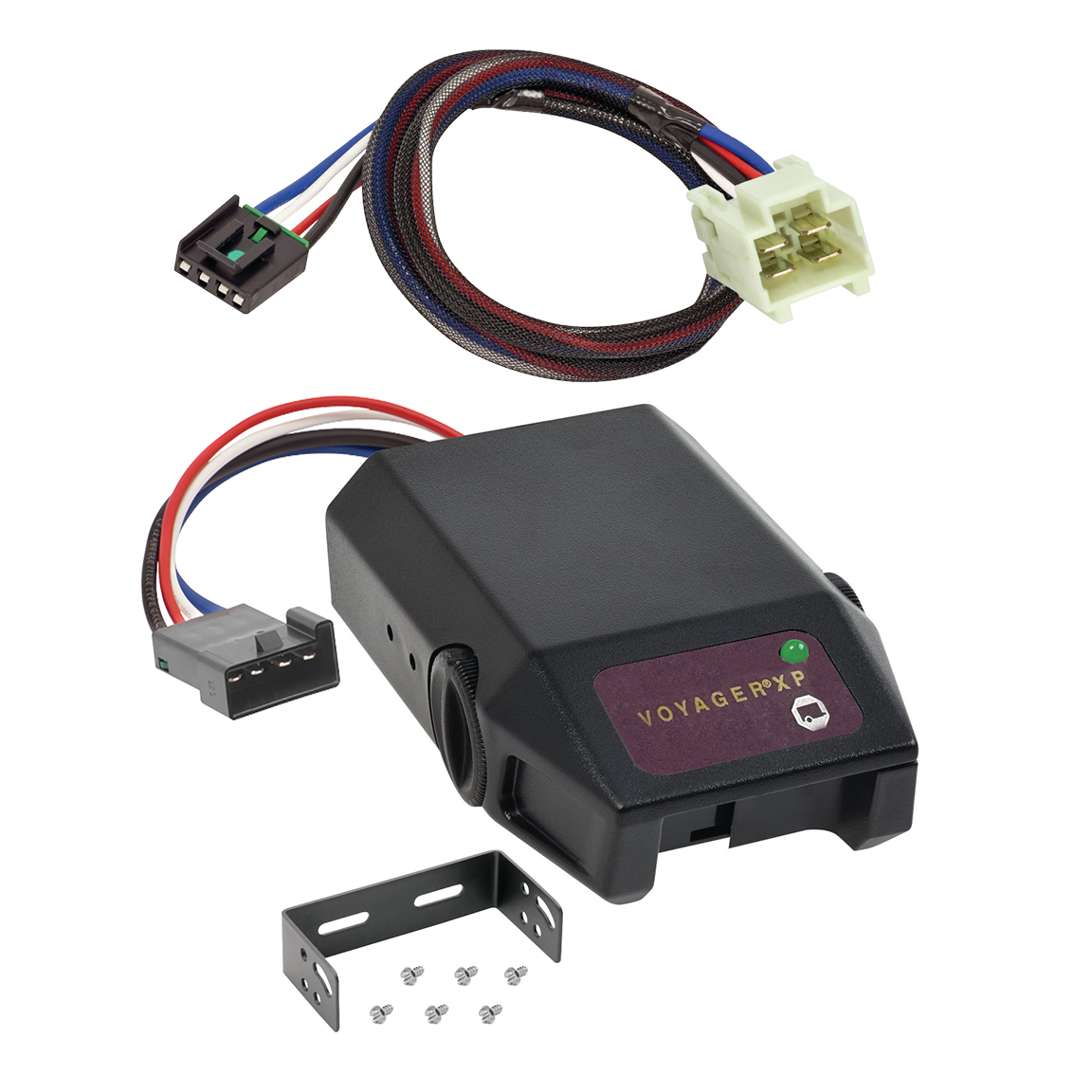

The Raybestos Voyager XP electric brake controller provides secure trailer braking when you need it most. As a tried-and-true proportional brake controller, the Voyager XP utilizes patented braking sensor technology and advanced electronics to provide a smooth braking response in any stopping situation. Its bi-colored LED brake indicator assures a complete connection between your vehicle and trailer, with the color changing gradually from green, which notes a completed circuit, to red to indicate relative braking power. This versatile controller has a compact design, a conveniently located power control knob to adjust settings, and a simple level knob for easy leveling during installation. Plus, the Voyager has a Plug & Play feature that allows for quick and easy connection with your vehicle?s wiring. The Raybestos Voyager XP trailer brake controller works with 1-4 axle trailers, comes with all the mounting hardware needed for installation.
| BRAND: | RAYBESTOS |
| PART NUMBER: | 761-9035 |
| WEIGHT: | 0.7 LBS |
| MATERIAL: | PLASTIC |
| BRAKE CONTROL TYPE: | PROPORTIONAL |
| TRAILER BRAKE WHEEL QUANTITY: | UP TO EIGHT WHEELS |
| LEVELING CAPABLE: | YES |
| BRAKE TYPE: | Electric |
| Diagnostic Capable: | YES |
| DISPLAY TYPE: | LED OUTPUT |
| HYDRAULIC CONNECTIONS: | NO |
| SOLID STATE CONSTRUCTION: | YES |
| CIRCUIT BREAKER PROTECTED: | YES |
| HOUSING COLOR: | BLACK |
| BRACKET INCLUDED: | YES |
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2011 | Kia Borrego | — |
The 2009-2011 KIA Borrego Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70248) fits 2009-2011 Kia Borrego models. The 2011 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2009-2011 KIA Borrego Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70248) fits the following vehicles: 2009-2011 Kia Borrego. Always verify your specific year, make, and model before ordering.
Yes, the 2009-2011 KIA Borrego Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70248) is designed to fit the 2009-2011 Kia Borrego.
The 2009-2011 KIA Borrego Raybestos Voyager XP Proportional Brake Controller for Trailers with 1 to 4 Axles Black 761-9035 (Part #761-9035 70248) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The 22291-037 adapter is designed for vehicles equipped with an OEM electric brake control harness. The harness is located underneath the dash, to the left of the steering column, and is taped to another harness near the emergency brake pedal. If your vehicle has this harness and a matching 4-pin connector, the adapter should be compatible. Vehicles without an OEM trailer tow package may require additional fuses and relays (sold separately) to complete the output and battery feed circuits. Consult your vehicle's owner's manual to confirm your vehicle has the required OEM electric brake control harness.
The 22291-037 is a wiring adapter that connects an electronic trailer brake controller to a vehicle's OEM electric brake control harness. It features a 4-pin connector that plugs into the vehicle's brake control harness and a mating receptacle on the backside for the brake controller unit. The adapter contains male terminals and is colour-coded for the vehicle stop lamp switch input (red), ground (white), fused battery feed (black), and trailer brake controller output (blue).
The vehicle's electric brake control harness is located underneath the dash and to the left of the steering column. It is taped to another harness near the emergency brake pedal. The harness has a 4-pin connector that mates with the connector on the adapter.
First, plug the brake control adapter into the mating receptacle on the backside of the brake control unit. Then, plug the adapter into the vehicle's electric brake control harness connector (the 4-pin connector located under the dash, left of the steering column). After that, follow all brake control manufacturer's installation instructions and mount the unit as directed.
The adapter has four colour-coded wires: Red is the vehicle stop lamp switch input to the brake controller; White is ground; Black is the fused trailer brake controller battery feed; and Blue is the trailer brake controller output to the electric trailer brakes.
Do not exceed the lower of your towing manufacturer's rating or a maximum of 3 axles with 6 brakes at 18 amps. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and the brake control instruction sheet for additional information.
If your vehicle is equipped with an OEM trailer tow package, the adapter should work with the existing harness. However, vehicles not equipped with an OEM trailer tow package may require fuses and relays (sold separately) to complete the output and battery feed circuits. Consult your vehicle's owner's manual for the locations of these components.
Yes. After plugging the adapter into the vehicle's electric brake control harness connector, you must follow all brake control manufacturer's installation instructions and mount the unit as directed. You must also perform test procedures as instructed by the brake control manufacturer.
Wear safety glasses and use all safety precautions during installation. Read and follow all vehicle warnings and installation instructions before beginning. Do not exceed the circuit capacity (3 axles, 6 brakes, 18 amps maximum) as overloading can cause fires.
The adapter fits vehicles with an OEM electric brake control harness located under the dash, left of the steering column, with a 4-pin connector. Check your vehicle's owner's manual to confirm you have this harness.
Plug the adapter into the brake control unit's mating receptacle first, then plug the adapter into the vehicle's 4-pin brake control harness connector under the dash. Follow the brake control manufacturer's instructions to complete installation and perform required tests.
Maximum 3 axles, 6 brakes at 18 amps, or your towing manufacturer's lower rating. Exceeding this can cause fires.
Vehicles without an OEM trailer tow package may need fuses and relays (sold separately). Check your vehicle's owner's manual.
