2009-2011 Ford Flex Tekonsha Pilot Trailer Time Delay Brake Controller for Trailers with 1 to 3 Axles 80550Tekonsha$121.39Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Tekonsha
Verify Fitment
Select your vehicle to confirm this part fits.
2009 - 2011 Kia Borrego
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

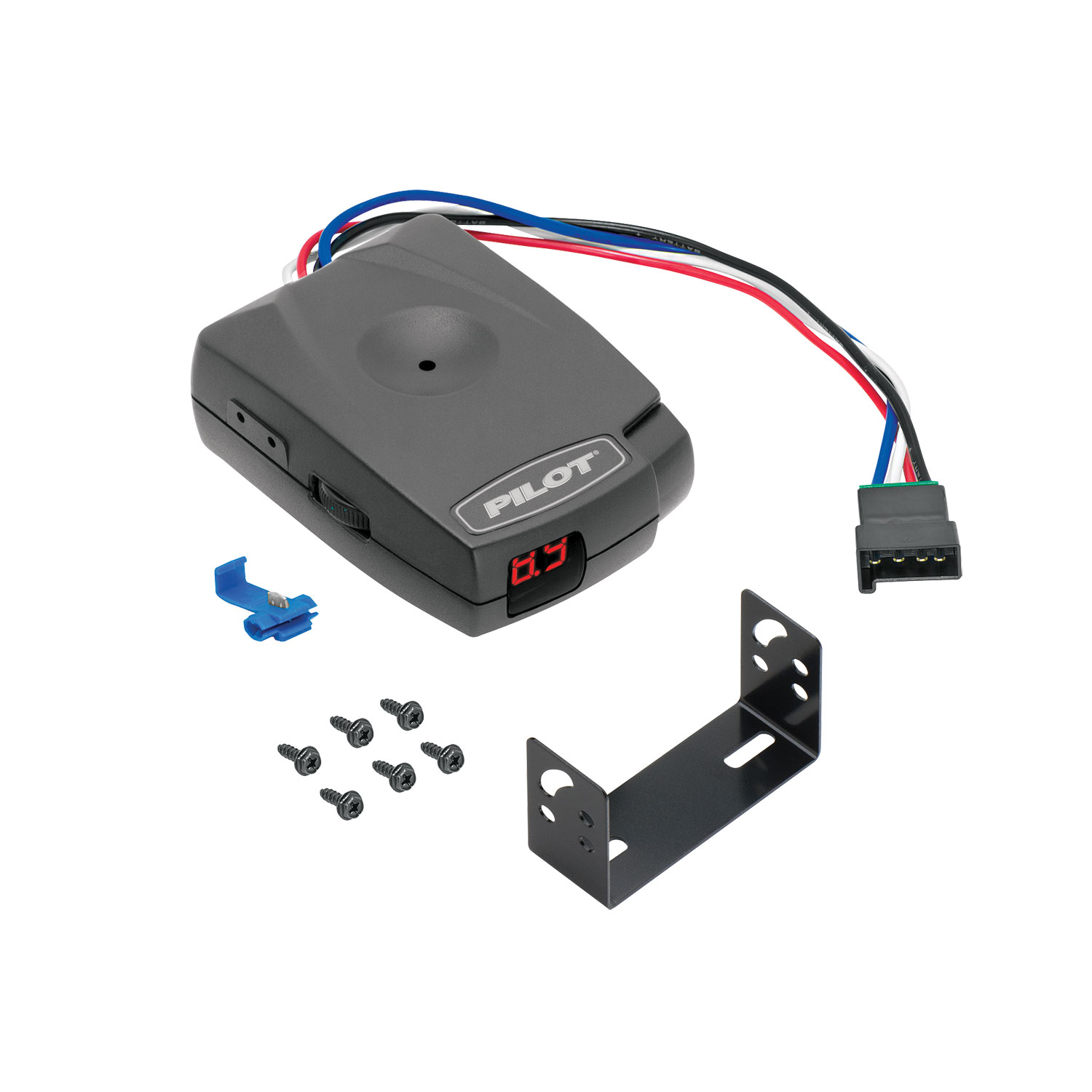

The Pro Series Pilot trailer brake controller is a great option for those who tow light loads at all hours of the day and night, in all types of weather. Its dark, smokey lens makes it ideal for direct light applications, creating optimum visibility to read the large, two-digit display. The Pilot brake controller kit is a time-based controller that works by electronically connecting your vehicle and your trailer. When you hit the brakes in your tow vehicle, it generates an output signal that ramps up, or increases over a period of time, applying braking power to your trailer at a fixed rate. Its large, easy-to-read dual digit display shows power output and the aggressiveness with which the controller applies the brakes. The Pilot also has manual override to help you brake safely when an unexpected stop pops up. It features advanced internal circuit protection, real time diagnostics, short circuit protection, and loss of ground. Because the Pilot is time-based, it can be mounted in any direction. Plus, the Plug & Play feature allows for quick and easy connection with your vehicle’s wiring. The Pilot trailer brake controller works with 1-3 axle trailers, comes with all the mounting hardware needed for installation, and is backed by a limited 1-year warranty.
| BRAND: | TEKONSHA |
| PART NUMBER: | 80550 |
| WARRANTY: | Limited Lifetime Warranty |
| WEIGHT: | 0.6 LBS |
| MATERIAL: | PLASTIC |
| BRAKE CONTROL TYPE: | TIMED |
| TRAILER BRAKE WHEEL QUANTITY: | UP TO SIX WHEELS |
| BRAKE TYPE: | ELECTRIC |
| Diagnostic Capable: | YES |
| DISPLAY TYPE: | LED OUTPUT |
| HYDRAULIC CONNECTIONS: | NO |
| SOLID STATE CONSTRUCTION: | YES |
| CIRCUIT BREAKER PROTECTED: | NO |
| HOUSING COLOR: | BLACK |
| BRACKET INCLUDED: | YES |
Tekonsha is a leading manufacturer of electronic trailer brake controllers, pioneering the category in the 1970s. The lineup spans proportional units such as the Prodigy P3 and Prodigy iD, time-delayed controllers, the wireless Prodigy RF, plus vehicle-specific wiring harnesses, adapters and trailer brake components engineered for smooth, predictable stopping at any speed.
Tekonsha Engineering Company began in 1964 building RV steps and mirrors. Within a few years it had found its real calling, and by the 1970s Tekonsha was pioneering the manufacture of electronic trailer brake controllers, the product category that still defines the brand. More than half a century later it remains the reference name in trailer braking and is part of the Horizon Global group alongside Reese, Draw-Tite, Fulton, Bulldog and Wesbar.
A brake controller is the component that tells a trailer's electric brakes how hard to work and when, and getting that right is the difference between a controlled stop and a shove from behind. Tekonsha builds both major types. Proportional controllers use an internal accelerometer to sense how quickly the tow vehicle is slowing and apply trailer braking to match, so light braking stays light and hard braking is immediate. Time-delayed controllers ramp to a preset output over a fixed interval, a simpler and more economical approach that suits occasional towing.
The current brake controller range covers most of that ground. The Prodigy iD pairs with a phone through Tekonsha's EDGE technology for setup and monitoring, the P3 offers storable settings for multiple trailers and a trilingual colour LED display, the Prodigy P2 adds a dimmable display and boost mode for heavier loads, and the Voyager keeps operation simple and dependable. The Prodigy RF mounts to the trailer itself and controls wirelessly, which suits rental fleets and drivers who swap tow vehicles.
Installation is supported by vehicle-specific brake control harnesses that plug into a factory connector rather than requiring cut-and-splice wiring, along with mounting brackets and adapters. Matched controller bundles pair a unit with the correct harness. Products are tested to meet and often exceed published industry standards.
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2011 | Kia Borrego | — |
The 2009-2011 KIA Borrego Tekonsha Pilot Trailer Time Delay Brake Controller for Trailers with 1 to 3 Axles 80550 (Part #80550 70248) fits the following vehicles: 2009-2011 Kia Borrego. Always verify your specific year, make, and model before ordering.
Yes, the 2009-2011 KIA Borrego Tekonsha Pilot Trailer Time Delay Brake Controller for Trailers with 1 to 3 Axles 80550 (Part #80550 70248) is designed to fit the 2009-2011 Kia Borrego.
The 2009-2011 KIA Borrego Tekonsha Pilot Trailer Time Delay Brake Controller for Trailers with 1 to 3 Axles 80550 (Part #80550 70248) fits 2009-2011 Kia Borrego models. The 2011 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2009-2011 KIA Borrego Tekonsha Pilot Trailer Time Delay Brake Controller for Trailers with 1 to 3 Axles 80550 (Part #80550 70248) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The 22291-037 adapter is designed for vehicles equipped with an OEM electric brake control harness. The harness is located underneath the dash, to the left of the steering column, and is taped to another harness near the emergency brake pedal. If your vehicle has this harness and a matching 4-pin connector, the adapter should be compatible. Vehicles without an OEM trailer tow package may require additional fuses and relays (sold separately) to complete the output and battery feed circuits. Consult your vehicle's owner's manual to confirm your vehicle has the required OEM electric brake control harness.

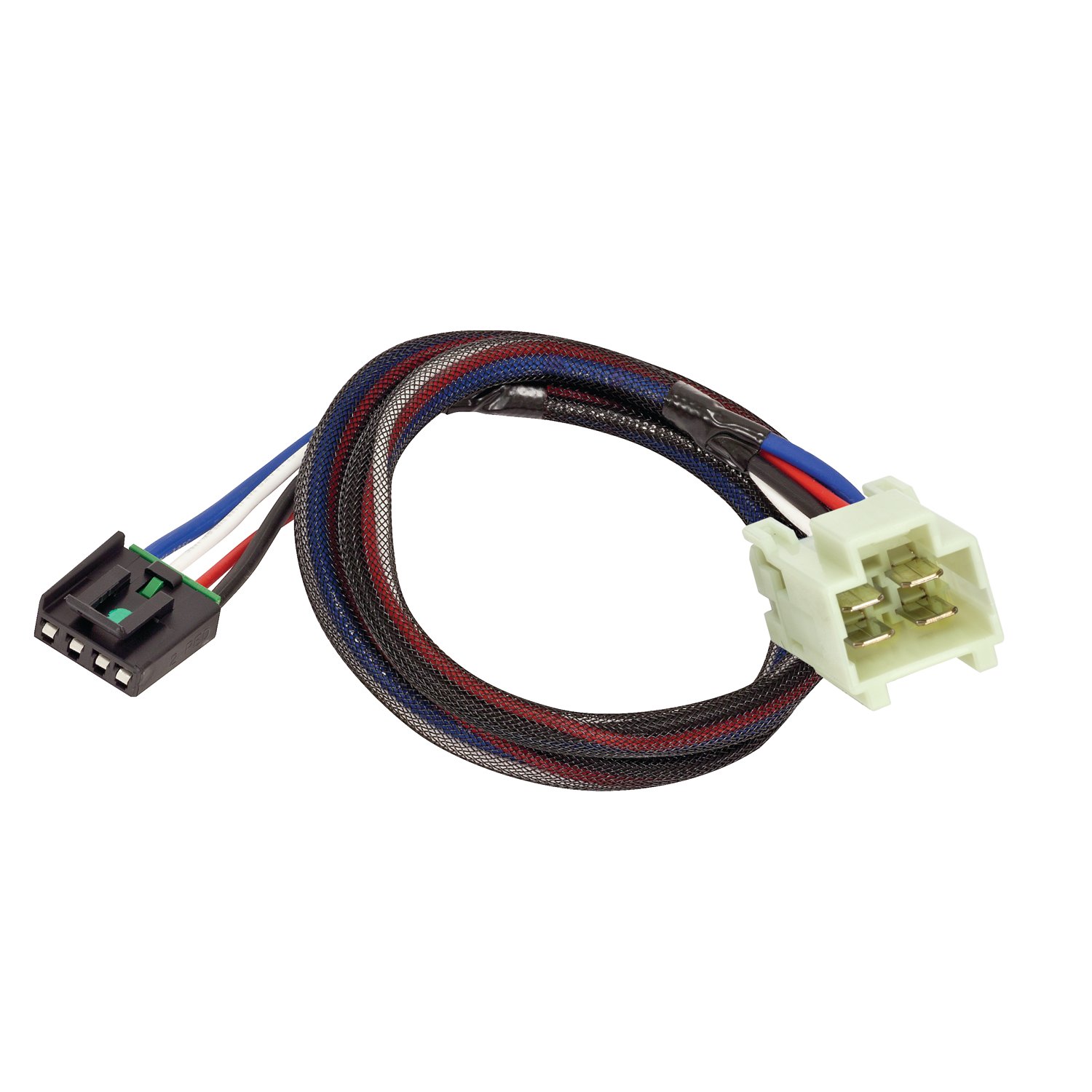

The 22291-037 is a wiring adapter that connects an electronic trailer brake controller to a vehicle's OEM electric brake control harness. It features a 4-pin connector that plugs into the vehicle's brake control harness and a mating receptacle on the backside for the brake controller unit. The adapter contains male terminals and is colour-coded for the vehicle stop lamp switch input (red), ground (white), fused battery feed (black), and trailer brake controller output (blue).
The vehicle's electric brake control harness is located underneath the dash and to the left of the steering column. It is taped to another harness near the emergency brake pedal. The harness has a 4-pin connector that mates with the connector on the adapter.
First, plug the brake control adapter into the mating receptacle on the backside of the brake control unit. Then, plug the adapter into the vehicle's electric brake control harness connector (the 4-pin connector located under the dash, left of the steering column). After that, follow all brake control manufacturer's installation instructions and mount the unit as directed.
The adapter has four colour-coded wires: Red is the vehicle stop lamp switch input to the brake controller; White is ground; Black is the fused trailer brake controller battery feed; and Blue is the trailer brake controller output to the electric trailer brakes.
Do not exceed the lower of your towing manufacturer's rating or a maximum of 3 axles with 6 brakes at 18 amps. Overloading the circuit can cause fires. Consult your vehicle's owner's manual and the brake control instruction sheet for additional information.
If your vehicle is equipped with an OEM trailer tow package, the adapter should work with the existing harness. However, vehicles not equipped with an OEM trailer tow package may require fuses and relays (sold separately) to complete the output and battery feed circuits. Consult your vehicle's owner's manual for the locations of these components.
Yes. After plugging the adapter into the vehicle's electric brake control harness connector, you must follow all brake control manufacturer's installation instructions and mount the unit as directed. You must also perform test procedures as instructed by the brake control manufacturer.
Wear safety glasses and use all safety precautions during installation. Read and follow all vehicle warnings and installation instructions before beginning. Do not exceed the circuit capacity (3 axles, 6 brakes, 18 amps maximum) as overloading can cause fires.
The adapter fits vehicles with an OEM electric brake control harness located under the dash, left of the steering column, with a 4-pin connector. Check your vehicle's owner's manual to confirm you have this harness.
Plug the adapter into the brake control unit's mating receptacle first, then plug the adapter into the vehicle's 4-pin brake control harness connector under the dash. Follow the brake control manufacturer's instructions to complete installation and perform required tests.
Maximum 3 axles, 6 brakes at 18 amps, or your towing manufacturer's lower rating. Exceeding this can cause fires.
Vehicles without an OEM trailer tow package may need fuses and relays (sold separately). Check your vehicle's owner's manual.
