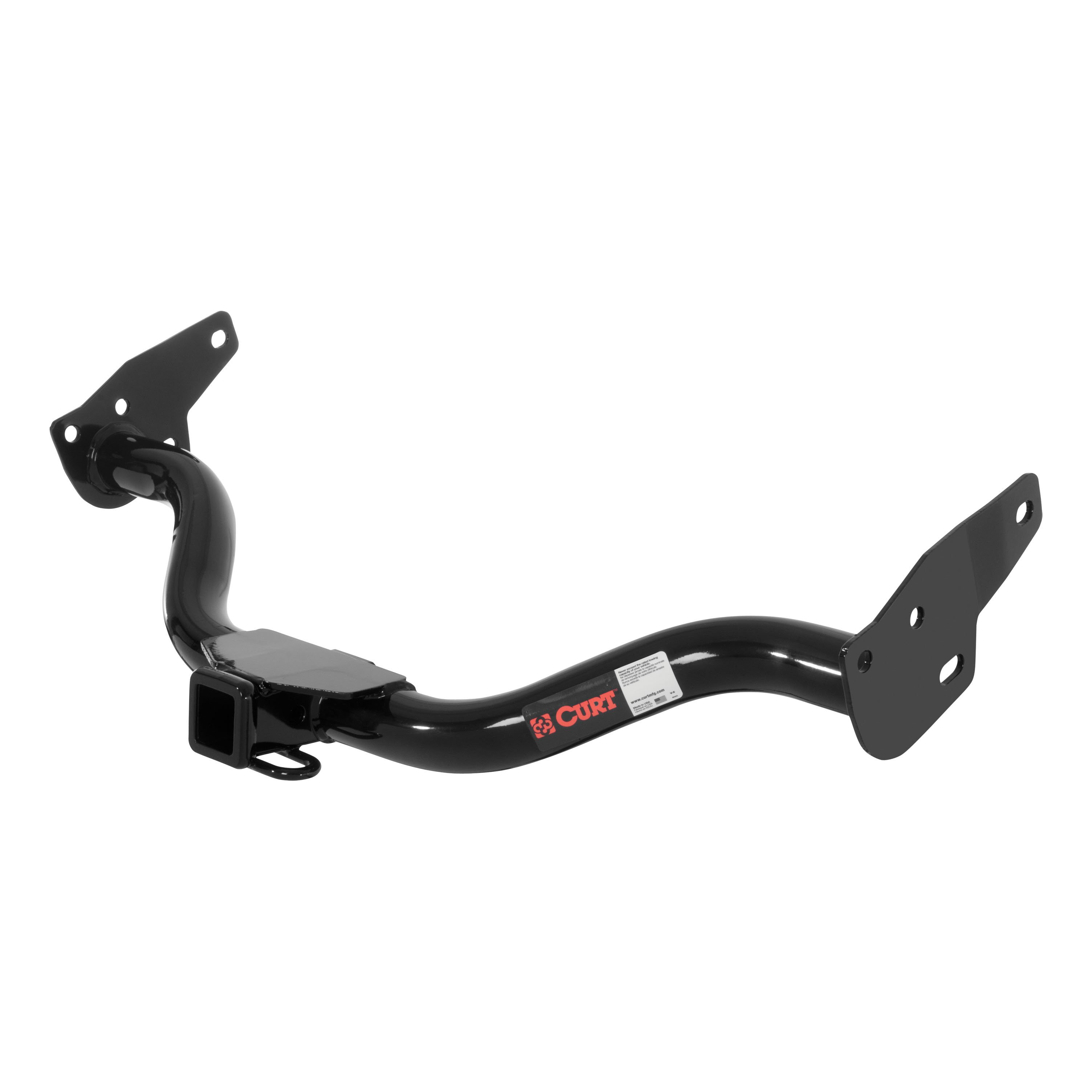

Complete CURT Class 3 2" trailer hitch and 7-way custom wiring kit engineered for the 2009 - 2013 Xterra. Vehicle-specific fit, plug-and-play installation, supports trailers with electric brakes, auxiliary 12V power and reverse lights.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Nissan Xterra (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 400 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 6,000 lbs. WD and 600 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
CURT custom wiring connectors and harnesses are the easiest way to outfit your vehicle with a trailer wiring connection for towing. Each one is custom-fitted to work with a specific make and model. This particular 7-way RV blade socket is designed to be a custom wiring option for certain years of the Nissan Frontier, Pathfinder, Xterra and Suzuki Equator (see application info to verify fitment). It provides a universal trailer connection for the tail lights, brake lights, reverse lights, turn signals, electronic trailer brakes and auxiliary power. 7prong taillight wiring can be used as a replacement or new wiring and is typically used for towing fifth wheel and gooseneck trailers. This 7 way female outlet comes with all necessary hardware to establish a solid connection, as well as a dust cover to keep the connector socket clean when not in use. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this factory tow package socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation. Instead of cutting, splicing and soldering into your vehicle's wiring system, the custom wiring connector uses a single OEM compatible plug and instantly provides a standard vehicle-to-trailer hitch wiring connection. To ensure long-lasting reliability, all CURT custom tconnector wiring is thoroughly tested for optimal functionality.
Experts available to answer your questions
Call 888-634-9494Yes, Curt part number 13514 (also listed as 78204/RRH13514) is designed for the Nissan Xterra. The manual does not specify model years or body styles, so contact Curt Technical Support at 1-877-287-8634 to confirm your specific vehicle configuration.
As a weight-carrying hitch: 4,000 lbs trailer weight and 400 lbs tongue weight. As a weight-distribution hitch: 6,000 lbs trailer weight and 600 lbs tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
The hitch weight is 60 lbs.
No, drilling is not required. The hitch uses existing factory bolt holes and fasteners.
Required tools: 1/2" ratchet, torque wrench, 6" extension, 22mm socket, 19mm socket, 12mm socket, and 12mm wrench.
Yes, the spare tire must be lowered for ease of installation and then reinstalled after the hitch is secured.
Yes, the exhaust must be lowered by removing three bolts from the exhaust hanger bracket. These bolts are reused and the exhaust is reinstalled after the hitch is secured.
Torque all M12 fasteners to 86 lb-ft and all M14 fasteners to 136 lb-ft.
The Curt 13514 is designed for the Nissan Xterra and requires no drilling. However, the installation process requires lowering the spare tire and exhaust to clear the hitch during installation. Contact Curt Technical Support at 1-877-287-8634 to confirm compatibility with your specific model year and body style.
The hitch includes: four M12 hex tap bolts (part 10-10269), four 9/16" lock washers (part 30-00194), two M14 hex tap bolts (part 10-10275), and two 1/2" conical washers (part 30-00149). The lower bumper bracket bolts are removed and discarded; they are not reused.
1. Lower the spare tire. 2. Lower the exhaust by removing three bolts from the exhaust hanger bracket. 3. Remove the lower two bumper bracket bolts on both sides (discard them; do not remove the top bolt). 4. Raise the hitch into position over the exhaust and finger-tighten with M12 hex bolts and conical washers. 5. Install the remaining M14 hex bolts and lock washers through the hitch and bumper bracket. 6. Reinstall the exhaust hanger bracket. 7. Torque all M12 fasteners to 86 lb-ft and all M14 fasteners to 136 lb-ft. 8. Reinstall the spare tire.
The exhaust must be lowered to provide clearance for the hitch to be raised into position. The exhaust hanger bracket is removed by taking out three bolts, and these bolts are reused to reinstall the bracket after the hitch is secured.
Remove only the lower two bumper bracket bolts on both sides of the vehicle. Do not remove the top bolt. The lower bolts are discarded and not reused.
All M12 fasteners must be torqued to 86 lb-ft.
All M14 fasteners must be torqued to 136 lb-ft.
Yes. After raising the hitch into position over the exhaust, finger-tighten the M12 hex bolts and conical washers first. Then install the M14 hex bolts and lock washers. Finally, torque all M12 fasteners to 86 lb-ft and all M14 fasteners to 136 lb-ft.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval; consult your vehicle manufacturer's maintenance schedule or contact Curt Technical Support at 1-877-287-8634 for recommended intervals.
Do not exceed your vehicle manufacturer's recommended towing capacity, even if the hitch capacity is higher. The Curt 13514 supports up to 4,000 lbs trailer weight and 400 lbs tongue weight as a weight-carrying hitch, or 6,000 lbs trailer weight and 600 lbs tongue weight as a weight-distribution hitch.
Curt Manufacturing warrants the hitch to be free of defects in material and workmanship at the time of retail purchase by the original purchaser. If defective, Curt may repair or replace the product at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation.
Yes, the Curt 56226 is designed for Nissan Frontier, Pathfinder, and Xterra, as well as Suzuki Equator. It is classified as a SUV/Mini & Full-Sized Van (S) connector. Verify your vehicle model matches the application list before purchasing.
Yes, the Curt 56226 custom wiring connector is compatible with the Suzuki Equator. It is designed for SUVs, Mini & Full-Sized Vans in the S category.
You will need a panel trim removal tool and a flat blade screwdriver. These are the only tools specified in the installation instructions.
The Curt 56226 includes a custom wiring connector with relays, a 7-way harness connector, cable ties for securing loose wires, and a 4-flat dust cover to help prevent corrosion. A bracket for mounting the 7-way end is not included and must be sourced separately.
Yes, you must disconnect the negative battery terminal before beginning installation. This is the first step in the installation process.
The vehicle 12-pin wiring connector is located behind the passenger side kick panel. You must first remove the sill plate by pulling upwards on the front passenger side, then remove the kick panel to access the connector. The connector will be similar to the one on the harness with the relays.
Insert the custom wiring connector with relays fully into the vehicle 12-pin connector, ensuring the locking tabs are in place. Secure any loose wires with the provided cable ties.
The vehicle factory tow plug is located on the driver side, along the frame rail behind the rear bumper. Remove the protective cap carefully, taking care not to damage the locking tabs.
Insert the 7-way harness connector into the vehicle tow harness connector, ensuring the locking tab is in place. The connector will be similar to the one on the 7-way harness.
Route the 7-way connector to the center of the vehicle. Mount the 7-way end in an accessible location using a bracket (not included). Secure any loose wires with the provided cable ties.
Reinstall all items removed during installation, reconnect the negative battery terminal, and install the provided 4-flat dust cover to help prevent corrosion.
Test for proper function by using a test light or by connecting a properly wired trailer. All steps must be followed to ensure the wiring connector will function properly.
Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating and potential fire. Refer to your vehicle owner's manual or contact the vehicle manufacturer for specific lamp load rating information.
Yes, the Curt 56226 is designed for these vehicles in the SUV/Mini & Full-Sized Van (S) category.
Tools: panel trim removal tool and flat blade screwdriver. Included parts: custom wiring connector with relays, 7-way harness, cable ties, and 4-flat dust cover. You must source a bracket separately for mounting the 7-way end.
Do not exceed the product rating or tow vehicle lamp load rating, whichever is lower. Exceeding the rating can cause loss of warranty, overheating and potential fire.
