Includes mounting hardware & plug & play harness

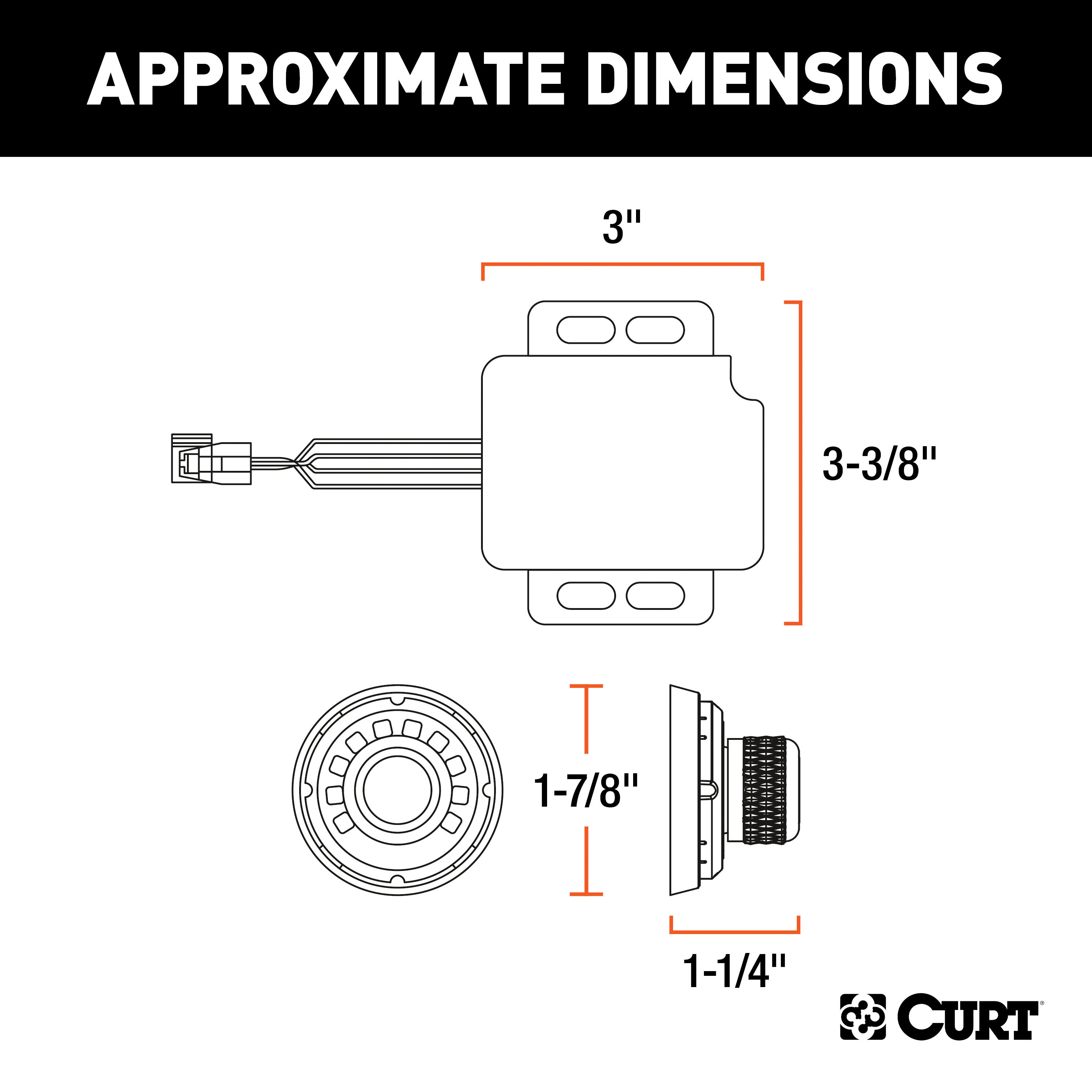

Knob outside diameter is 1.9"
Patent #10,960,860
Includes mounting hardware & plug & play harness
Warranty: Limited Lifetime
Installation Time Exact (Minutes): 0

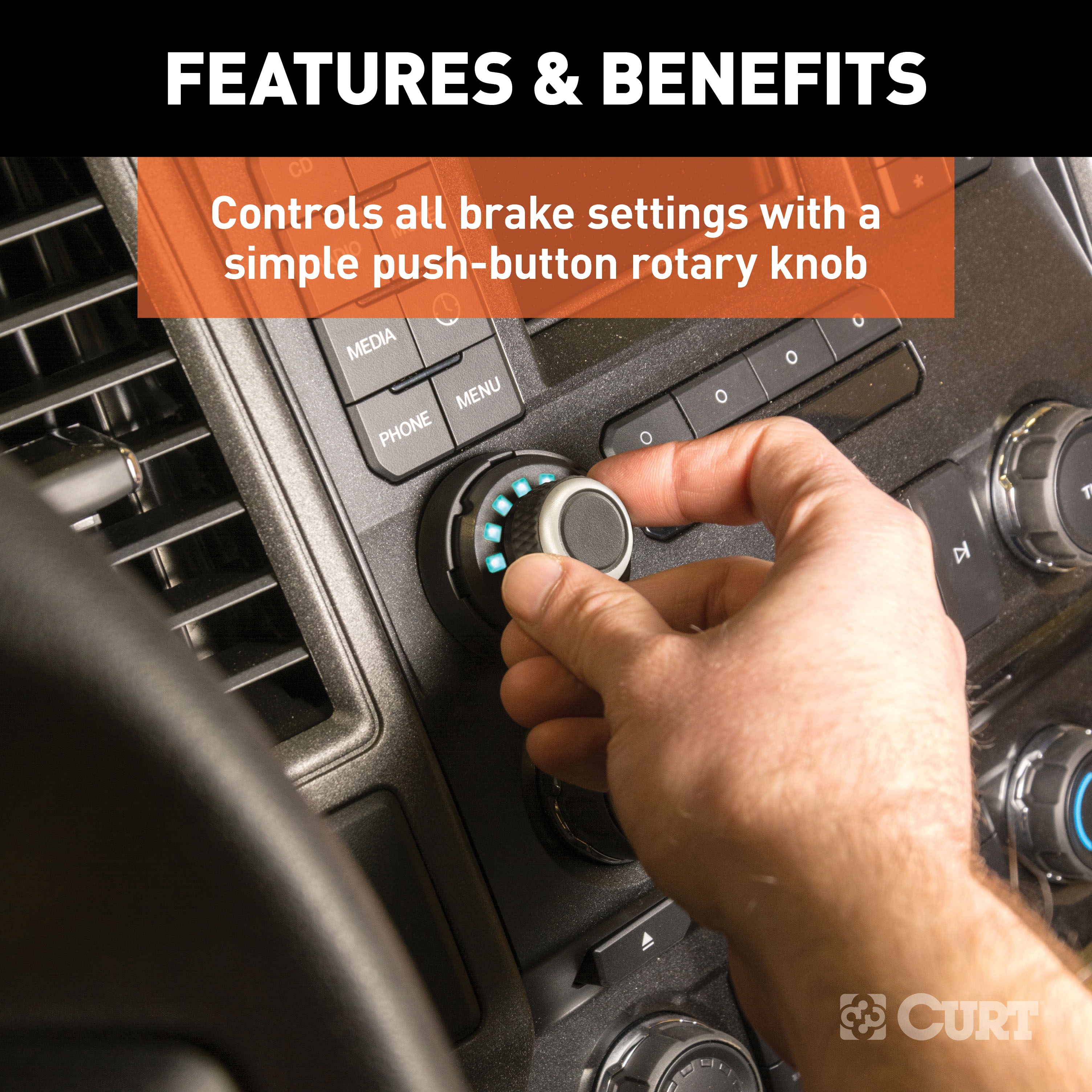

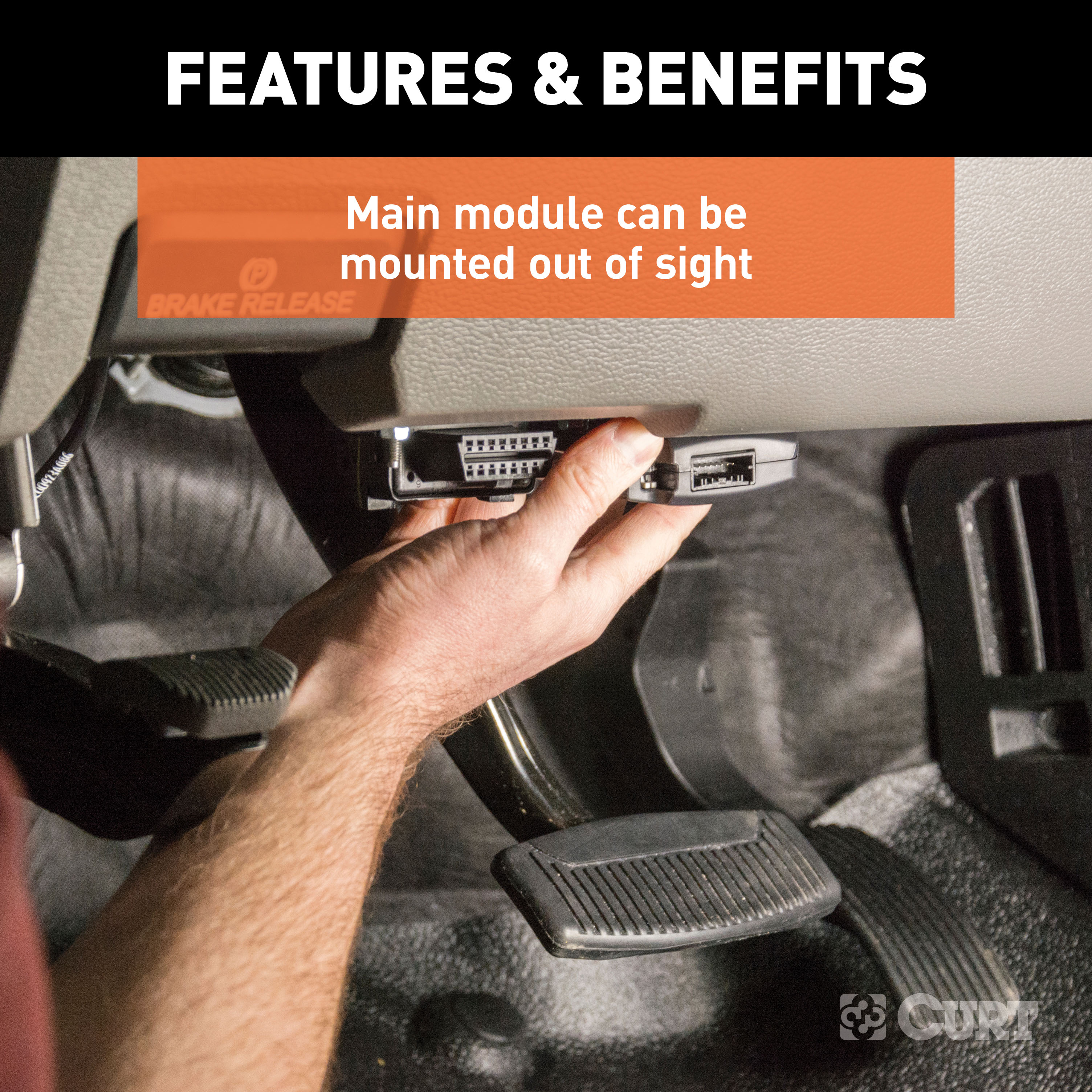

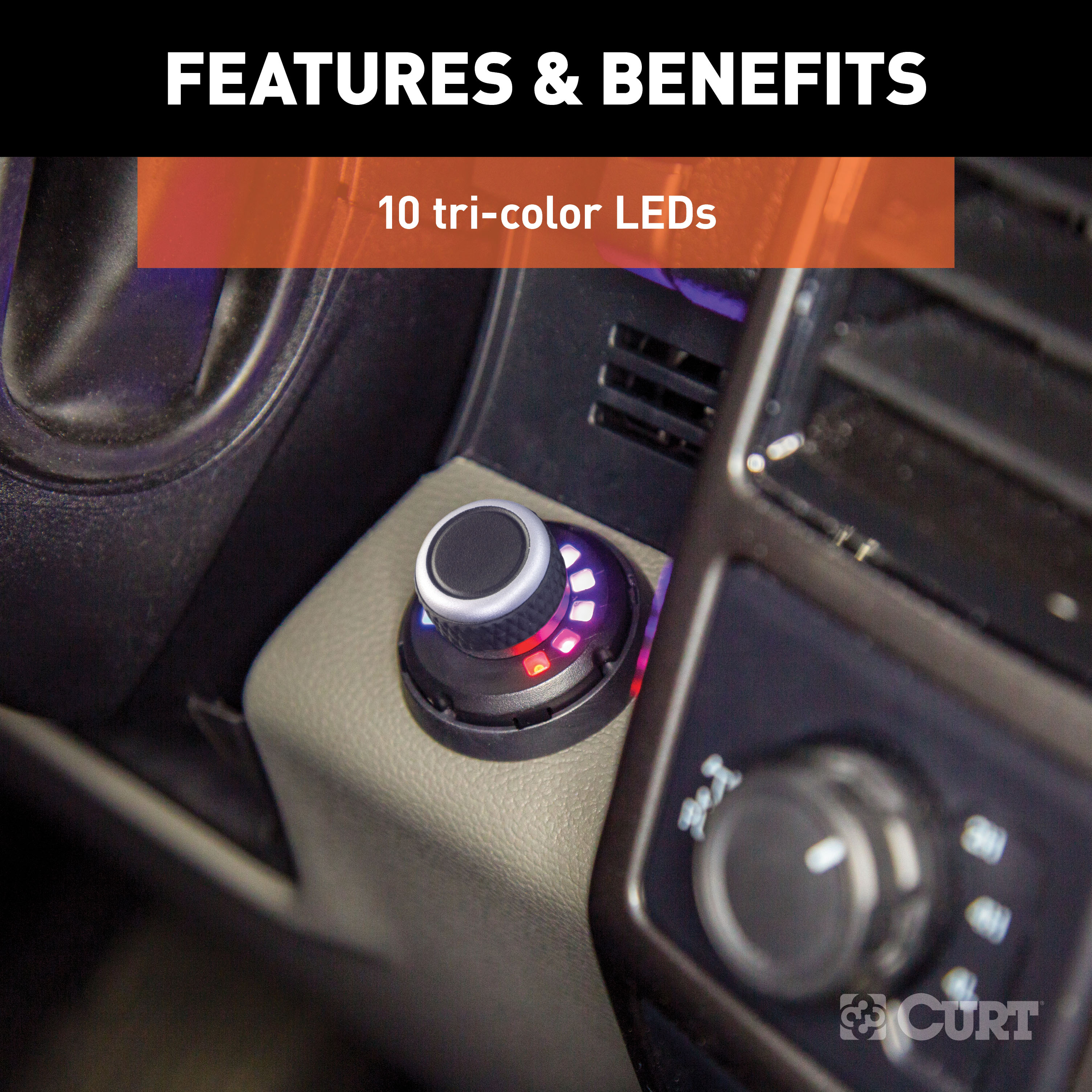

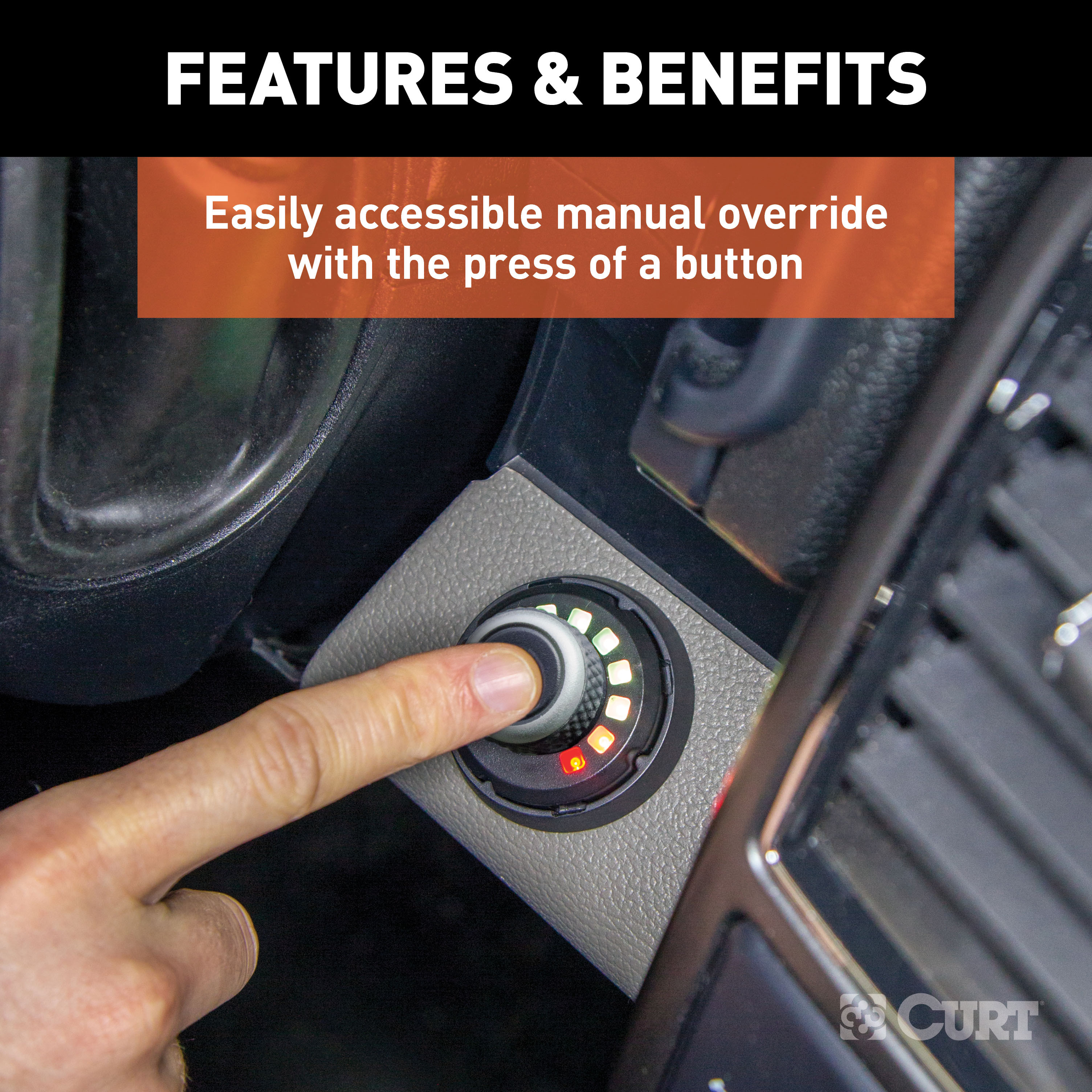

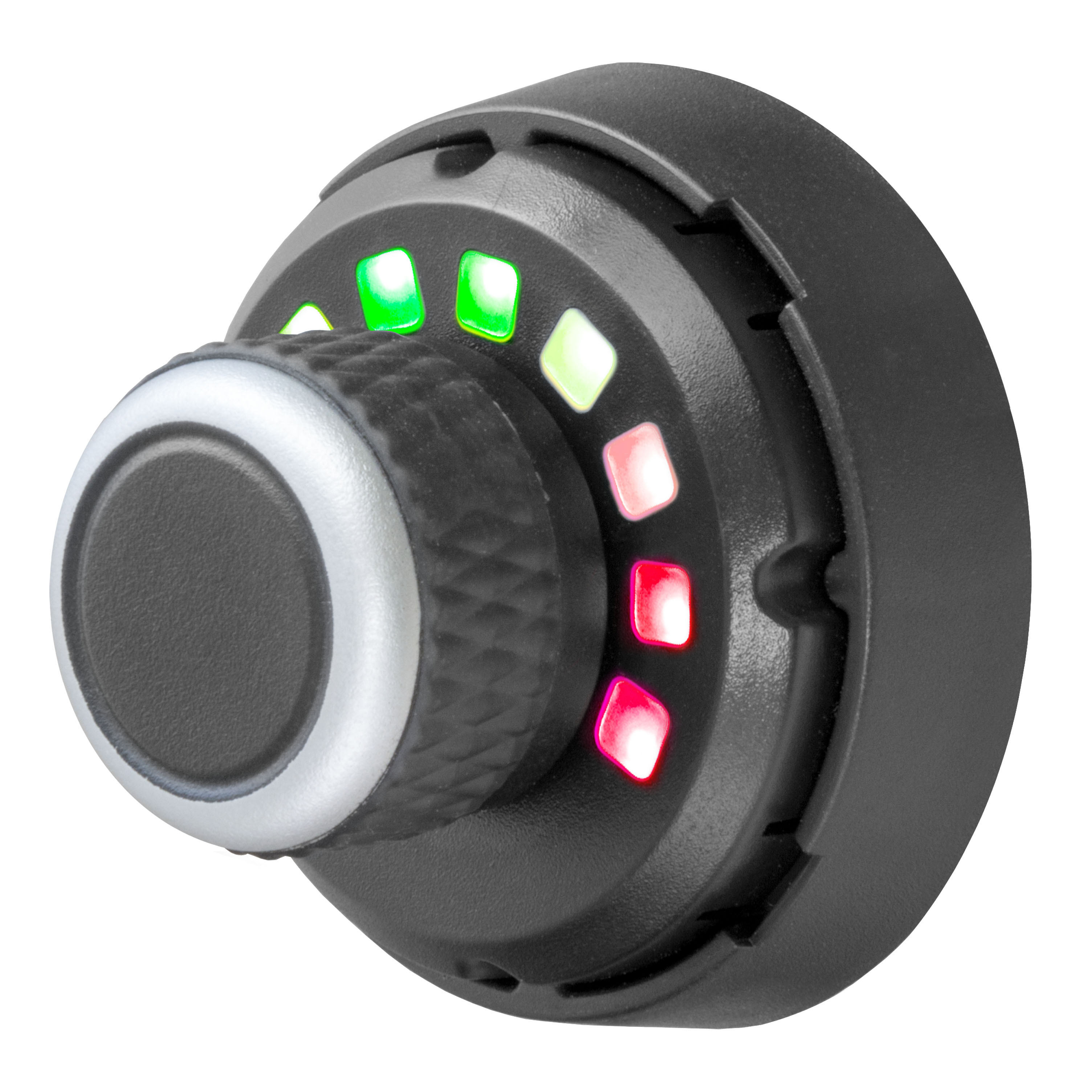

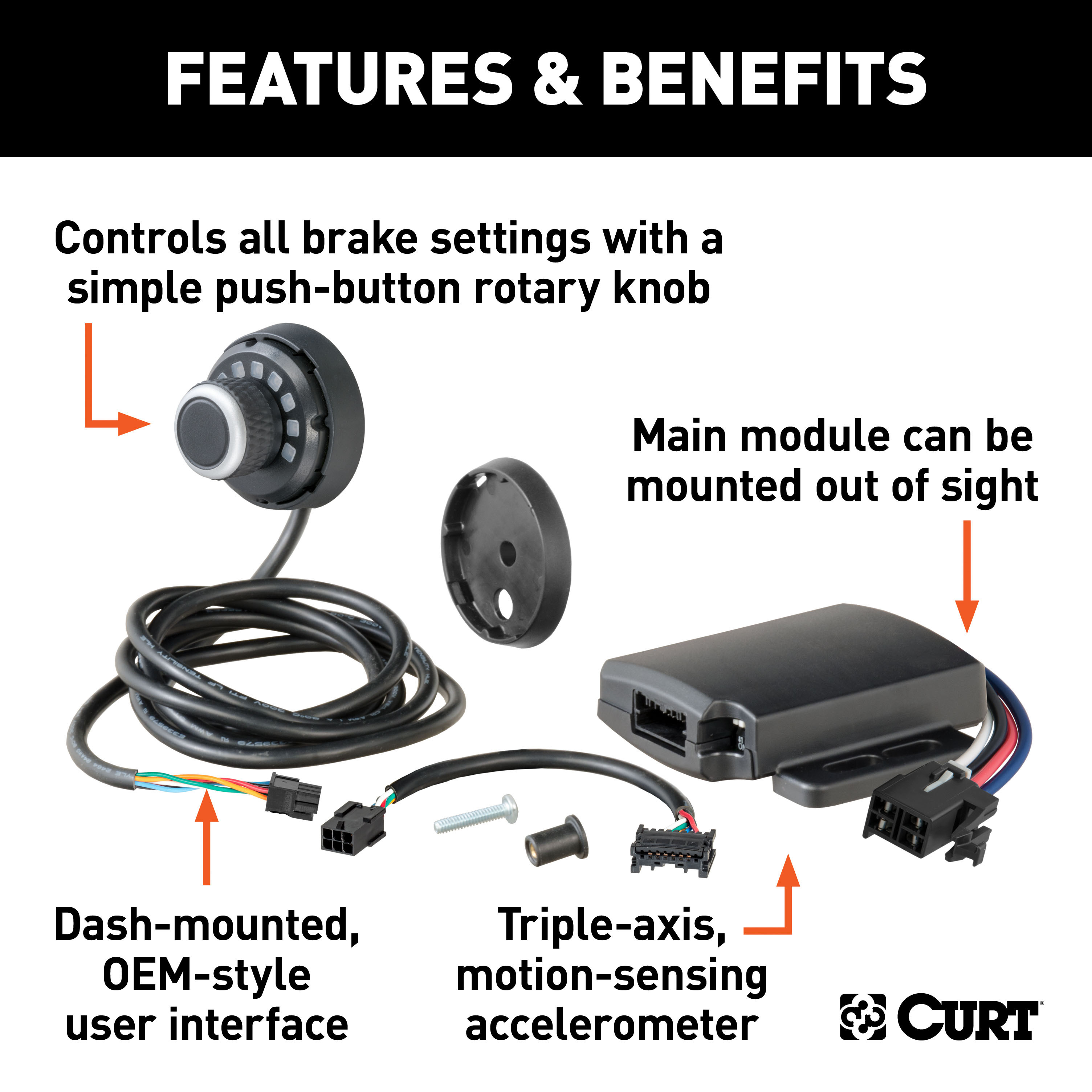

The CURT Spectrum trailer brake controller provides powerful brake operation while maintaining a clean, consistent OE look and feel on the dash of your vehicle. It is comprised of a main module and a separate user interface. This interface is a simple rotary knob with a push-button and ten tri-color LEDs to control and monitor all trailer brake activity. It also features a triple-axis accelerometer for highly responsive, smooth stops on any grade. The separated module and interface of the Spectrum brake controller allow it to integrate with the vehicle unlike any other. The main module can be mounted behind the dash and completely out of sight. The separate rotary knob provides a sleek, subtle interface that mounts on the dash of the vehicle wherever desired. It features ten LEDs with three colors each (red, green and blue) to indicate trailer brake activity and power adjustment. The rotary knob and integrated push-button allow for simple and effective operation of the control settings and manual adjustment. The Spectrum trailer brake controller offers superior safety and helps protect the life of your vehicle and trailer with its advanced triple-axis accelerometer. This integrated circuit detects the motion of the vehicle and trailer when making stops and applies the precise amount of brake power for maximum efficiency and effectiveness. The three axes of the circuit also enable the brake control to compensate when going up or down a hill. Like most CURT brake controllers, the Spectrum installs using one of our vehicle-specific quick plug harnesses. It also has automated leveling and calibration capabilities to simplify and speed up the installation process. The Spectrum trailer brake controller comes with mounting hardware for a complete installation.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2025 | Honda Pilot | — |

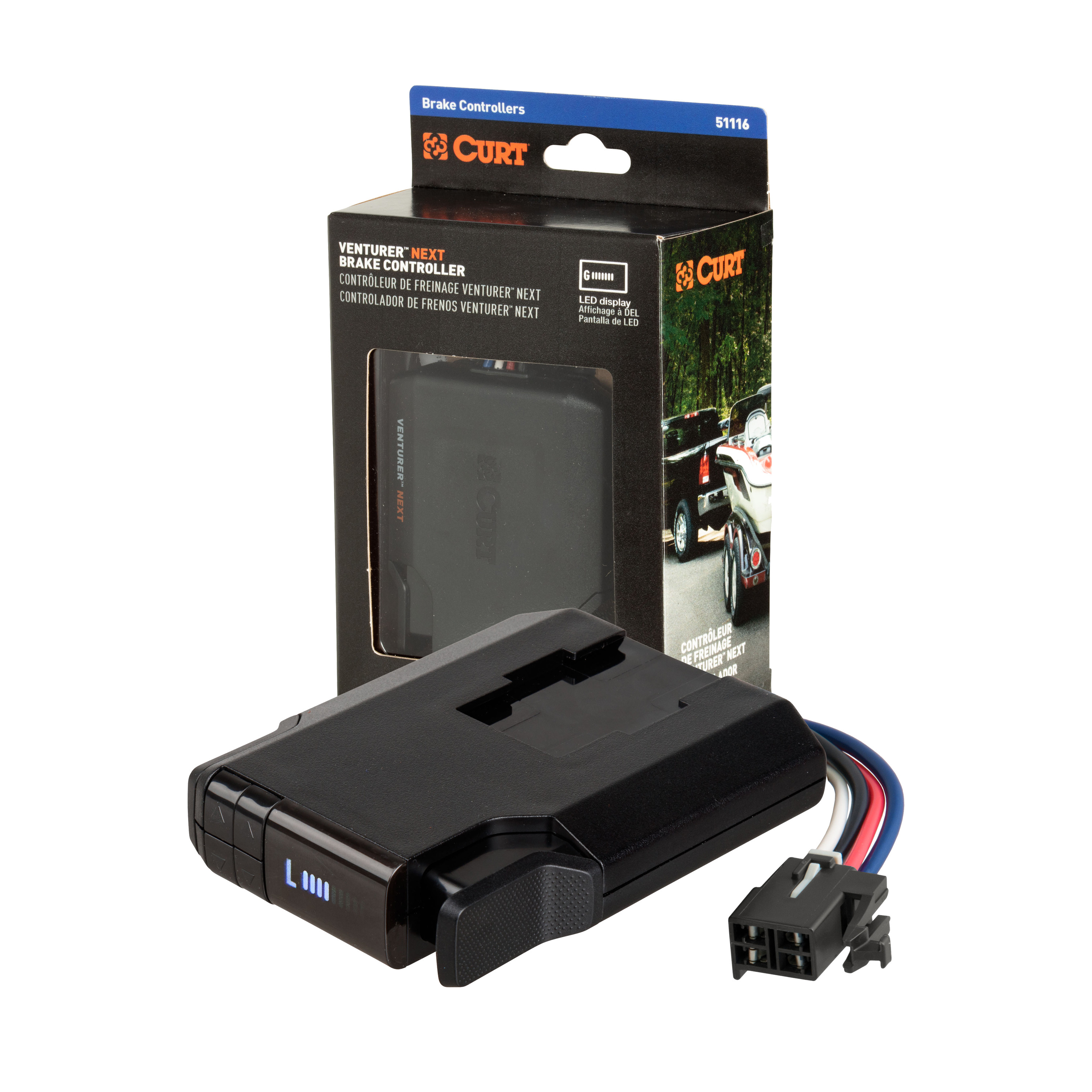

The 2009-2025 Honda Pilot CURT Venturer NEXT Time-Delay Trailer Brake Controller for 1-3 Axles #51116 (Part #CURTBC1923) fits the following vehicles: 2009-2025 Honda Pilot. Always verify your specific year, make, and model before ordering.
The 2009-2025 Honda Pilot CURT Venturer NEXT Time-Delay Trailer Brake Controller for 1-3 Axles #51116 (Part #CURTBC1923) fits 2009-2025 Honda Pilot models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 2009-2025 Honda Pilot CURT Venturer NEXT Time-Delay Trailer Brake Controller for 1-3 Axles #51116 (Part #CURTBC1923) is designed to fit the 2009-2025 Honda Pilot.
The 2009-2025 Honda Pilot CURT Venturer NEXT Time-Delay Trailer Brake Controller for 1-3 Axles #51116 (Part #CURTBC1923) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

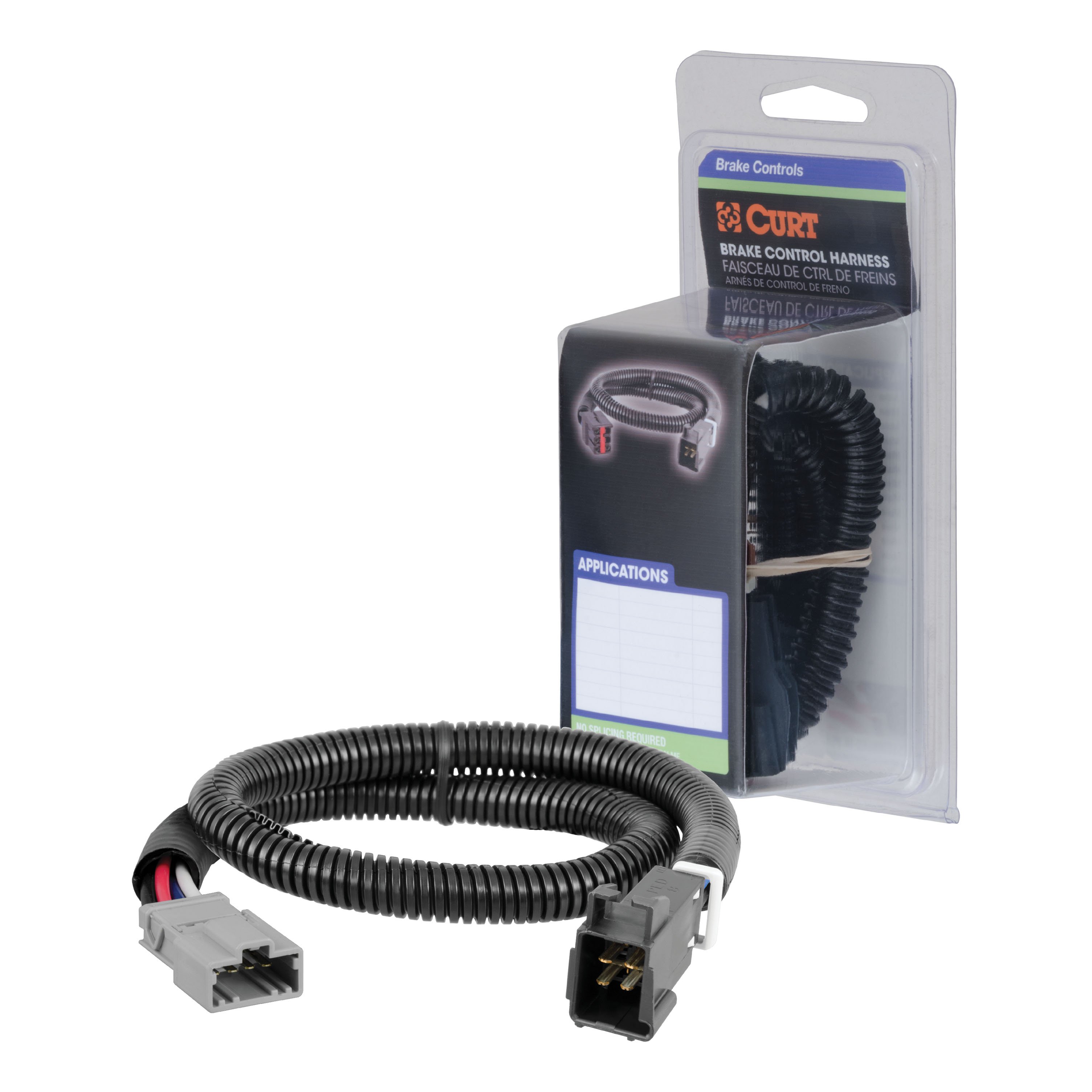

Yes, the CURT brake control harness (51392 or 51393) is designed for Honda Pilot vehicles. Your vehicle must have a 4-pin brake control harness connector located under the dash, to the left of the steering column, near the emergency brake pedal.
The CURT brake control harness (51392 or 51393) is compatible with Honda Ridgeline models that have a factory tow package. If your Ridgeline does not have the factory tow package, it will not have the required 4-pin brake control harness connector.
Only if your vehicle does not supply power to the brake control harness. If power is not available at the 4-pin connector under the dash, you will need to install the universal brake control wiring kit (#51500) following its separate installation instructions to route power to the harness.
The 4-pin vehicle brake control harness connector is located under the dash, to the left of the steering column, near the emergency brake pedal. It will be taped to another harness. The connector will be similar in appearance to the connector on the CURT brake control harness.
1. Locate the 4-pin vehicle brake control harness connector under the dash, left of the steering column, near the emergency brake pedal. 2. Insert the connector on the CURT brake control harness into the vehicle connector, ensuring it is fully inserted with locking tabs in place. 3. Insert the brake control harness's black connector into the brake control's quick plug connector. 4. Secure the harness with the provided cable ties, avoiding pinch points.
The manual confirms that cable ties are provided with the harness to secure it in place, avoiding pinch points. Specific quantities, colours, or sizes are not specified in the manual.
After installation, you must test the brake control harness for proper function by following the brake control unit instruction manual. Mount the brake control unit as directed in its manual and perform all test procedures as instructed. All installation steps must be followed to ensure the harness functions properly.
Yes, it fits Honda Pilot and Honda Ridgeline with factory tow package. Your vehicle must have a 4-pin brake control harness connector under the dash, left of the steering column.
The harness includes a 4-pin connector, black quick-plug connector, and cable ties for securing the harness. Specific tool requirements are not listed in the manual.
Only if your vehicle does not supply power to the brake control harness connector. If power is not available, install kit #51500 following its separate instructions.
Yes. All steps must be followed to ensure proper function. Test the harness by following the brake control unit instruction manual and perform all test procedures as instructed.
