2010-2024 Lexus GX460 Voyager Proportional Brake Controller for Trailers with 1?4 Axles, Black 9030Tekonsha$160.23In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Raybestos
Verify Fitment
Select your vehicle to confirm this part fits.
2010 - 2024 Lexus GX460
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

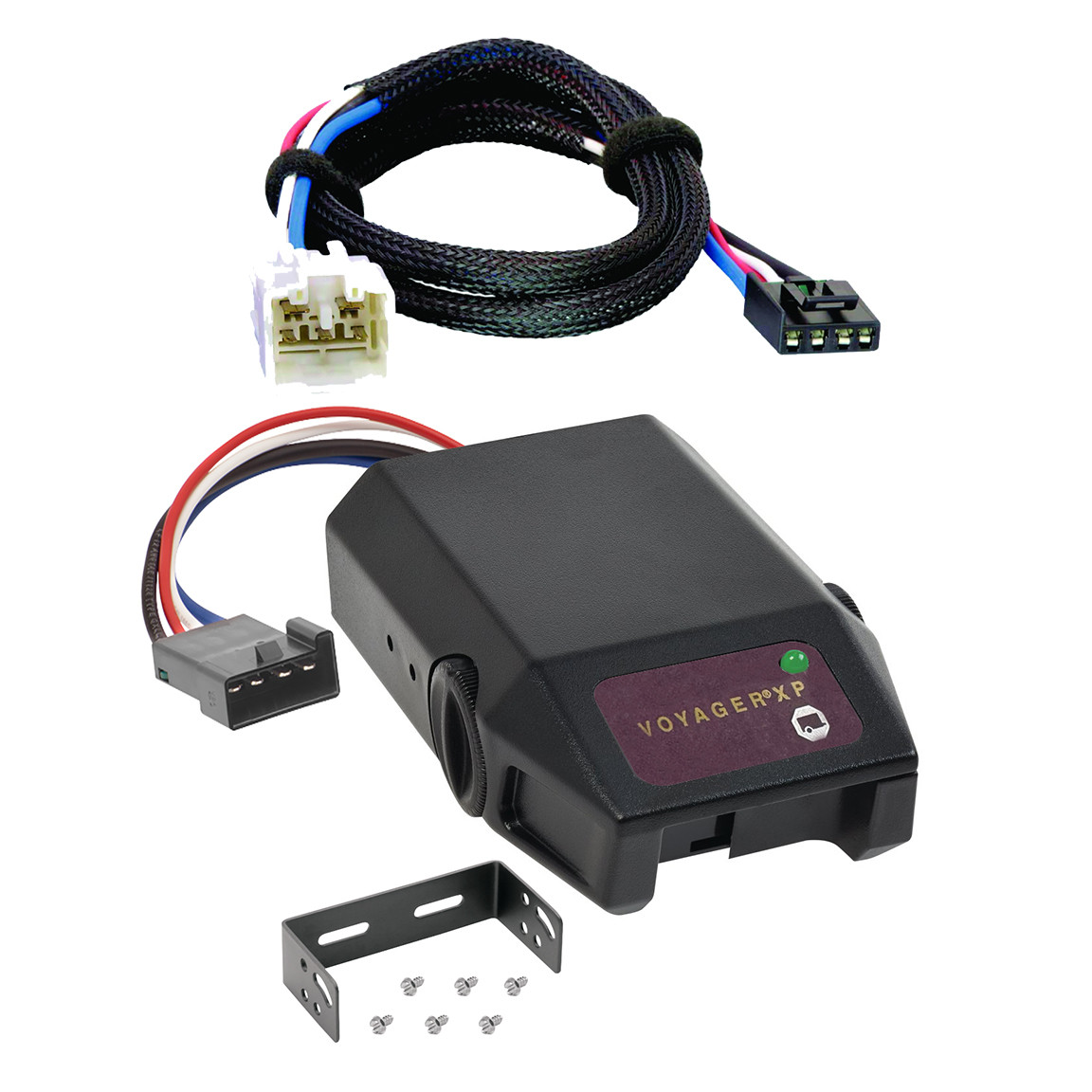

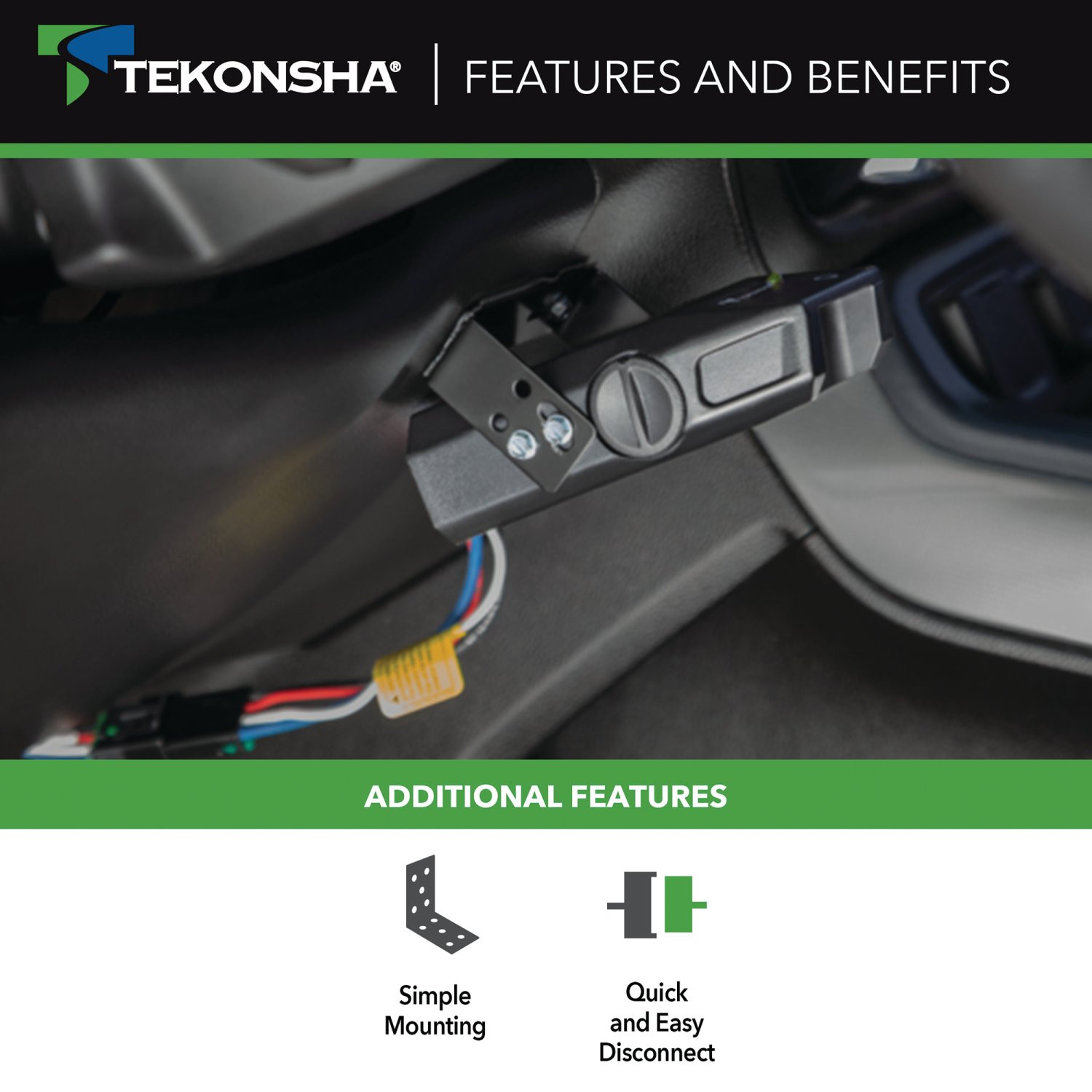

The Raybestos Voyager XP electric brake controller provides secure trailer braking when you need it most. As a tried-and-true proportional brake controller, the Voyager XP utilizes patented braking sensor technology and advanced electronics to provide a smooth braking response in any stopping situation. Its bi-colored LED brake indicator assures a complete connection between your vehicle and trailer, with the color changing gradually from green, which notes a completed circuit, to red to indicate relative braking power. This versatile controller has a compact design, a conveniently located power control knob to adjust settings, and a simple level knob for easy leveling during installation. Plus, the Voyager has a Plug & Play feature that allows for quick and easy connection with your vehicle?s wiring. The Raybestos Voyager XP trailer brake controller works with 1-4 axle trailers, comes with all the mounting hardware needed for installation.
| BRAND: | RAYBESTOS |
| PART NUMBER: | 761-9035 |
| WEIGHT: | 0.7 LBS |
| MATERIAL: | PLASTIC |
| BRAKE CONTROL TYPE: | PROPORTIONAL |
| TRAILER BRAKE WHEEL QUANTITY: | UP TO EIGHT WHEELS |
| LEVELING CAPABLE: | YES |
| BRAKE TYPE: | Electric |
| Diagnostic Capable: | YES |
| DISPLAY TYPE: | LED OUTPUT |
| HYDRAULIC CONNECTIONS: | NO |
| SOLID STATE CONSTRUCTION: | YES |
| CIRCUIT BREAKER PROTECTED: | YES |
| HOUSING COLOR: | BLACK |
| BRACKET INCLUDED: | YES |
Experts available to answer your questions
Call 888-634-94941 Year
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 - 2024 | Lexus GX460 | — |
Yes, the 2010-2024 Lexus GX460 Voyager XP Proportional Brake Controller for Trailers with 1?4 Axles, Black 761-9035 (Part #761-9035 70316) is designed to fit the 2010-2024 Lexus GX460.
The 2010-2024 Lexus GX460 Voyager XP Proportional Brake Controller for Trailers with 1?4 Axles, Black 761-9035 (Part #761-9035 70316) fits 2010-2024 Lexus GX460 models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The 2010-2024 Lexus GX460 Voyager XP Proportional Brake Controller for Trailers with 1?4 Axles, Black 761-9035 (Part #761-9035 70316) fits the following vehicles: 2010-2024 Lexus GX460. Always verify your specific year, make, and model before ordering.
The 2010-2024 Lexus GX460 Voyager XP Proportional Brake Controller for Trailers with 1?4 Axles, Black 761-9035 (Part #761-9035 70316) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

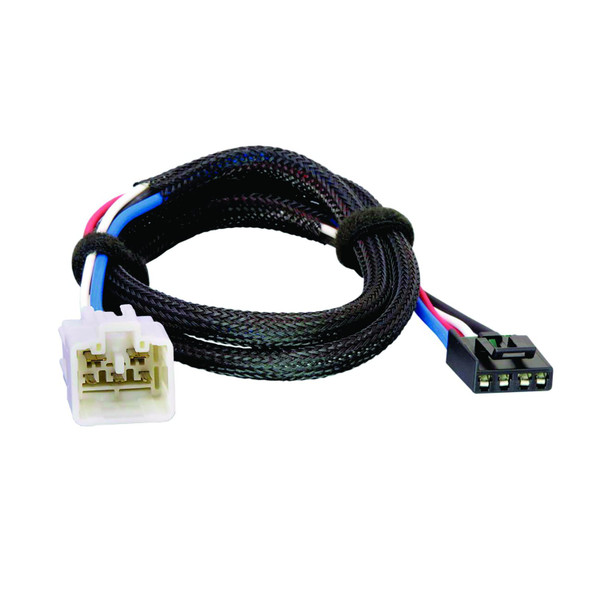

The 18285-037 is a wiring adapter that connects an electric trailer brake control to a vehicle's factory electric brake control harness. It allows you to plug a brake control unit into your vehicle's existing 5-pin brake control connector without modification to the vehicle's original wiring.
No. The adapter is designed for vehicles that have an electric brake control harness with a 5-pin connector located underneath and to the left of the steering column, taped to another harness near the emergency brake pedal. Check your vehicle for this harness before purchasing.
The harness is located underneath and to the left of the steering column. It will be taped to another harness near the emergency brake pedal. Look for a 5-pin connector on this harness that matches the one on the adapter.
The adapter includes an eyelet and screw for securing the white ground wire. These are used to attach the ground wire to a grounding point near the brake control harness connector.
The manual does not specify whether the battery must be disconnected. Consult the brake control manufacturer's installation instructions, which you must follow as part of the complete installation process.
First, plug the brake control adapter into the mating receptacle on the backside of the brake control unit. Then attach the adapter to the vehicle's 5-pin electric brake control harness connector. This sequence prevents accidental connection to the wrong connector.
Locate a suitable grounding point near the brake control harness connector, such as an existing ground stud. If no suitable point exists, drill a 3/32" hole and secure the white wire using the eyelet and screw provided. Clean dirt and rustproofing from the area before securing. Do not drill into the vehicle floor or bed.
Drilling is required only if no suitable existing ground stud is available near the brake control harness connector. If drilling is necessary, drill a 3/32" hole for the white ground wire. Do not drill into the vehicle floor or bed. Clean the area of dirt and rustproofing before drilling.
The adapter supports a maximum of 4 axles with 8 brakes (24 amps). Do not exceed the lower of your towing manufacturer's rating or this limit. Exceeding this capacity can cause circuit overload and fire risk.
Wear safety glasses during installation. Read and follow all vehicle warnings and installation instructions before beginning. Follow all brake control manufacturer's installation instructions and perform test procedures as instructed. Do not drill into the vehicle floor or bed. Do not exceed the maximum brake capacity (4 axles, 8 brakes, 24 amps) to prevent fire risk.
After installation, you must perform test procedures as instructed by the brake control manufacturer. The manual requires that you complete the installation per the electric brake control manufacturer's instructions and mount the unit as directed before testing.
The adapter fits vehicles with a 5-pin electric brake control harness located under the steering column, left side, near the emergency brake pedal. Check your vehicle for this connector before purchasing.
Drilling is only required if no existing ground stud is available. If needed, drill a 3/32" hole for the white ground wire. Do not drill into the vehicle floor or bed.
Maximum 4 axles with 8 brakes (24 amps). Do not exceed the lower of your towing manufacturer's rating or this limit to prevent fire risk.
Plug the adapter into the brake control unit first, then connect it to the vehicle's 5-pin harness connector. Ground the white wire to an existing stud or a 3/32" drilled hole.
The adapter includes an eyelet and screw for grounding the white wire to a suitable point near the brake control harness connector.
