Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
This fits: 2011-2013 Ram 2500 All

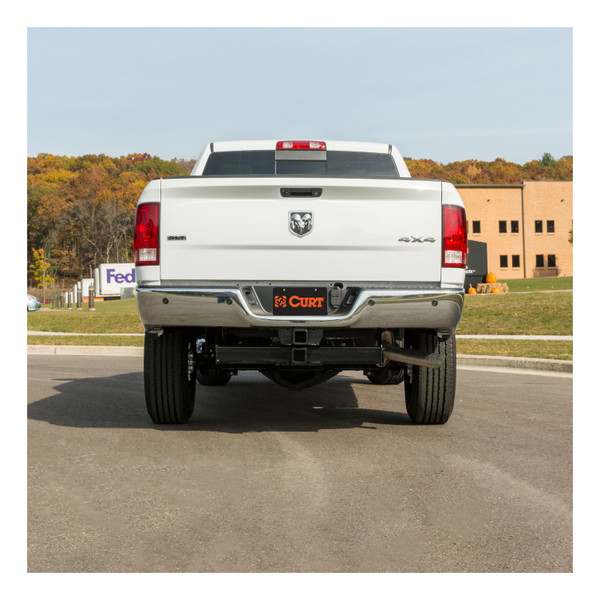

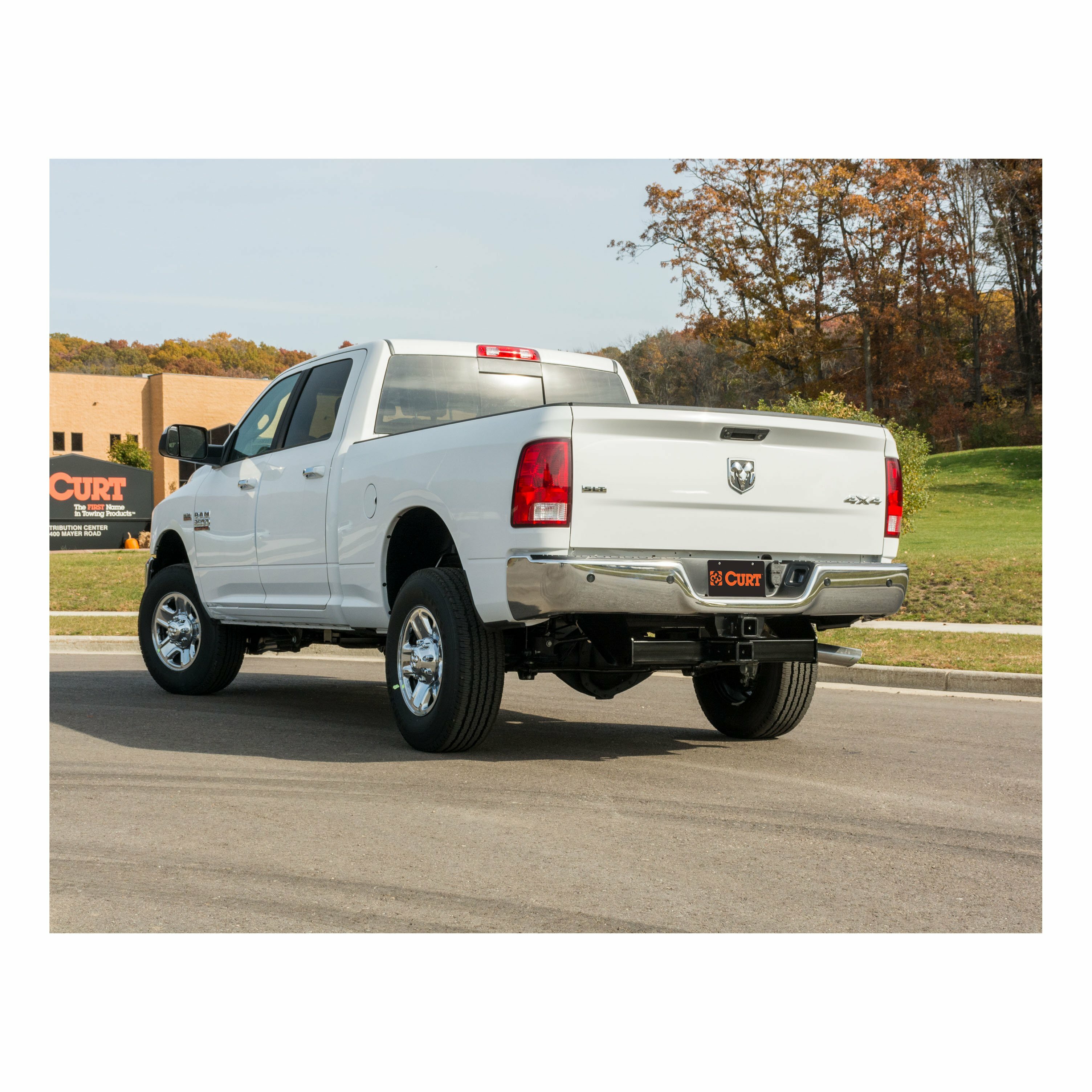

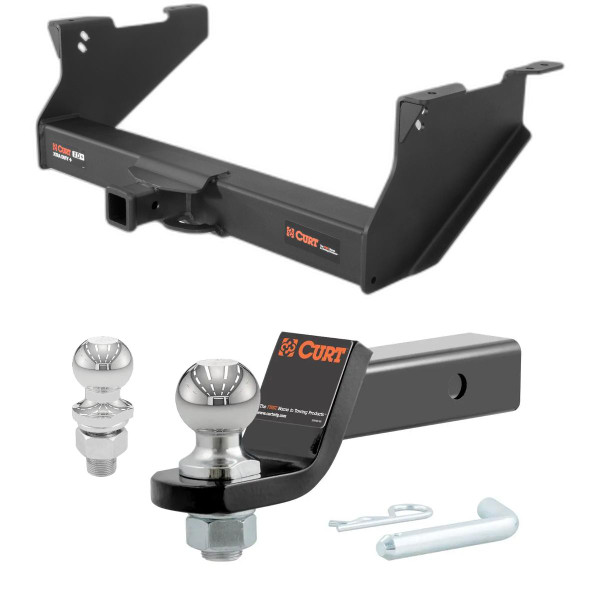

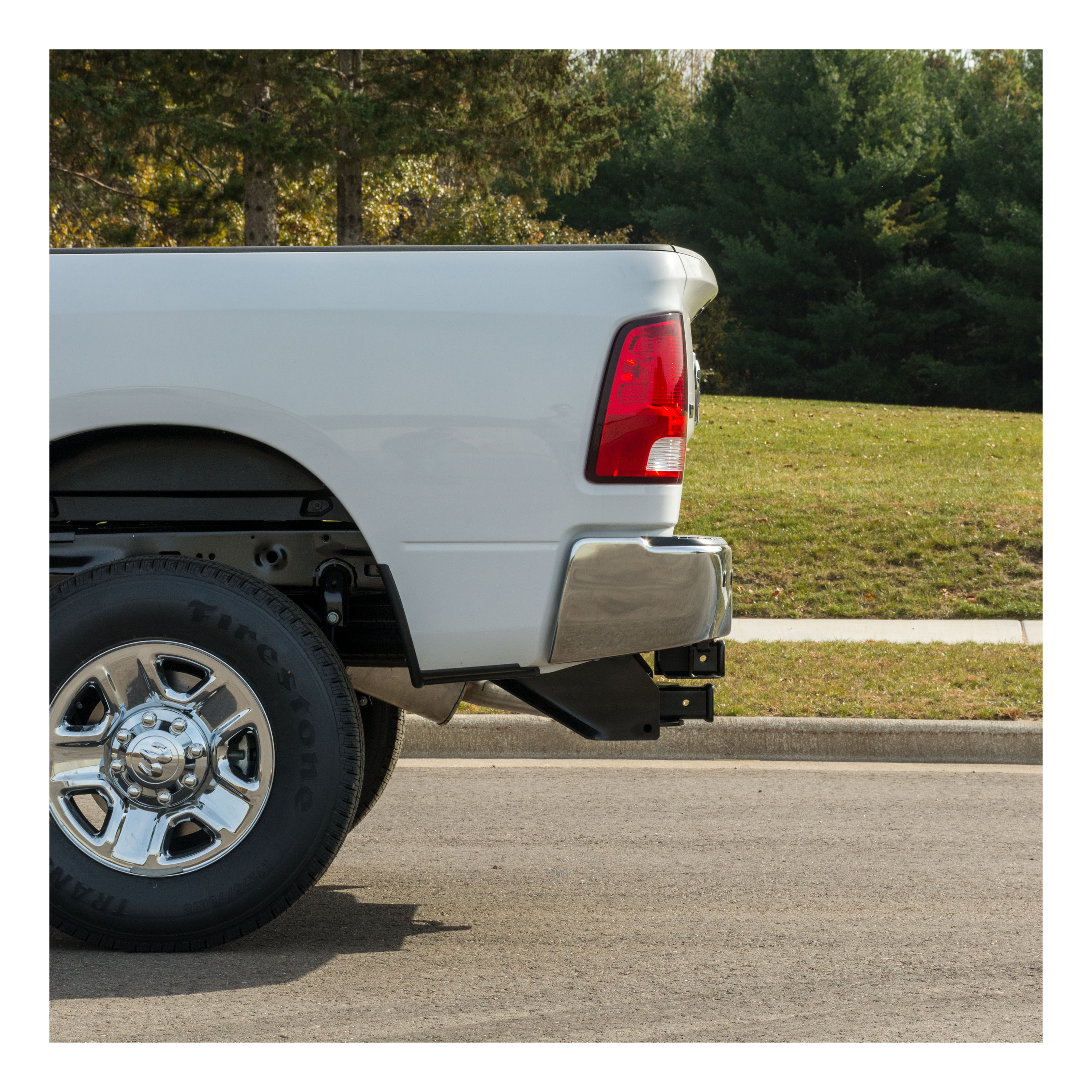

When we came to the limits of towing capacity, we wanted to know what else was out there. What could we discover off the beaten path? So, we kept going. CURT class 5 Xtra Duty hitches begin a class of their own, beyond class 4 and beyond anything the standards dictate. They are designed for the hard road where only full-size pickup trucks, vans and SUVs dare to tread. They are capable of pulling almost any heavy-duty trailer, including toy haulers, dump trailers, logging trailers, small yacht trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular Xtra Duty class 5 trailer hitch offers a gross trailer weight capacity of 17,000 lbs. and an extra-high tongue weight capacity of 2,550 lbs. It features a 2" x 2" receiver tube opening to accept a ball mount or hitch-mounted accessory, such as a cargo carrier or winch mount. It is designed to be a custom-fit trailer hitch for certain years of the Ram 2500 or 3500 and Dodge Ram 1500, 2500 or 3500 (to verify compatibility with your vehicle, see application info). For a little extra towing power and stability, this class 5 hitch can also be used in combination with a weight distributing hitch. It is rated for 17,000 lbs. WD and 2,550 lbs. WDTW. In our drive to create a more powerful hitch, CURT has not neglected the finer details. Our class 5 trailer hitches are welded with precision and go through multiple stages of cleaning to create a smooth surface that is ready to accept our co-cured finish. To protect them from corrosion, chipping and UV damage, these hitches are immersed in a liquid A-coat and then finished in a high-quality black carbide powder coat. They come with grade-8 mounting hardware for solid installation.
Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
Includes strong, grade-8 installation hardware
2011, 2012, 2013 Ram 2500 All Xtra Duty Class 5 Trailer Hitch, 2" Receiver, Select Dodge, Ram 1500, 2500, 3500
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2013 | Ram 2500 | — |
Part 15409 fits 2003-current Dodge Ram 2500/3500 models and 2003-2008 Dodge Ram 1500 models built after November 2002. It works with or without an OEM receiver already installed. Fitment depends on bed length: long bed and short bed vehicles use different mounting holes on the hitch side plates.
Yes, part 15409 works with or without an OEM receiver. However, if your vehicle is equipped with a factory hitch, you may need to loosen the hitch/bumper beam and push it toward the rear of the vehicle to create additional space for the Curt hitch during installation.
The hitch weight is 30 lbs.
You will need a socket wrench, torque wrench, 8 inch socket extension, and 13/16" and 7/8" sockets.
The kit includes: 2 HHCS 9/16-12 UNC Grade 8 bolts (part 10-10500), 2 pieces of 9/16" fishwire, 2 flat washers 9/16" (part 30-00202), 6 serrated flange nuts 9/16-12 UNC Grade 8 (part 20-00104), 4 carriage bolts 9/16-12 UNC 1-3/4" Grade 8 (part 10-10328), 2 spacers .313 x 2.13 x 2.13" with 9/16" square hole (part CM-SP68), 2 spacers .313 x 1.50 x 3.00" with 9/16" square hole (part CM-SP74), and 6 spacers .188 x 1.25 x 1.50" with round hole (part CM-SP8).
No, drilling is not required. The manual states "No drilling required."
Raise the hitch into position by aligning the holes in the hitch side plates with the holes in the frame rails. The correct hole alignment depends on your vehicle's bed length: long bed vehicles use the frontmost hole, and short bed vehicles use the middle hole on the hitch side plates.
CM-SP74 spacers (.313 x 1.50 x 3.00" with 9/16" square hole) are slid through the ends of the frame rails and aligned with the front mounting holes. CM-SP68 spacers (.313 x 2.13 x 2.13" with 9/16" square hole) are slid through the ends of the frame rails and aligned with the rear mounting holes. Both spacers help position the hitch correctly on the frame.
Fishwire is used to thread 9/16" carriage bolts through access holes in the side of the frame rails and through the spacers. The fishwire helps guide the bolts through tight spaces during assembly. Two pieces of 9/16" fishwire are included in the kit.
After torquing the carriage bolts to 150 lb-ft, align the slots in the hitch side plates with the slots in the vehicle tow loops. Install 9/16" hex bolts and flat washers through the hitch side plates and tow loops. Install enough CM-SP8 spacers (.188 x 1.25 x 1.50" with round hole) between the tow loops and hitch side plates to prevent the tow loops from pulling into the hitch when the bolts are tightened. Secure with 9/16" hex flange nuts and torque to 150 lb-ft.
Align the slots in the hitch side plates with the slots in the vehicle tow loops. Ram 1500 models use the bottom slot on the hitch side plate. Ram 2500/3500 models use the top slot on the hitch side plate.
All 9/16" hardware on part 15409 is torqued to 150 lb-ft. This includes the carriage bolts connecting the hitch to the frame rails (step 7) and the hex bolts connecting the hitch to the tow loops (step 11).
The manual lists gross load capacity when used as a weight-carrying hitch and when used as a weight-distribution hitch, but the specific trailer weight and tongue weight values are not filled in on this manual. You must not exceed your vehicle manufacturer's recommended towing capacity. Contact Curt Manufacturing technical support at 1-877-287-8634 for the specific capacity ratings.
After installation, ensure all fasteners are tight and all structural components are sound. Periodically check the receiver hitch to ensure that all fasteners remain tight and that all structural components are sound during use.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. The manual does not specify an exact interval, but regular inspection before towing is recommended.
Part 15409 fits 2003-current Dodge Ram 2500/3500 and 2003-2008 Dodge Ram 1500 models built after November 2002, with or without an OEM receiver.
You need a socket wrench, torque wrench, 8 inch socket extension, and 13/16" and 7/8" sockets.
All 9/16" hardware is torqued to 150 lb-ft.
No, part 15409 works with or without an OEM receiver. You may need to loosen and push the factory hitch toward the rear to create space.
Long bed vehicles use the frontmost hole; short bed vehicles use the middle hole on the hitch side plates.
Do not exceed your vehicle manufacturer's recommended towing capacity. Specific capacity ratings are not provided in this manual; contact Curt Manufacturing at 1-877-287-8634.
